AH Series

Drilling EDM Machines

The AccuteX AH Series are precision small hole drilling EDM machines built for toolmakers, mould shops and manufacturers who need accurate, repeatable hole drilling in hardened materials. Available in ZNC and CNC configurations, the series covers table travels from 300 x 200 mm up to 600 x 400 mm, with electrode diameters as fine as 0.1 mm. A high performance AccuteX Technology Controller and high efficient linear guide ways deliver consistent results across every model.

Price Guide: $45k +

Video

Highlights

Flushing Type as Standard

All models come standard with flushing type for efficient debris removal

Optional ATC

An optional 12-station Automatic Tool Changer for Unattended Operation

Precision Down to 0.1 mm

Drill holes using electrodes from 0.1 mm to 3.0 mm as standard, with an optional range extending to 6.3 mm, covering micro-hole and general drilling applications alike.

High Performance Controller

The controller paired with standard HP1+ Sparking Circuit and 5 μm XY linear scale resolution ensures stable, accurate machining across extended production runs

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Feature Summary

Built for Precision Small Hole Work

The AccuteX AH Series is purpose-built for drilling small, accurate holes in hardened steels, carbide, copper and other conductive materials. Whether you are producing injection mould venting holes, turbine blade cooling holes, wire-EDM start holes or general toolmaking features, the AH Series delivers the accuracy and repeatability the job demands.

Controller and Sparking Technology

Every AH Series machine ships with AccuteX’s high performance Technology Controller. The standard HP1+ Sparking Circuit and 5 μm XY linear scale resolution give operators fine control over spark parameters and real-time positional feedback. The result is consistent hole quality with minimal operator adjustment, even when working across batches of parts.

Motion System

High efficiency linear guide ways are fitted across the series, providing smooth, low-friction axis movement that contributes directly to positional accuracy and surface finish quality. On the CNC models, full multi-axis CNC interpolation enables programmed hole patterns and automated sequencing, while the ZNC models offer straightforward Z-axis numerical control for single-hole and simple-pattern work.

Automation Options

For shops looking to increase throughput without adding labour, the AH Series offers two key automation upgrades. The optional 12-station Automatic Tool Changer (ATC) allows the machine to cycle through multiple electrode sizes or replace worn electrodes without operator intervention. The optional 4 or 8-block Automatic Guide Changer (AGC) complements the ATC by automatically switching ceramic guide blocks to suit each electrode diameter. Together, these options support extended unattended machining cycles, making the AH Series a productive choice for repetitive, multi-hole applications.

Flushing and Breakthrough Detection

Flushing type operation is standard across all AH models, ensuring dielectric fluid is delivered effectively through the electrode tube to clear debris from the drilling zone. This promotes stable spark conditions and helps maintain drilling speed, especially in deep holes. An optional breakthrough function detects when the electrode passes through the workpiece, automatically stopping or retracting the Z-axis. This protects both the electrode and the workpiece surface below, reducing consumable waste and rework.

Range and Flexibility

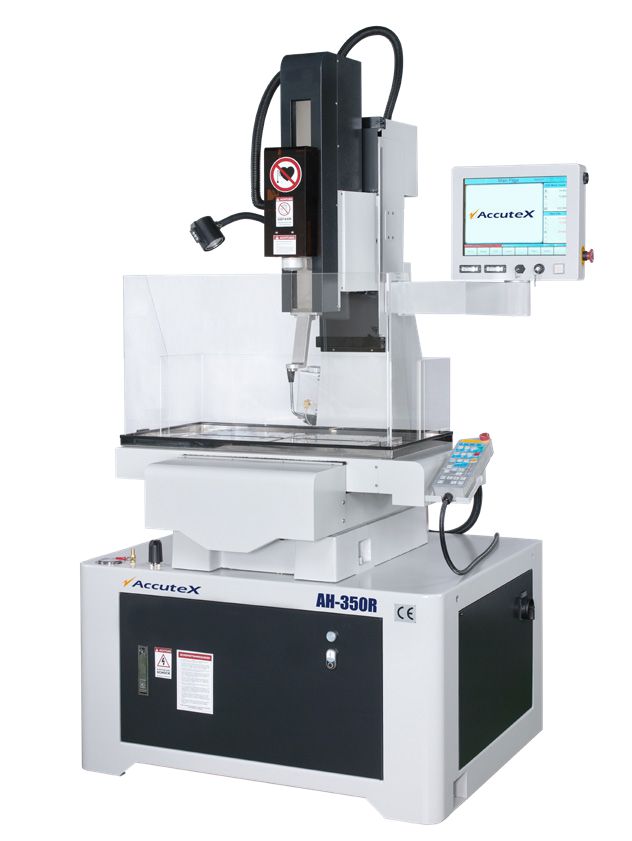

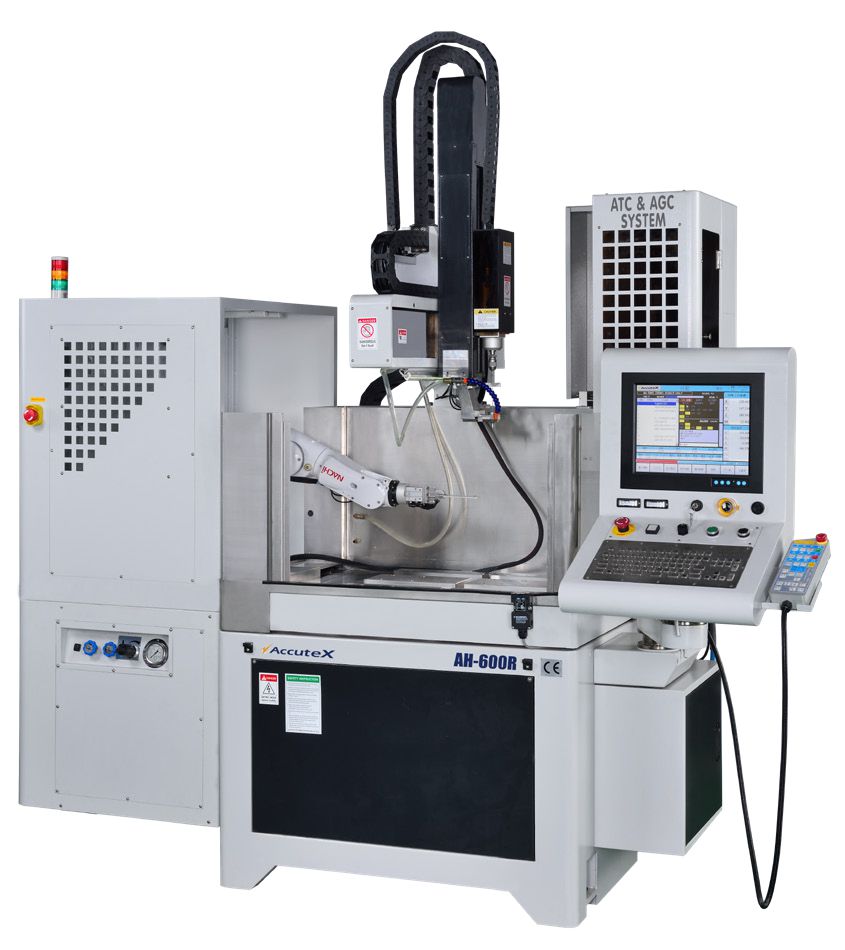

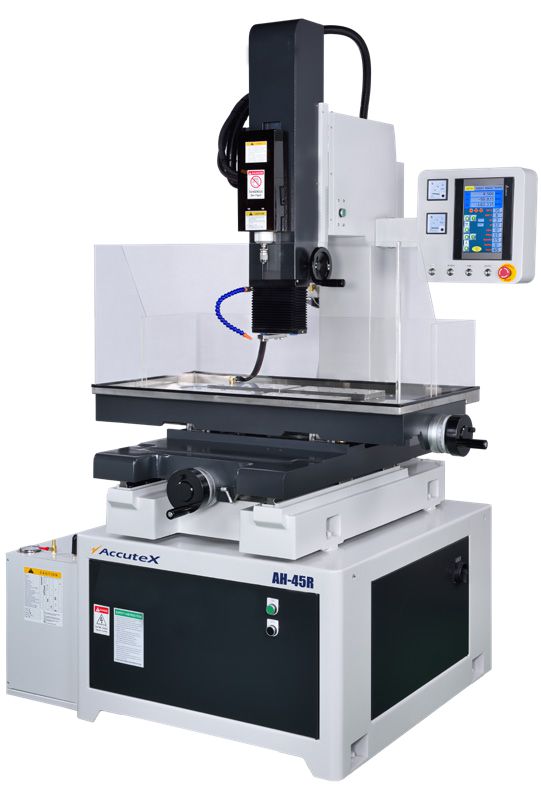

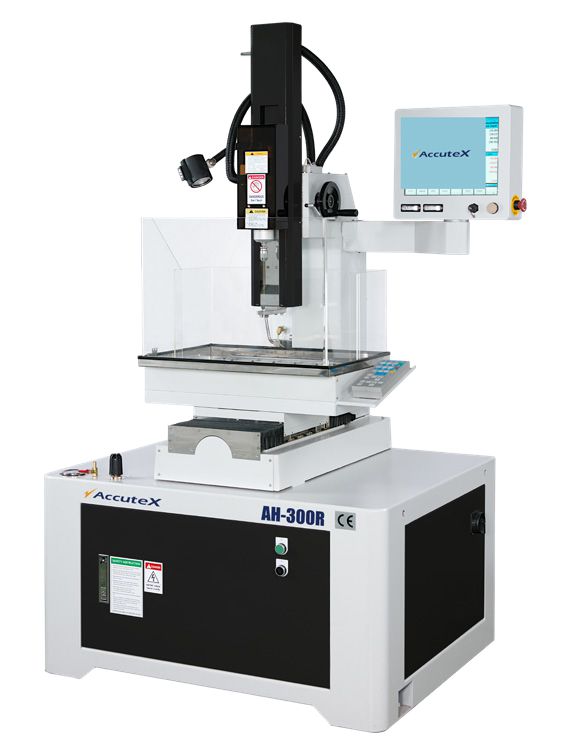

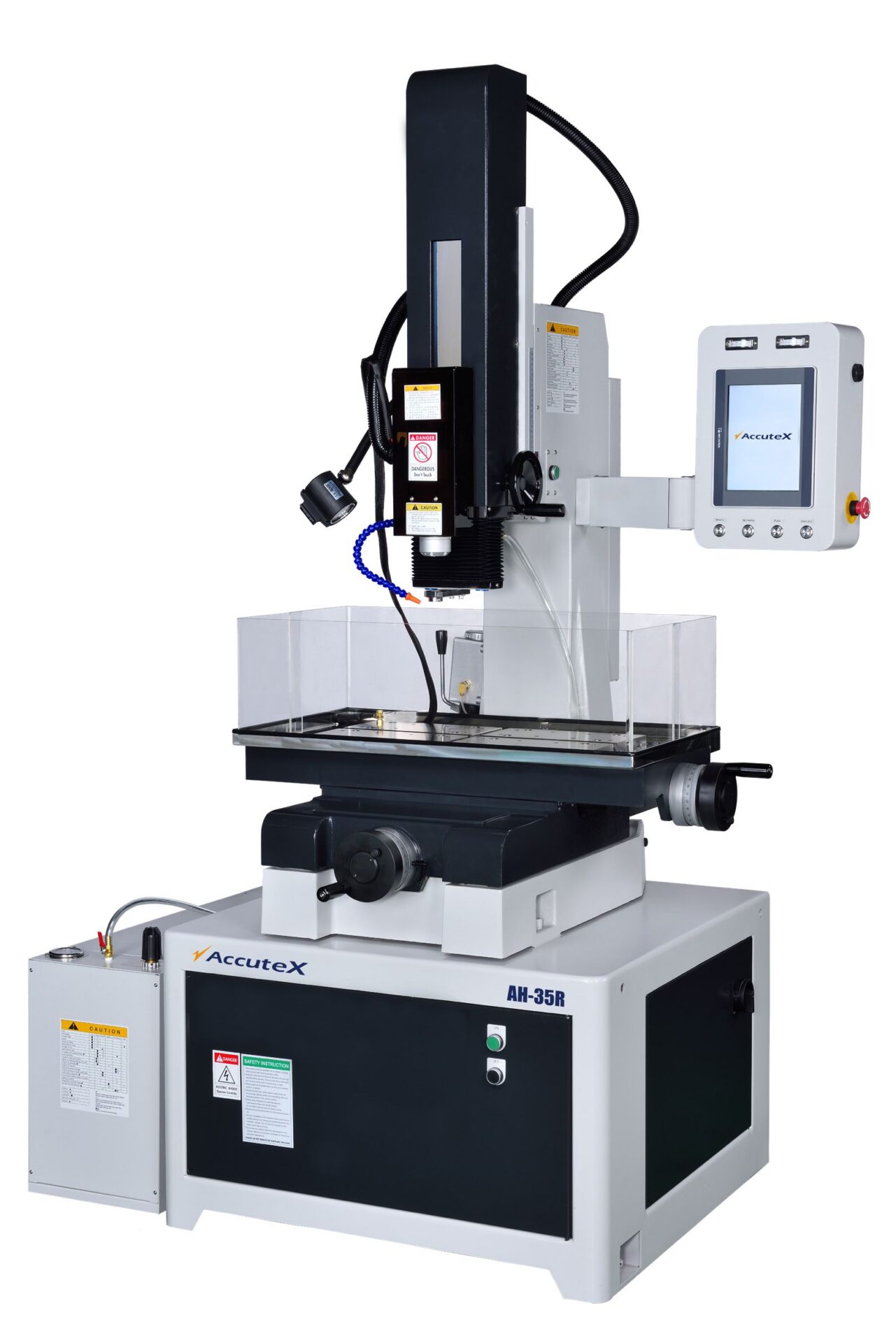

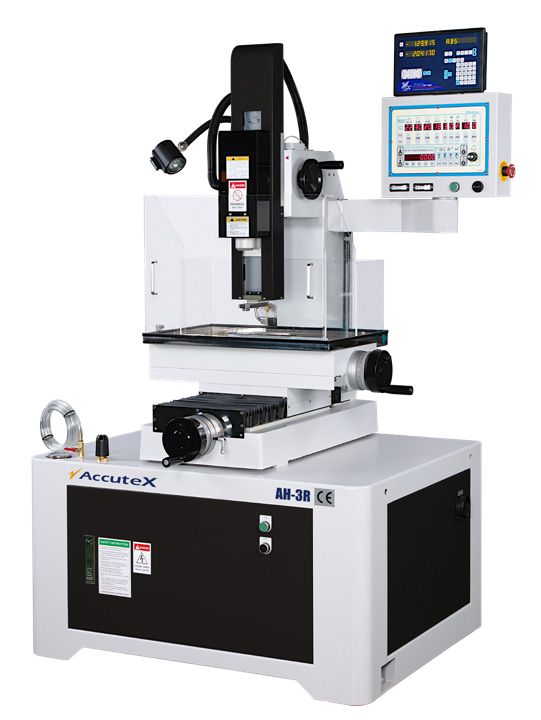

The six-model range spans table travels from 300 x 200 mm on the compact AH-3R and AH-300R, through to 600 x 400 mm on the AH-600R. Maximum workpiece weight ranges from 150 kg on the entry-level machines up to 800 kg on the AH-600R, meaning the series can handle everything from small tool inserts to sizeable mould plates. Electrode diameters range from as fine as 0.1 mm to 3.0 mm standard, with an option to extend to 6.3 mm for larger hole requirements.

Standard Inclusions

Ceramic guide: dia. 1.0 mm x 1 pc
Electrode holder BS type x 1 pc (for 0 to 3.0 mm)
Electrode tube: dia. 1.0 mm x 10 pcs
Rubber seals x 5 pcs
Filter x 1 pc
Tool box: 1 set
High performance AccuteX Technology Controller
HP1+ Sparking Circuit (standard)
5 μm XY linear scale resolution (standard)
High efficiency linear guide ways
Flushing type system

Optional Extras

Touch Screen — upgraded operator display
Electrode Holder BS Type (0 to 3.0 mm) — additional holder
ER Chuck Set (range 0.3 to 6.3 mm) including Electrode Holder C Type — for larger electrode diameters
Maximum Working Current 64 Amp Upgrade — for faster material removal rates on larger holes
Water Tank 100L with Water Treatment — integrated dielectric management
Water Tank 180L with Water Treatment — larger capacity dielectric management
12-Station Automatic Tool Changer (ATC) — for unattended electrode changes
4 or 8-Block Automatic Guide Changer (AGC) — automatic ceramic guide switching
Breakthrough Function — automatic detection when electrode exits workpiece
Extended W-axis travel (300 mm) — available on AH-3R / AH-300R models
Extended workpiece height (300 mm) — available on AH-3R / AH-300R models
