CM Series

Category Die-Sinking Machines

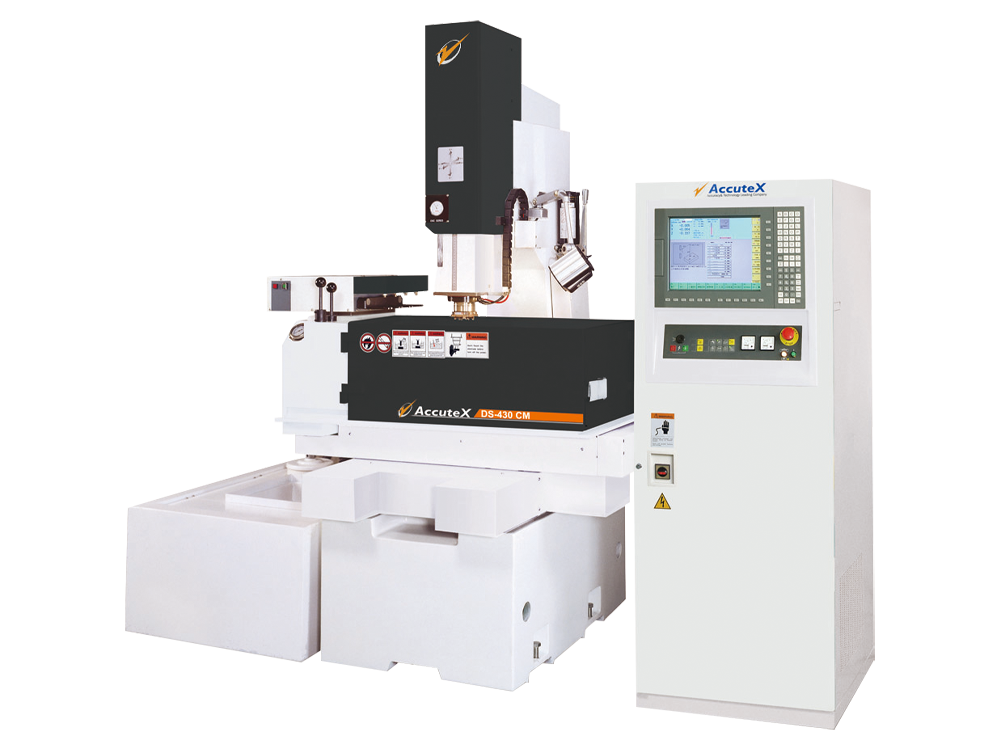

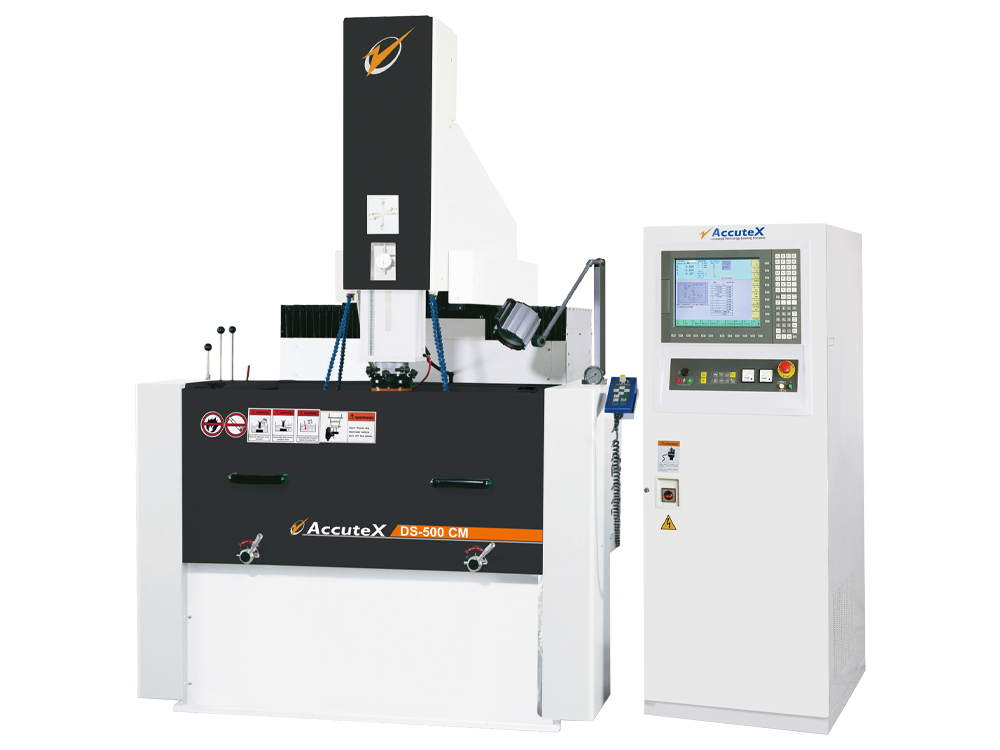

The CM Series CNC EDM machines by AccuteX offer superior rigid construction, high machining accuracy, and advanced CNC functions. Key features include intelligent arcing sensors, multi-axis machining, and user-friendly programming. These machines ensure top performance, reliability, and enhanced productivity for various industrial applications.

Video

Highlights

Intelligent Arcing Sensor

Automatically adjusts parameters to ensure optimal performance and minimal electrode wear

Multi-Axis Machining

Supports 3-axis linear, 2-axis arc, and helical machining for versatile and precise operations

User-Friendly Programming

Conversational programming and clear display make operation easy and intuitive

High Machining Accuracy

Constructed with rugged cast iron and high-precision components for consistent accuracy

Advanced CNC Functions

Features like auto mechanical origin, edge finders, and digital readouts enhance productivity

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Feature Summary

The CM Series CNC EDM machines by AccuteX are designed to deliver top performance, reliability, and enhanced productivity for various industrial applications. These machines feature a superior rigid construction with rugged cast iron and high-precision components, ensuring consistent accuracy. The intelligent arcing sensor automatically adjusts parameters to optimize performance and minimize electrode wear. The multi-axis machining capabilities support 3-axis linear, 2-axis arc, and helical machining, providing versatile and precise operations. The user-friendly programming includes conversational programming and a clear display, making operation easy and intuitive. Additionally, the advanced CNC functions such as auto mechanical origin, edge finders, and digital readouts enhance productivity. These features make the CM Series an excellent choice for achieving high machining accuracy and efficiency in various industrial applications.

Specifications



Item / Model DS-430S DS-550 DS-500 DS-750
X-Axis (mm) 400 500 500 700
Y-Axis (mm) 300 400 400 500
Z-Axis (servo) (mm) 300 350 450 500
Max. Workpiece Size (W x D) (mm) 920 x 505 1,100 x 630 1,020 x 710 1,370 x 850
Max. Workpiece Weight (kgs) 550 1,350 2,300 3,000
Max. Electrode Weight (kgs) 120 220 200 250
Distance Between Chuck to Table (mm) 150 – 450 135 – 485 130 – 480 180 – 580
Machine Dimensions (W x D x H) (mm) 3,124 x 2,306 x 2,428 3,805 x 2,003 x 2,578 2,426 x 2,357 x 2,519 2,750 x 2,842 x 2,668
Machine Weight (kgs) 1,200 1,950 3,000 4,500
Tank Capacity (L) 380 520 850 1,090



Standard Inclusions

  • X, Y, Z double nut axes ballscrews
  • X, Y, Z axes linear guides
  • X, Y, Z-axes digital readout in 0.001mm
  • 15″ LCD monitor
  • Auto fire extinguisher
  • Halogen work lamp
  • Clamping plate
  • Levelling pad
  • Flushing nozzle
  • Patented electrode holder
  • Paper filter
  • Drill chuck
  • Tool box
  • M.P.G.
  • GM code
  • Turbo device

Optional Extras

  • C axis
  • Auto tool changer
  • Dielectric cooler
  • Permanent magnetic table
  • Paper filter
  • EZ-spark for harden workpiece
