AL Series

Category Wire Cutter

The Accutex AL Series is designed for large-scale wire EDM applications requiring high accuracy, smooth motion, and long-term reliability. Featuring linear motor drives, glass scale feedback, and a robust casting structure, the AL Series is ideal for aerospace, mold & die, and heavy engineering sectors.

Video

Highlights

Corner Control

Automatically adjusts parameters for precise and smooth corner cutting with high accuracy

Stable Discharge Board (SD-Master)

Ensures consistent cutting accuracy and high-speed performance with high precision

Micro Sparking Technology (MST)

Achieves fine surface roughness through multiple cutting passes with progressive improvement

Cutting Efficiency

Enhances cutting efficiency with simplified generator, superior performance, and intelligent discharge unit

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Feature Summary

The Accutex AL Series is designed to deliver high precision and efficiency in wire EDM applications. It features a Shaft Linear Motor that provides high repeatability, low friction loss, and high efficiency, enhancing the sensitivity of discharge gap control and increasing cutting speed by 8-10%.

The High Resolution Signal Processor ensures smooth velocity control and stable position control, achieving contouring accuracy with a resolution as fine as 20nm. The Corner Control optimizes parameters based on cutting data, wire diameter, angle, and workpiece thickness, ensuring high accuracy and speed even on small and continuous corners. The Stable Discharge Board (SD-Master) provides consistent cutting accuracy and high-speed performance, with 95.45% of workpieces within ±1.5µm accuracy when cutting 100 holes of 6mm continuously. The Micro Sparking Technology (MST) achieves the best surface roughness, progressively improving with each cut. The Cutting Efficiency is enhanced by a simplified generator and electric circuit, outperforming other brands in cutting speed and efficiency.

Specifications

Specifications AL-400SA AL-500SA AL-560SA AL-600SA AL-750SA

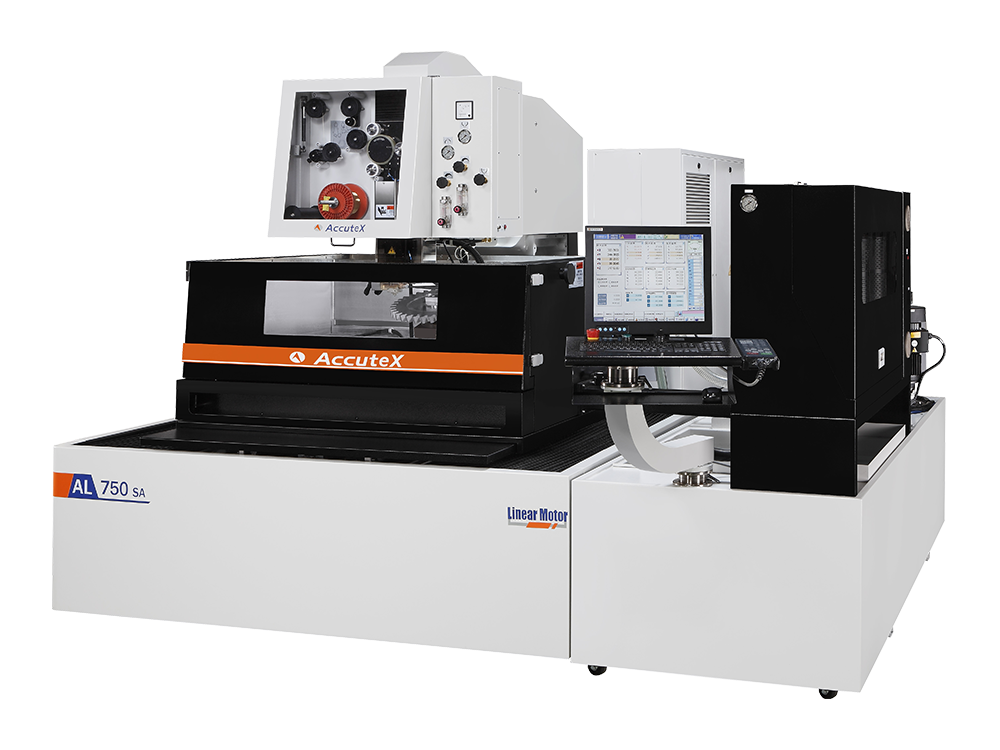

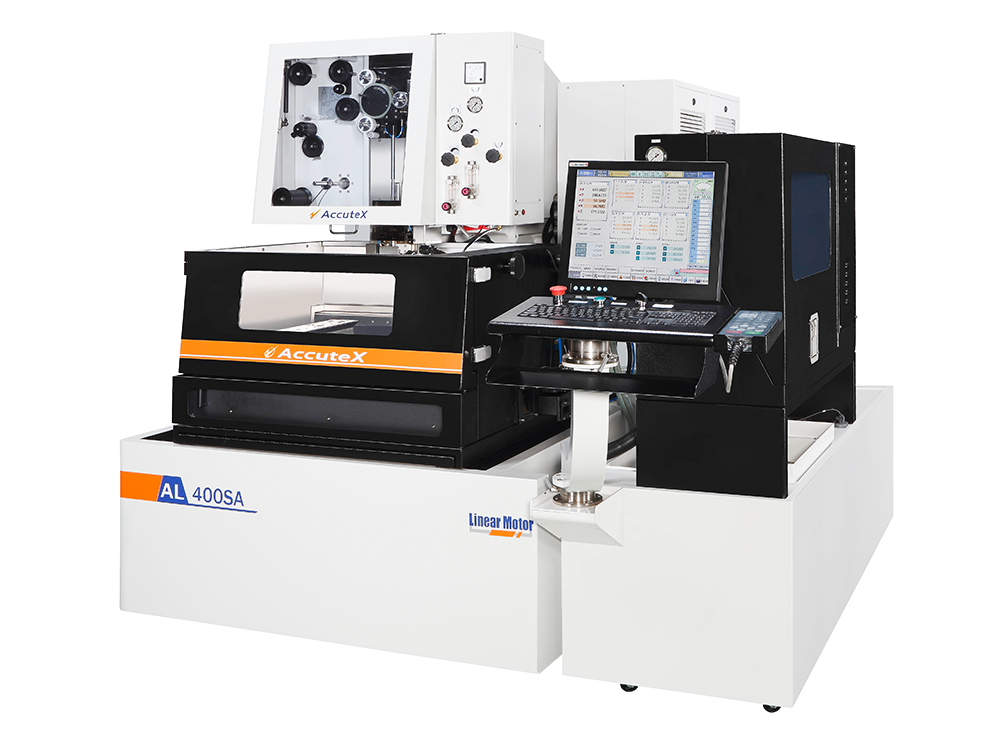

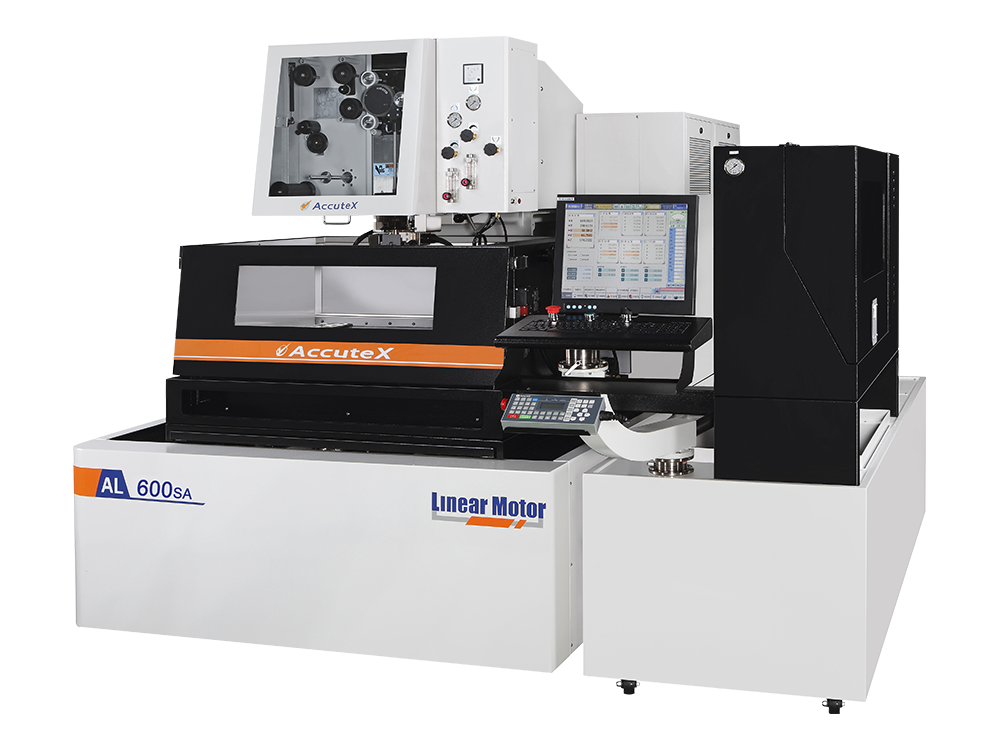

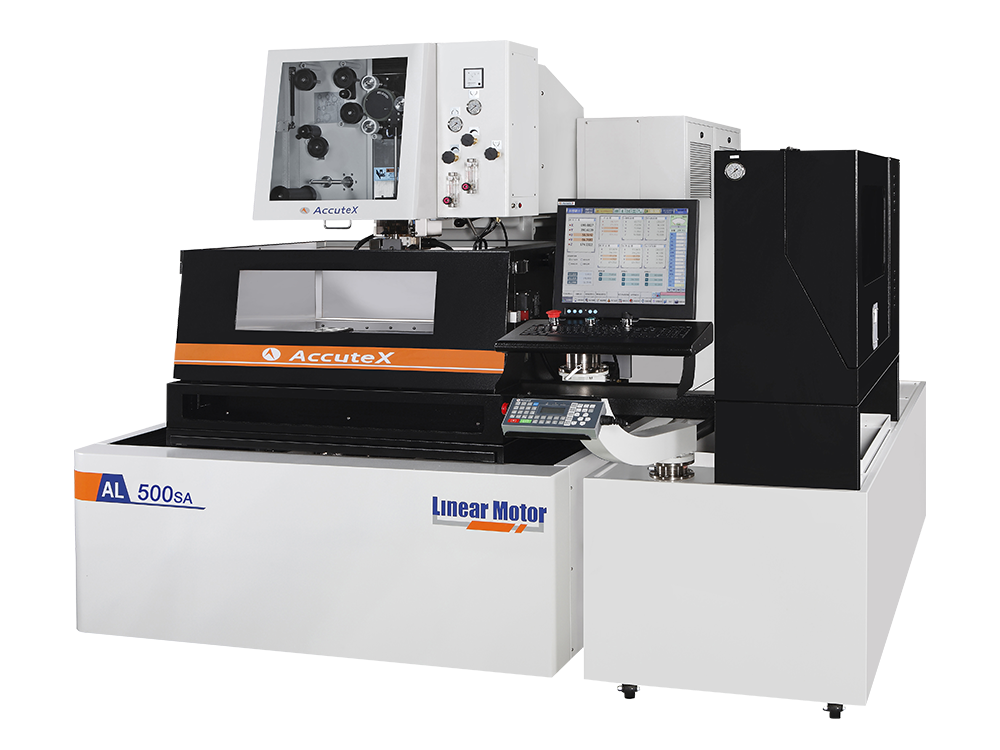

Max. Workpiece Size L x W x H (mm) 790×610×215 990×560×295 990×560×295 990×620×295 1190×720×295
Max. Workpiece Weight (Kg) 350 400 500 550 750
X/Y Stroke (mm) 400×300 500×300 560×360 600×400 750×500
U/V Stroke (mm) 100×100 100×100 100×100 100×100 100×100
Z Stroke (mm) 220 300 300 300 300
Max. Cutting Taper (H=100) 21° 21° 21° 21° 21°
Wire Spool Weight (Kg) 10 10 10 10 10
Footprint W x D x H (mm) 2051×2990×2070 2480×2980×2210 2480×2980×2210 2480×2980×2210 3000×3200×2250
Water System Capacity (L) 630 900 900 900 1060
Machine Weight (Kg) 3000 3600 3600 3700 4300



Standard Inclusions

  • Upper/ Lower Flushing Nozzle
  • Diamond Guide
  • Conductor Plate
  • Diamond Guide Remove Jig
  • Brass Wire
  • Tool Box
  • Waste Wire Bin
  • Ion Resin Tank
  • Ion Exchange Resin
  • Paper Filter
  • Vertical Alignment Jig
  • Water Chiller
  • SD Master
  • Auto Wire Threading (AWT)

Optional Extras

  • Spray mist Lubricator
  • Pilot Lamp
  • Remote Master
  • Safety Door Interlock
  • PCD/ Graphite Cutting
  • 0.1mm Wire Application
  • Transformer
  • 45Kg Wire Jumbo Feeder
  • Auto Voltage Stabilizer
  • X/Y Linear Scale
  • 6th Axis Package (W axis)
  • Alarm Messenger
  • MST (AL-400SA/ 500SA/ 560SA/ 600SA)
  • High Pressure Water Jet Threading (Not Available with Anti-Collision on Z Axis)
