AP Series

Category Wire Cutter

The Accutex AP Series is a premium line of wire EDM machines engineered for ultra-high precision applications. Featuring linear motor drives, high-resolution feedback systems, and advanced control technology, the AP Series is ideal for industries demanding micron-level accuracy and surface integrity.

Video

Highlights

High-Rigidity Structure

Designed via FEA for high rigidity, ensuring minimal deformation and high load capacity

Ultra Resolution Signal Processor

Achieves smoother velocity and stable position control with 0.1μm resolution

Cutting Efficiency

Simplified generator and circuits improve cutting efficiency, reducing power loss

Corner Control Function

Optimizes parameters for high accuracy in small paths and continuous corners

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Industry 4.0 Compatibility

Supports M2M protocol for real-time production and full automation

Lead-In / Lead-Out Control

Improves mould quality and reduces polishing hours with new generation control

Feature Summary

The Accutex AP Series Wire Cut EDM machines are designed for high-precision applications, featuring a high-rigidity structure with a compound table design that minimizes deformation and enhances load capacity.

The series includes a new generation shaft-type linear motor with closed-loop control and 0.1μm resolution linear scale, ensuring backlash-free accuracy and improved cutting efficiency.

The machines are Industry 4.0 compatible, supporting M2M protocol for real-time production and full automation. The ultra-resolution signal processor achieves smoother velocity and stable position control.

The AP Series also offers advanced features such as automatic wire threading, core remove module, and fine wire application for micro-machining.

Optional extras include a rotary table package, high-pressure water jet threading, and remote monitoring. These features make the AP Series a versatile and efficient solution for various industries, including aerospace, medical device manufacturing, and mold & die production.

Specifications

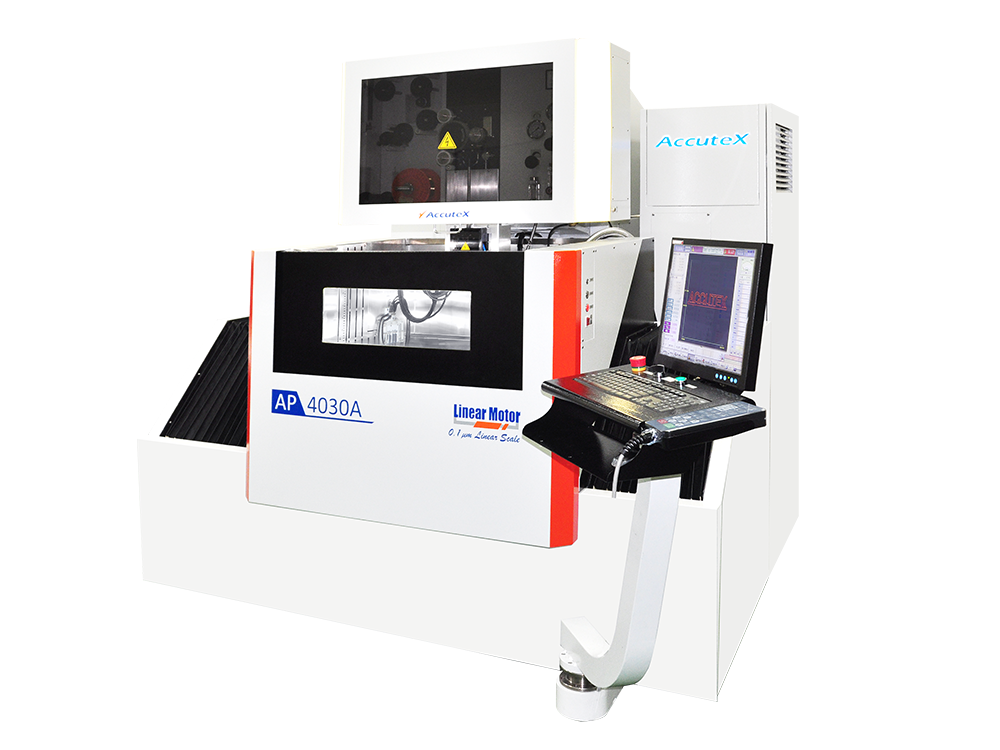

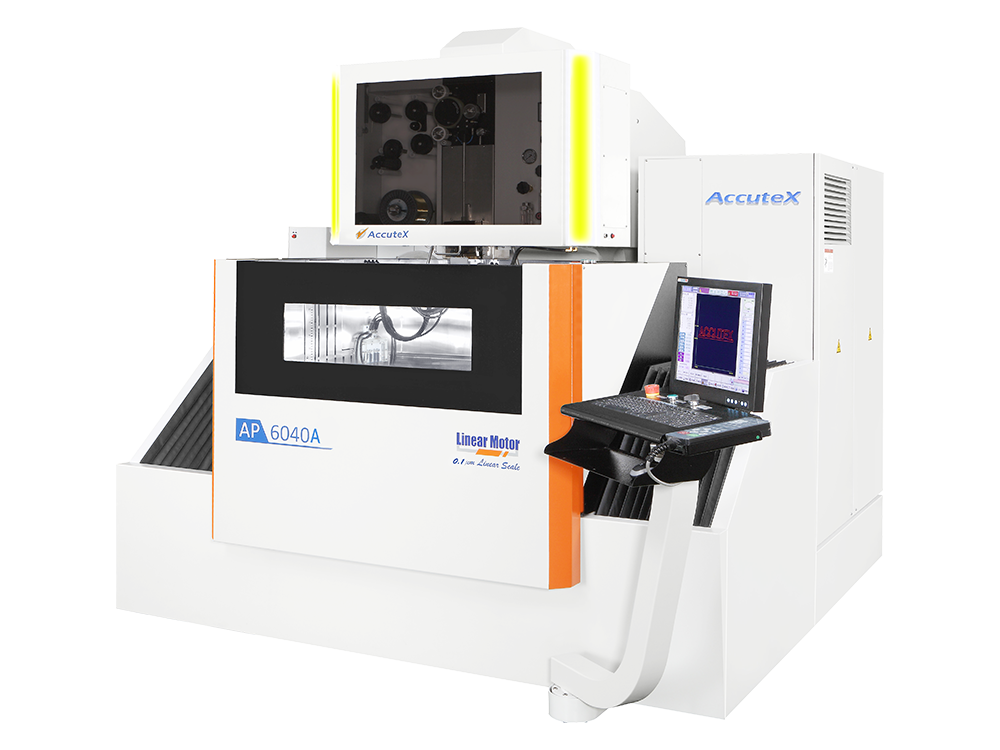

Specifications AP-4030 AP-6040
Max. Workpiece Size 800 × 560 × 265 mm 1050 × 775 × 345 mm
Max. Workpiece Weight 800 Kg 1000 Kg
X/Y Stroke 400 × 300 mm 600 × 400 mm
U/V Stroke 160 × 160 mm 160 × 160 mm
Z Stroke 270 mm 350 mm
Max. Cutting Taper ±32° / H100 mm ±32° / H100 mm
Max. Wire Spool Weight 16 Kg 16 Kg
Footprint (W × D × H) 2145 × 2750 × 2250 mm 2312 × 2795 × 2371 mm
Water System Capacity 680L 1,000L
Machine Weight 4500 Kg 5000 Kg



Standard Inclusions

  • SD Master
  • Touch Screen
  • XY Axes Linear Motor System
  • 0.1μm Resolution Linear Scale
  • Anti-Collision on XYUV Axes
  • Safety Door Interlock
  • Automatic Sliding door
  • Upper/ Lower Flushing Nozzle
  • Diamond Guide
  • Conductor Plate
  • Brass Wire
  • Ion Exchange Resin
  • Ion Resin Tank
  • Paper Filter
  • Waste Wire Bin
  • Vertical Alignment Jig
  • Diamond Guide Remove Jig
  • Tools and Clampers
  • Machine Status Indicator
  • Tool Box

Optional Extras

  • Transformer
  • Auto Voltage Stabilizer
  • Water Chiller
  • MST II Power Module
  • PCD/ Graphite Power Module
  • Rotary Table Package (W axis)
  • 0.05mm~0.1mm Fine Wire Application
  • 0.05μm Resolution Linear Scale
  • Auto Wire Threading (AWT)
  • High Pressure Water Jet Threading
  • 45Kg Wire Jumbo Feeder
  • Remote Master
  • GSM Messenger
  • Anti-Collision on Z-Axis
  • Industry 4.0 Intelligent
  • Manufacturing Integration System
  • Probing Measuring System
