AU Series

Category Wire Cutter

The AU Series by AccuteX offers advanced CNC Wire Cut EDM machines designed for precision and efficiency. Key features include high rigidity T-Base design, 3D laser measuring, and in-house developed controllers. Ideal for complex tasks, these machines ensure high accuracy, repeatability, and superior surface finish.

Video

Highlights

T-Base Design

The T-Base design ensures high rigidity and low mechanical deformation for precise machining

3D Laser Measuring

Utilizes 3D laser measuring for accurate pitch and yaw linear tolerance values

In-House Developed Controller

The AccuteX controller is developed in-house, offering superior service and support

Stable Discharge Board

Enhances accuracy and repeatability with stable discharge performance

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Auto Wire Threading (AWT)

Features high threading reliability and efficient waste wire removal

Feature Summary

The AU Series by AccuteX is a line of advanced CNC Wire Cut EDM machines designed for precision and efficiency. The series features a T-Base design that ensures high rigidity and low mechanical deformation, making it ideal for precise machining. The machines utilize 3D laser measuring techniques to acquire accurate pitch and yaw linear tolerance values, conforming to ISO 230-6 standards. The in-house developed AccuteX controller sets these machines apart, offering superior service and support. The stable discharge board enhances accuracy and repeatability with stable discharge performance. Additionally, the Auto Wire Threading (AWT) system features high threading reliability and efficient waste wire removal. These features collectively ensure high accuracy, repeatability, and superior surface finish, making the AU Series ideal for complex tasks in various industries.

Specifications

Flushing Type Models

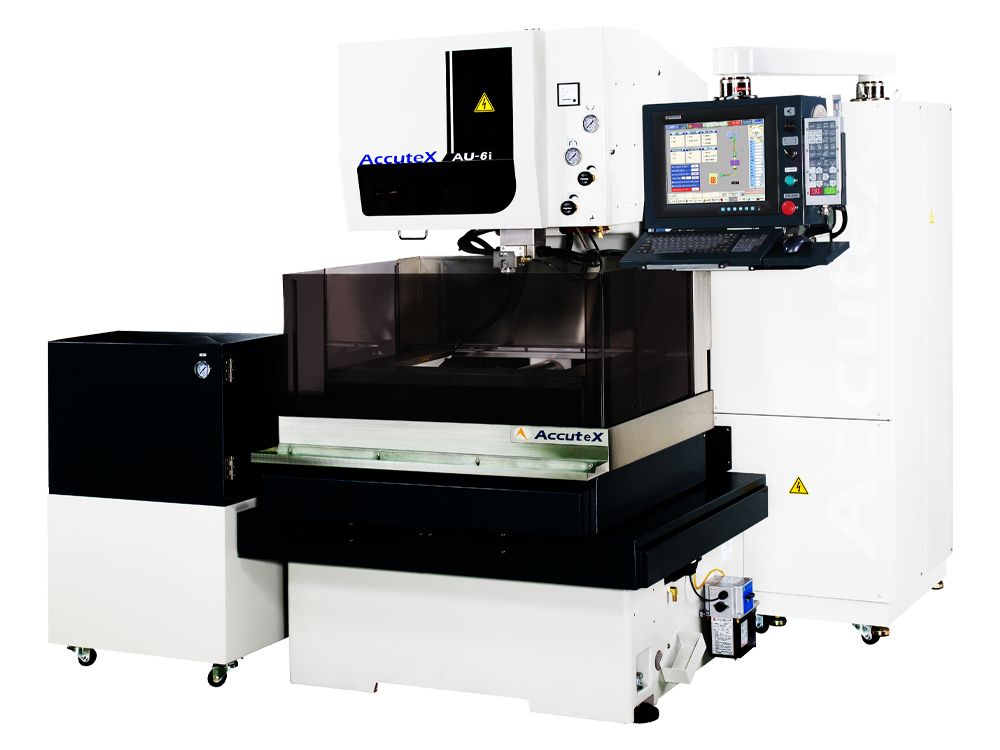

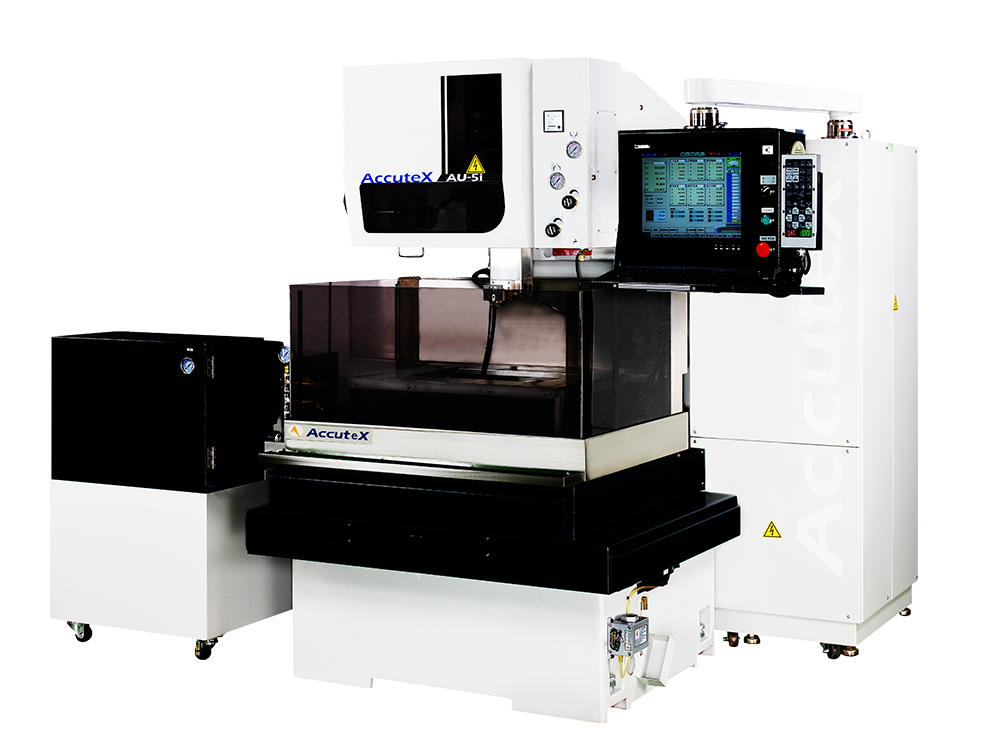

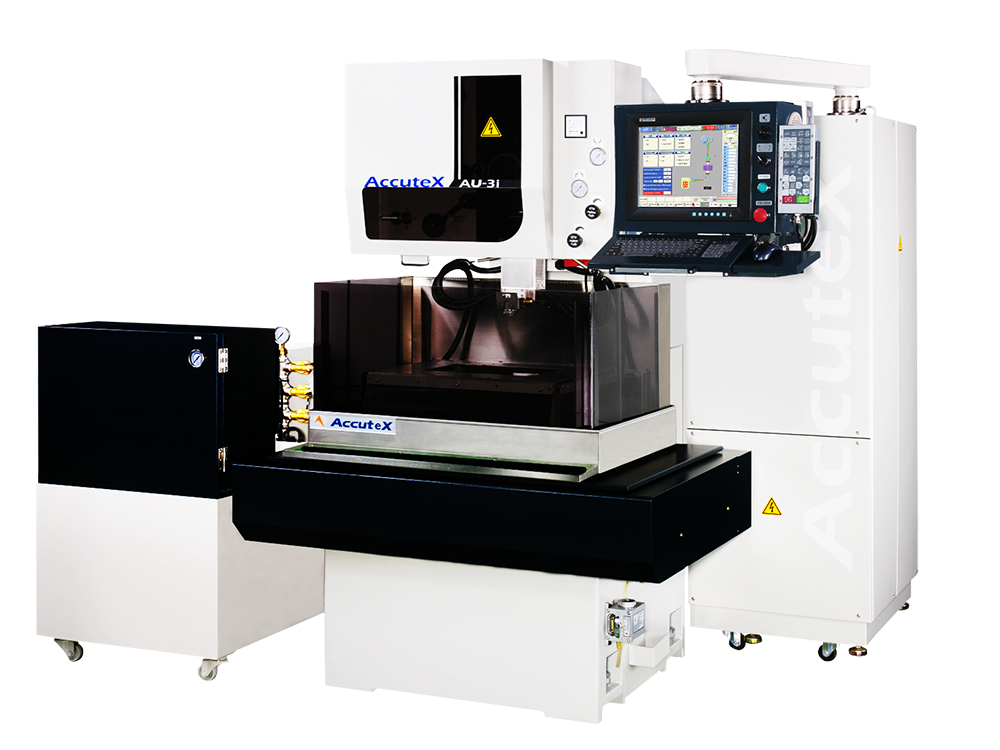

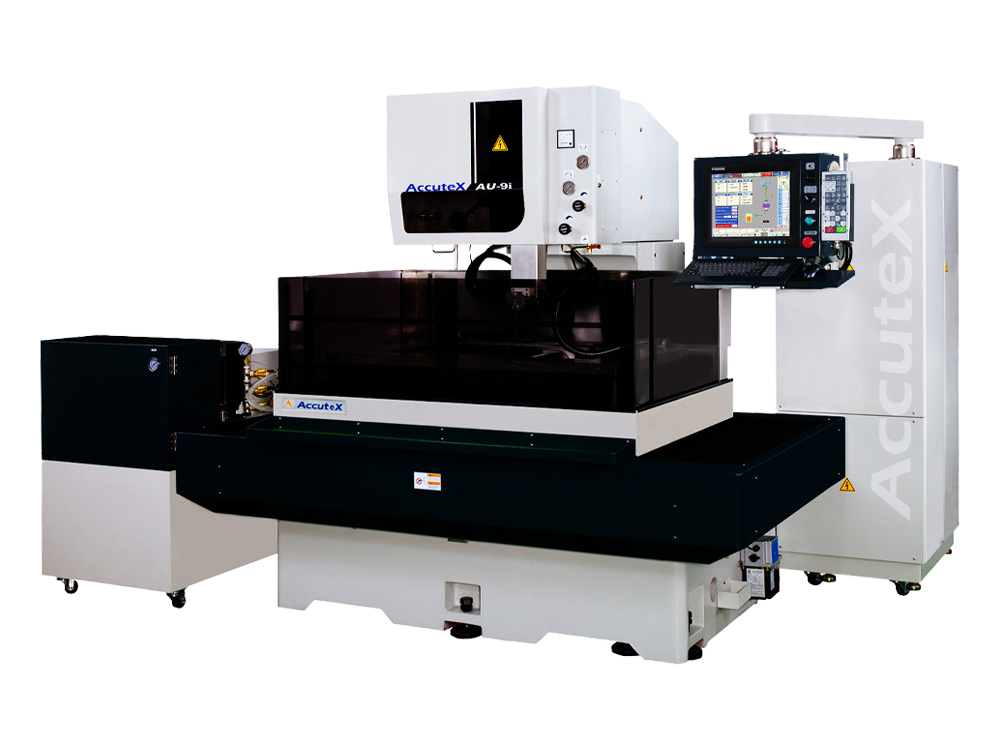

Model AU-3i (A) AU-5i (A) AU-6i (A) AU-75i (A) AU-9i (A) AU-96i (A)
Max. Workpiece Size (L x W x H) (mm) 800 x 535 x 215 965 x 555 x 295 965 x 620 x 295 1,190 x 655 x 295 1,375 x 760 x 295 1,435 x 860 x 295
Max. Workpiece Weight (kg) 400 500 800 1,000 1,300 1,300
X/Y Stroke (mm) 350 x 250 500 x 300 600 x 400 750 x 500 900 x 500 960 x 600
U/V Stroke (mm) 80 x 80 100 x 100 100 x 100 100 x 100 100 x 100 100 x 100
Z Stroke (mm) 220  300 300 300 300 300
Wire Spool Weight (kg) 10 10 10 10 10 10
Footprint (W × D × H) (mm) 2,650 × 2,150 x 2,120 2,850 × 2,300 x 2,210 2,680 × 2,600 x 2,210 3,050 × 3,210 x 2,300 3,260 x 3,180 x 2,300 3,260 x 3,280 x 2,300
Water System Capacity (L) 360 360 360 360 360 360
Machine Weight (kg) 2,900 3,400 3,500 4,000 5,400 5,600

Submerged Type Models

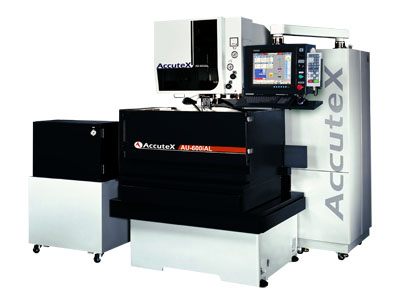

Model AU-300i (A) AU-500i (A) AU-560i (A) AU-600i (A) AU-750i (A) AU-900i (A)
Max. Workpiece Size (L x W x H) (mm) 765 x 535 x 215 990 x 560 x 295 990 x 560 x 295 990 x 620 x 295 1,190 x 720 x 295 1335 x 760 x 295
Max. Workpiece Weight (kg) 400 500 500 600 800 800
X / Y Stroke (mm) 350 x 250 500 x 300 560 x 360 600 x 400 750 x 500 900 x 500
U / V Stroke (mm) 80 x 80 100 x 100 100 x 100 100 x 100 100 x 100 100 x 100
Z Stroke (mm) 220 300 300 300 (Opt. Z400) 300 300
Max. Water Level in Working Tank (mm) 220 270 270 270 300 240
Wire Spool Weight (kg) 10 10 10 10 10 10
Footprint (W x D x H) (mm) 2,750 x 2,560 x 2,120 2,950 x 2,560 x 2,210 2,950 x 2,560 x 2,210 2,950 x 2,560 x 2,210 3,260 x 3,210 x 2,300  3,560 x 3,050 x 2,300
Water System Capacity (L) 850 850 850 850 1,240 1,240
Machine Weight (kg) 3,000 3,600 3,600 3,700 4,300  5,600



Moving Column Submerged Type

Model AU-860iA AU-1000iA AU-1400iA AU-1400iA (Z800)
Max. Workpiece Size (L x W x H) (mm) 1,330 x 990 x 395 (Opt. H595) 1,620 x 990 x 395 (Opt. H595) 1,740 x 1080 x 195 1,790 x 1080 x 795
Max. Workpiece Weight (kg) 5,000 5,000 4,000 10,000
X / Y Stroke (mm) 800 x 600 1,100 x 650 1,400 x 800 1,400 x 800
U / V Stroke (mm) 150 x 150 150 x 150 150 x 150 150 x 150
Z Stroke (mm) 400 (Opt. Z600) 400 (Opt. Z600) 200 800
Max. Water Level in Working Tank (mm) 400 400 200 800
Wire Spool Weight (kg) 16 16 16 16
Footprint (W x D x H) (mm) 3,900 x 3,600 x 2,740 4,350 x 3,600 x 2,740 4,250 x 3,750 x 2,450 5,120 x 4,050 x 3,400
Water System Main Tank Capacity (L) 2,420 2,420 2,420 2,000
Machine Weight (kg) 8,500 8,500 8,600 9,500



Standard Inclusions

  • Upper / Lower Flushing Nozzle
  • Diamond Guide
  • Conductor Plate
  • Diamond Guide Remove Jig
  • Brass Wire
  • Tool Box
  • Waste Wire Bin
  • Ion Resin Tank
  • Ion Exchange Resin
  • Paper Filter
  • Vertical Alignment Jig
  • Water Chiller

Optional Extras

  • Auto Wire Threading (AWT)
  • Safety Door Interlock
  • Alarm Messenger
  • SD Master
  • Clean Water Tank (Under AU-750i)
  • Rotary Table Package (W axis)
  • MST (AU-300i/500i/560i)
  • Remote Master
  • Pilot Lamp
  • X/Y Linear Scale
  • 0.1mm Wire Application
  • PCD / Graphite Cutting
  • Anti-Collision on Z Axis
  • Auto Voltage Stabilizer
  • 45kg Wire Jumbo Feeder
  • Transformer
  • High Pressure Water Jet Threading (Not Available with Anti-Collision on Z Axis)
