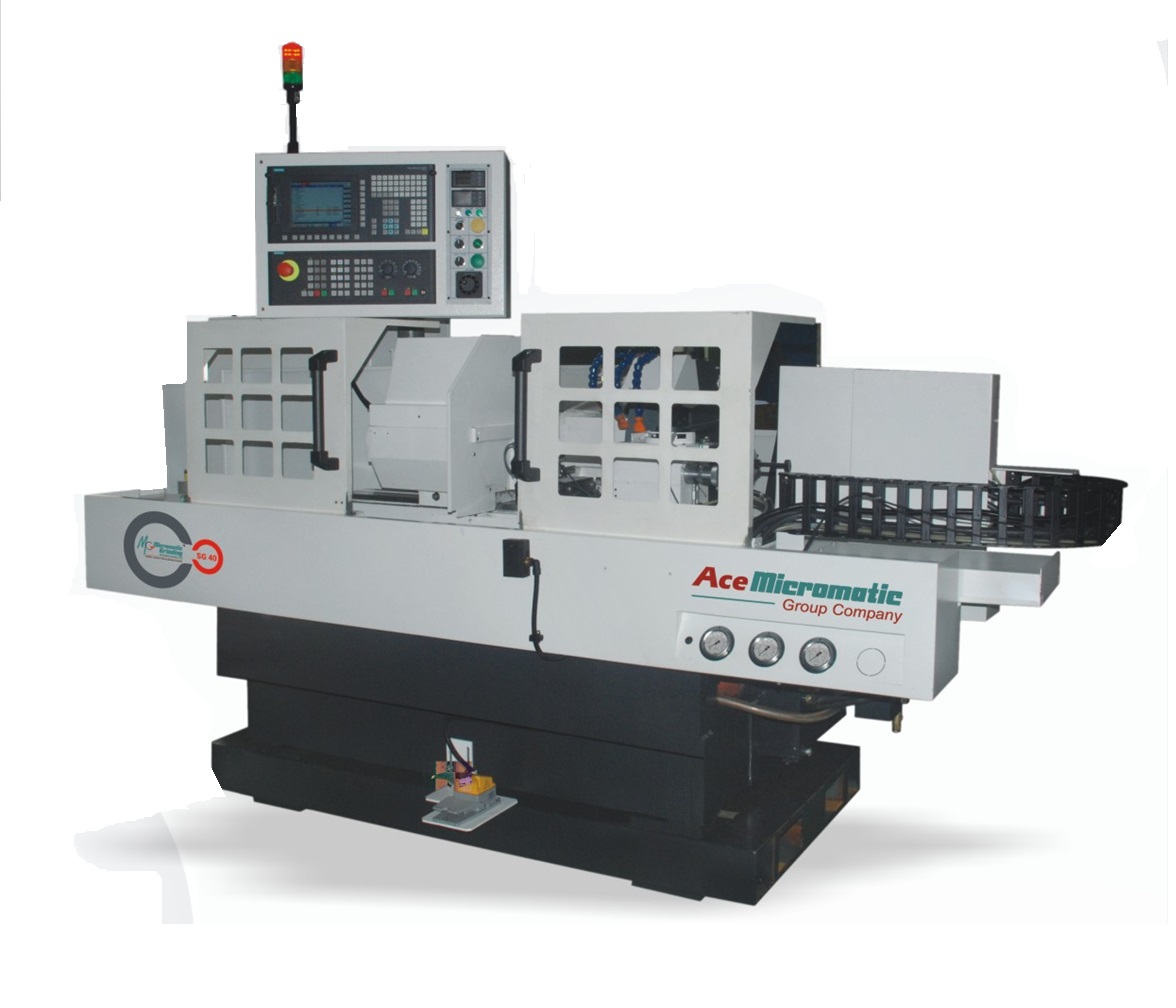

Simple Grind Series

Category Cylindrical Grinders

The Simple Grind Series is a compact, economical 2-axis CNC cylindrical grinding solution designed for external grinding of medium to high production volumes. Ideal for small and medium-scale industries, it offers reliable performance for components like motor shafts, pump shafts, and steering parts.

Video

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Economical CNC Platform

Cost-effective 2-axis CNC solution for replacing older hydraulic grinders

Flexible Grinding Options

Supports both plunge and traverse grinding for varied component geometries

Compact Footprint

Space-efficient design ideal for small to mid-sized workshops

Straight & Angular Wheel Head

Available in both configurations to suit diverse application needs

High-Speed Grinding Wheel

Up to 45 m/s surface speed for efficient material removal

Feature Summary

The Simple Grind Series is engineered to deliver dependable cylindrical grinding performance with minimal complexity. It is particularly suited for external grinding tasks in medium to high production environments, such as automotive, toolroom, and general engineering sectors.

This 2-axis CNC grinder is a practical upgrade from traditional hydraulic machines, offering improved precision, repeatability, and ease of operation. The machine supports both plunge and traverse grinding modes, making it versatile for components like steering pinions, shafts, collets, and flanges.

Users can choose between Straight and Angular Wheel Head configurations depending on their application requirements. The grinding wheel, with a maximum diameter of 500 mm and width of 65 mm, is powered by a robust 3.7 kW spindle motor (optionally upgradable to 5.5 kW), delivering a surface speed of up to 45 m/s.

The Simple Grind Series is designed with user-friendly controls and a rigid structure to ensure consistent performance and long-term reliability. It is a smart choice for manufacturers seeking a balance between cost and capability.

Specifications

Specifications SG-P SG-A
Swing Diameter 260 mm 260 mm
Admit Between Centers 400 / 630 / 1000 mm 400 / 630 / 1000 mm
Max. Grinding Wheel Ø x Width 500 x 65 mm 500 x 65 mm
Grinding Wheel Spindle Power 3.7 (5.5) kW 3.7 (5.5) kW
Wheel Surface Speed 45 m/s 45 m/s
Note ( ) = Optional Feature

Standard Inclusions

  • CNC control system (2-axis)
  • Grinding wheel with flange
  • Coolant system
  • Workhead and tailstock
  • Machine enclosure

Optional Extras

  • Angular wheel head configuration (for SG-A)
  • Higher spindle power (5.5 kW)
  • Hydraulic or pneumatic chuck
  • In-process gauging system
  • Automatic wheel balancing system
  • CNC dressing unit
