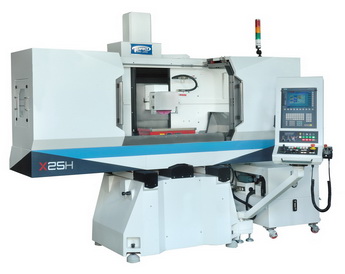

PFG CNC Series

Category Surface Grinders

The Perfect CNC series surface grinders offer precision, efficiency, and reliability. These grinders feature advanced CNC controls, robust construction, and user-friendly interfaces, making them ideal for high-precision surface grinding applications. Enhance your production capabilities with the Perfect CNC series.

Highlights

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Robust Machine Structure

Enhanced machine stability and precision for consistent grinding results

Precision Spindle Design

Achieve high accuracy grinding and extended spindle life

AC Servo Motor & MPG

Precise control and ease of use for improved grinding performance

Variable Hydraulic System

Increased operational convenience and adaptability to different workpieces

Feature Summary

The Perfect CNC series surface grinders are designed to deliver precision, efficiency, and reliability in surface grinding applications. These grinders feature an optimized structure analysed using finite element techniques, ensuring machine stiffness and stability for consistent grinding results. The precision spindle design, with a class P4 high precision angular contact bearing, guarantees a run-out accuracy of 2 μm, providing high accuracy grinding and extended spindle life.

Equipped with a 2 axes CNC controller, the Perfect CNC series offers simplified and efficient machine control, enhancing productivity. The AC servo motor and M.P.G. hand wheel for Y & Z axes provide high accuracy and convenient operation, improving grinding performance. Additionally, the stepless variable hydraulic system allows for feed speed adjustment according to the workpiece type, increasing operational convenience and adaptability.

The Perfect CNC series surface grinders offer advanced features and benefits that enhance production capabilities and ensure high-quality grinding results.

Specifications

MODEL UNIT PFG-X25H PFG-X36H PFG-X25B PFG-X36B
Grinding Surface of Table mm 250 x 500 300 x 600 250 x 500 300 x 600
Max Distance Center of Spindle to Table mm 550 600 550 600
Total Max Safety Table Load kgs 250 420 250 420
Table Guideway V & FLAT WAY V & FLAT WAY V & FLAT WAY V & FLAT WAY
Wheel Dimension mm 180 x 13 x 3175 355 x 50 x 127 180 x 13 x 3175 355 x 50 x 127
Spindle Motor HP 3 75 3 75
Machine Net Weight Kgs 2500 3000 2500 3000
Floor Space (WxDxH) mm 2800 x 2450 x 2250 3000 x 2650 x 2400 2800 x 2450 x 2250 3000 x 2650 x 2400

Standard Inclusions

  • CNC controller
  • AC Servo Motor & M.P.G. Hand Wheel for Y & Z axes
  • Crossing Stroke Adjustment for X & Z axes
  • Stepless Variable Hydraulic System for X axis
  • Grinding Mode
  • Dressing Mode
  • Dressing Device

Optional Extras

  • 3 axes AC Servo Motor & M.P.G. Hand Wheel, Linear Guide Way with Ball Screw
  • NC auto parallel dressing & compensating system
  • Auto Balancing System
