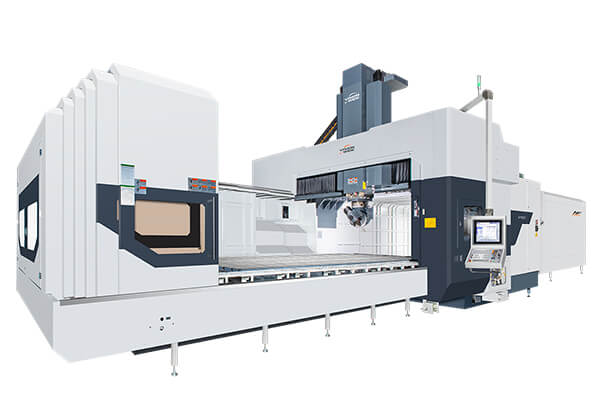

NF Series

The NF Series from Vision Wide is engineered for demanding 5-face machining applications. Its bridge-type double column design incorporates linear guideways on the X and Y axes and a box way on the Z-axis, delivering both speed and rigidity. The square cross-section beam design keeps the spindle head’s center of gravity close to the beam center, enhancing stability during heavy-duty operations.

The NF Series supports automatic head change systems, including 90° heads, extension heads, and universal heads, enabling multi-angle machining without manual intervention. Tool center point compensation and automatic tool changers (ATC) further streamline complex operations.

A twin hydraulic cylinder counterweight system with nitrogen assistance ensures smooth Z-axis movement. The machine also features a ballscrew support device for X-axis ≥ 4 m and Y-axis ≥ 3 m, enhancing long-travel stability.

Enclosed sheet metal guarding is tailored to machine size, with options for roofed or roofless configurations. The NF Series is compatible with multiple CNC controllers, including FANUC 31iB, HEIDENHAIN TNC 640, SIEMENS 828D/ONE, and MITSUBISHI M80/M830.

• FANUC 0iMF PLUS controller
• Box way 4,000rpm 2-step gear type spindle
• Z axis travel 920mm (Box way)
• Spindle cooling system
• Air blast through spindle
• Footswitch for tool clamping
• XYZ-axis absolute pulse coder feedback
• XYZ-axis travel hard limits protection
• Twin hydraulic cylinders with pressured nitrogen assistance counterweight system
• X, Y-axis ballscrew support device (X axis ≧ 4 m，Y axis ≧ 3 m)
• Cutting fluid cooling system
• Centralized auto lubrication system
• Independent lubrication oil collector
• Vertical type tool magazine 32 tools
• Enclosed sheet metal guard without roof (NF series X axis ≦ 6 m)
• Four piece sheet metal guard (NF series X axis ≧ 8 m) (all HF series)
• Swiveling arm type operation panel
• Movable manual pulse generator
• Screw type chip conveyor on table sides
• Caterpillar type chip conveyor / Water tank
• Heat exchanger for electrical cabinet
• Wash gun and pneumatic interface
• Vision Wide FX graphical user interface
• Auto power off function
• RJ45 interface
• Working lamp
• Operation cycle finish and alarm light
• Spindle overloading protected by software
• Foundation pads and bolts kits
• Adjustment tool and tool kits
• Technical manuals (operation, maintenance manual and circuit diagram)

• FANUC 31 iB / HEIDENHAIN TNC 640 / SIEMENS 828D / SIEMENS ONE / MITSUBISHI M80 TypeA / MITSUBISHI M830
• Box way 6,000 rpm 2-step gear type spindle
• Linear way/enclosed box ram 4,000/6,000 rpm 2-step gear type spindle
• Linear way/enclosed box ram 10,000/12,000 rpm direct driven type spindle
• Z axis travel 1,020 mm (Box way)
• Z axis travel 1,000/1,200/1,400 mm (Linear way/enclosed box ram)
• Column heighten 200/400/600/800 mm
• Spindle ring cutting coolant device (for no head attachment)
• Coolant through spindle system 20/70 bar
• The interface of coolant through spindle
• Coolant through tool holder interface
• Switch for tool clamping
• Spindle and structure temperature thermal compensation system (STC)
• XYZ-axis linear scale feedback
• Oil skimmer
• Oil mist cooling device
• Oil mist recycle device
• Vertical type tool magazine 40/60 tools
• Floor-standing vertical type tool magazine 32/40/60 tools
• Floor-standing vertical-horizontal type tool magazine 32/40/60 tools
• Wireless remote control manual pulse generator
• Four piece sheet metal guard (NF series X axis ≦ 6 m)
• Enclosed sheet metal guard without roof (NF series X axis ≧ 8 m) (all HF series)
• Enclosed sheet metal guard with roof (NF series X axis ≦ 6 m) (not for NF-xx32/39 and HF series)
• 3-axis independent manual pulse generator (only for FANUC)
• Helical bladed screw conveyor on table sides
• Chip cart
• Air conditioning for electrical cabinet
• Auto measurement system
• Rotary table
• Sub working table
• Interface reserved for fourth axis
• Transformer
• Auto warm up
• Tool axis retract function at power failure
