SF Series

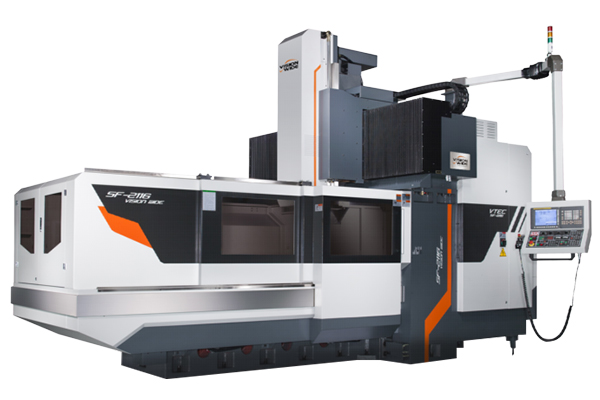

The SF Series is Vision Wide’s flagship 3-axis double column machining centre, engineered for high-speed and high-accuracy mould and component machining. Its linear guideway design ensures smooth movement and high-speed positioning, with rapid traverse rates reaching 24 m/min and cutting feed rates up to 10 m/min.

The machine’s ultra-wide column and base structure provide superior rigidity, supporting the spindle and YZ axes during heavy-duty operations. The large, stepped Y-axis design brings guideways closer to the beam and spindle, increasing load-bearing capacity and cutting stability.

Z-axis travel reaches up to 1,020 mm, with high acceleration/deceleration performance for contour accuracy in mould machining. The SF Series also includes a spindle and structure thermal compensation system, maintaining dimensional accuracy within 0.02 mm under varying environmental conditions.

Standard spindle options include 10,000 rpm (BT-50) or 12,000 rpm (BT-40) direct-driven units, with optional 6,000 rpm 2-step geared spindles for higher torque applications. The machine is compatible with FANUC controls, including the 0i-MF Plus with 15” LCD and advanced data server capabilities.

The SF Series supports a wide range of accessories, including coolant through spindle systems (20 bar), auto tool measurement (Renishaw TS-27R), and vertical tool magazines. Installation and commissioning services are available, with flexible shipping configurations for international delivery.

• FANUC 0iMF PLUS controller
• 6,000rpm 2-step gear type spindle (Z axis box way)
• Spindle cooling system
• Twin hydraulic cylinders with pressured air assistance balancing system
• Centralized auto lubrication system
• Independent lubrication oil collector
• Air blast through spindle
• Wash gun and pneumatic interface
• Cutting fluid cooling system
• 32 tools magazine with arm type ATC
• Sheet metal guard (without roof)
• Swivelling arm type operation panel
• Screw type chip conveyor on table side
• Caterpillar type chip conveyor / Water tank
• Heat exchanger for electrical cabinet
• Working lamp
• Operation cycle finish and alarm light
• Movable manual pulse generator
• Footswitch for tool clamping
• RJ 45 interface
• XYZ axis absolute pulse coder feedback
• XYZ axis travel hard limits protection
• Spindle cutting load software protection
• Remote monitoring software-standard
• Auto power off function
• Vision Wide FX graphical user interface
• Foundation pads and bolts kits
• Adjustment tool and tool kits
• Technical manuals (operation, maintenance manual and circuit diagram)

• 4,000rpm 2-step gear type spindle (Z axis box way)
• 8,000/ 10,000rpm belt-driven spindle
• 10,000(BT-50)/ 12,000(BT-40)rpm direct-driven spindle
• Z axis travel 1,020mm(box way spindle head, for AC head attachment)
• Z axis travel 1,000mm(linear way spindle head)
• 200/ 300/ 400/ 500mm higher column(SF-xx12 series only for 200mm higher column)
• Spindle ring cutting coolant device（for no head attachment）
• Coolant through spindle system 20/70 bar（Vertical spindle）
• Coolant through tool holder interface
• Coolant through tool holder 5/20 bar cutting fluid interface
• Oil skimmer
• Oil mist cooling device
• 40/60 tools magazine with arm type ATC
• Enclosed sheet metal guard with roof
• Helical bladed screw conveyor on table sides
• Chip cart
• Air conditioning for electrical cabinet
• XYZ axis linear scale feedback
• 3 axis independent manual pulse generator
• Sub working table
• Rotary table
• Interface reserved for fourth axis
• Spindle cutting load hardware protection
• Z axis retract function at power failure
• Anti-collision and process simulation software
• Remote monitoring software-professional
• Auto tool length measurement
• Auto workpiece coordinate measurement
• Transformer
• Auto warm up function
• Spindle and structure temperature thermal compensation system
