VB Series

Category Gantry Machining Centre

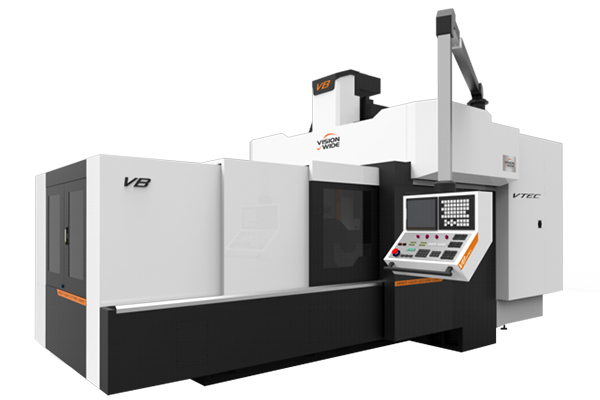

The Vision Wide VB Series is a robust CNC double column machining centre designed for heavy-duty cutting applications. Engineered with hardened box guideways and Meehanite castings, it delivers exceptional rigidity, precision, and durability—ideal for mould bases, large components, and demanding industrial machining.

Video

Highlights

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Box Guideways

Hardened and hand-scraped box ways ensure smooth, precise movement and long-term accuracy

Meehanite Cast Iron Structure

Provides superior rigidity and vibration damping for stable heavy-duty cutting

Optimised Spindle Layout

Reduces thermal expansion and unbalanced cutting forces for consistent performance

Large Span Guideways

Supports heavy workpieces with enhanced stability and load capacity

Auto Head Attachments

Enables versatile mould surface machining with optional head configurations

Feature Summary

The VB Series from Vision Wide is purpose-built for high-precision, heavy-duty machining. Its double column bridge-type design incorporates hardened box guideways across all axes, heat-treated to HRC 50 and hand-scraped for optimal accuracy. The machine’s structural components are made from Meehanite-grade cast iron, stress-relieved to eliminate internal tension and ensure long-term stability.

The Y-axis box way is positioned close to the spindle centreline, minimising deflection and thermal drift during intensive cutting. The bed features a box-shape with V-rib reinforcements, allowing it to support large and heavy workpieces without compromising accuracy. Twin hydraulic cylinders with pneumatic assistance balance the vertical axis, enhancing smoothness and control.

Standard features include remote monitoring software (except for Siemens controllers), coolant-through-tool interfaces, and spindle ring coolant systems. The VB Series is ideal for mould base machining, aerospace components, and other applications requiring high rigidity and precision.

Specifications

MODEL UNIT VB-2016 VB-2516 VB-3016 VB-2020 VB-2520 VB-3020 VB-4020
X axis travel mm 2000 2500 3100 2000 2500 3100 4100
Y axis travel mm 1600 2000
Z axis travel mm 800/1020(OPT.) 800/1020(OPT.)
Table dimension mm 2000×1300 2500×1300 3100×1300 2000×1700 2500×1700 3100×1700 4100×1700
Max table load kg 8000 9000 10000 9000 10000 11000 12000
Spindle motor power kW 18.5/22 (22/26, 30/37 OPT.)
Spindle speed 2-step gear 4000/6000(OPT.) 4000/6000(OPT.)
Cutting feed rate mm/min 1/7,000
Rapid traverse (X/Y/Z) m/min X/Y/Z: 15 X/Y:12 | Z:15
ATC capacity pcs 32/40(OPT.)

Standard Inclusions

  • Fanuc 0iMF PLUS Controller
  • 4,000 rpm two-step gear spindle
  • Spindle oil cooler
  • Twin hydraulic cylinders with pressured air assistance balancing system
  • X-axis ball screw supporter ( X > 4m above)
  • Centralized auto lubrication system
  • Independent lubrication oil collector
  • Ball screw cooling system
  • Air blast through spindle
  • Wash gun and pneumatic interface
  • Cutting fluid cooling system
  • 40 tools magazine with arm type ATC
  • Enclosed sheet metal guard without roof
  • Swiveling arm type operation panel
  • Screw type chip conveyor on table sides
  • Caterpillar type chip conveyor / Water tank
  • Heat exchanger for electrical cabinet
  • Working lamp
  • Operation cycle finish and alarm light
  • Movable manual pulse generator
  • Footswitch for tool clamping
  • RJ45 interface
  • XYZ-axis absolute pulse coder feedback
  • XYZ-axis travel hard limits protection
  • Spindle cutting load software protection
  • Remote monitoring software-Standard (Not available for Siemens controller)
  • Auto power off
  • Vision Wide FX graphical user interface
  • Foundation pads and bolts kits
  • Adjustment tool and tool kits
  • Technical manuals (operation, maintenance manual and circuit diagram)

Optional Extras

  • 6,000 rpm 2-step gear spindle
  • Z-axis travel 1,020mm
  • 200 / 300 / 400 / 500 mm higher column
  • The interface of coolant through spindle
  • Coolant through spindle system 20 / 70 bar
  • Coolant through tool holder interface
  • Coolant through tool holder 5 / 20 bar cutting fluid interface
  • Oil skimmer
  • Oil mist cooling device (MQL)
  • Spindle ring cutting coolant device (for no head attachment)
  • 60 tools magazine with arm type ATC
  • Enclosed sheet metal guard (with roof)
  • Helical blade screw conveyor on table sides
  • Chip cart
  • Air conditioner for electrical cabinet
  • X/Y/Z axis linear scale
  • XYZ axis independent manual pulse generator
  • Sub table
  • Rotary table
  • Interface reserved for fourth axis
  • Tool axis retract function at power failure
  • Anti-collision and machining simulation software
  • Remote monitoring software (professional)
  • Auto workpiece measurement
  • Auto tool length measurement
  • Transformer
  • Auto warm up
