430V

Category Machining Centre

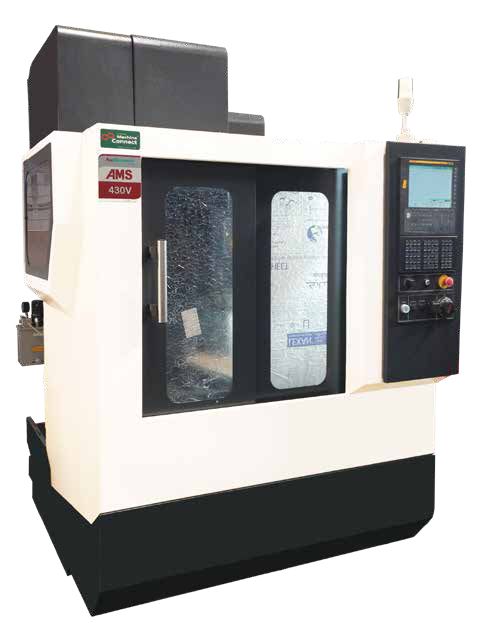

The 430V Vertical Machining Center from AceMicromatic offer precision and efficiency with features like a 5.5/3.7 kW spindle power, 20-tool side-mounted ATC, and 6000 rpm spindle speed. Optional upgrades include an 8000 rpm spindle and Siemens 828D controller package. Ideal for enhancing productivity and achieving high-quality machining results.

Price Guide: $60k +

Video

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Compact Footprint

Saves valuable floor space in your workshop

High-Speed Tool Changes

20-tool twin-arm ATC increases productivity

Precision & Repeatability

Ensures high-quality and consistent machining results

Fanuc OiMF+ Control

Provides intuitive operation and efficient troubleshooting

Optional 4th Axis Capability

Enhances versatility for complex machining tasks

Feature Summary

The Ace 430V machining center combines compact design with robust capabilities. Its BT-40 spindle delivers up to 7.5 kW of power (Fanuc rated), supporting speeds from 60 to 6000 rpm (optionally up to 8000 rpm). The machine features linear motion guideways on all axes, ensuring smooth and accurate movement.

Rapid traverse rates of 36 m/min on X, Y, and Z axes reduce cycle times, while the bi-directional 20-tool ATC with twin-arm mechanism supports efficient tool management. The machine is equipped with rigid tapping, a fail-safe brake for the Z-axis, and a moisture separator for pneumatic lines, enhancing both performance and safety.

Standard inclusions like a coolant system, chip tray, work light, and CE-compliant safety features make the 430V production-ready. Optional upgrades include increased daylight area, 4th axis interfacing, and hydraulic looping assemblies, allowing users to tailor the machine to specific applications.

With its Fanuc OiMF+ control system, the 430V offers intuitive operation, diagnostics, and tool life management. The machine is CE marked and backed by a 12-month mechanical warranty and 24-month Fanuc warranty on CNC systems.

Specifications

Specification Value
TRAVELS
X Axis Travel (mm) 400
Y Axis Travel (mm) 300
Z Axis Travel (mm) 400
Spindle Face to Table Top (mm) 125 – 525
TABLE
Table Size (mm) 650 × 300
Max Load on Table (kgf) 250
Table Height from Floor (mm) 840
SPINDLE
Tool Shank Type BT-40
Spindle Speed (Std.) (rpm) 60 – 6000
Spindle Speed (Opt.) (rpm) Up to 8000
Spindle Power (kW) 5.5 / 3.7
FEED
Rapid Traverse (X/Y/Z) (m/min) 36 / 36 / 36
Cutting Feed (mm/min) 1 – 10000
Guideways Linear Motion
TOOL CHANGER
Number of Tools 20
Max Tool Diameter (mm) 80
Max Tool Length (mm) 250
Max Tool Weight (kg) 8
Tool Change System Twin Arm
ACCURACY
Positioning Accuracy (mm) ±0.010
Repeatability (mm) ±0.003
CONTROLLER & ELECTRICAL
CNC Control Fanuc OiMF+
INSTALLATION
Machine Dimensions (W×D×H) (mm) 1600 × 2000 × 2350
Machine Weight (kg) 2200

Standard Inclusions

  • Fanuc OiMF+ CNC controller
  • 20-tool twin-arm ATC
  • Rigid tapping
  • Coolant system
  • Total machine enclosure

Optional Extras

  • 4th Axis feature + interface wiring
  • Large spindle motor
  • Rotary Table
  • Siemens 828D control package
