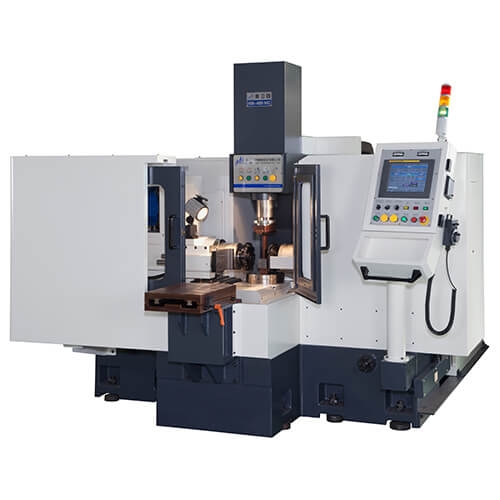

Duplex Mill Series

Category Machining Centre

The Titan Metalquip Duplex Mill Series is a range of heavy-duty double-sided milling machines built for high volume squaring, facing and roughing. Twin opposed spindles machine both faces of a block or plate simultaneously, and an indexing rotary table takes the part through four sides from a single setup. Available in four series to suit workpieces from compact blocks through to large mould bases and heavy plate. Built to take the roughing load off your machining centres and EDMs, and give that capacity back to finishing work.

Price Guide: $150k +

Video

Highlights

Made In Taiwan

Over 30 years of duplex mill manufacturing, delivering the rigidity and precision expected from Taiwanese-built machine tools

Heavy Duty Spindles and One-Piece Base

High torque at low RPM drives large diameter cutters, supported by a rigid one-piece cast iron base that holds accuracy under heavy cuts

One Setup, Four Sides

The indexing rotary table rotates the clamped part through every face, removing the setups where error and handling time creep in

Frees Up Your Finishing Machines

Move heavy roughing off your 5 axis machines and EDMs and onto a machine purpose-built for it, releasing capacity and extending the life of your highest value assets

Automatic Measuring and Detection

Workpiece auto measuring and detection on the DS6 series measures and machines all faces without operator intervention

Adaptable With Custom Jigs and Fixtures

Purpose-built jigs and fixtures open the machine up well beyond block squaring, letting one duplex mill cover a wide range of parts and repeat work

Feature Summary

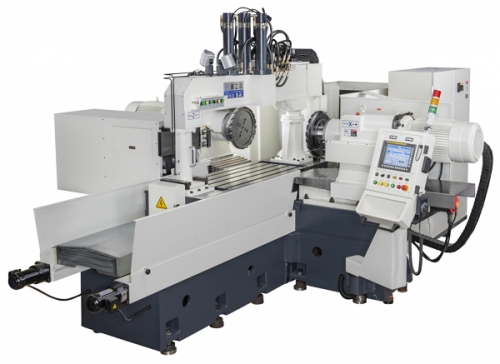

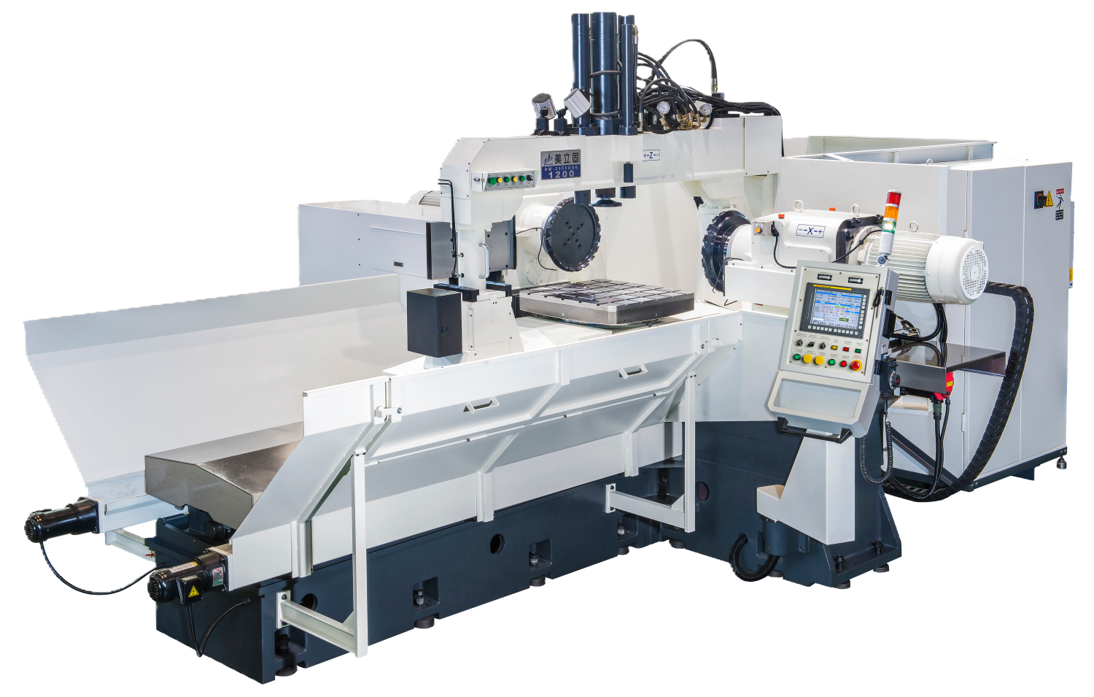

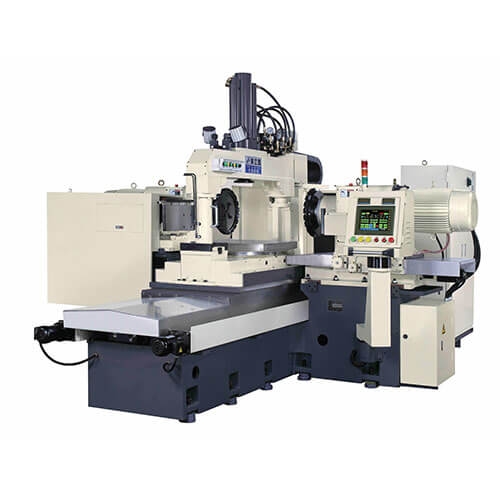

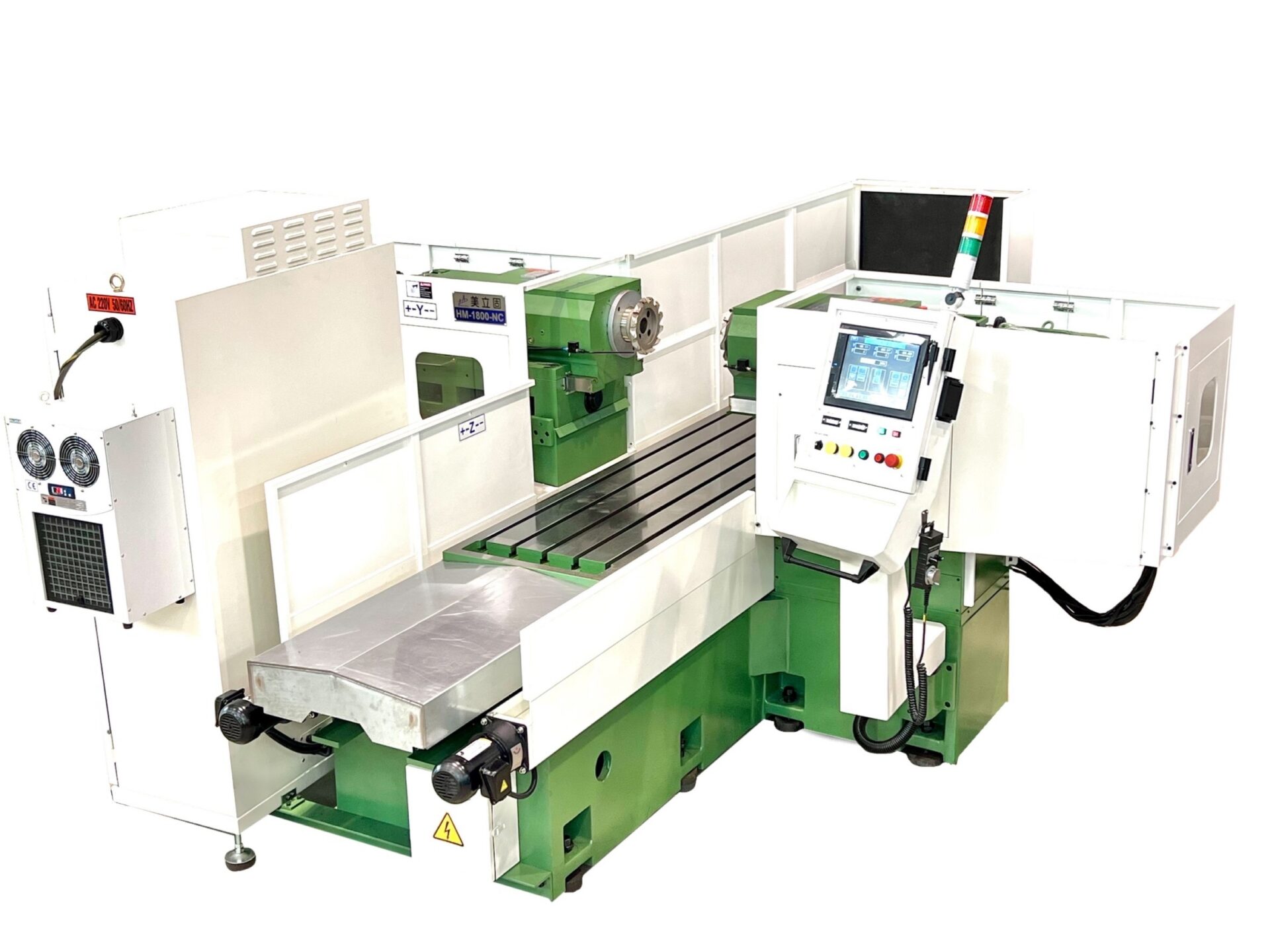

The Titan Metalquip Duplex Mill Series is a range of Taiwanese-built double-sided milling machines available exclusively through QMT Machinery in Australia. Four series cover a practical span of workpiece sizes and feature levels, from the core DS series through to the six sided DS6 and the heavy-duty SA.

Design and Construction

Every machine is built on a rigid one-piece cast iron base. Mass and rigidity where the cutting happens is what allows heavy depths of cut without chatter, and what holds accuracy over the working life of the machine. All guideways are Turcite-B coated and precision scraped. Z axis runs on precision linear guides or scraped V and flat guideway depending on model. Half of the Z axis ballscrew sits in lubrication oil.

Performance

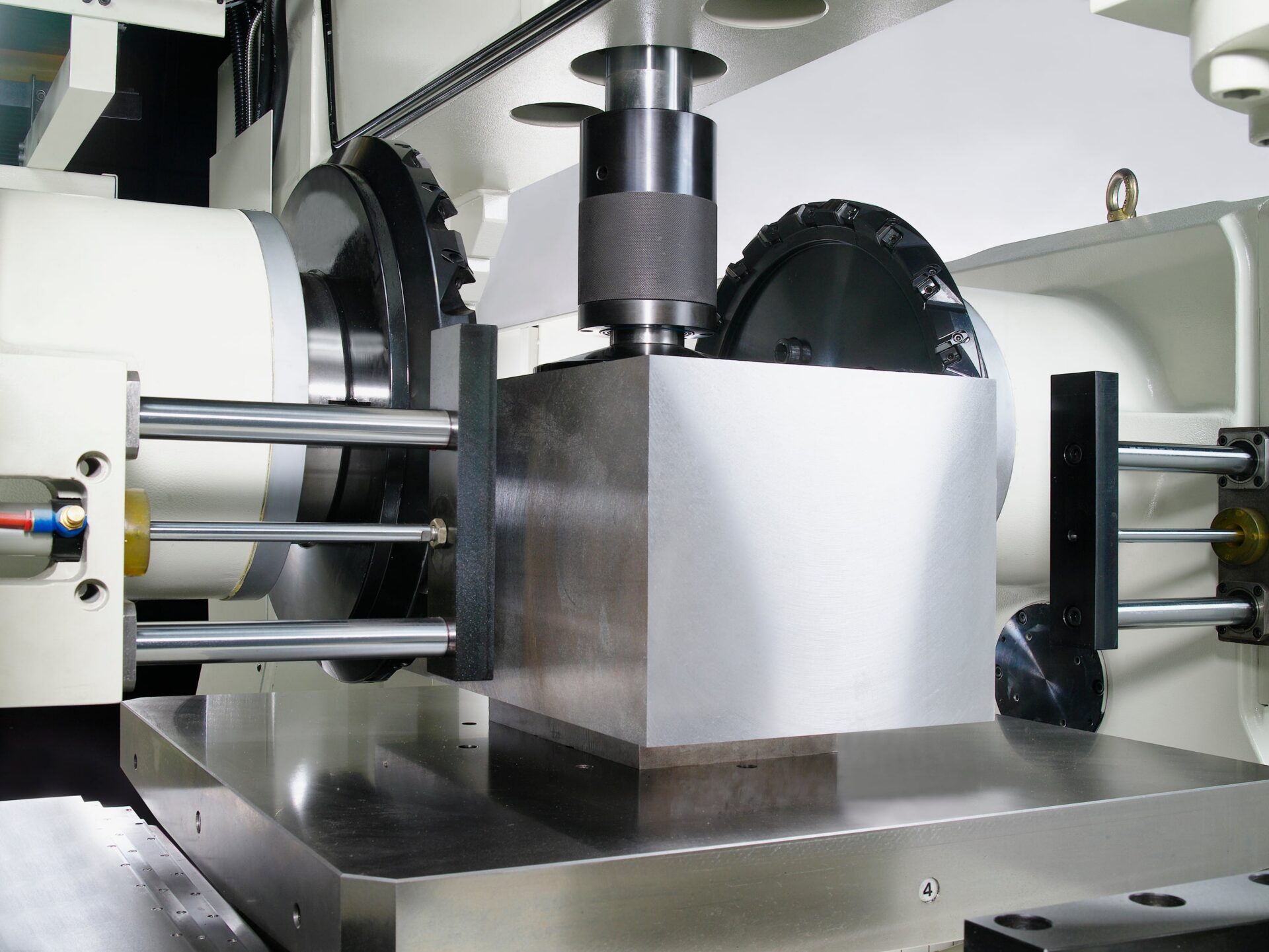

Twin horizontal spindles carry large diameter face mills and engage opposite faces of the workpiece simultaneously. The spindles produce high torque at low RPM, which is what large cutters need to remove serious volumes of steel and cast iron. Because the two heads cut against each other, the forces cancel rather than pushing the part off datum. That is what lets a duplex mill take a heavy cut and still hold parallelism and squareness. Spindles are NT50 or NT60 equivalent depending on model. Powerful hydraulic vertical clamping holds the part through the cut, and multiple plates can be clamped and milled together for batch work.

Freeing Up Capacity Elsewhere

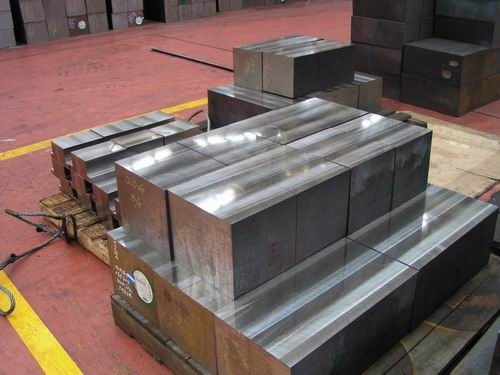

Roughing is the slowest and hardest work in the shop, and it is usually done on the wrong machine. Running it through a 5 axis machining centre or an EDM ties up an expensive asset doing low value work, and loads spindles, ways and ballscrews with forces those machines were not designed to absorb every day. A duplex mill takes that work off them. Blanks arrive at the finishing machine already square, parallel and to size. Finishing machines finish. Cycle times drop, lead times shorten, and wear is concentrated on the machine built to handle it.

Application Flexibility Through Custom Fixturing

The standard machine squares and faces blocks and plates. With purpose-built jigs and fixtures it does considerably more. Fixtures can be designed to hold irregular castings, weldments, multiple small parts in a single clamping, or components that would otherwise need dedicated tooling elsewhere. Because the machine is rigid, the clamping is hydraulic and the table indexes, almost any part that needs opposed faces machined can be fixtured for it. QMT works with customers and with fixture suppliers to design and build application-specific workholding, so one duplex mill can cover a far wider range of work than its base configuration suggests.

Usability

An operator-friendly HMI control handles setup and operation without CNC programming expertise. The DS6 series adds automatic workpiece sensing, measurement and detection, so the machine locates the part, measures it and machines all faces without the operator intervening between sides.

Reliability and Maintainability

The one-piece base design has no bolted joints to loosen or shift over time. Turcite-B coated and precision scraped guideways wear slowly and can be re-scraped rather than replaced. Hydraulic clamping components and spindle assemblies are supported through QMT’s Australian parts and service network, with installation, commissioning, operator training and ongoing service handled locally.

Standard Inclusions

  • Rigid one-piece cast iron machine base
  • Twin heavy-duty horizontal cutting spindles
  • Turcite-B coated and precision scraped guideways on all axes
  • Precision linear guide or scraped V and flat guideway on Z axis, by model
  • Z axis ballscrew half-immersed in lubrication oil
  • Powerful hydraulic vertical clamping cylinders
  • Indexing rotary worktable
  • Operator HMI control system
  • Workpiece auto measuring and detection system (DS6 and SA series)
  • Coolant system
  • Chip conveyor
  • Machine guarding
  • Clamping fixture set

Optional Extras

  • Large diameter milling cutters
  • Custom application jigs and fixtures, designed to your parts
  • Spindle chiller
  • Full enclosure guarding
  • Additional clamping fixture sets
  • Multi-tap transformer for high voltage operation
