JHV Series

Category Machining Centre

The Sunmill JHV series offers high-speed, precision vertical machining centers with linear guideways on X and Y axes and box ways on Z axis. These models feature rapid traverse rates, robust spindle motors, and advanced cooling systems, ensuring superior stability, accuracy, and efficiency for diverse machining needs.

Price Guide: $95k +

Video

Highlights

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Heavy-Duty Linear Guideways

Four linear guideways on Y-axis support high loads with precision

Powerful Spindle Options

Belt-driven spindle up to 15,000 rpm with BT40 or optional BT50 taper

Thermal Stability

Spindle oil cooling and air blast systems maintain accuracy during high-speed rotation

Efficient Chip Removal

Screw-type chip conveyor standard; chain-type optional for high-volume machining

Versatile Tooling

Arm-type ATC with 24 tools and random selection for efficient tool changes

Feature Summary

The Sunmill JHV series offers high-speed, precision vertical machining centers designed for diverse machining needs. The series features linear guideways on the X and Y axes and box ways on the Z axis, ensuring superior stability and accuracy. The spindle system is flexible, with belt-driven speeds of 10,000 rpm standard and optional upgrades to 12,000 or 15,000 rpm. Users can choose between BT40 and BT50 taper configurations depending on tooling requirements. The spindle is cooled via an oil cooler system to maintain thermal stability during prolonged operations.

Rapid traverse rates and cutting feed rates up to 15,000 mm/min ensure fast and accurate machining. The ATC system supports 24 tools, with optional expansion to 30 or 40 tools using chain-type magazines. The JHV series also includes features like a full splash guard, LED lighting, air and coolant guns, and a screw-type chip conveyor as standard. Optional accessories include coolant-through spindle, oil skimmer, 4th axis rotary table, and more.

Specifications

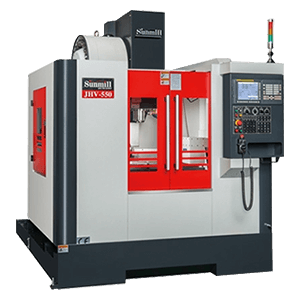

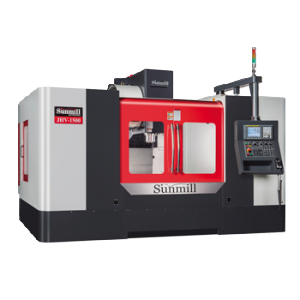

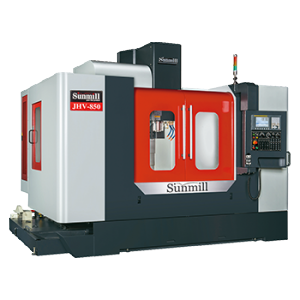

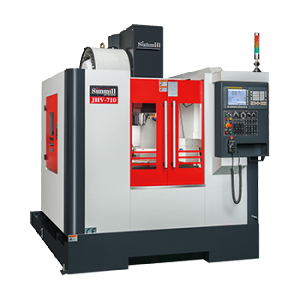

MODEL UNIT JHV-550 JHV-800 JHV-1020 JHV-1100 JHV-1200 JHV-1300 JHV-1500 JHV-1600 JHV-1800 JHV-2000
TRAVEL
X axis travel mm 550 800 1020 1100 1200 1300 1500 1600 1800 2000
Y axis travel mm 400 500 600 620 650 700 750 820 950 1000
Z axis travel mm 460 580 610 700 [850 opt.] 750 [1000 opt.]
Distance from spindle nose to table surface mm 120-580 120-700 120-730 120-810 120-800 [850 opt.] 150-900 [1000 opt.] / 150-1000 [1000 opt.]
TABLE
Table area mm 650×410 900×500 1190×580 1250×630 1350×630 1350×750 / 1550×750 1650×750 1850×900 2050×900
Max. table load kgs 250 500 800 1000 1200 1500 2000 2500
T-slot mm 3x14x100 5x18x100 4x18x125 5x18x100 5x18x150 6x18x125 6x18x145
SPINDLE
Spindle taper type BT-40 BT-40 [BT-50 opt.] BT-50
Belt type rpm 10,000 6,000
Direct type-optional rpm 10000/12000/15000
Spindle motor kw 5.5/7.5 7.5/11 15/18.5
Spindle cooling type oil cooler
FEED RATE
Rapid traverse (X,Y,Z) m/min 36/36/36 30/30/24 24/24/24 20/20/15
Cutting feed rate mm/min 1-15000
X,Y,Z axes servo motor (FANUC) kw 1.2/1.2/3.0 1.2/1.8/3.0 1.8/1.8/3.0 3.5/3.5/3.5 4/4/7 7/7/7

Standard Inclusions

  • Fanuc 0i-MF PLUS controller with 10.4″ LCD
  • AICC II (200-block look-ahead)
  • Full splash guard
  • Belt-type spindle (10,000 rpm)
  • Arm-type ATC (24 tools, BT40)
  • Spindle oil cooler
  • Spindle air blast system
  • Heat exchanger
  • Telescopic covers for 3 axes
  • LED work lamp
  • Three-colour call light
  • Tool box
  • Coolant gun
  • Air gun
  • Screw type chip conveyor
  • Auto lubrication system
  • Rigid tapping
  • Auto power off

Optional Extras

  • Chain type chip conveyor
  • Transformer
  • Direct-drive spindle
  • Built-in spindle
  • Coolant through spindle (with sealed splash guard)
  • Oil skimmer
  • Coolant flushing device
  • Air conditioner for electrical cabinet
  • Roller type linear guideways on the axes
  • 4th axis rotary table
  • Manual Guide i (Full key)
