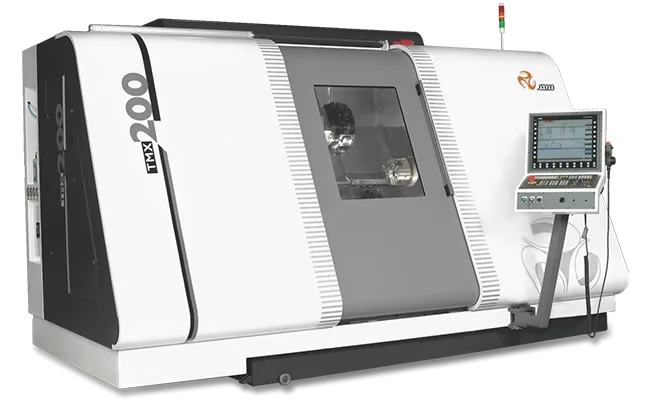

TMX Series

Category Machining Centre

Twin Turn-Mill Centre

The TMX Series from Jyoti offers advanced twin spindle, twin turret turnmill centers designed for simultaneous machining of complex parts. With high rigidity, precision linear axes, and user-friendly operator panels, the TMX Series ensures optimal performance, productivity, and profitability for various industry needs.

Video

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Simultaneous Machining

Allows machining of multiple complex parts simultaneously, significantly boosting productivity and profitability

High Rigidity Structure

Single-piece slant bed architecture made of high-grade cast iron ensures maximum rigidity and vibration damping

Precision Linear Axes

Equipped with live-tool servo type upper turret and secondary turret for flexible and precise machining

User-Friendly Operator Panel

Newly designed, easy-to-operate panel with flexible swivel movement for enhanced operator convenience

Powerful Electro-Spindle

Stationary electro-spindle with excellent heat dissipation and chiller unit for optimal performance

Feature Summary

The TMX Series from Jyoti offers advanced twin spindle, twin turret turnmill centers designed for simultaneous machining of complex parts. The machines feature a high rigidity structure with a single-piece slant bed made of high-grade cast iron, ensuring maximum rigidity and vibration damping even at high feed rates. The precision linear axes, including a live-tool servo type upper turret and a secondary turret, provide flexibility for complex turning and milling applications. The user-friendly operator panel, designed with TPM concepts, offers flexible swivel movement for enhanced operator convenience. The powerful electro-spindle, enclosed in a headstock with excellent heat dissipation and a chiller unit, ensures optimal performance. The TMX Series is designed to deliver high levels of machined surface quality and accuracy, making it ideal for various industry needs.

Standard Inclusions

Monobloc structure with slant bed
Linear motion guideways
Main and secondary electro-spindle equipped with hydraulic clamping chuck
Upper & lower turret with 12 driven stations
Linear scaling on all axes
Programmable and centralized lubrication
Laser calibration of axis for higher positioning and repeatability accuracies
Chip conveyor

Optional Extras

Bar Feeder
Part Catcher
Tool Probe
High Torque Spindle Motor
Coolant Through Tool Center
Auto Door
Job Probe
Oil Skimmer
Fully Tooled up Solution
