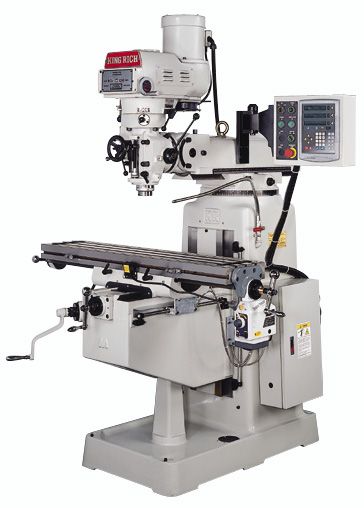

KR-V2000

Category Manual Milling Machine

The KR-V2000 milling machine offers precision and versatility with its 254 x 1,270mm table, variable speed drive head, and ISO30 spindle taper. Equipped with a 3HP motor, X-axis power feed, auto lubrication, and a coolant pump, it ensures efficient and accurate machining for various applications.

Price Guide: $25k +

Highlights

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

X Axis Power Feed

Enhances productivity with smooth, automated longitudinal movement

Lubrication System

Reduces maintenance and extends machine life

Integrated Coolant System

Includes pump and iron tray for efficient chip and heat management

Auto Lubrication System

Reduces maintenance needs and extends machine lifespan

Variable Speed Drive Head

Offers flexible spindle speeds for optimal machining control

Feature Summary

The KR-V2000 stands out as a high-performance manual mill engineered by King Rich. Its 254 x 1,270mm table offers ample workspace, while the variable speed head allows operators to adjust spindle speeds up to 4200 rpm, accommodating a variety of materials and cutting conditions.

The machine’s ISO30 spindle taper ensures compatibility with a broad selection of tooling, and the 3HP motor (415V, 50Hz) provides reliable power for demanding tasks. The X-axis power feed simplifies longitudinal movements, improving efficiency and reducing operator fatigue.

Standard features include auto lubrication, a 24V LED working light for enhanced visibility, and a coolant pump with iron tray for effective chip evacuation.

With a net weight of 1250kg and compact pallet dimensions, the KR-V2000 is easy to transport and install. It’s a trusted choice for machinists who value precision, durability, and ease of use.

Specifications

MODEL KR-V2000 KR-V3000 KR-V3000SL
Spindle Motor 3 HP 5 HP 5 HP
Spindle Speed 50–3500 rpm 60–3000 rpm 60–3000 rpm
Spindle Taper NT30 ISO 40 ISO 40
Table Size 254 x 1270 mm 305 x 1372 mm 305 x 1473 mm
Longitudinal Travel – X Axis 800 mm 860 mm 1016 mm
Cross Travel – Y Axis 400 mm 400 mm 400 mm
Knee Travel – Z Axis 406 mm 406 mm 406 mm
Ram Travel N/A 450 mm 450 mm
Quill Power Feeds N/A 0.038, 0.076, 0.152 mm 0.038, 0.076, 0.152 mm
Quill Travel 127 mm 127 mm 127 mm
Quill Diameter 85 mm 105 mm 105 mm
Swivel on Turret N/A 360° 360°
Head Tilt (Front to Back) -45° to +45° -45° to +45° -45° to +45°
Head Tilt (Left to Right) -90° to +90° -90° to +90° -90° to +90°
Spindle Nose to Table 50–457 mm 50–457 mm 50–457 mm
Machine Weight 1200 kg 1600 kg 1700 kg

Standard Inclusions

  • Dovetail slideways on X, Y, Z axes.
  • Hardened and ground table.
  • Coolant system
  • Longitudinal power feed.
  • Steel chip tray
  • Low volt Work light
  • Automatic Lubrication system
  • Operating switches on pendent arm with swivel and locking screws.
  • Toolbox with Tools
  • Levelling screws and Blocks
  • Operation and spare parts manual
  • Rubber protection covers for front and rear side of table
  • Spindle guard

Optional Extras

  • DRO system (Digital Readout)
  • Inverter head (on request)
