KR-V3000

Category Manual Milling Machine

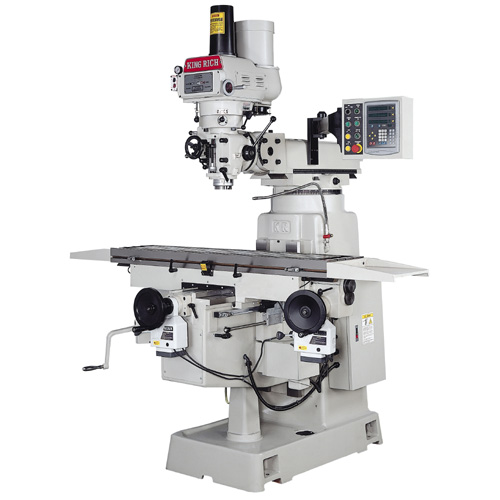

The King Rich KR-V3000 is a robust, precision-engineered manual vertical turret mill designed for high-performance machining. With a powerful 5HP motor, ISO40 spindle taper, and a spacious 305 x 1,372mm table, it delivers consistent accuracy and reliability for demanding workshop environments.

Price Guide: $30k +

Highlights

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

X Axis Power Feed

Enhances productivity with smooth, automated longitudinal movement

Auto Lubrication System

Reduces maintenance and extends machine life

Integrated Coolant System

Includes pump and iron tray for efficient chip and heat management

Powerful 5HP Spindle Motor

Ensures smooth cutting performance across a wide range of materials

Variable Speed Drive Head

Offers flexible spindle speeds for optimal machining control

Generous Table Size

Accommodates larger workpieces with ease and stability

Integrated LED Work Light

Enhances visibility for precision work in all lighting conditions

Feature Summary

The KR-V3000 stands out as a versatile and durable solution for manual milling operations. Its ISO40 spindle taper and variable speed head allow operators to tailor cutting speeds to specific materials and tasks, while the 5HP motor provides ample torque for heavy-duty applications. The machine’s 305 x 1,372mm table offers generous working space, supported by hardened and ground slideways for smooth and accurate movement along all axes.

Standard features include X-axis power feed, a 1.5HP rapid vertical motor for efficient Z-axis movement, and a coolant system with iron tray to maintain optimal cutting conditions. The KR-V3000 also includes a 24V LED work light for improved visibility and a central lubrication system to ensure consistent performance with minimal downtime.

Designed with operator safety and convenience in mind, the KR-V3000 can be enhanced with a range of optional extras such as a spindle guard with limit switch, air power drawbar, and digital readout systems. Its rugged construction and precision components make it a trusted choice for workshops seeking reliability and flexibility in a manual milling machine.

Specifications

MODEL KR-V2000 KR-V3000 KR-V3000SL
Spindle Motor 3 HP 5 HP 5 HP
Spindle Speed 50–3500 rpm 60–3000 rpm 60–3000 rpm
Spindle Taper NT30 ISO 40 ISO 40
Table Size 254 x 1270 mm 305 x 1372 mm 305 x 1473 mm
Longitudinal Travel – X Axis 800 mm 860 mm 1016 mm
Cross Travel – Y Axis 400 mm 400 mm 400 mm
Knee Travel – Z Axis 406 mm 406 mm 406 mm
Ram Travel N/A 450 mm 450 mm
Quill Power Feeds N/A 0.038, 0.076, 0.152 mm 0.038, 0.076, 0.152 mm
Quill Travel 127 mm 127 mm 127 mm
Quill Diameter 85 mm 105 mm 105 mm
Swivel on Turret N/A 360° 360°
Head Tilt (Front to Back) -45° to +45° -45° to +45° -45° to +45°
Head Tilt (Left to Right) -90° to +90° -90° to +90° -90° to +90°
Spindle Nose to Table 50–457 mm 50–457 mm 50–457 mm
Machine Weight 1200 kg 1600 kg 1700 kg

Standard Inclusions

  • American red turcite on X and Y axis
  • Dovetail slideways on X axis
  • Square slideways on Y, Z axis
  • Hardened and ground X, Y, Z axis and table
  • 1.5 HP A.C. rapid vertical motor
  • Power Longitudinal Feed
  • Power Cross Feed
  • Electrics system
  • LED Worklight
  • Coolant Tray
  • Air Powered Draw Bar
  • Rubber Covers for front & rear of saddle
  • Automatic central lubrication
  • Coolant Pump
  • Spindle guard

Optional Extras

  • DRO system (Digital Readout)
  • Inverter head (on request)
