KR-V3000SL

Category Manual Milling Machine

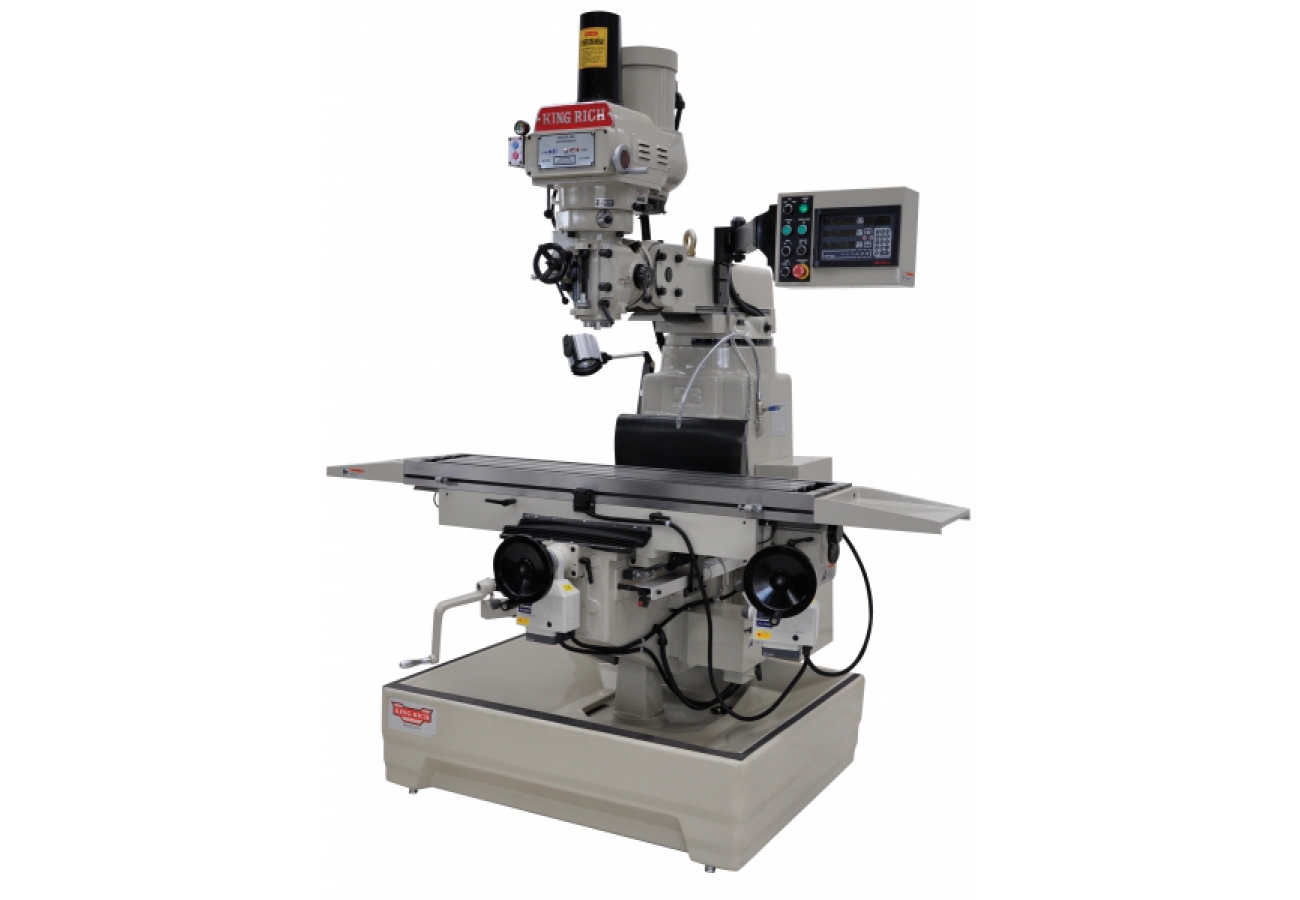

The King Rich KR-V3000SL is a robust, high-performance manual vertical mill designed for precision machining and heavy-duty operations. With a large 305 x 1,473mm table, dual-axis power feeds, and a powerful 5HP motor, it delivers exceptional stability, accuracy, and ease of use for demanding industrial environments.

Price Guide: $35k +

Highlights

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Dual-Axis Power Feed

X and Y axis power feeds enhance productivity and reduce operator fatigue

Integrated Auto Lubrication

Ensures consistent lubrication for smoother operation and longer machine life

Integrated Coolant System

Includes pump and iron tray for efficient chip and heat management

Powerful 5HP Spindle Motor

Ensures smooth cutting performance across a wide range of materials

Variable Speed Drive Head

Offers flexible spindle speeds for optimal machining control

Large Table Capacity

305 x 1,473mm table supports larger workpieces and improves machining flexibility

Integrated LED Work Light

Enhances visibility for precision work in all lighting conditions

Feature Summary

The KR-V3000SL stands out as a premium manual mill in the King Rich lineup, engineered for precision and durability. Its spacious 305 x 1,473mm table accommodates large components, while the ISO40 spindle taper and 5HP motor provide the torque and rigidity needed for tough materials. The machine features variable speed drive, allowing operators to fine-tune spindle speeds for different tasks.

Dual-axis power feeds on the X and Y axes streamline operations, especially for repetitive or long cuts. The inclusion of a 1.5HP rapid vertical motor accelerates Z-axis positioning, saving time during setup and adjustments. Auto lubrication and a coolant system are standard, reducing maintenance and improving tool life.

The KR-V3000SL also includes a 24V LED working light, enhancing visibility in low-light conditions. Optional upgrades such as a 5HP inverter head & quality 3-axis digital read-out system further elevate its performance and operator convenience. With a net weight of 1700kg and rugged construction, this machine is built to last in high-throughput environments.

Specifications

MODEL KR-V2000 KR-V3000 KR-V3000SL
Spindle Motor 3 HP 5 HP 5 HP
Spindle Speed 50–3500 rpm 60–3000 rpm 60–3000 rpm
Spindle Taper NT30 ISO 40 ISO 40
Table Size 254 x 1270 mm 305 x 1372 mm 305 x 1473 mm
Longitudinal Travel – X Axis 800 mm 860 mm 1016 mm
Cross Travel – Y Axis 400 mm 400 mm 400 mm
Knee Travel – Z Axis 406 mm 406 mm 406 mm
Ram Travel N/A 450 mm 450 mm
Quill Power Feeds N/A 0.038, 0.076, 0.152 mm 0.038, 0.076, 0.152 mm
Quill Travel 127 mm 127 mm 127 mm
Quill Diameter 85 mm 105 mm 105 mm
Swivel on Turret N/A 360° 360°
Head Tilt (Front to Back) -45° to +45° -45° to +45° -45° to +45°
Head Tilt (Left to Right) -90° to +90° -90° to +90° -90° to +90°
Spindle Nose to Table 50–457 mm 50–457 mm 50–457 mm
Machine Weight 1200 kg 1600 kg 1700 kg

Standard Inclusions

  • American red turcite on X and Y axis
  • Dovetail slideways on X axis
  • Square slideways on Y, Z axis
  • Hardened and ground X, Y, Z axis and table
  • 1.5 HP A.C. rapid vertical motor
  • Raised Column
  • Power Longitudinal Feed
  • Power Cross Feed
  • Automatic Central Lubrication
  • Coolant Pump
  • Coolant Tray
  • Air Powered Draw Bar
  • Rubber Covers for front & rear of saddle
  • LED Work light

Optional Extras

  • 3-axis DRO system (Digital Readout)
  • 5HP Inverter head (on request)
