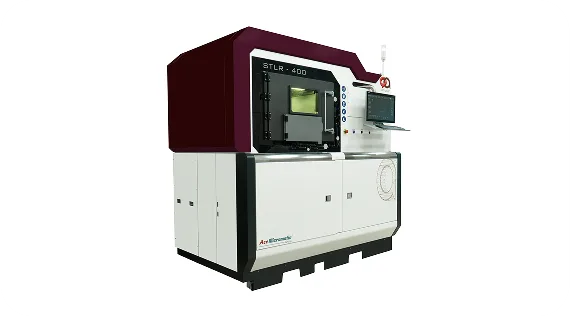

STLR-400

Category Metal 3D Printer

The STLR-400 is a high-productivity industrial metal 3D printer built for large-scale manufacturing. With dual 1000W lasers, a spacious build volume, and advanced powder handling, it delivers precision, speed, and safety. Ideal for aerospace, automotive, medical, and tooling sectors, it supports both full-scale production and R&D with exceptional flexibility and material compatibility.

Video

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Large Build Volume

410 × 410 × 450 mm capacity enables large parts or nested builds in one run

Dual 1000W Lasers

Independent lasers boost throughput and allow multi-material flexibility

Automated Powder Handling

Enclosed system with real-time monitoring ensures safety and efficiency

VoluMelt™ Technology

Proprietary high-speed printing technique reduces build time and cost

Multi-Blade Re-coater

Patented system ensures uniform powder layering and quick blade changeover

Feature Summary

The STLR-400 from amace Solutions is a flagship metal 3D printer designed for industrial-scale additive manufacturing. Engineered for high-volume production, it combines speed, precision, and safety in a robust platform tailored to demanding sectors such as aerospace, automotive, medical, and general engineering.

Its standout feature is the dual 1000W Yb-fiber laser system, each operating independently across the full scan field. This configuration significantly increases build speed and allows for flexible material usage, making it suitable for both single-material and multi-material applications. The system achieves scanning speeds up to 9 m/s, with layer thicknesses ranging from 30µm to 100µm and beam focus diameters between 80µm and 120µm, enabling fine detail and high positional accuracy.

The build envelope of 410 × 410 × 450 mm supports large components or multiple nested parts, enhancing productivity and material utilization. This makes the STLR-400 ideal for full-scale production runs or prototyping of complex geometries.

Safety and operational efficiency are elevated through the automated powder handling system, which is fully enclosed to minimize exposure—especially critical when working with reactive metals like titanium or aluminum. Nanoscopic sensors monitor powder flow in real time, while the fast extraction system ensures quick turnaround between jobs.

The multi-blade re-coater, a patented feature, ensures consistent powder distribution and minimizes downtime during blade changeovers. Combined with VoluMelt™, amace’s proprietary high-productivity printing technique, the STLR-400 achieves faster build completion and lower cost per part.

For research and development, the printer includes a part volume reducer, allowing smaller builds with minimal powder usage—ideal for testing new alloys or process parameters. It supports a wide range of metal powders, including AlSi10Mg, SS316L, 17-4PH, 15-5PH, CoCr, 18Ni300, IN625, IN718, Ti6Al4V, CuCrZr, and H13.

The STLR-400 is powered by Materialise Magics RP software with a customized amace build processor, offering intuitive control and streamlined workflow. Its industrial-grade design ensures reliability, scalability, and ease of integration into existing manufacturing environments.

Specifications

Specification	STLR-400
Build Envelope	410 mm × 410 mm × 450 mm
Laser Power	2 × 1000W Yb-fiber lasers
Scanning Speed	Up to 9 m/s
Layer Thickness	30µm – 100µm
Beam Focus Diameter	80µm – 120µm
Re-coater Type	Bi-directional multi-blade
Build Preparation Software	Materialise Magics RP + amace processor
External Dimensions (W×D×H)	3200 mm × 2400 mm × 3200 mm
Power Supply	440V, 3 Phase, 50Hz
Supported Materials	AlSi10Mg, SS316L, 17-4PH, 15-5PH, CoCr, 18Ni300, IN625, IN718, Ti6Al4V, CuCrZr, H13

Standard Inclusions

STLR-400 metal 3D printer unit
Dual 1000W fiber laser system
Multi-blade re-coater assembly
Automated powder handling system
VoluMelt™ high-speed printing module
Touchscreen control interface
Materialise Magics RP software with amace processor
Powder extraction and safety accessories
Initial set of validated metal powders (TBC – depends on purchase agreement)
Operation and safety manuals
