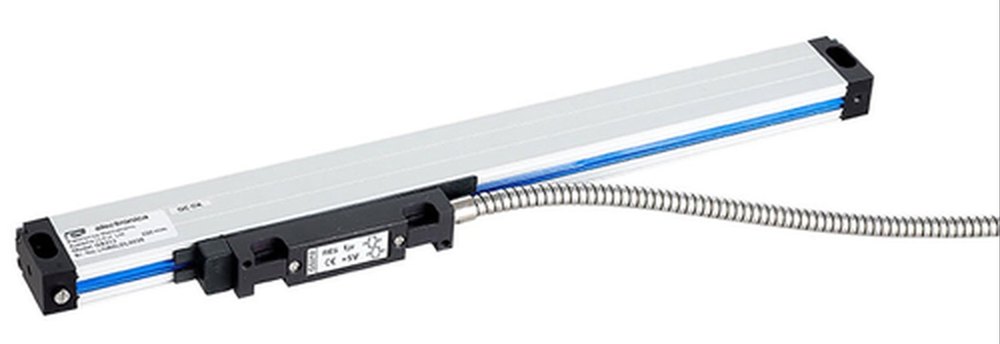

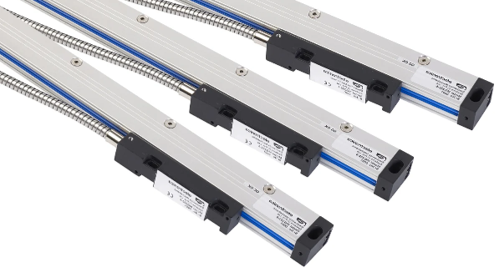

MG232 Series

Category Metrology Equipment

Magnetic Linear Encoder / Scale

The MG232 Magna is a high-speed magnetic linear encoder designed for harsh industrial environments. With IP67 protection, it resists oil, dust, and coolant, ensuring reliable performance in demanding conditions. Offering resolutions from 0.1 µm to 5 µm and lengths up to 3040 mm, it combines durability with precision for machine tools and metrology applications.

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

IP67 Protection

Fully sealed design resists oil, dust, and coolant for long-lasting reliability

High-Speed Capability

Supports up to 10 m/s measurement speed for efficient operations

Flexible Resolutions

Available in 0.1, 0.5, 1, and 5 µm for diverse applications

Extended Measuring Lengths

Scales available from 120 mm to 3040 mm for various machine sizes

Easy Integration

Same mounting provisions as optical encoders for quick replacement or upgrade

Feature Summary

The MG232 Magna series is engineered to deliver precision and resilience in the most challenging environments. Designed as a magnetic alternative to optical encoders, it offers the same mounting provisions, making it an ideal retrofit solution without major modifications. Its IP67-rated enclosure ensures complete protection against oil, dust, and coolant, making it suitable for shop floors and heavy-duty machine tools.

Performance is a key strength of the MG232. With resolutions ranging from 0.1 µm to 5 µm, it caters to both high-precision metrology and general machining needs. The encoder supports high-speed operations, achieving up to 10 m/s at 5 µm resolution, ensuring efficiency without compromising accuracy. Its repeat accuracy of ±1 count and an accuracy class of ±10 µm per meter guarantee consistent results across applications.

The MG232 is available in measuring lengths from 120 mm to 3040 mm, providing flexibility for different machine sizes. It operates on a 5 VDC power supply and consumes minimal current, making it energy-efficient. The RS422 output signal ensures compatibility with modern digital readout systems, while reference marks at 30 mm from the start and every 50 mm thereafter simplify setup and calibration.

Built for durability, the MG232 uses armoured cables for added protection, with standard lengths of 3 meters (up to 820 mm scale) and 5 meters (above 820 mm), extendable up to 20 meters. Its operating temperature range of 0°C to 50°C and storage range of -20°C to 70°C make it suitable for diverse environments. With a pole pitch of 2 mm and robust construction, the MG232 Magna is a dependable choice for milling, grinding, and profile projector applications.

Specifications

SPECIFICATION	MG232 SERIES
Resolution	0.1 / 0.5 / 1 / 5 µm
Pole Pitch	2 mm
Accuracy Class	±10 µm per meter
Repeat Accuracy	±1 count
Measuring Lengths	120 mm to 3040 mm
Power Supply	+5 VDC (±5%)
Current Consumption	50 mA (100 mA max)
Output Signal	RS422
Reference Mark	At 30 mm from start, then every 50 mm
Operating Temp.	0°C to +50°C
Storage Temp.	-20°C to +70°C
Relative Humidity	20%–80% (Non-condensing)
Standard Cable Length	3 m (≤820 mm), 5 m (>820 mm), armoured
Max Cable Length	20 m
Measurement Speed	Up to 10 m/s (at 5 µm res.)
Protection Class	IP67

Standard Inclusions

MG232 Magna magnetic scale
Armoured signal cable (length as per scale size)
Mounting hardware
User manual
