Classic Series

Category CNC Lathe

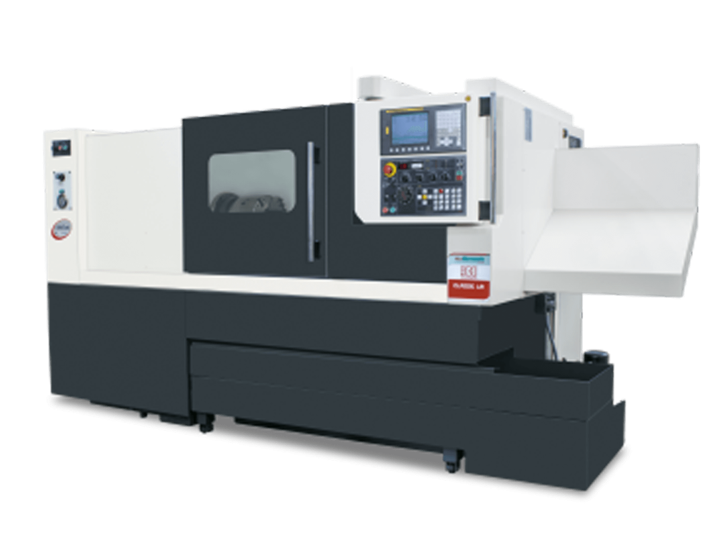

The Classic Series offers robust and precise machining solutions with features like a high-torque spindle motor, bi-directional tool turret, and thermally seasoned bed for stability. Ideal for heavy stock removal and accurate machining, it ensures enhanced performance and reliability for diverse industrial applications.

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

High-Torque Spindle Motor

Ensures efficient and powerful machining for demanding tasks

Bi-Directional Tool Turret

Enhances productivity with quick and precise tool changes

Thermally Seasoned Bed

Offers long-term accuracy and reliability in machining

Overload Tripping Clutch

Protects the machine and reduces maintenance costs

High Precision Ball Screws

Ensures stability and accuracy in machining operations

Feature Summary

The Classic Series offers a range of advanced machining solutions designed for precision and efficiency. The bed is made from fine grain Grade 25 cast iron with a box-type construction, providing rigidity and stability. The high-torque spindle motor ensures powerful performance for heavy stock removal, while the bi-directional tool turret allows for quick and precise tool changes. The thermally seasoned bed is designed for easy chip flow and removal, enhancing long-term accuracy. The machine also features an overload tripping clutch to minimize damage in case of accidents. The X and Z axes are equipped with high precision ball screws supported by precision class ball screw support bearings, ensuring stability and accuracy. Additionally, the tailstock is hydraulically operated and supported on V and flat guideways, providing rigidity and ease of use. These features make the Classic Series ideal for diverse industrial applications, offering enhanced performance and reliability.

Specifications

Model LT-20C Classic S00 LT-20C Classic LT-20C Classic 500LM LT-20C Classic LM LT-20C Classic 500 M
LT-20C Classic 500 LM M		 LT-20C Classic M
LT-20C Classic LM M
Swing Over Bed (mm) 550 550 550 550 550 550
Swing Over Carriage (mm) 290 290 330 330 290 330
Maximum Turning Dia (mm) 370 370 370 370 250 250
Maximum Turning Length (mm) 500 670 500 670 500 600
Distance Between Centers (mm) 500 670 500 670 500 670
Spindle Size / Nose A2-6 A2-6 A2-6 A2-6 A2-6 A2-6
Bore Through Spindle (mm) 63 63 63 63 63 63
Maximum Bar Capacity (mm) 51 51 51 51 51 51
Front Bearing Bore (mm) 100 100 100 100 100 100
Spindle Motor Power – Fanuc (Continuous) (kW) 11 11 11 11 11 11
Spindle Motor Power – Fanuc (30min) (kW) 15 15 15 15 15 15
Full Power Range – Fanuc (rpm) 500-4,000 500-4,000 500-4,000 500-4,000 500-4,000 500-4,000
Types of Guideways HGBT HGBT LM LM HGBT/LM HGBT/LM
X-Axis Stroke (mm) 205 205 205 205 192 192
Z-Axis Stroke (mm) 500 670 500 670 600 600
X&Z Axis Rapid (m/mm) 20 20 30 30 20/30 20/30
Turret Type BTP-100 BTP-100 BTP-100 BTP-100 Axial Tool Turret Axial Tool Turret
No of Station 8 (12) 8 (12) 8 (12) 8 (12) 12 12
Boring Bar Dia Max (mm) ø40 ø40 ø40 ø40 ø40 ø40
OD Turning Tool Size (mm) 25×25 25×25 25×25 25×25 25×25 25×25
Rotary Tool Power (kW) NA NA NA NA 3.7 4.5
Rotary Tool Motor Speed (rpm) NA NA NA NA 4,000 3,000
Quill Dia (mm) 80 80 80 80 80 80
Quill Travel (mm) 120 120 120 120 120 120
Taper in Quill MT-4 MT-4 MT-4 MT-4 MT-4 MT-4
Thrust of Quill (kgf) 500 500 500 500 500 500
Coolant Tank Capacity (ltr) 160 160 160 160 180 180
Hydraulic Pump Capacity (lpm) 14 14 14 14 14 14
Hydraulic Power Pack Tank Capacity (ltr) 45 45 45 45 45 45
Overall Dimensions (LxWxH) (mm) 2,498×1,587×1,705 3,310×1,535×1,760 2,498×1,587×1,705 3,310×1,535×1,760 3,310×1,535×1,760 3,433×1,648×1,720
Overall Weight (kg) ~4,000 ~4,500 ~5,000 ~5,000 ~5,000 ~5,000

(Values mentioned in brackets are optional)

Standard Inclusions

  • Cartridge type spindle
  • AC spindle drives
  • AC axes drives
  • High speed bi-directional tool turret
  • Linear Motion Guideways
  • Turcite anti-slipstick liners on slide way surfaces
  • Tailstock with Add-on type live centre
  • Automatic centralized oil lubrication
  • Built-in lighting system & overload trip clutch for axes
  • OD tool holder damping blocks (8)
  • Boring bar holder (4)
  • Facing tool holder (2)
  • Set of sleeves
  • Coolant systems with side tray
  • Programmable quill

Optional Extras

  • Fully tooled up solutions to meet customer needs
  • Chip conveyor at side or rear
  • A wide variety of power operated work-holding (chucks, collets, fixtures, etc.) and tooling
  • 12 station Turret (Other than Turnmill)
  • Auto door
  • Tool touch probe
  • Parts catcher
  • Bar feeder
  • Programmable Tailstock
  • Steady Rest
  • VDI Disc on Turret
  • A2–8 spindle
  • Manual guide i
  • Door interlock
  • Built-in live center for Tailstock
  • Torque enhancement
