LLA Series

Category CNC Lathe

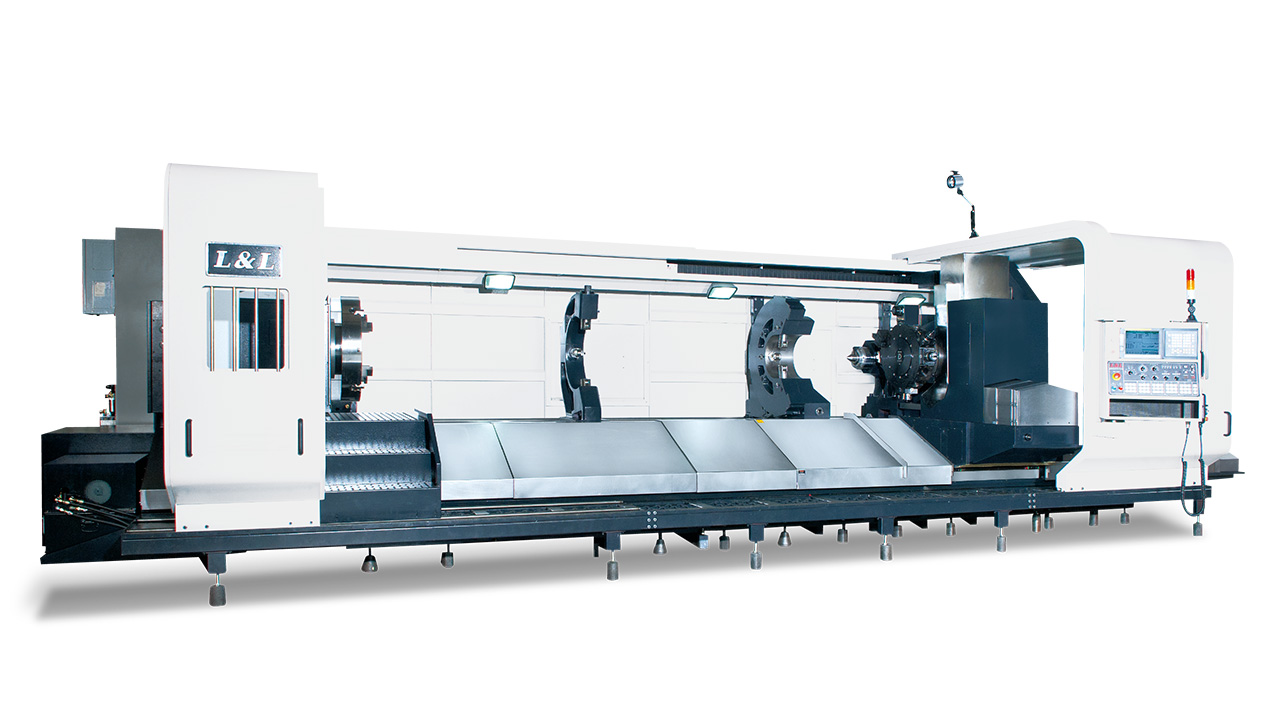

5 Axis Turning Milling CNC Lathe

The LLA series is a 5 axis turning milling CNC lathe built for shops that need to do more than just turn. Manufactured by L&L Machinery Industry Co, a Taiwanese company with over 40 years of experience in producing conventional and CNC lathes, the LLA combines heavy duty flatbed rigidity with true multi axis capability, letting you turn, mill, bore, drill, grind, and polish in a single setup.

L&L Lathes

Video

Highlights

True Multi Axis Processing

Operations such as turn-milling, worm milling/thread hobbing, gear-tooth generation, angled hole drilling, tapping, deep boring, etc are possible

Simultaneous 4 or 5 Axis Cutting

Simultaneous 4 or 5 axis cutting utilizes X-Y-Z-B & C axis, letting you complete complex workpieces in fewer setups and less handling time

Flexible Tooling Configurations

Machines are available with front disc turrets or column-type Y-Axis spindle carriers for driven tools with up to 25 HP motor and 20 position ATC (automatic tool changer)

Five Track Bed Structure

Features a five-track bed structure, built on a unique 5-guide one-piece box-way bed and box-way cross-slide design where carriages run along the full Z-axis length of bed “in front” of the workpiece without interference from steady rests, boring saddles, or the tailstock

In Process Monitoring

Optional video surveillance system and in-process gauging also increase productivity and ensure successful results for operators, managers and customers

Feature Summary

The L&L LLA series sits in that purposeful space where serious turning capability meets genuine multi axis machining. These “Smart Machines” are kicked-up versions of the proven LL-Series, featuring capabilities for complex multi-axis processing of workpieces.

Design and Construction

At its core, the LLA is built on the same foundation that makes the LL series a workhorse for heavy industry: a unique design flatbed CNC featuring 5-guide one-piece box-way bed and box-way crosslide. The “high-low wrap-around” boxway design maintains the rigidity of flat-bed lathes, with the combined advantage of no interference from slant-bed designs. This means your carriage moves freely along the full Z-axis length without being blocked by steady rests or tailstock, a design advantage that matters on long, complex workpieces.
The LLA offers a swing over bed of 1,250 mm and a maximum cutting diameter of 950 mm, with a centre height of 675 mm.Distance between centres ranges from 3,200 mm through to 10,200 mm, giving you the flexibility to handle both mid-length components and extended shaft work. Bed width is a substantial 1,290 mm.

Multi Axis Capability

Where the LLA separates itself from a standard heavy duty turning lathe is in its machining versatility. Simultaneous 4 or 5 axis cutting utilizes X-Y-Z-B & C axes. This opens up a wide range of operations that would typically require a separate milling machine or machining centre. Operations such as turn-milling, worm milling/thread hobbing, gear-tooth generation, angled hole drilling, tapping, deep boring, polishing, and grinding are possible.

Tooling Versatility

Machines are available with front disc turrets or column-type Y-Axis spindle carriers for driven tools with up to 25 HP (approximately 18.5 kW) motor and 20 position ATC. This gives you the flexibility to configure the machine for your specific application, whether you need rapid tool changes for production work or heavy milling capability for one-off complex parts.

Spindle Options

Spindle bore options include 153 mm (6 inch) and 230 mm (9 inch), with spindle nose types A2-11 and A2-15 respectively. This accommodates a broad range of through-bore and chucking work.

Control System

The standard controller is a FANUC 0i-TF, with optional upgrades to FANUC 31i-Model B or SIEMENS 828D, giving you the choice of the control platform that best suits your operators and your workflow.

Modularity and Productivity

Programmable steady rests and special-purpose rear-mounted saddles increase the versatility of this modular design.Video surveillance system and in-process gauging also increase productivity and ensure successful results.

Built for Industry

L&L serves diverse industries including petroleum, steel, mining, oil & gas, rubber & plastic, textile, and aviation. Their heavy-duty lathes are developed to furnish optimum performance required by a wide range of industries, including the general machining industry, mining industry, shafts, pattern and roller manufacturing, power utilities, as well as the mining & metals industry.

Specifications

Standard Inclusions

  • FANUC 0i-TF Plus CNC controller
  • Auto lubrication system (headstock and carriage)
  • Coolant system
  • Air conditioning for electrical cabinet
  • Front and rear chip conveyors with carts
  • Front doors and full-length rear splash guard
  • Work light
  • Spindle sleeve and centres
  • Levelling bolts and pads
  • 4-jaw independent chuck
  • Steady rests
  • Facing tool holders
  • Extended tool holders
  • Boring bar holders and sleeves
  • Electrical manual, parts manual, control manual
  • Motorised tailstock body and quill movement

Optional Extras

  • FANUC 31i-Model B controller upgrade
  • SIEMENS 828D controller upgrade
  • Column-type Y-axis spindle carrier with driven tools (up to 18.5 kW / 25 HP)
  • Front disc turret
  • 20 position automatic tool changer (ATC)
  • Programmable steady rests with hydraulic clamp/unclamp and positioning bases
  • Rear-mounted special purpose saddle
  • Video surveillance system
  • In-process gauging system
  • X/Z-axis linear encoders
  • C-axis system
  • Additional steady rests (various capacities)
  • CE electrical package and door switch
  • Transformer
  • Oil chiller for headstock lubrication
  • Full enclosed guarding (in lieu of front doors)
  • Boring bar supports and extended boring bars
  • 230 mm (9 inch) spindle bore upgrade (A2-15)
