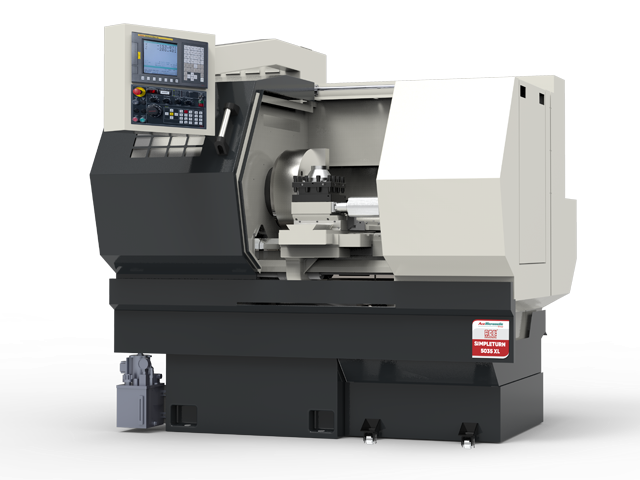

SimpleTurn 5035 XL

Category CNC Lathe

The SimpleTurn 5035 XL from Ace Micromatic is a robust flatbed CNC lathe designed for precision and efficiency. Key features include a direct drive spindle, 4-station vertical axis turret, and automatic slideway lubrication. Ideal for high-performance machining, it offers enhanced reliability and versatility for various industrial applications.

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Direct Drive Spindle

Ensures high precision and smooth operation, enhancing machining accuracy

4-Station Vertical Axis Turret

Allows for efficient tool changes, reducing downtime and increasing productivity

Automatic Slideway Lubrication

Minimizes maintenance needs and extends machine lifespan

Stainless Steel Cover for Z-Axis

Provides robust protection, ensuring long-term reliability

Coolant System

Maintains optimal operating temperatures, improving machining performance and tool life

Feature Summary

The SimpleTurn 5035 XL is a high-performance flat bed CNC lathe designed for precision and efficiency. It features a direct drive spindle, which ensures high precision and smooth operation, enhancing machining accuracy. The 4-station vertical axis turret allows for efficient tool changes, reducing downtime and increasing productivity. The machine is equipped with automatic slideway lubrication, which minimizes maintenance needs and extends the machine’s lifespan. Additionally, the stainless steel cover for Z-axis protection provides robust protection, ensuring long-term reliability. The coolant equipment maintains optimal operating temperatures, improving machining performance and tool life. These features make the SimpleTurn 5035 XL an ideal choice for various industrial applications, offering enhanced reliability and versatility.

Specifications

DESCRIPTION VALUE
DESCRIPTION
Model SIMPLETURN 5035 XL
CAPACITY
Swing Over Bed 500 mm
Swing Over Carriage 280 mm
Maximum Turning Dia -/320 mm
Maximum Turning Length from chuck face 350mm (with tool mounted axially)
SPINDLE
Spindle Nose A2-6
Max. bar capacity Ø42*/ Ø36* with Gear Box
Bore through Spindle Ø63 / Ø53 with Gear Box
Max. Spindle Speed 2000 rpm
Spindle Motor Power AC Induction Motor 7.5kW
Full Power Range 700-2000
With Gear Box option 180-550 & 550-2000
Standard Chuck Size Ø250 mm
TURRET
Turret type 4 station vertical axis / Electro Mechanical
No of Stations 4
Max. Boring Bar Dia 32 mm
OD Turning Tool Size 25×25 mm
AXES
X-Axis Stroke 300 mm
X-Axis Rapid rate 8 m/min
X-Axis Guideways Hardened & Ground Dovetail
Z-Axis Stroke 350 mm
Z-Axis Rapid rate 10 m/min
Z-Axis Guideways Hardened & Ground
COOLANT SYSTEM
Coolant Tank Capacity 110 Ltr
GENERAL
Over all Dimensions (LxWxH) 2100 x 2000 x 1900 mm
Over all Weight (without packing) ~1850 kg

Standard Inclusions

  • Direct drive spindle
  • 4-station vertical axis turret
  • Coolant system
  • Machine lamp
  • Automatic slideway lubrication
  • Electronic hand wheels on console box
  • Stabilastic cover for ball screw protection
  • Stainless steel cover for Z-axis protection

Optional Extras

  • Geared headstock
  • BTP 80 – 6 station turret
  • Manual chuck
  • Hydraulic chuck and cylinder
  • Basic spares for two years running
  • 9.5 kW spindle power

Optional Extras

Quality Headstock

Simple Turn 40100 is a flatbed 2-Axes Horizontal CNC Turning Center designed to bridge the gap between manual & CNC turning lathes.

Heavy-Duty Spindle

Machined from forged alloy steel, hardened, ground & dynamically balanced. Three-point support by high grade precision tool taper roller & ball bearings.

Description

Simple Turn 40100 is a flatbed 2-Axes Horizontal CNC Turning Center designed to bridge the gap between manual & CNC turning lathes.

Extra 4

Lorem Ipsum 40100 is a flatbed 2-Axes Horizontal CNC Turning Center designed to bridge the gap between traditional and modern machining systems.
