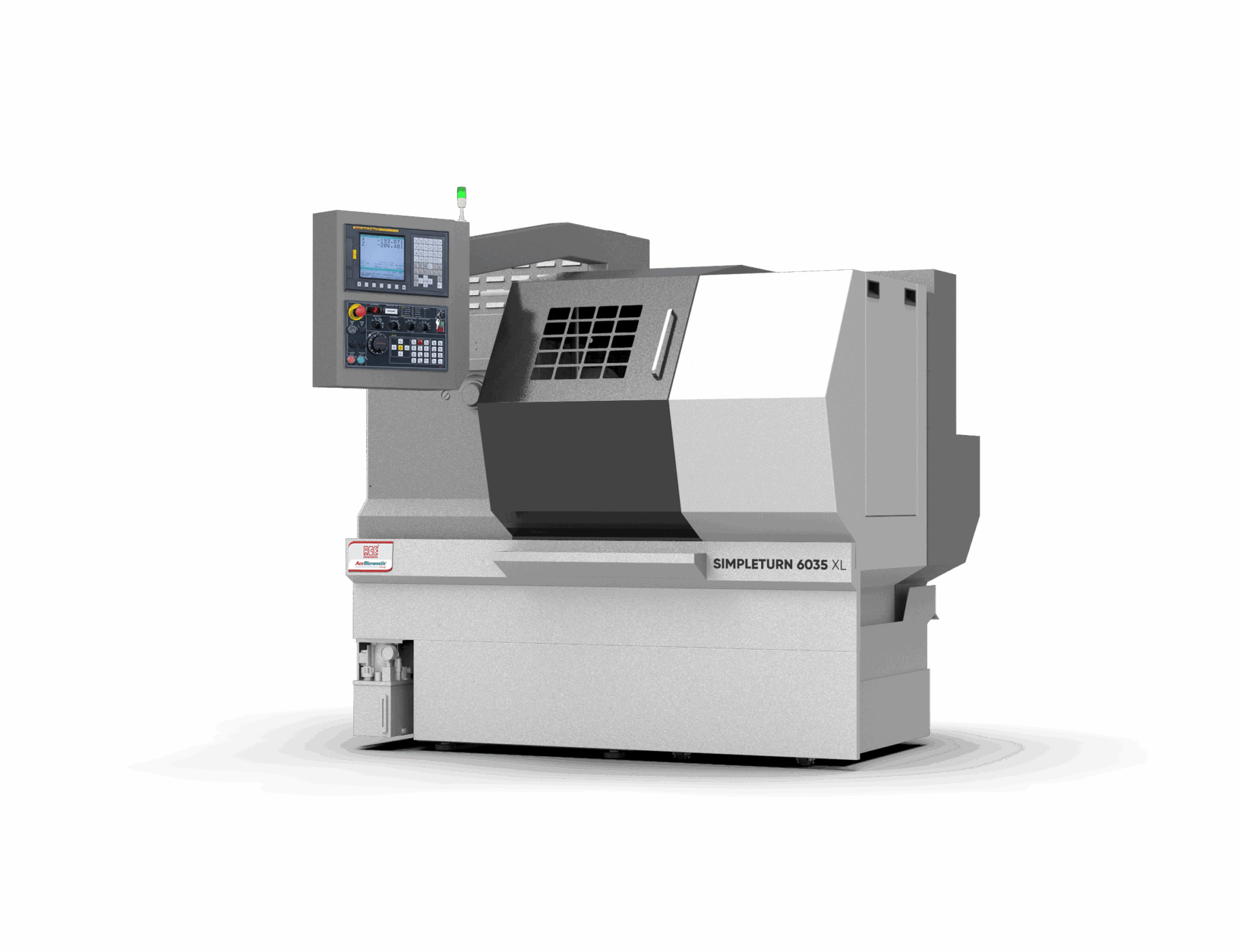

SimpleTurn 6035 XL

Category CNC Lathe

The Ace SimpleTurn 6035 XL from AceMicromatic is a flatbed 2-Axes Horizontal CNC Chucker designed to bridge the gap between manual and CNC turning. With thoughtfully placed electronic hand wheels and robust construction, it offers precision, flexibility, and ease of use for small to medium-sized component machining.

Brochure Download

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Flatbed CNC Design

Combines manual lathe familiarity with CNC precision for seamless operator transition

Electronic Hand Wheels

Enhances control and flexibility during setup and manual intervention

Robust Spindle Performance

Cartridge-type spindle with AC drives ensures consistent torque and speed

12-Station Bi-Directional Turret

Supports efficient tool indexing and reduced cycle times

Automation Ready

Compatible with gantry and robot interfaces for enhanced productivity

Feature Summary

The SimpleTurn 6035 XL is engineered for reliability and simplicity. Its flatbed layout and electronic hand wheels make it ideal for operators transitioning from manual to CNC systems. The machine features a cartridge-type spindle powered by AC drives, delivering consistent torque across a wide speed range. Precision guideways and a 12-station bi-directional turret ensure accurate and repeatable machining.

The tailstock includes a live centre and programmable options, supporting longer components and flexible setups. Centralised lubrication, drain line oil cooling, and overload protection enhance durability and reduce maintenance. The machine is automation-ready, with options for robot and gantry interfaces, making it suitable for high-volume production environments.

Ace also offers fully tooled-up solutions tailored to customer components, including workholding, cycle time estimation, and process layouts.

Specifications

SPECIFICATION VALUE
Model SIMPLETURN 6035 XL
Control System Fanuc / Siemens
Swing Over Bed ø500 mm
Swing Over Carriage ø302 mm
Distance Between Centres 550 mm
Max Turning Diameter ø302 mm
Max Turning Length 500 mm
Spindle Nose A2-6
Spindle Bore ø63 mm
Max Bar Capacity ø51 mm
Chuck Size 200 mm
Spindle Motor Power 9 / 11 kW
Spindle Speed Range 500 – 4000 rpm
Guideways Hardened Ground Box Type (XL)
X Axis Stroke 208 mm
Z Axis Stroke 500 mm
Feed Rate (X & Z) 0 – 10,000 mm/min
Rapid Traverse (X & Z) 30 / 20 m/min
Turret Stations 12
Max Boring Bar Diameter ø32 mm
Max Turning Tool Size 20 x 20 mm
Coolant Tank Capacity 110 litres
Hydraulic Pump Capacity 14 litres
Hydraulic Tank Capacity 45 litres
Machine Dimensions (L x W x H) 2245 x 1799 x 1770 mm
Machine Weight (approx.) 4000 kg

Standard Inclusions

  • Cartridge-type spindle
  • AC spindle and axis drives
  • Precision guideways
  • 12-station bi-directional turret
  • Tailstock with live centre
  • Centralised oil lubrication
  • Drain line oil cooler
  • Basic hydraulic system
  • Built-in lighting system
  • AC unit for electrical cabinet
  • Door interlock

Optional Extras

  • Fully tooled-up solutions
  • Chip conveyor (side or rear)
  • Power-operated workholding
  • Auto door
  • Tool touch probe
  • Parts catcher
  • Bar feeder
  • Programmable tailstock
  • Steady rest
  • 3-tier lamp
  • TPM Trak productivity monitoring system
