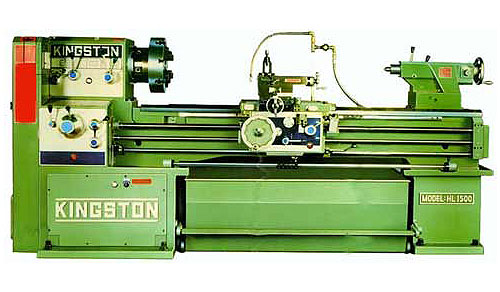

HL Series

Category Manual Lathe

The HL Series combines high-speed precision with robust construction, featuring a main spindle supported by three super precision Timken bearings, a chrome molybdenum alloy steel headstock, and automatic lubrication. Ideal for heavy cutting, it offers 12 spindle speeds, a quick-change gear box, and a precision cross feed screw with backlash eliminator.

Highlights

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Robust Headstock

Ensures durability and reduces vibrations for smoother operations

Quality Main Spindle

Provides exceptional stability and precision for heavy-duty cutting tasks

Quick Change Gear Box

Simplifies gear changes, enhancing operational efficiency

Automatic Lubrication

Reduces maintenance needs and extends the machine’s lifespan

Precision Cross Feed Screw

Enhances precision and accuracy in machining tasks

Feature Summary

The HL Series from Kingston is a high-speed precision lathe designed for heavy-duty machining tasks. It features a main spindle supported by three super precision Timken bearings, ensuring rigid support and stability during operations. The headstock is made of chrome molybdenum alloy steel, hardened, ground, and dynamically balanced to reduce vibrations and withstand heavy cutting. The quick-change gear box is modern and fully enclosed, allowing for easy selection of feed and thread. Automatic lubrication is provided for all running parts, slideways, and leadscrews, reducing maintenance needs and extending the machine’s lifespan. The precision cross feed screw with a backlash eliminator ensures accurate movements, enhancing precision and accuracy in machining tasks. Additionally, the HL Series includes a high-performance motor starter with overload protection relay, a heavily ribbed, twist-free bed with hardened and ground ways, and a large capacity oil pan with caster travel wheels.

Standard Inclusions

7.5 or 10 HP Motor, switch and wiring complete
Set of driving belts
Set of change gears
Thread chasing dial
Ground steel center MT5
Morse reduction sleeve
Oil pan
Tool box containing necessary wrenches and spanners
Instruction book and parts list

Optional Extras

9″ 3-jaw scroll chuck
12″ 3-jaw scroll chuck
14″ 4-jaw independent chuck
Copy attachment
Steady rest
Follow rest
Live center MT4
Infeed plunge cutting attachment
Drilling attachment
Coolant system with motor pump & fittings
Micrometer carriage stop
Automatic multiple feed stop bar
Taper turning attachment
Turret carriage stop
14″ face plate
