LT-40 Series

Category Turning Centre

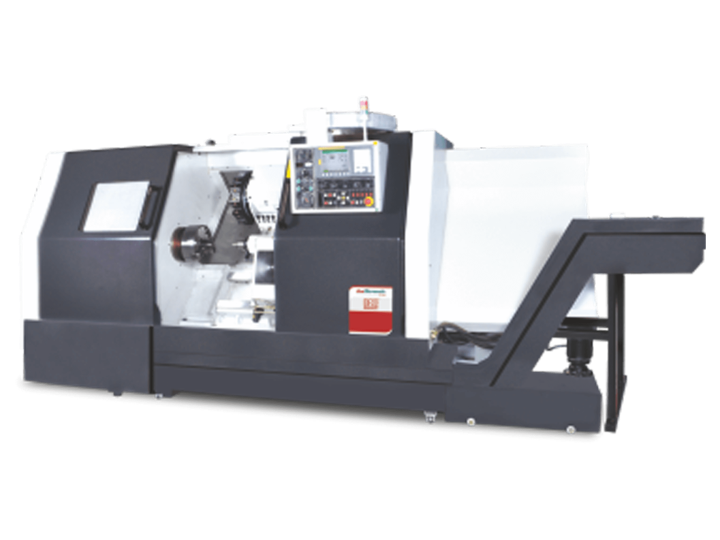

The LT-40 series slant bed turning centers from AceMicromatic are designed for heavy-duty cutting of large workpieces. Key features include a rigid structure, powerful AC spindle motor, hardened and ground box ways, and a programmable tailstock. These machines offer wide machining areas with minimal tool interference, ensuring efficient and precise operations.

Video

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Rigid Structure

The LT-40 series features a rigid structure made from fine grain Grade 25 cast iron. This ensures stability and precision during heavy-duty cutting, providing consistent and accurate machining results.

Powerful AC Spindle Motor

Equipped with a high torque AC spindle motor, the LT-40 series can handle heavy stock removal. This enhances productivity and reduces machining time.

Programmable Tailstock

The programmable tailstock is a standard feature, offering flexibility and ease of use. This allows for efficient handling of various workpieces.

Hardened and Ground Box Ways

The hardened and ground box ways on both axes ensure durability and smooth operation. This minimizes wear and tear, extending the machine’s lifespan.

Wide Machining Areas

The LT-40 series offers wide machining areas with minimal tool interference. This maximizes operational efficiency and accommodates larger workpieces.

Feature Summary

The LT-40 series slant bed turning centers are designed for heavy-duty cutting of large workpieces. These machines feature a rigid structure made from fine grain Grade 25 cast iron, ensuring stability and precision during operations. The powerful AC spindle motor provides high torque for efficient stock removal, while the hardened and ground box ways on both axes ensure durability and smooth movement. The programmable tailstock and 12-station bi-directional tool turret offer flexibility and ease of use, allowing for efficient handling of various workpieces. Additionally, the cartridge type spindle is assembled and tested in a controlled clean room environment, guaranteeing high stiffness and performance. The LT-40 series also includes automatic centralized oil lubrication and overload trip clutches on both axes to minimize damage in case of accidents. These features collectively enhance productivity, reduce machining time, and ensure consistent and accurate machining results.

Specifications

DESCRIPTION LT-40 / 1000 LT-40 / 2000 LT-40 / 3000
Control System
Control System Fanuc/Siemens Fanuc/Siemens Fanuc/Siemens
CAPACITY
Swing Over Bed 800 800 800
Distance Between Centers’ 1200 2200 3200
Maximum Turning Dia 700 700 700
Between Centre Turning Dia 575 575 575
Maximum Turning Length” 1000 2000 3000
SPINDLE
Spindle Nose A2-11 A2-11 A2-11
Bore through Spindle 132 132 132
Front Bearing Bore 180 180 180
Maximum Bar Capacity’ 117 117 117
Maximum Spindle Speed 2000 2000 2000
Spindle Motor Power (30 min. Rating) 30 30 30
Spindle Motor Power-Siemens (Continuous/S-6 40% Rating) 30 30 30
Spindle Motor Power – Fanuc (Continuous Rating) 22 22 22
Full Power Range – Fanuc 255-1333 255-1333 255-1333
Full Power Range Siemens 230-2000 230-2000 230-2000
Standard Chuck Size 400 400 400
AXES
Type of Guideways LM Guideways LM Guideways LM Guideways
X-Axis Stroke 380 380 380
Z-Axis Stroke 1200 2200 3200
X & Z Axes Rapid Rate 20 15 20
TOOLING
Number of Tools Maximum 8(12) 8(12) 8(12)
Boring Bar Dia Maximum 60 60 60
OD Turning Tool Size 32×32 32 x 32 32×32
TAILSTOCK
Tailstock Base Travel 800 1800 2800
Tailstock Quill Travel 200 200 200
Tailstock Quill Dia. 150 150 150
Quill Taper MT-6 MT-6 MT-6
Coolant Tank Capacity 200 300 400
HYDRAULIC SYSTEM
Hydraulic Pump Capacity 38 38 38
Hydraulic Power Pack Tank Capacity 70 70 70
System pressure 30 30 30
GENERAL
Overall Machine Dimensions (LxWxH) 5025x2350x2430 6500x2300x2350 7146x2400x2485
Overall Machine Weight (Without Packing) -9000 -12,000 -18,000

Standard Inclusions

  • Cartridge type spindle
  • AC spindle & axes drives
  • Precision guideways
  • 12 station bi-directional turret
  • Tailstock with live center
  • Automatic centralized oil lubrication
  • Overload trip clutches on both axes
  • Failsafe brake for X axis
  • Drain line oil cooler
  • Basic hydraulic system
  • Built-in lighting system
  • Overload trip clutch for axes
  • AC unit for electrical cabinet
  • Door interlock
  • Programmable Tailstock
  • 3 tier lamp
  • Torque enhancement by star delta feature
  • TPM – Trak Productivity Monitoring System

Optional Extras

  • Chip conveyor
  • VDI disc
  • Tool touch probe
  • A2-11 spindle
  • Steady rest
  • Programmable steady rest
  • Auto door
  • Geared headstock (with A2-8 spindle)
  • Torque enhancement by Star-Delta feature
  • Door interlock
  • Manual guide i
