T Series

Category Turning Centre

The King Rich T Series turning centres are built on a machining-centre style structure, rather than a lightweight lathe-only platform, supporting higher stiffness and accuracy. Six models span compact 2-axis production turning through to full mill/turn with live tooling, Y-axis, and twin sub-spindle capability. The T Series suits everything from high-volume turning to complex one-hit machining.

Highlights

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Machining-Centre Style Construction

A rigid, machining-centre style structure delivers superior stiffness and accuracy over conventional designs

Hardened Box Way Slideways

Box way slides on the KR-TC200B, KR-TC400, KR-TC220MY, KR-TC320MY, and KR-TC260LTY-S deliver powerful, heavy-duty turning with excellent surface finish and long-term accuracy

Y-Axis Live Tooling

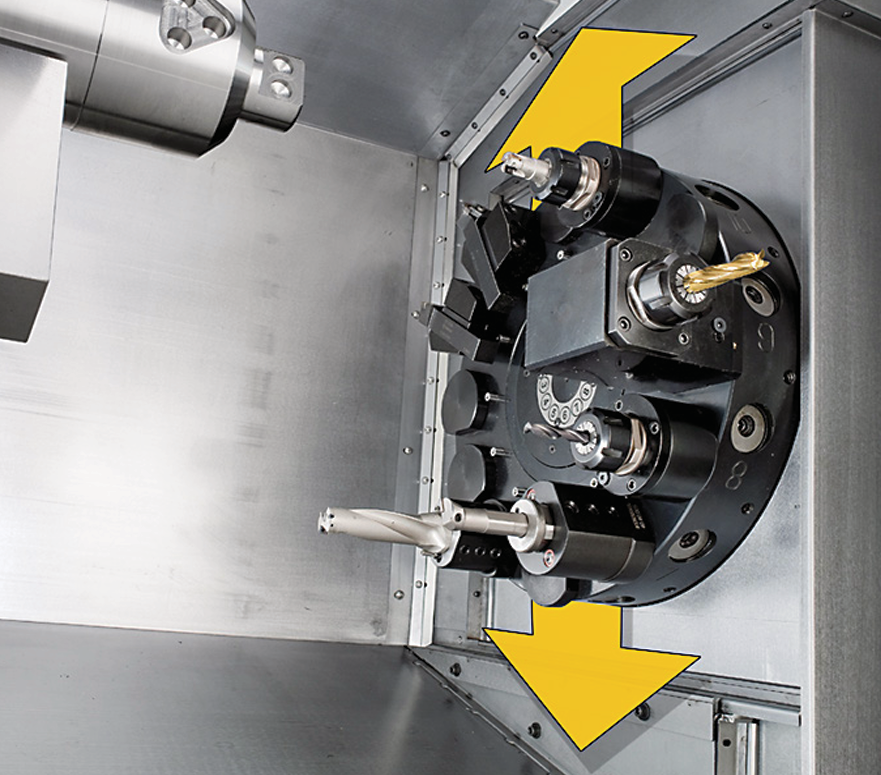

Y-axis capability on the KR-TC220MY, KR-TC320MY, and KR-TC260LTY-S enables complex milling and turning operations in a single setup, dramatically reducing cycle times

Optional Sub-Spindle

The optional sub-spindle handles both ends of a component without re-fixturing, eliminating handling and improving throughput on two-ended jobs

User-Friendly Interface

Intuitive controls streamline setup and operation for all skill levels

Feature Summary

The King Rich T Series is a comprehensive range of CNC turning centres spanning six models. Each machine reflects King Rich’s core design philosophy: rigid, machining-centre style construction, in-house spindle manufacturing, and a long-term support commitment that few manufacturers can match.

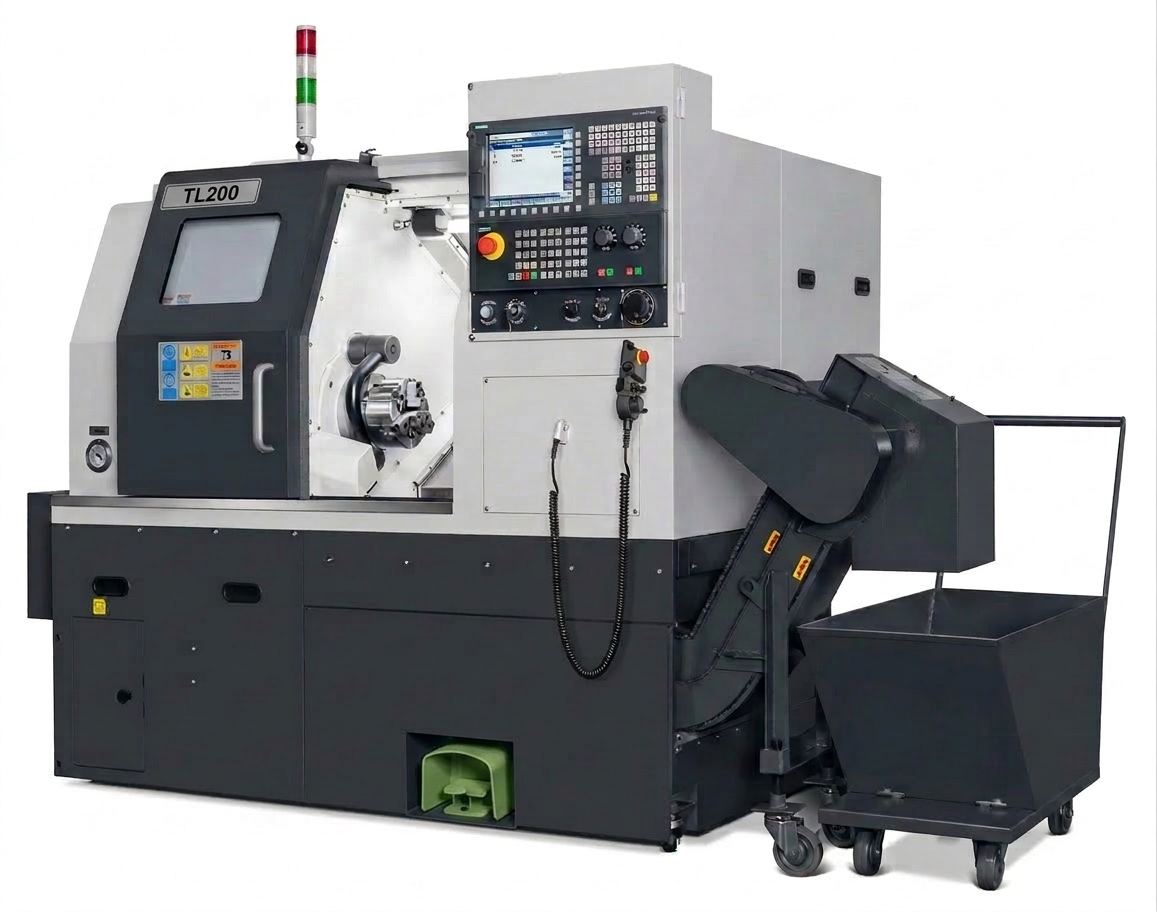

KR-TL200: Compact Production Turning
The KR-TL200 is a compact, high-performance CNC turning centre designed for precision machining of small to medium-sized components. With a maximum turning diameter of 180mm and turning length of 300mm, it is ideal for a wide range of applications. The 6-inch chuck and 52mm bar capacity allow for versatile material handling, while the A2-5 spindle nose ensures secure and accurate workholding. Linear rail ball bearing slide technology is used, delivering high-speed, responsive axis movement from a very small footprint.

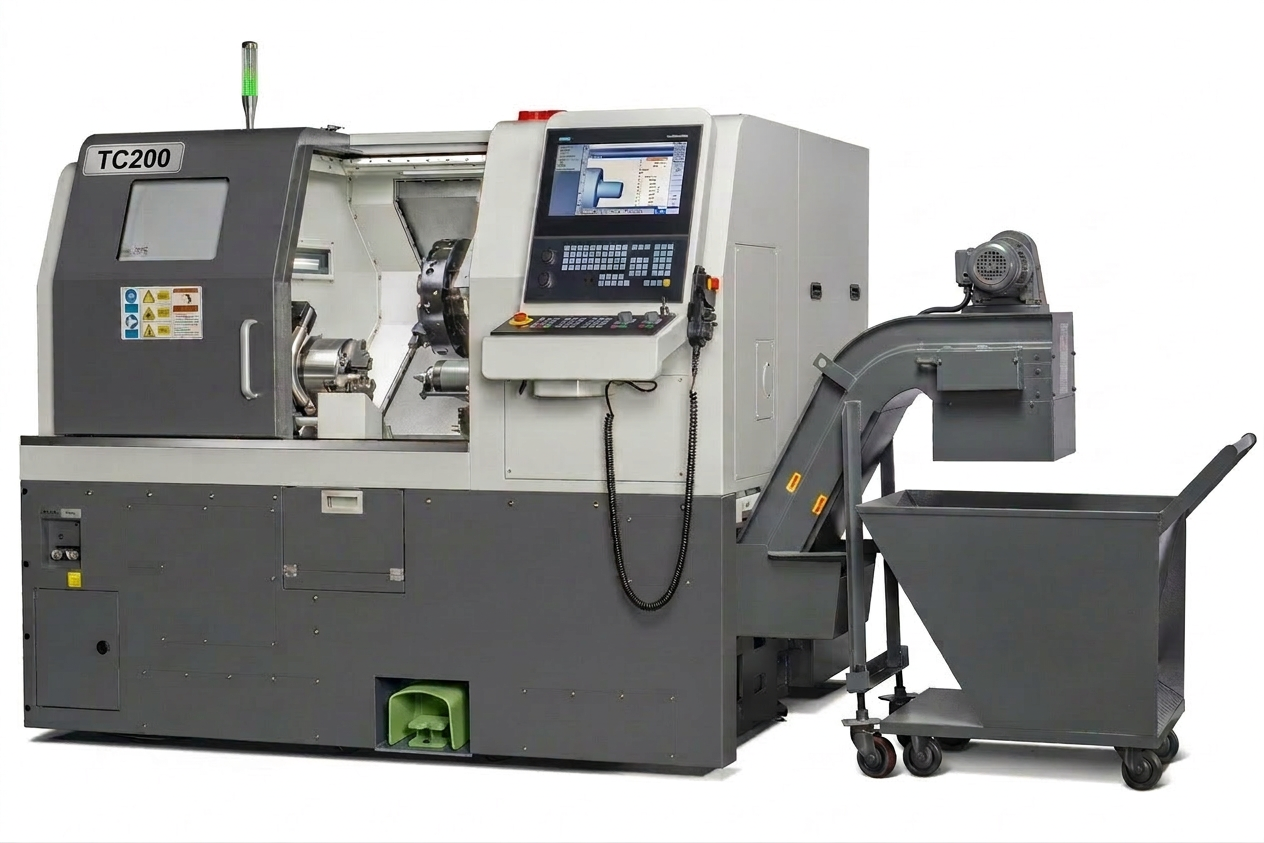

KR-TC200B: Heavy-Duty Box Way Turning
The KR-TC200B features hardened box way slide technology and a 17kW (23hp) spindle, making it a powerful workhorse for a wide range of materials and job types. A 12-station VDI 30 turret, Renishaw automatic tool setting, and hydraulic tailstock are included as standard. This is a 2-axis machine well suited to subcontractors handling diverse work.

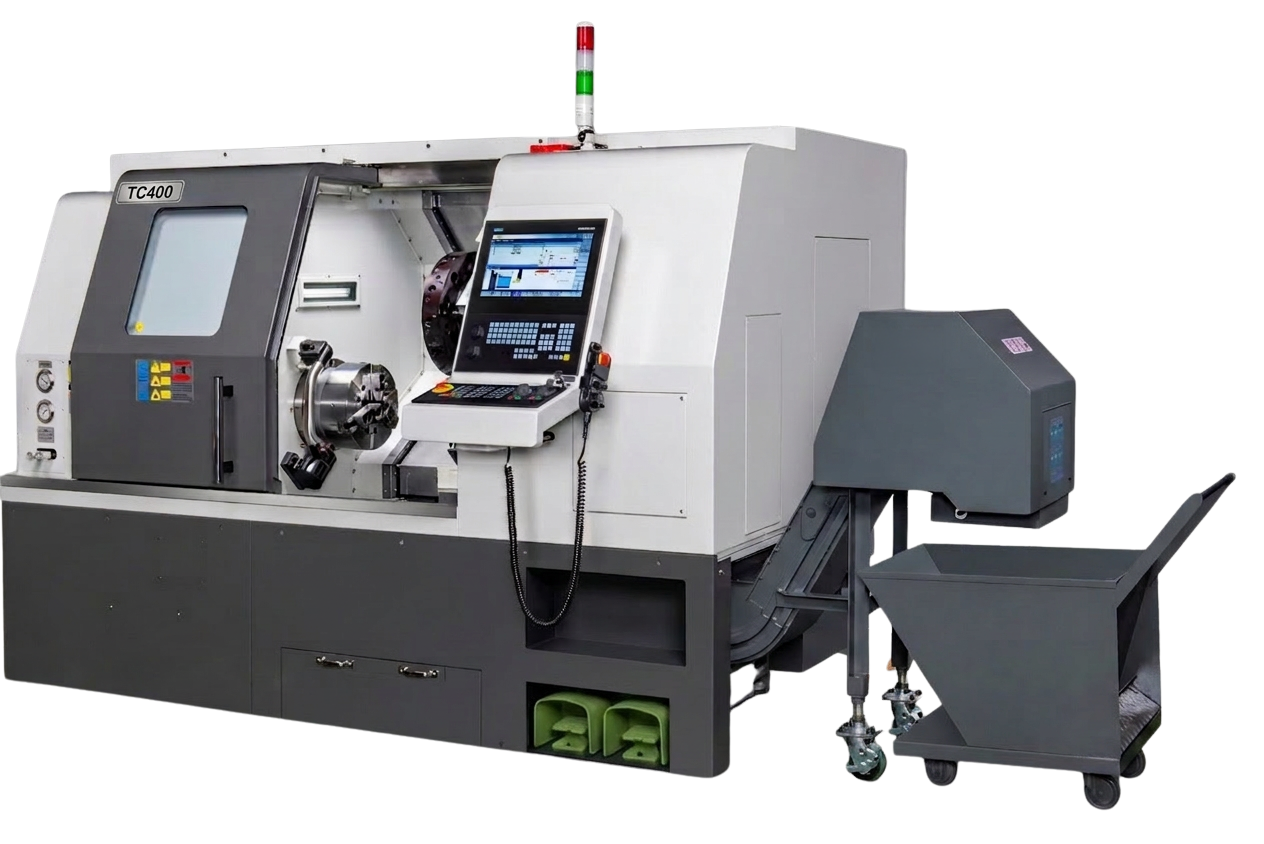

KR-TC400: Large-Capacity Box Way Turning
The KR-TC400 is the largest capacity turning centre in the King Rich T Series. This large-capacity workhorse features a 32kW (43hp) spindle, 12-station VDI 40 turret, Renishaw tool setting, swarf conveyor, and hydraulic tailstock. With a 400mm max turning diameter and 91mm spindle bore, it handles substantial workpieces with ease.

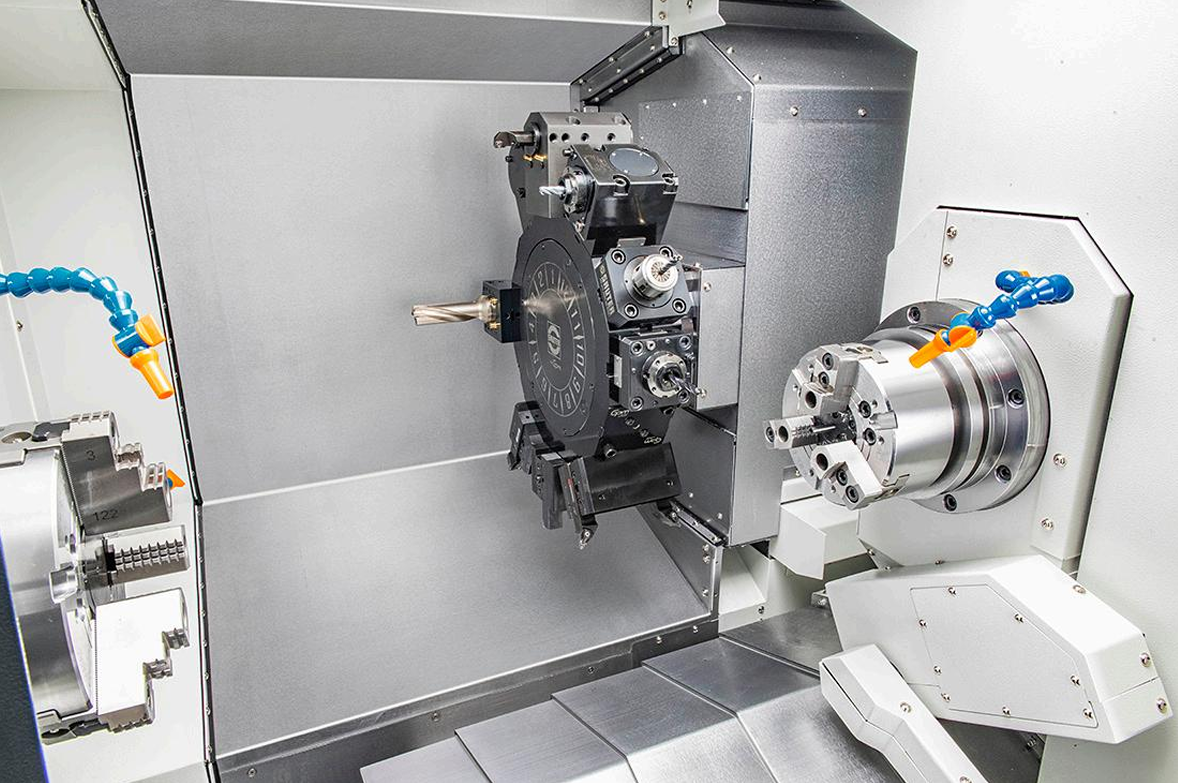

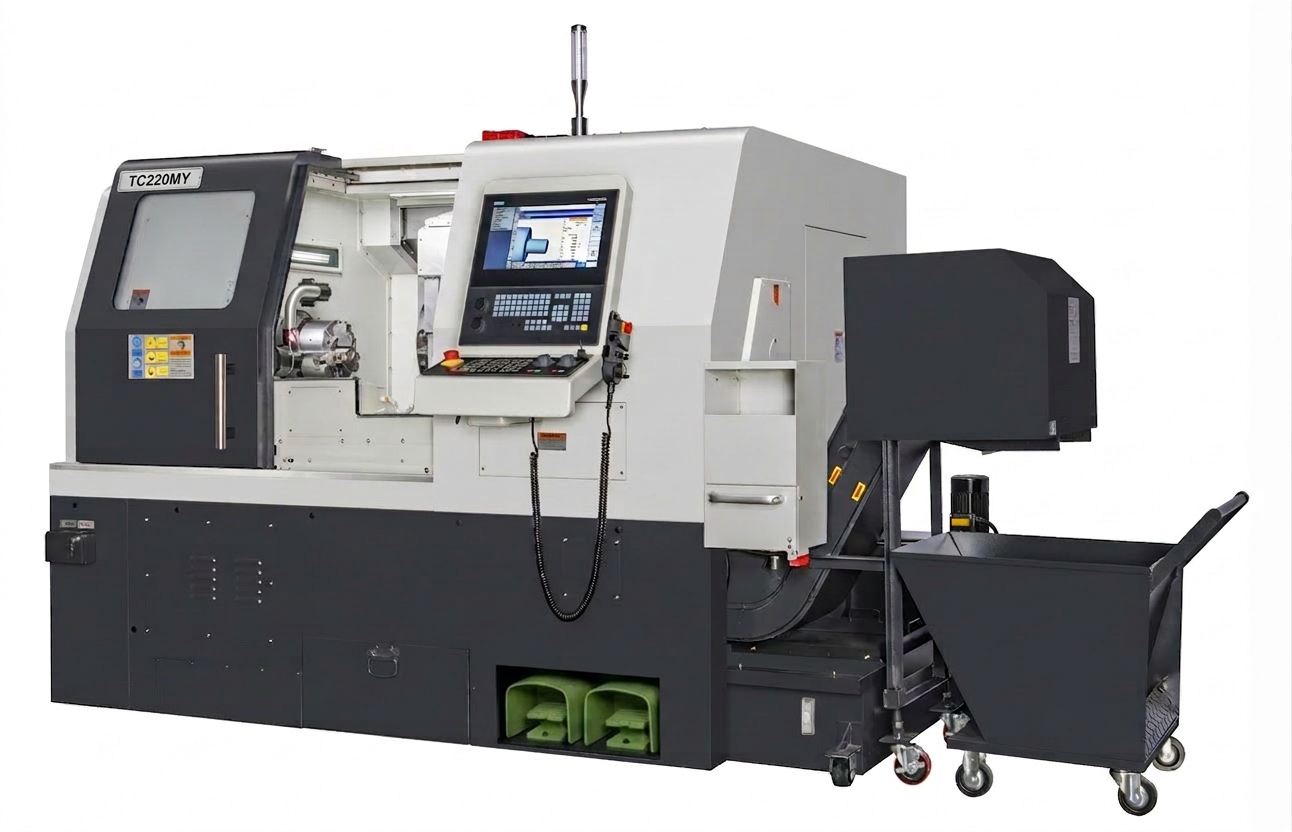

KR-TC220MY: Compact Mill-Turn
The KR-TC220MY is a solidly built and versatile box way turning centre with standard equipment not normally found on machines of this type. The Y-axis can travel 35mm above and below centreline, making easy work of components that would normally require separate milling and turning operations.

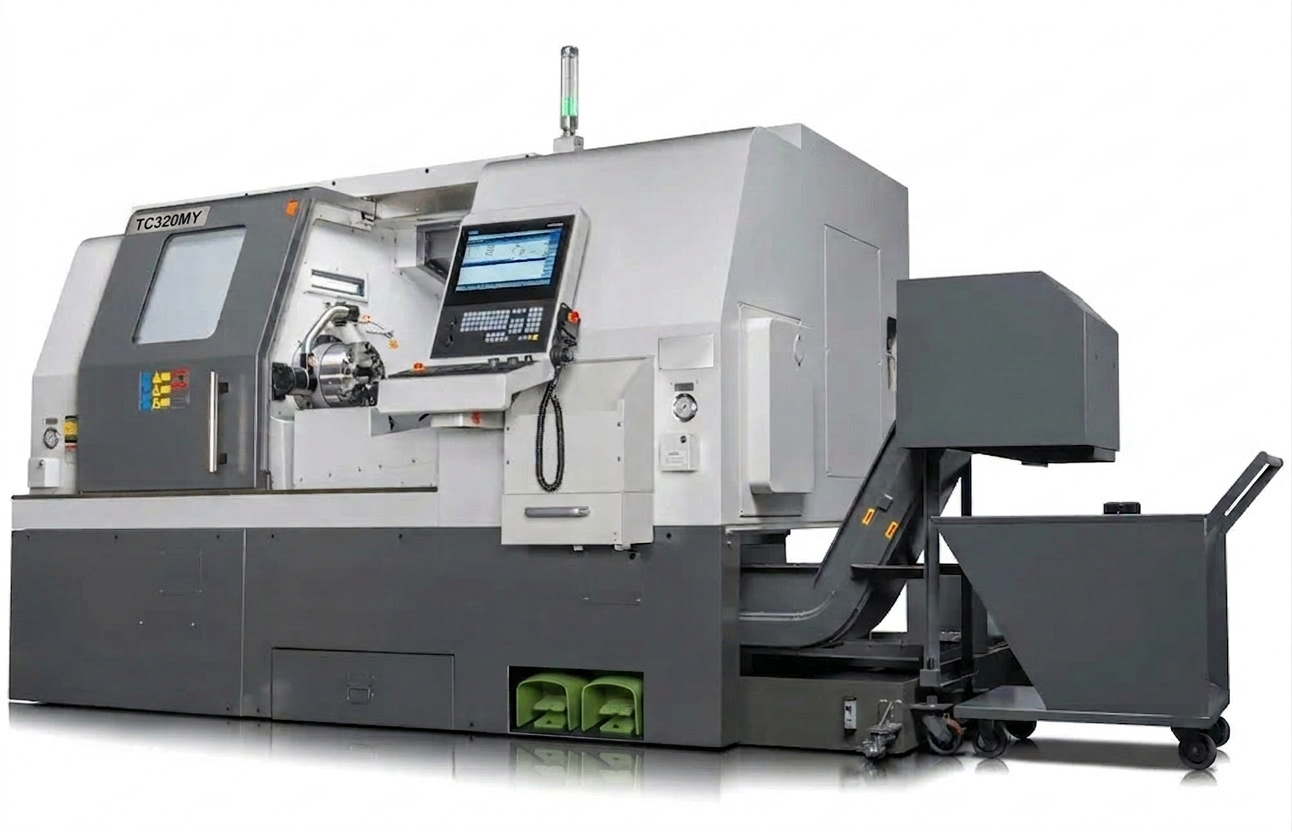

KR-TC320MY: High-Power Mill-Turn
The KR-TC320MY is equipped with live tooling, and Y-axis capability. The machine’s 12-station live tool turret and Y-axis allow for multi-axis machining, reducing setup times and increasing throughput. Precision is a hallmark of the KR-TC320MY, thanks to its optional C-axis encoder with ±0.002° accuracy, ideal for intricate contouring and synchronised milling.

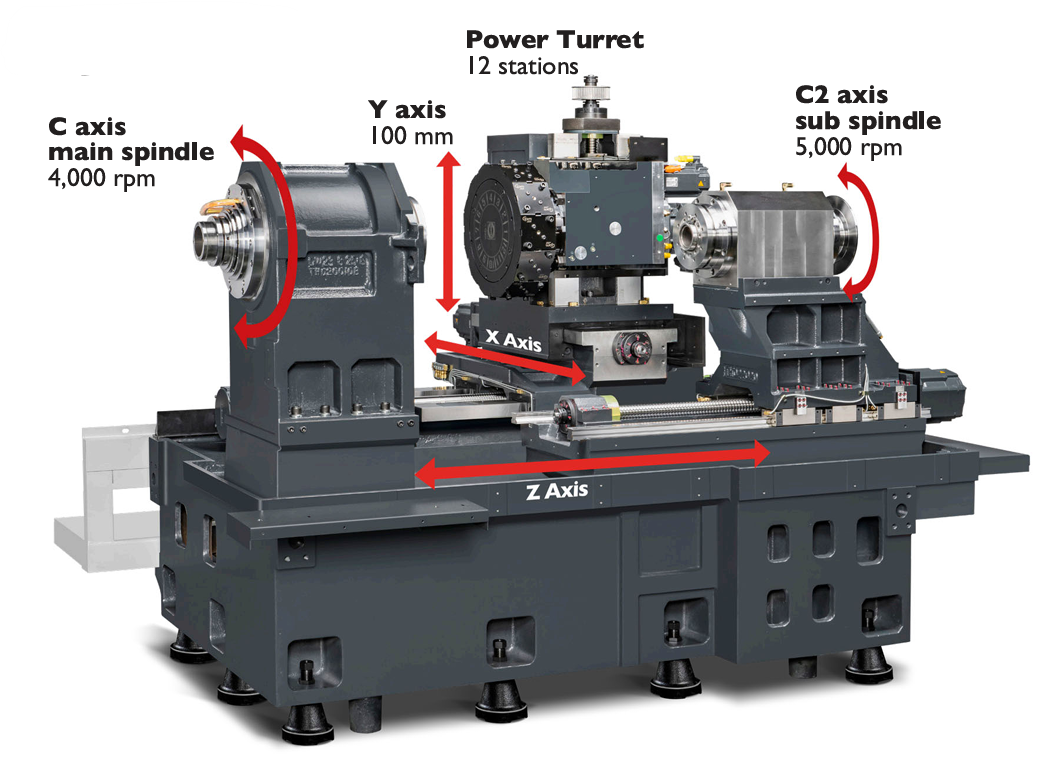

KR-TC260LTY-S: Twin Sub-Spindle Mill-Turn
The KR-TC260LTY-S is the most capable model in the T Series. With a twin sub-spindle arrangement, Y-axis, live tooling, and a 12-station BMT65 turret, it handles both ends of a component in one cycle. The main spindle runs at 4,000 rpm on a 22kW motor; the sub-spindle runs at 5,000 rpm on a 15kW motor.

Specifications

DESCRIPTION KR-TL200
Power Chuck Diameter 150 mm
Maximum Swing 300 mm
Swing Over Carriage Cover 220 mm
Maximum Turned Diameter 180 mm
Maximum Turned Length 300 mm
X Axis Travel 165 mm
Z Axis Travel 315 mm
Spindle Centre Height from Floor 950 mm
Height from Floor to Spindle Centre 960 mm
Spindle Nose A2-5
Spindle Bore (Drawtube Capacity) 52 mm
Spindle Front Bearing Internal Dia 100 mm
Spindle Speeds 4500 rpm
Spindle Motor 11.2 kW (15 hp)
Min Speed for Full Power 1500 rpm
Rapid Feedrate 20 m/min
Slideway Type Linear Way
Ballscrew X = 28 mm / Z = 32 mm
Servo Motor 8 Nm
Toolchanger (Directly Mounted Tools) 10 Station Block
Tool Section Size 20 x 20 mm
Max Boring Bar Diameter 32 mm
Coolant Tank Capacity 80 L
Coolant Pump Delivery 30 L/min @ 0.8 Bar
Machine Weight 2000 kg
Footprint 1920 x 1520 x 2080 mm

Standard Inclusions

  • Hydraulic 3-jaw chuck
  • 10 or 12-station turret
  • Through tool and flood coolant (optional on some models)
  • Renishaw automatic tool setting arm (optional on some models)
  • Swarf conveyor and bin
  • Programmable hydraulic tailstock (optional on some models)
  • Parts catcher (optional on some models)
  • Precision ground ballscrews
  • Automatic lubrication system
  • Fully interlocked guard
  • Remote electronic handwheel
  • C-axis with brake (optional on some models)

Optional Extras

  • Parts catcher
  • Barfeed system
  • Contour handwheel
  • Oil skimmer
  • Chucks
  • Renishaw automatic tool setting arm
  • Sub-spindle part ejector
  • Gear hobbing
  • Polygon turning
  • Programmable tailstock
  • Automatic parts catcher
  • Oil mist device
  • Axial live tool holders
  • Advanced swarf management system
  • Offline programming
