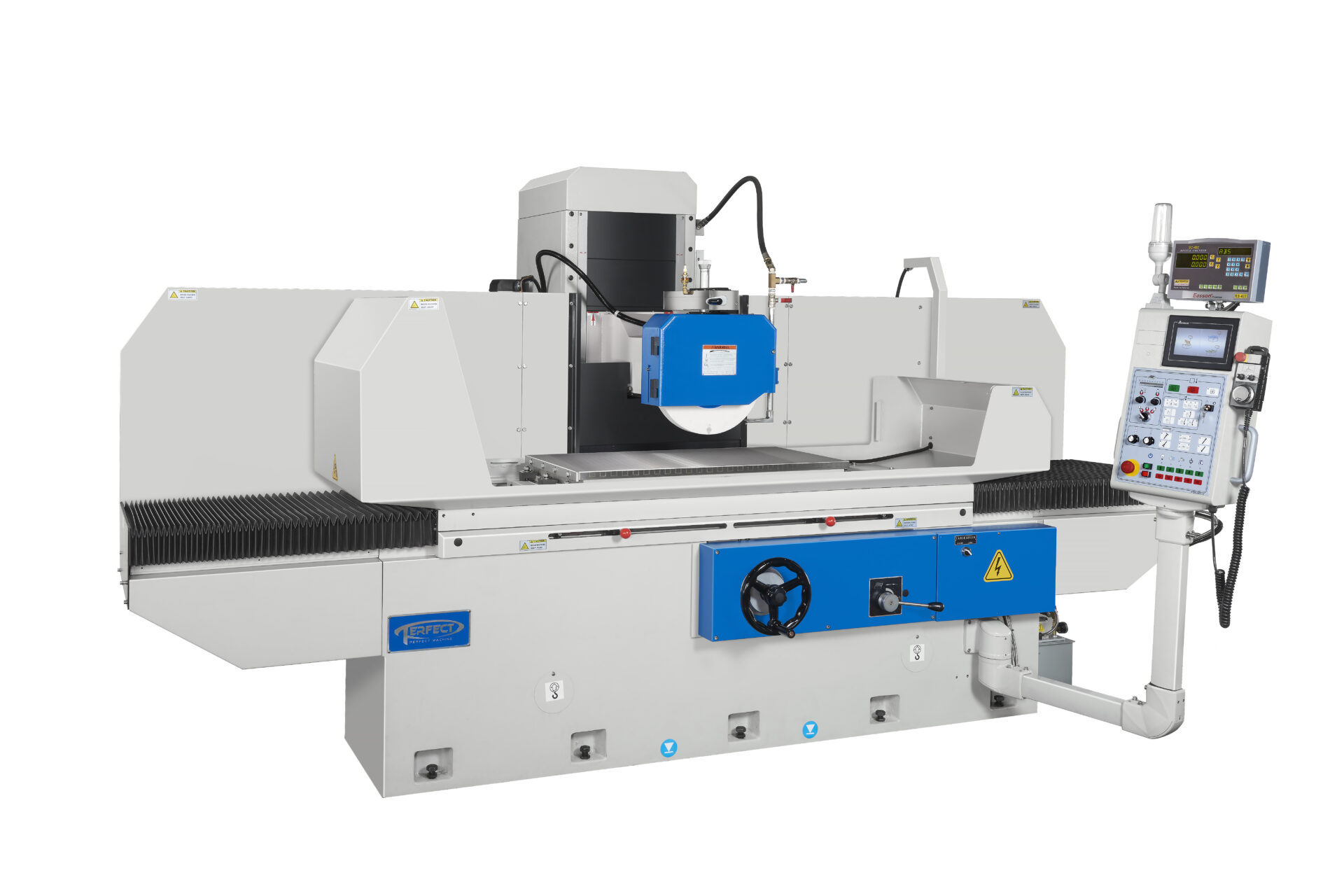

PFG Column Series

Category Surface Grinders

The Perfect Column Type surface grinders offer precision and productivity with features like a robust 10HP spindle motor, LCD touch screen panel, and auto down feed. Ideal for demanding industrial applications, these grinders ensure smooth operation, excellent surface finish, and high accuracy.

Price Guide: $70k +

Highlights

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Large Grinding Area

Generous table size accommodates large workpieces with ease

Servo-Controlled Vertical Travel

Ensures precise and repeatable vertical movements for high-accuracy grinding

Ball Screw Feed System

Enhances cross and vertical feed accuracy and durability

Heavy-Duty Load Capacity

Supports up to 1,700kg table load for industrial-scale operations

Feature Summary

The Perfect Column Type surface grinders are engineered for precision and productivity. The column-type design provides structural rigidity, while the AC servo motor-driven vertical travel ensures smooth and accurate positioning. Manual MPG operation allows fine control, and the ball screw system on both cross and vertical axes enhances feed precision and longevity.

These grinders feature a powerful 10HP spindle motor, with optional upgrades to 15HP for heavy-duty applications. The hydraulic system (3HP) supports stable longitudinal movement, and the cross feed is powered by a 1/5HP motor. The vertical motor is a 1KW AC servo unit, enabling rapid and controlled vertical adjustments.

The machine is built to metric standards (415V/50Hz/3Ph) and comes in a blue/white finish. It includes a comprehensive set of standard accessories and offers a wide range of optional extras to tailor the machine to specific grinding needs.

Specifications

MODEL UNIT PFG-50100DT PFG-60100DT PFG-70100DT PFG-50150DT PFG-60150DT PFG-70150DT PFG-50200DT PFG-60200DT PFG-70200DT
Grinding surface of table mm 500×1000 600×1000 700×1000 500×1500 600×1500 700×1500 500×2000 600×2000 700×2000
Max distance center of spindle to table mm 600 (Opt; 800, 1000)
Total Max safety table load kgs 1000 1400 1700
Table guideway V & FLAT WAY
Wheel dimension mm 405x50x127
Spindle motor HP 10 (Opt; 15)
Machine net weight Kgs 6000 6300 6600 7200 7500 7800 8400 8700 9000
Packing gross weight Kgs 6800 7100 7400 8100 8400 8700 9400 9700 10000
Floor space (AxBxC) mm 3810x3050x2040 3810x3150x2040 3810x3250x2040 4850x3050x2040 4850x3150x2040 4850x3250x2040 6000x3050x2040 6000x3150x2040 6000x3250x2040

Standard Inclusions

  • LCD touch screen panel (HMI Interface)
  • Auto down feed
  • Auto crossing stroke adjustment
  • Crisscross grinding
  • Ball screw for cross feed & vertical feed
  • Stepless Variable Hydraulic System
  • Longitudinal by Sensor & Solenoid valve
  • AC servo motor & MPG hand wheel for Vertical
  • Back water splash shield
  • Indication lamp

Optional Extras

  • Spindle Motor Upgrade: 15HP motor
  • Extended Vertical Travel
  • Electro Magnetic Chucks
  • Demagnetizer
  • Digital Readout (DRO)
  • Oil Mist Filter
  • Cross Feed Locking System (for slot grinding)
  • Coolant System
  • Parallel Dresser
  • Crisscross Grinding Function
  • Micro Feed Systems: For cross and vertical feed (0.001mm/gra.)
  • Power Rapid Up/Down System
  • NC Auto Down Feed System (AD5 type with stepping motor)
  • Semi-Enclosed Splash Shields (with safety interlocks)
