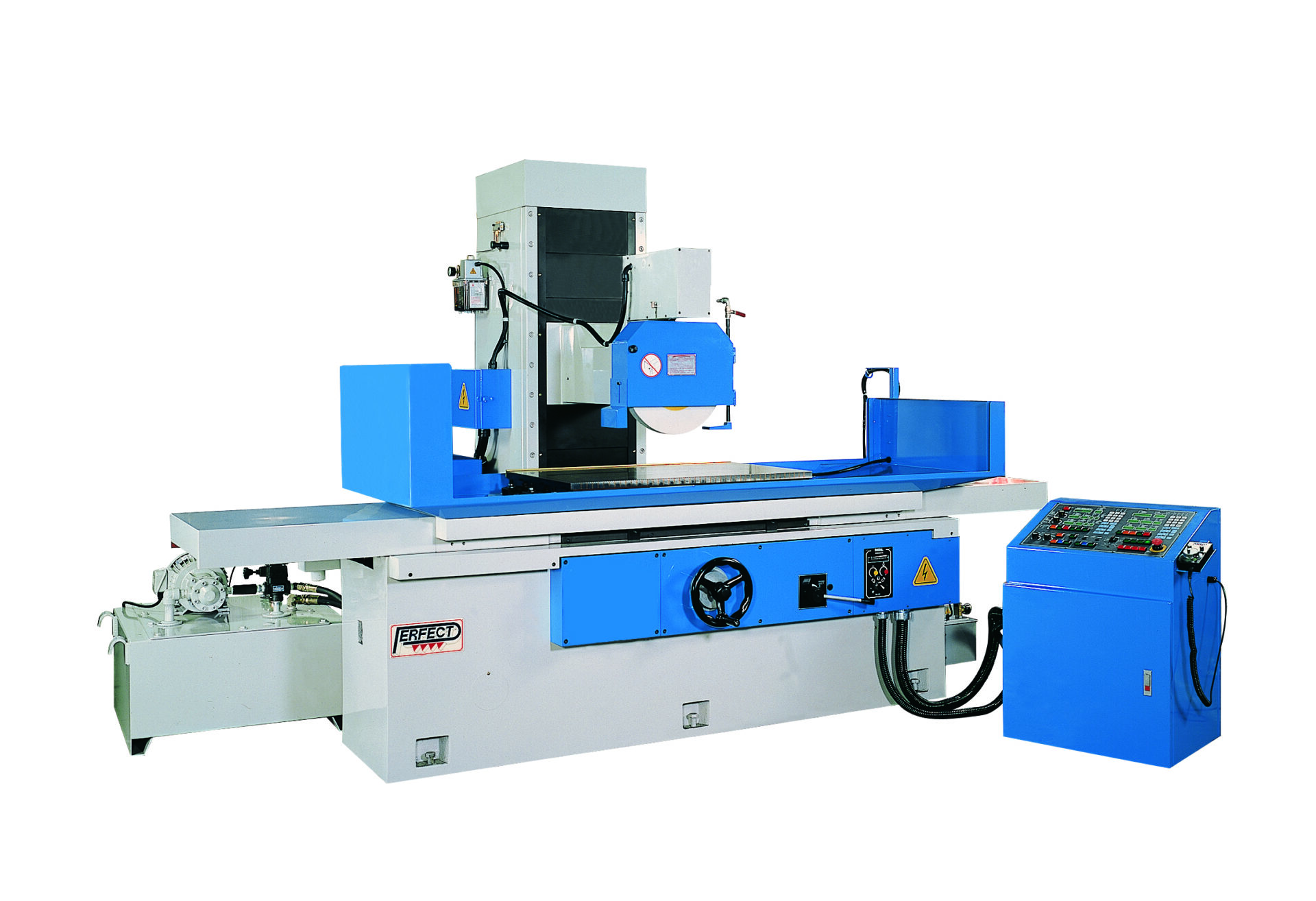

PFG Saddle Series

Category Surface Grinders

The Perfect Saddle-Type Series is a range of precision saddle-type surface grinders featuring hydraulic longitudinal movement, and optional automatic cross feed. Designed for high-accuracy grinding applications, it offers robust construction, smooth operation, and versatile configuration options to meet demanding workshop needs.

Price Guide: $25k +

Highlights

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Compact Footprint

Fits comfortably in most workshops without compromising grinding capacity

Hydraulic Longitudinal Feed

Enhances productivity with consistent and precise lateral movement

Wide Accessory Range

Supports magnetic chucks, coolant systems, and digital readouts for custom setups

Robust Table Load Capacity

Supports up to 400kg for versatile workpiece handling

Feature Summary

The PFG Saddle-Type Series combines precision engineering with practical automation. Its saddle-type design ensures stability during grinding, while the hydraulic longitudinal feed delivers consistent motion across the table.

The grinder is equipped with a 2HP spindle motor, with an optional upgrade to 3HP for heavier-duty applications. The machine supports a maximum table load of 144kg and offers a generous 450mm vertical clearance from spindle center to table, accommodating a wide range of workpieces.

Standard features include a full set of grinding accessories, such as a wheel flange, balancing tools, and a working lamp. Optional extras allow users to tailor the machine to specific needs, including auto cross-feed, magnetic chucks (permanent or electromagnetic), coolant systems, digital readouts, and automation enhancements like NC auto down feed and micro feed systems.

Its compact footprint make it suitable for workshops where space and precision are equally critical.

Specifications

SPECIFICATIONS PFG-1545M

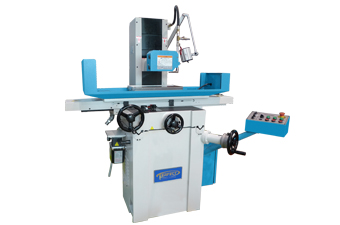

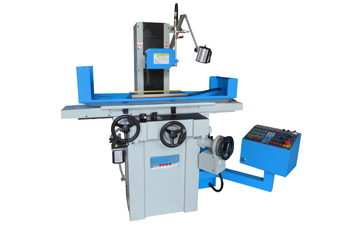

PFG-2045M		 PFG-1545H/AH

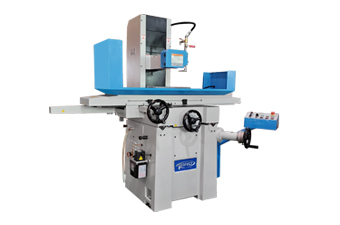

PFG-2045H/AH		 PFG-2550H

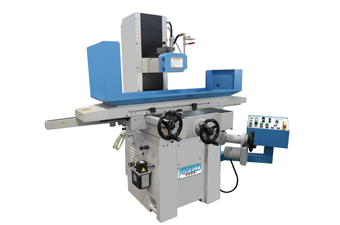

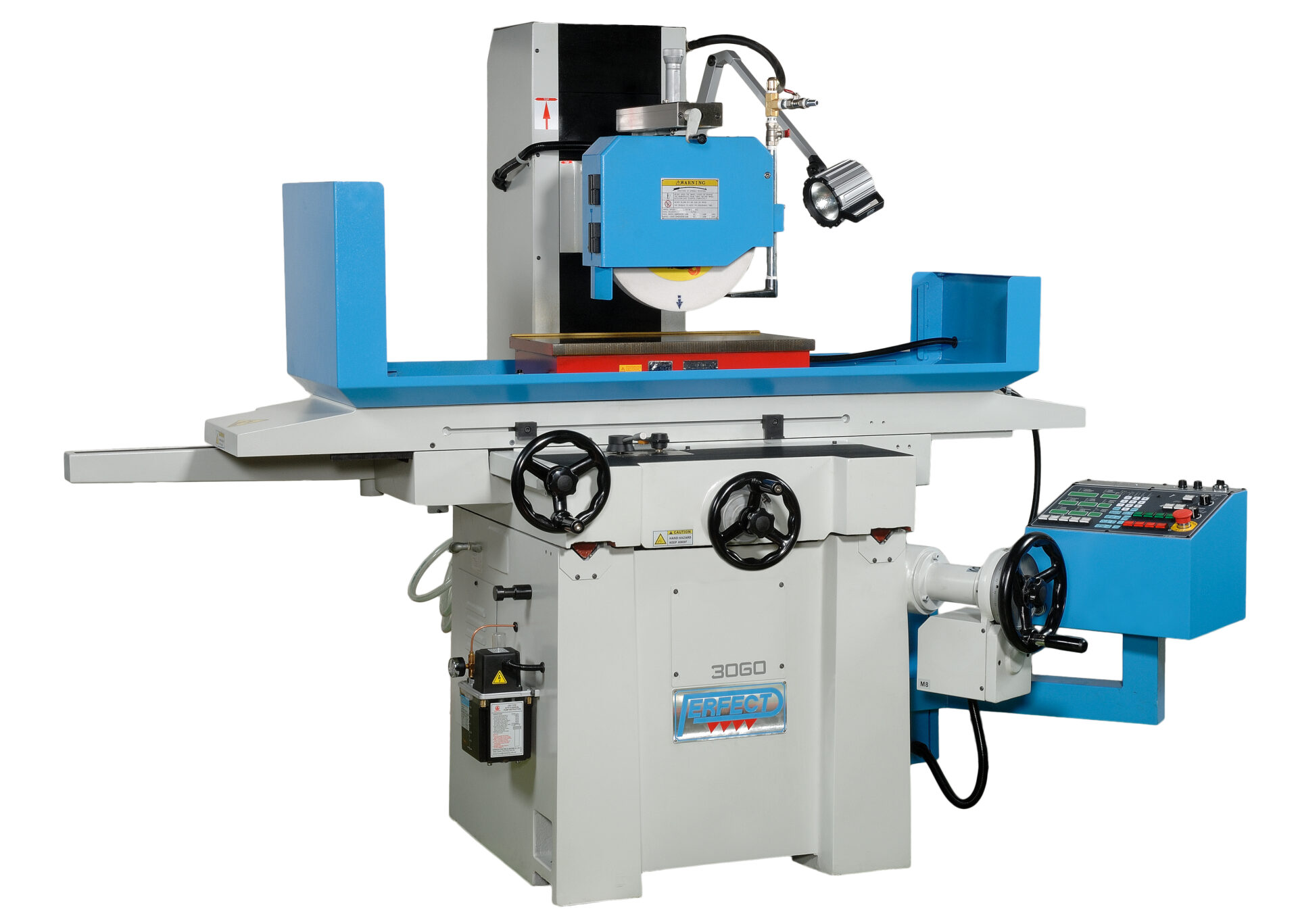

PFG-2550AH		 PFG-CS3060AH
PFG-DS3060AH		 PFG-CL3060AH
PFG-DL3060AH		 PFG-D4080AH
Grinding surface of table (mm) 150 X 450
200 X 450		 250 X 500 300 X 600 400 X 800
Max. grinding surface (mm) 150 X 450
200 X 450		 250 X 500 300 X 600 400 X 800
450 X 800
Max. distance center of spindle to table (mm) 450 500 [Option: 600] 550 [Option: 650]
Total Max. safety table load (kgs) 114
120		 144
150		 250 300 400
Table speed approx. (M/min) manual 5 – 25
Table guideway Ball bearing slideway V & Flat way
Auto. Cross feed increment approx. (mm) manual manual (for H), 0.1-12 (for AH) 0.5-20
Rapid power cross feed (mm/min) manual manual (for H) 900 (for AH) 900
Cross feed on hand wheel (mm) 5/rev.; 0.02/gra.
Vertical feed on hand wheel (mm) 2/rev.; 0.01/gra.
Auto down feed (mm/time) 0.001-0.999 /2/rev.; 0.005/gra. [Option]
Wheel speed (R.P.M) 2900 1450
Wheel dimension (mm) 180 X 13 X 31.75 355 X 38 X 127 405 X 50 X 127
Spindle motor (HP) 2 5
Hydraulic pump motor (HP) None / 1 2
Auto Cross feed motor (HP) None / 25W (for AH) 1/5
Rapid head elevation motor (HP) 1/5
Coolant pump [Option] 1/8
Machine net weight (Kgs) 870 / 920
900 / 950		 1350 1700 1950 3250
Packing gross weight (Kgs) 970 / 1120
1020 / 1150		 1550 1950 2350 3500
Machine dimensions (L X W X H mm) 1900 X 1200 X 1700
2100 X 1300 X 1700
2250 X 1400 X 1700		 2100 X 1200 X 1700 2650 X 1550 X 1800 3450 X 2050 X 1900
Packing dimension (L X W X H cm) 182 X 128 X 195
212 X 146 X 195		 212 X 146 X 200 228 X 179 X 210 276 X 228 X 225

Standard Inclusions

  • Hydraulic Control for Table longitudinal travel
  • Electromagnetic chuck
  • Auto Demagnetizer for Chuck
  • Coolant System
  • Wheel balancing base and arbour
  • Diamond Wheel dresser
  • Work light
  • Levelling screws & plates
  • Tool box and tools

Optional Extras

  • Automatic cross feed (AH series)
  • Rapid Power Up/Down (AHR series)
  • NC Auto Down Feed System (AHD series)
  • NC Auto Parallel Dressing & Compensating System (Some models)
  • Coolant System with Magnetic Separator
  • Coolant System with Magnetic separator and Auto paper strip filter
  • Back Water splash Guard
  • Digital read-out
