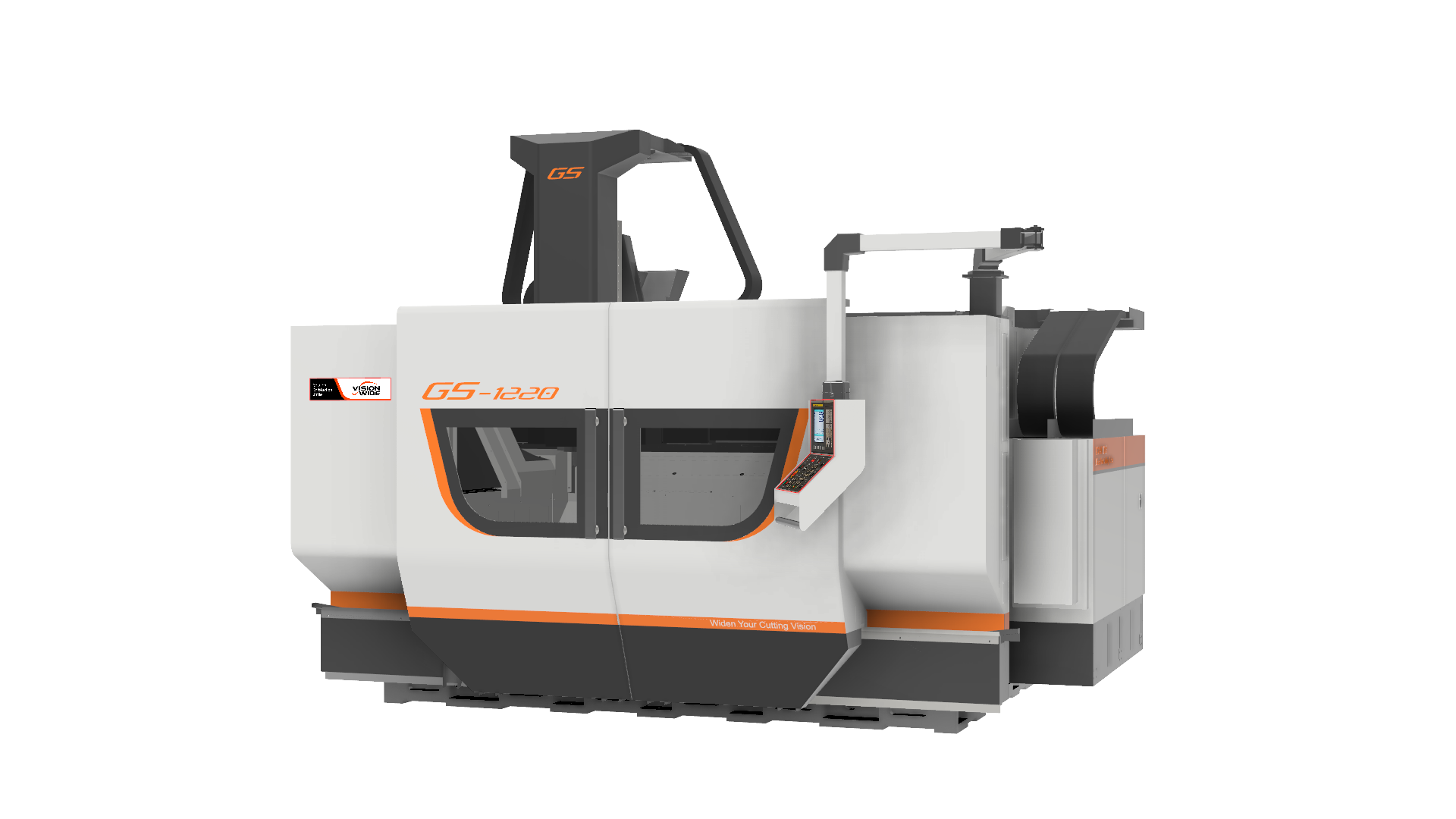

GS Series

Category Large Machining Centre

Moving Gantry Type Machining Centre

The Vision Wide GS Series are high-speed gantry-type machining centres built specifically for precision mould and aluminium cutting. The defining feature of the GS Series is its one-piece casting design — integrating the work table, columns, and bed into a single rigid structure — delivering exceptional stability, speed, and accuracy in a compact footprint. With cutting feed rates up to 24,000 mm/min and aluminium chip removal rates exceeding 5,000 cc/min, the GS Series is the machine of choice for large mould work, aerospace aluminium structural components, and high-volume precision cutting.

Video

Highlights

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

One-Piece Integrated Casting

The columns, bed, and work table are combined into a single casting. This one-piece structural design eliminates relative movement between critical machine components

Cutting Feed Rate up to 24,000 mm/min

With a maximum cutting feed rate of 24,000 mm/min and a rapid traverse of 24 m/min across all three axes, the GS Series is engineered for high-throughput work

Direct-Driven HSK-A63 Spindle

The direct-driven spindle interface eliminates belt-drive losses and indirect-drive error. The result is lower noise, reduced backlash, less vibration, lower power consumption, and superior surface accuracy after rapid cutting

Dual Direct-Driven X-Axis

The X-axis uses dual direct-driven servo motors combined with dual linear scales to ensure positioning accuracy is maintained even at high feed speeds

Aluminium Chip Removal Rate of 5,000+ cc/min

The GS Series is configured for mass chip removal with a standard chain-type chip conveyor, waterfall flushing system, and large groove design

Feature Summary

The GS Series occupies a specific and well-defined position in the Vision Wide range. Where table-moving double column machines like the SF or SM Series move the workpiece during cutting, the GS Series moves the gantry — keeping the table stationary. This is advantageous for large, heavy workpieces that are difficult to move at high speed without accuracy loss, and for long-travel profiles where the gantry-moving configuration offers a more compact overall footprint relative to the working area.

One-Piece Casting — The Foundation of GS Performance
The core design philosophy of the GS Series is structural integration. By combining the work table, columns, and bed into a single one-piece casting, Vision Wide eliminates the tolerance stack-up and relative movement that occurs in conventional bolted-column machines. This structural philosophy, combined with Pyramid-type weight distribution of the spindle, ram, cross-beam, and bed arrangement, creates a machine that remains stable and precise throughout demanding high-speed cutting cycles.
Direct-Driven Z-Axis
The Z-axis on the GS Series is direct-driven by servo motor, preventing the positioning error introduced by indirect-driven transmission mechanisms. This design reduces power consumption, improves Z-axis motion response, and contributes to the surface finish accuracy achieved after rapid cutting passes on 3D mould surfaces.
High-Speed Spindle for Mould and Aluminium
The direct-driven HSK-A63 spindle is designed for both precision mould steel cutting and high-speed aluminium material removal. The direct drive eliminates gear and belt transmission losses, producing low noise, minimal backlash, reduced vibration, and lower power consumption. Spindle speeds from 10,000 rpm up to 20,000 rpm as standard give the GS Series a wide cutting range across material types — from die steel at moderate speeds to aluminium alloys at maximum speed.
Vision Wide has demonstrated aluminium cutting performance of over 5,000 cc/min on the GS Series in aerospace structural applications, with feed rates of F24,000 mm/min and high acceleration capability for vortex machining strategies. Cutting depth of 70mm with 2X cutting efficiency has been validated in test conditions.
Compact Footprint, Practical Ergonomics
The GS Series is designed with practical shop floor use in mind. The low table height brings the operating zone closer to the operator, and the wider door width makes setup, fixturing, and workpiece loading easier on large components. The chain-type chip conveyor is positioned to clear iron chips efficiently without operator intervention during production runs.
Proven in Aerospace Aluminium
The GS Series is confirmed as a capable platform for aerospace aluminium structural components — parts that demand high-speed spindle performance, mass chip evacuation, excellent surface finish on complex 3D curved surfaces, and tight dimensional accuracy across long travel distances.
Vision Wide Exclusivity in Australia
The GS Series is supplied exclusively to the Australian market through QMT Machinery, backed by Vision Wide’s TalkBox remote monitoring and support system for near-instantaneous post-sale technical assistance.
Applications
The GS Series suits precision mould cutting, aerospace aluminium structural components, automotive body panel tools, semiconductor chamber components, injection moulds, stamping dies, and any high-speed 3D machining application requiring a large working envelope within a compact machine footprint.

Standard Inclusions

  • One-piece integrated cast iron structure (table, columns, and bed)
  • HSK-A63 spindle interface
  • Direct-driven spindle — up to 20,000 rpm
  • Direct-driven Z-axis servo motor
  • Dual direct-driven servo motors on X-axis
  • Dual linear scales on X-axis
  • 16-tool ATC
  • Chain-type chip conveyor
  • Waterfall coolant flushing system
  • Fanuc CNC controller

Optional Extras

  • 20-tool ATC
  • 32-tool ATC
  • Z-axis travel upgrade — 1,000 mm (from 800 mm standard)
  • Higher rapid traverse — 30 m/min (from 24 m/min standard)
  • Higher spindle speeds — up to 28,000 rpm
  • Coolant through spindle
