XM Series

Category Large Machining Centre

Moving Column Machining Centre

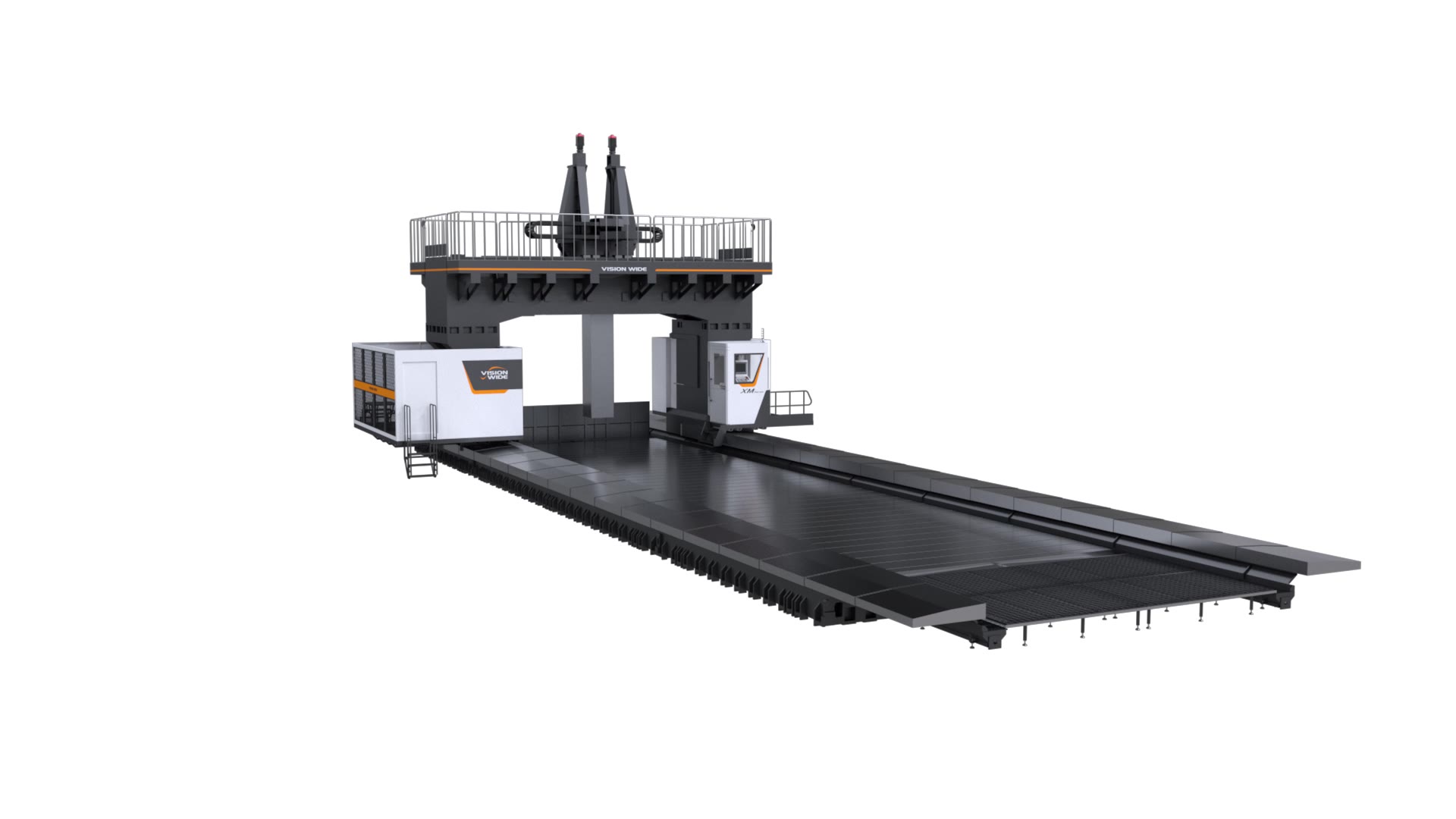

The Vision Wide XM Series is the top of the range in Vision Wide’s line-up — an extremely mighty moving column machining centre built for the heaviest, largest, and most demanding structural machining applications on the planet. With X-axis travel starting at 8,200 mm and extendable up to 60,200 mm, the XM Series is engineered for precision machining of enormous structural parts used in electric power generation, wind energy, oil and gas, petrochemical processing, transportation infrastructure, and heavy industrial equipment. When the workpiece is too large to move — the column moves instead.

Video

Highlights

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Super-Large Working Envelope

X-axis travel up to 60 meters, Y-axis travel up to 5,700 mm and Z-axis travel up to 2,200 mm accommodate enormous structural components

High-Torque Spindle for Heavy Cutting

A 4,000 rpm 2-step gear spindle delivers the torque needed for heavy milling in steel, cast iron, and large structural alloys

Fully Automatic Multi-Face Machining

Compatible with a range of automatic attachment heads featuring tool tip error correction and automatic head and tool exchange

Milling and Turning in One Setup

An optional high-torque vertical turning table converts the XM into a milling and turning compound machine

Feature Summary

The XM Series occupies an entirely different market tier to Vision Wide’s table-moving double column machines. Where the SF, SM, NF, and FA Series move the workpiece during cutting, the XM Series moves the column. This moving column configuration is necessary when the workpiece is simply too large, too heavy, or too long to be placed on a table and moved. The table — which can extend from 8 to 60 metres in length — stays fixed to the floor, and the machine travels across the work.

Moving Column Architecture
In a moving column machining centre, the column travels longitudinally along precision guideways mounted to a fixed floor-mounted bed. The Y-axis moves the beam vertically, and the Z-axis moves the spindle head in and out from the beam. This configuration provides access to extremely long workpieces — rail wagons, ship sections, wind turbine nacelles, large machine frames, and pressure vessels — that cannot be accommodated by any conventional table-moving machine.
The XM Series provides huge workpiece machining space with high-standard geometric accuracy across the entire travel. Positioning accuracy and repeatability are maintained over the full travel length through precision linear scale feedback on X and Z axes as standard, with Y-axis linear scale available as an option.
Heavy Cutting Capacity
The 4,000 rpm 2-step gear type spindle provides high torque output suited to heavy milling passes in steel, cast iron, and large alloy structural components. Optional built-in motor spindles at 8,000 and 12,000 rpm expand the cutting range into higher-speed applications. Spindle motor power is rated at 22/26 kW continuous/30-minute, and the ram measures 470 x 460 mm — a robust, rigid structure that supports heavy cutting forces without deflection.
The table load capacity is rated at 5,000 kg/m² — designed to support the enormous workpieces that the XM Series is built to machine.
Multi-Face Machining with Attachment Heads
To achieve fully automatic multi-face machining on large structural components, the XM Series is compatible with a comprehensive range of automatic attachment heads. These heads support high tangential speed mould surface machining, complex-angle machining of precision parts, and include an automatic tool tip point error correction function. Automatic head and tool exchange eliminates the need for manual intervention during multi-face operations. A multi-heads magazine can be added to support longer, more complex machining sequences without operator input.
One Machine — Extreme Scale
A key advantage of the moving column platform is that a single XM machine can do the work of what would otherwise require multiple setups, multiple machines, or costly repositioning of enormous workpieces. The ability to machine large structural parts in one setup reduces errors, reduces cycle time, and reduces handling risk on components that may weigh tens of tonnes.
Vision Wide has a demonstrated track record in this class of machine. One customer in Taiwan operates an XM configuration at 60 metres of X-axis travel — Vision Wide manufactures the machine in sections and assembles the complete machine at the customer’s facility.
CNC TalkBox Remote Monitoring
Like all Vision Wide machines supplied through QMT, the XM Series is compatible with Vision Wide’s TalkBox remote monitoring software as standard — providing near-instantaneous remote diagnostic support without the need for an on-site technician.
Applications
The XM Series suits electric power generation equipment, wind turbine components, oil and gas processing vessels and frames, petrochemical plant structures, rail and transportation vehicle components, shipbuilding sections, large industrial machine frames, heavy construction equipment, and any application where workpiece length, weight, or scale exceeds the capability of conventional machining centres.

Standard Inclusions

  • Fanuc 0iMF Plus controller with Vision Wide FX graphical user interface
  • 4,000 rpm 2-step gear type spindle
  • 0Spindle oil cooler
  • Z-axis travel: 1,000 mm
  • X-axis dual linear scale and Z-axis linear scale
  • Y-axis ballscrew supporting device
  • Vertical-type tool magazine — 32 tools
  • Centralized auto lubrication system
  • Independent lubrication oil collector
  • Air blast through spindle
  • Wash gun and pneumatic interface
  • Cutting coolant system
  • Four-piece sheet metal guard
  • Screw-type chip conveyor on table sides
  • Caterpillar-type chip conveyor and water tank
  • Air conditioning for electrical cabinet
  • Wireless manual pulse generator
  • Confrontable operation room
  • Operation cycle finish and alarm lights
  • Footswitch for tool clamping
  • RJ45 interface
  • XYZ-axis travel hard limits protection
  • Auto power off
  • Spindle cutting load software protection
  • Remote monitoring software — standard (CNC TalkBox)
  • Foundation pads and bolts kits
  • Adjustment tool and tool kits
  • Technical manuals (operation, maintenance manual and circuit diagram)

Optional Extras

  • Fanuc 31iB controller
  • 6,000 rpm 2-step gear type spindle
  • 8,000 rpm built-in spindle
  • 12,000 rpm built-in spindle
  • Z-axis travel: 1,200 mm
  • Z-axis travel: 1,400 mm
  • Y-axis linear scale feedback
  • Vertical-horizontal type tool magazine — 32, 40, or 60 tools
  • Coolant through spindle — 20 bar
  • Coolant through spindle — 70 bar
  • Oil skimmer
  • Oil mist cooling device
  • Spindle ring cutting coolant device (for configurations without head attachment)
  • Z-axis retract function at power failure
  • Helical bladed screw conveyor on table sides
  • Chip cart
  • Sub working table
  • Auto tool length measurement
  • Auto workpiece coordinate measurement
  • Interface reserved for fourth axis
  • AC automatic attachment heads (multi-face machining capability)
  • Multi-heads magazine
  • High-torque vertical turning table (for milling and turning compound)
  • Anti-collision and process simulation software
  • Remote monitoring software — professional (CNC TalkBox)
  • Transformer
