KR-ME Series

Category Machining Centre

The KR-ME Series offers precision and efficiency with its robust 10 HP spindle, rapid feed rates of 20,000 mm/min, and versatile table sizes up to 1,660 x 660 mm. Ideal for diverse machining needs, it ensures high performance and reliability for demanding manufacturing environments.

Price Guide: $95k +

Highlights

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

High-Power Spindle

The 10 HP spindle ensures robust performance for demanding machining tasks

Versatile Table Sizes

Table sizes up to 1,660 x 660mm accommodate a wide range of workpieces

Rapid Feed Rates

Achieve faster production with feed rates of up to 20,000 mm/min

Precision Travel

X, Y, and Z travel dimensions up to 1,600 x 650 x 630mm for precise machining

Enhanced Tool Capacity

Tool magazine capacity of up to 24 tools reduces downtime for tool changes

Feature Summary

The KR-ME Series represents the latest advancement from King Rich, building upon their established reputation for producing reliable manual milling machines since 1975—a legacy particularly well-regarded in Australia. The ME Series introduces this tradition of durability to CNC machining. Notable features include a robust 10 HP spindle designed for high-performance applications and table capacities up to 1,660 x 660mm, accommodating a diverse array of workpieces. With rapid feed rates reaching 20,000 mm/min, the KR-ME Series is engineered to optimize production efficiency. Precision travel dimensions up to 1,600 x 650 x 630mm support accurate machining processes, and a tool magazine with capacity for up to 24 tools minimizes downtime associated with tool changes. Standard equipment includes a carousel-type automatic tool changer (ATC), an automatic lubrication system, and a coolant system, collectively ensuring reliable and efficient operation.

Specifications

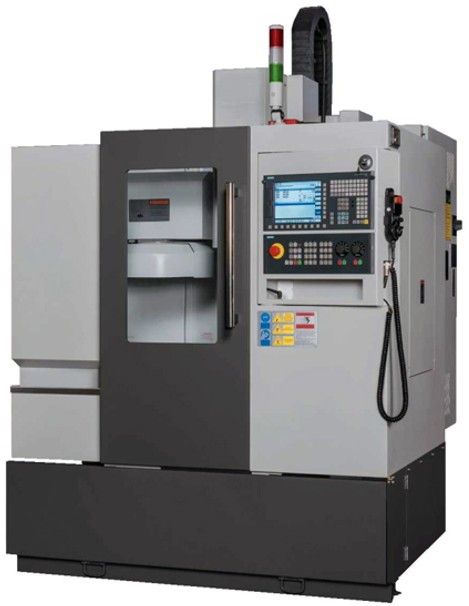

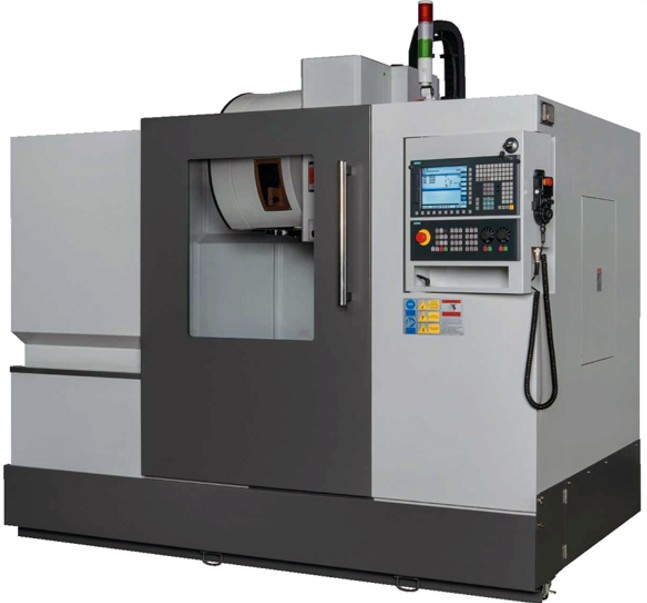

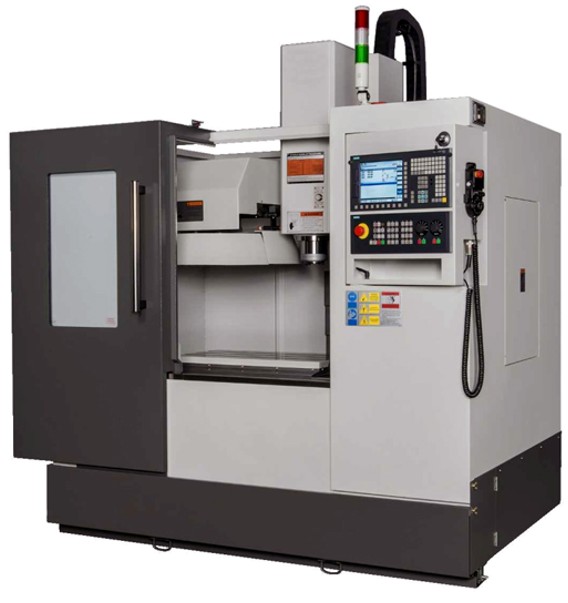

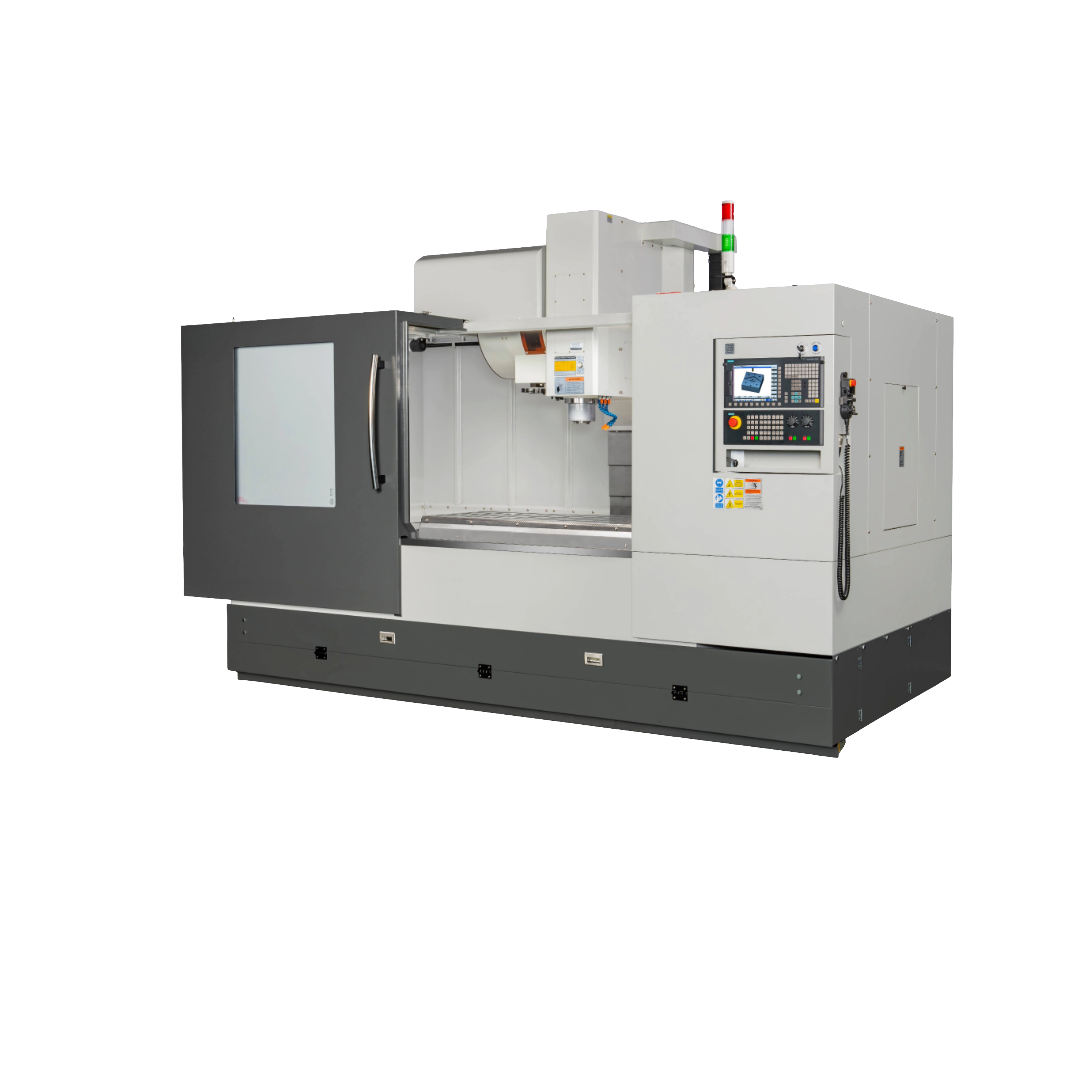

SPECIFICATIONS KR-ME500 KR-ME750 KR-ME1000 KR-ME1600
X Travel 510 mm 750 mm 1000 mm 1600 mm
Y Travel 400 mm 440 mm 500 mm 650 mm
Z Travel 450 mm 500 mm 500 mm 630 mm
Table Size 580 x 400 mm 830 x 410 mm 1060 x 500 mm 1660 x 660 mm
Spindle Center to Column 420 mm 470 mm 520 mm 750 mm
Spindle to Table 100–550 mm 100–600 mm 100–600 mm 105–740 mm
Rapid Feed XYZ Axis 20000 mm/min 20000 mm/min 20000 mm/min 20000 mm/min
Cutting Feed Rates 1–10000 mm/min 1–10000 mm/min 1–10000 mm/min 1–20000 mm/min
Max Table Load 250 kg 500 kg 800 kg 1000 kg
T Slot Size 16 mm 16 mm 16 mm 18 mm
T Slot Number & Pitch 3 @ 125 mm 3 @ 100 mm 4 @ 125 mm 5 @ 100 mm
Spindle Speed 5–8000 rpm 5–8000 rpm 5–8000 rpm 5–10000 rpm
Spindle Motor 10 HP / 7.5 kW 10 HP / 7.5 kW 10 HP / 7.5 kW 20 HP / 15 kW
Spindle Taper BT 40 BT 40 BT 40 BT 40
Tool Magazine Capacity 12 carousel 20 carousel 20 carousel 24 Station Arm Type
Tool Change Time (Tool to Tool) 8 sec 8 sec (opt. 2.5 sec) 8 sec (opt. 2.5 sec) 2.5 sec
Max Tool Diameter 100 mm 80 mm 80 mm 78 mm
Max Tool Weight 6 kg 7 kg 7 kg 7 kg
Coolant Capacity 105 L 125 L 160 L 300 L
Machine Weight 1900 kg 2800 kg 3800 kg 6700 kg
Footprint (W x D x H) 1660 x 1860 x 2300 mm 2100 x 2150 x 2450 mm 2530 x 2200 x 2500 mm 4305 x 2735 x 2900 mm

Standard Inclusions

  • Carousel Type ATC
  • Automatic Lubrication System
  • Coolant System
  • Steel Slideway Covers on all Axes
  • Fully Enclosed Guard
  • Air Blast Through Spindle
  • Electronic Handwheel
  • Leveling Bolts and Blocks
  • Worklight
  • Tool Kit

Optional Extras

  • 10,000 / 12,000 rpm spindle upgrade
  • Arm Type ATC
  • 4th Axis Rotary Table
  • Chain-type chip conveyor
  • Transformer
  • Coolant through spindle
