B Series

Category Manual Milling Machine

The King Rich B Series is a range of heavy-duty manual vertical bed mills suited to high-precision production and toolroom environments. Available in three table sizes, the series features a reinforced high-rigidity milling head for maximum cutting stability, with inverter-controlled axis feeds and precision ballscrews as standard. These machines are built for operators who need accuracy, power, and long-term durability in a manual format.

Price Guide: $50k +

Highlights

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Reinforced High-Rigidity Milling Head

A purpose-built rigid head design delivers maximum cutting stability, even under heavy material removal conditions

Inverter-Controlled Axis Feeds

Frequency inverter control on both longitudinal and cross feeds provides smooth, precise table movement and stepless speed adjustment across the full feed range

Precision Ballscrews on X and Y Axes

Ground ballscrews fitted as standard to both axes deliver accurate, repeatable positioning and reduced backlash over the machine’s working life

Auto Lubrication System

Reduces maintenance needs and extends machine lifespan

1HP Rapid Vertical Motor with Brake

A powered Z-axis rapid traverse motor with integrated brake accelerates head positioning, reducing setup time between operations

Feature Summary

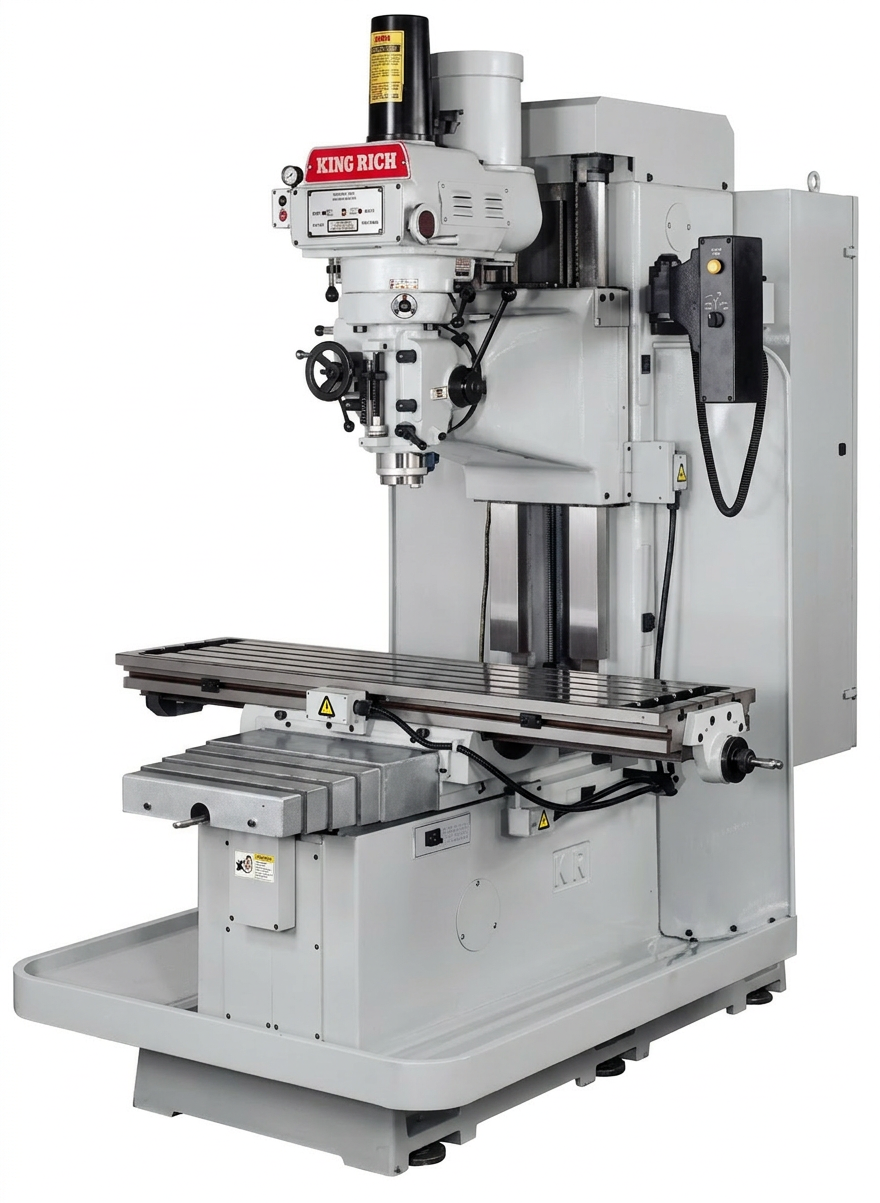

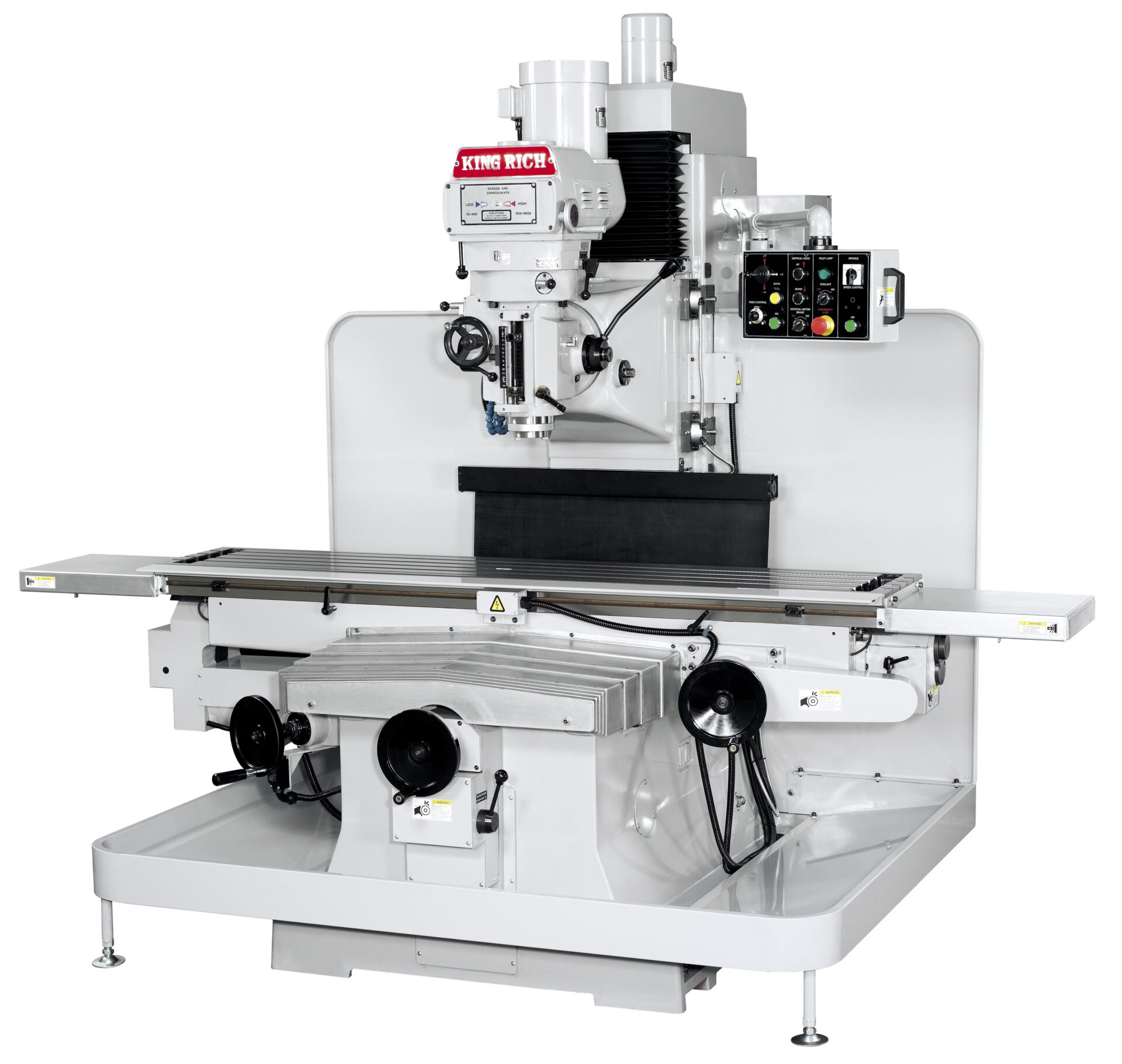

The King Rich B Series delivers a step up in mass, rigidity, and capability over conventional knee-type vertical mills. Three models cover a practical range of table sizes, from the KR-B2V through to the long-table KR-B4V, with each machine sharing the same core engineering philosophy.

Structure and Rigidity
The reinforced high-rigidity milling head provides maximum cutting stability. American red Turcite is applied to the X and Y axes for wear resistance and long-term accuracy. Dovetail slideways are used on the X axis, and square slideways are used on the Y and Z axes. All axes and the table are hardened and ground. The fixed-bed design eliminates the knee column of a conventional turret mill, providing a more rigid and stable platform for heavier cuts.

Feed System
Frequency inverter control is fitted to both the longitudinal and cross feeds as standard, providing smooth and stepless feed rate control across the full range. Precision ground ballscrews are fitted to the X and Y axes, delivering accurate positioning with minimal backlash. A clutch is also fitted to the transmission shaft for overload protection.

Spindle and Head
All three models use an ISO40 spindle taper, giving broad tooling compatibility. The variable speed drive head provides stepless spindle speed adjustment. The spindle operates across two speed ranges, covering low-speed heavy cutting through to high-speed finishing operations.

Z Axis and Positioning
A 1HP AC rapid vertical motor with brake is fitted as standard, enabling fast powered Z-axis positioning between operations. The integrated brake holds the head securely in position during cutting.

Maintenance and Reliability
Auto lubrication and a coolant pump are standard across the range, keeping guideways protected and cutting temperatures managed during production use. King Rich manufactures its spindles in-house, with spare parts controlled and available even for older machines. Individual components can be supplied rather than full assemblies, which reduces replacement costs over the machine’s life.

Specifications

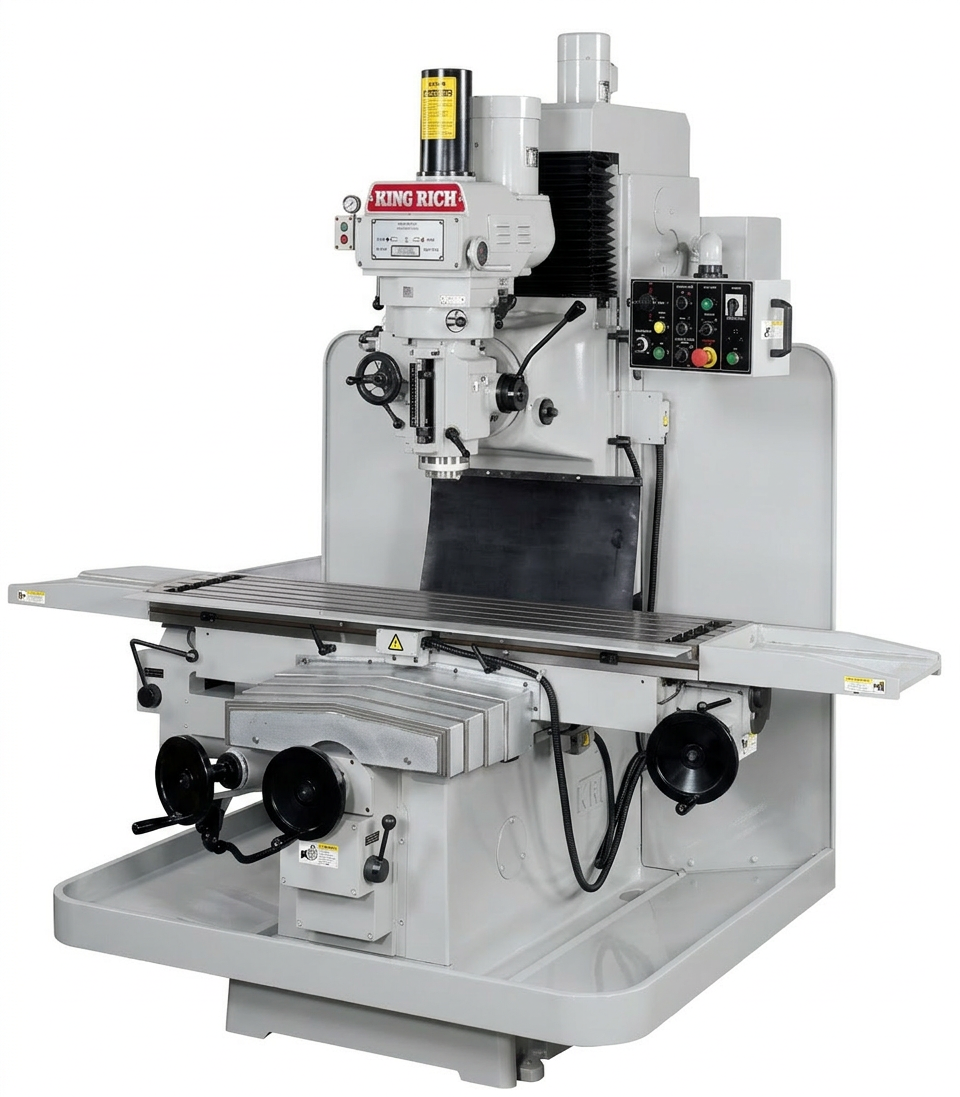

SPECIFICATION	KR-B3V	KR-B4V
Spindle Driver Motor	7.5 HP Variable speed head
Spindle Speed Range	70–3600 rpm (60Hz)
Spindle Taper	ISO 40
Table Size	355 x 1473 mm	355 x 1930 mm
T-Slots – 4	15.9 mm 4 of
Longitudinal Travel – X Axis	1050 mm	1500 mm
Cross Travel – Y Axis	480 mm	600 mm
Knee Travel – Z Axis	480 mm
Quill Power Feeds	0.0418 / 0.0786 / 0.1303 mm
Quill Travel	140 mm
Quill Diameter	116 mm
Feed for Longitudinal & Cross	0 – 1300 mm/min
Rapid Feed Rate	1900 mm/min
Max. for Longitudinal & Cross	1 HP (Invert control)
Head Tilt Left to Right	90°–0–90°
Spindle Nose to Table Surface	110–630 mm	110–615 mm
Net Weight Approx	2900 kg	3600 kg

Standard Inclusions

American red Turcite on X and Y axes
Dovetail slideways on X axis; square slideways on Y and Z axes
Hardened and ground X, Y, Z axes and table
Variable speed drive head
ISO40 spindle taper
1HP AC rapid vertical motor with brake
Frequency inverter control on longitudinal feed and cross feed
X and Y axis ballscrews
Clutch on transmission shaft for overload protection
Auto lubrication system
Coolant pump, iron coolant tray, and splash guard
X axis electrolytic dissociation
Z axis air brake unit (optional on some models)

Optional Extras

Roller type vertical chip guard
Steel slide cover on Y axis front
Inverter feed motor for Z axis
NT40 air power drawbar
80mm raised column
DRO system
