V Series

Category Manual Milling Machine

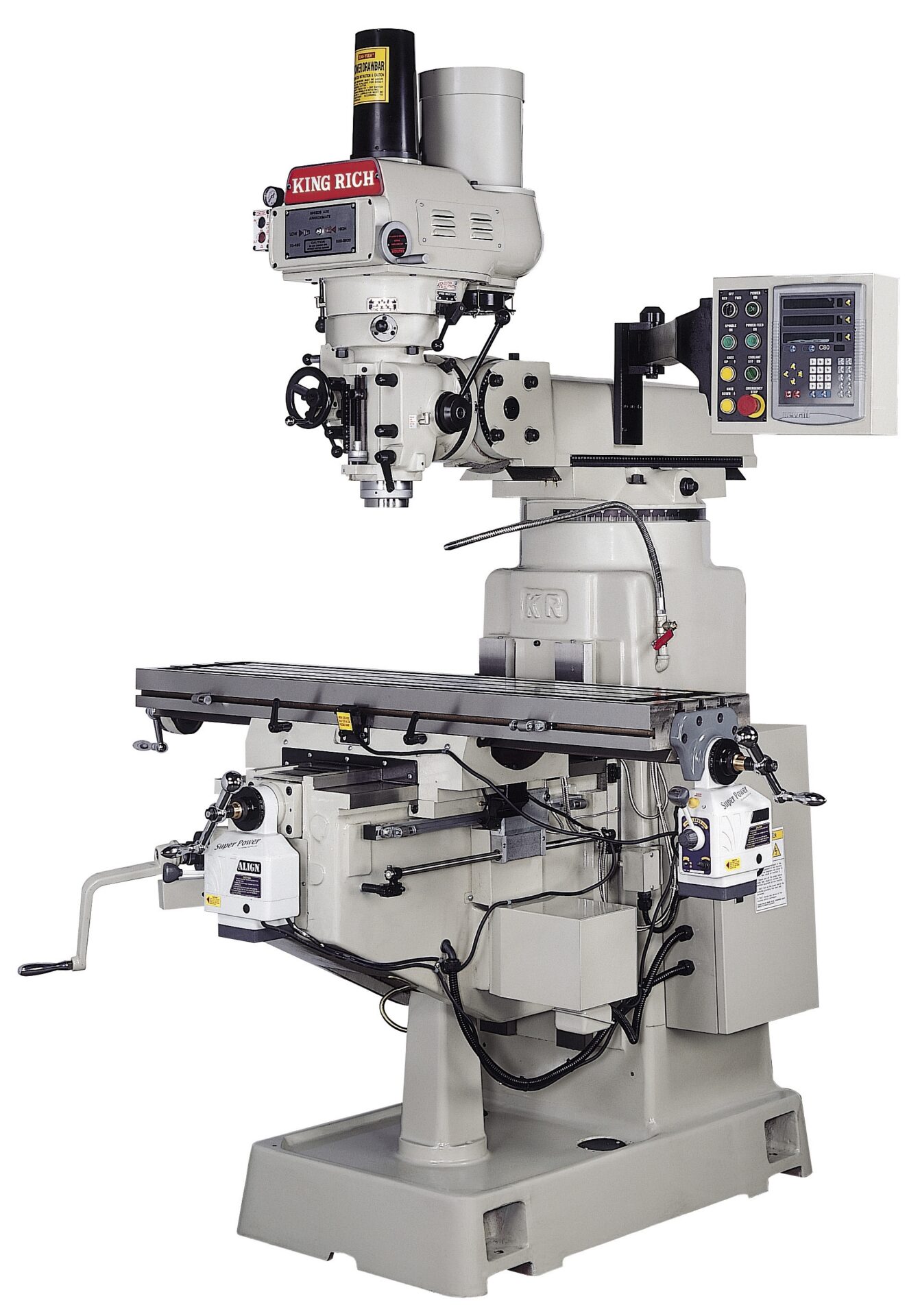

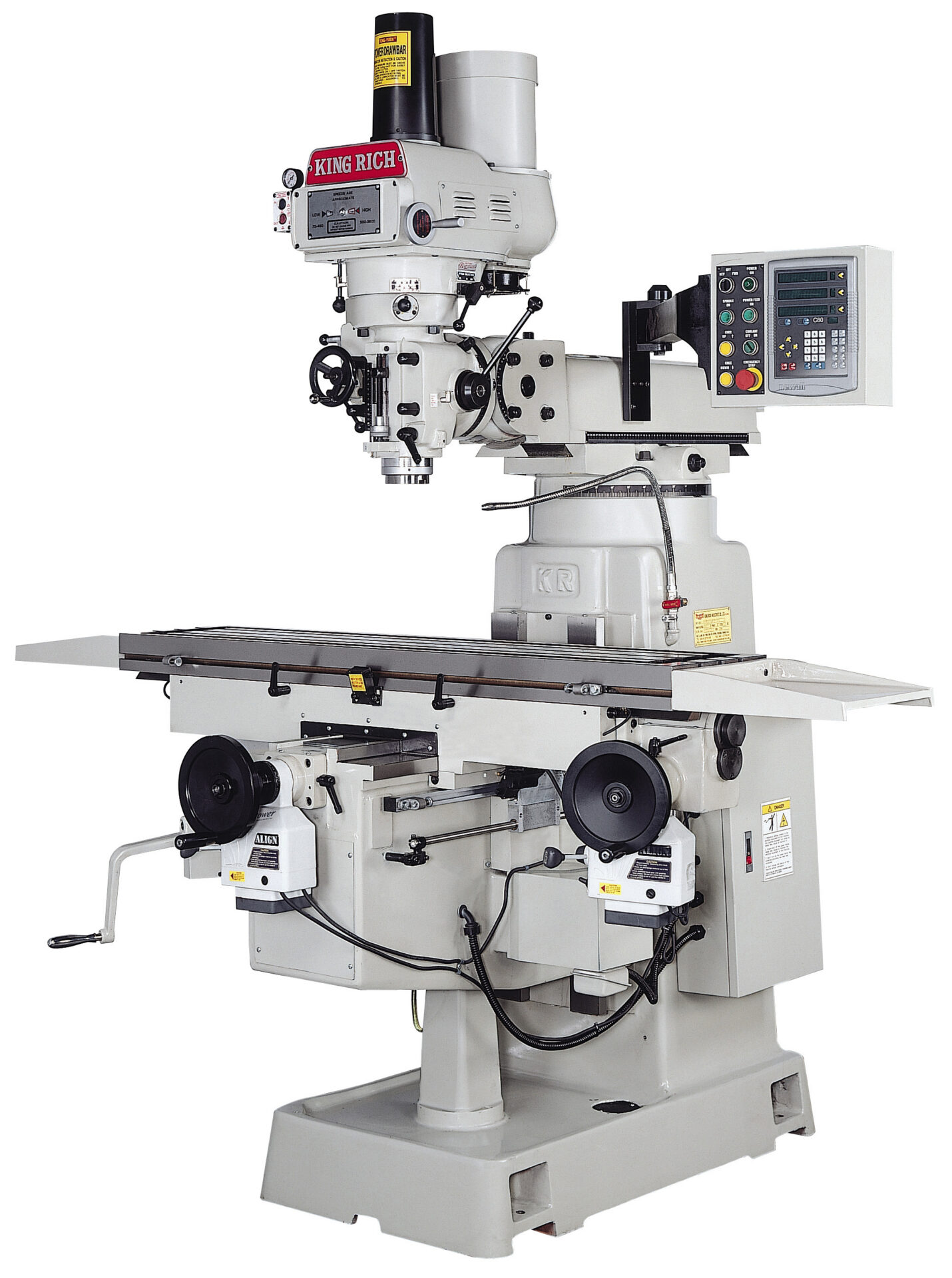

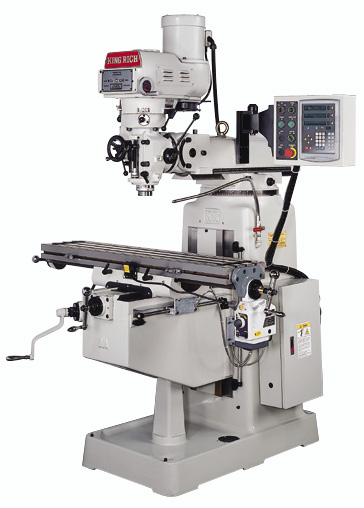

The King Rich V Series is a range of robust, high-performance manual vertical knee mills designed for precision machining and heavy-duty operations. Available in three table sizes (KR-V2000, KR-V3000, KR-V3000SL), this series suits job shops, toolrooms, and training environments. With decades-long parts availability, these machines are built to stay accurate and productive for the long haul.

Price Guide: $25k +

Highlights

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Meehanite Castings

Solid Meehanite castings and hardened, ground slideways maintain precision through years of heavy-duty use

Variable Speed Drive Head

Stepless spindle speed control across the full range lets operators match cutting conditions to any material or tooling requirement

Automatic Central Lubrication

A fully automatic lubrication system meters oil to guideways and ballscrews, protecting the machine and reducing daily maintenance demands

Power Axis Feeds Included

X axis power feed is standard across the range, with dual-axis feeds on the KR-V3000SL, streamlining long cuts and repetitive operations

Feature Summary

The King Rich V Series represents a well-proven line of Taiwanese-built manual vertical knee mills, available exclusively through QMT Machinery in Australia. Three models cover a practical range of table sizes and feature levels, from the compact KR-V2000 through to the large-format KR-V3000SL.

Design and Construction

Solid Meehanite castings provide the structural foundation for all three models. Hardened slides and a ground table ensure longevity of accuracy and performance. American red Turcite is fitted to the X and Y axes. Dovetail slideways are used on the X axis, and square slideways are used on the Y and Z axes. All axes and the table are hardened and ground.

Performance

Each machine features a variable speed drive head, giving operators stepless control over spindle speed without the need for belt changes. The KR-V3000 and KR-V3000SL include a 1.5HP AC rapid vertical motor that accelerates Z-axis knee positioning, saving time during setup and between cuts. The KR-V3000 and KR-V3000SL both use an ISO40 spindle taper, offering wide tooling compatibility for production and toolroom applications.

Usability

An air-powered drawbar is included as standard across the range, making tool changes quick and consistent. Power longitudinal feed is standard on the KR-V3000 and KR-V3000SL. The KR-V3000SL adds a second power feed on the Y axis as standard, reducing operator effort on longer or repetitive work. A 24V LED working light is fitted to all models, improving visibility at the cutting zone.

Reliability and Maintainability

Automatic central lubrication meters and distributes oil to all guideways and ballscrews without operator input, reducing wear and the risk of dry running. The coolant pump and tray are standard on all models, helping manage heat and swarf during cutting. King Rich manufactures its spindles and headstocks in-house, which means spare parts are controlled, accurately priced, and available even for older machines. The ability to supply individual components rather than full assemblies reduces replacement costs over the machine’s life.

Specifications

MODEL	KR-V2000	KR-V3000	KR-V3000SL
Spindle Motor	3 HP	5 HP	5 HP
Spindle Speed	50–3500 rpm	60–3000 rpm	60–3000 rpm
Spindle Taper	NT30	ISO 40	ISO 40
Table Size	254 x 1270 mm	305 x 1372 mm	305 x 1473 mm
Longitudinal Travel – X Axis	800 mm	860 mm	1016 mm
Cross Travel – Y Axis	400 mm	400 mm	400 mm
Knee Travel – Z Axis	406 mm	406 mm	406 mm
Ram Travel	N/A	450 mm	450 mm
Quill Power Feeds	N/A	0.038, 0.076, 0.152 mm	0.038, 0.076, 0.152 mm
Quill Travel	127 mm	127 mm	127 mm
Quill Diameter	85 mm	105 mm	105 mm
Swivel on Turret	N/A	360°	360°
Head Tilt (Front to Back)	-45° to +45°	-45° to +45°	-45° to +45°
Head Tilt (Left to Right)	-90° to +90°	-90° to +90°	-90° to +90°
Spindle Nose to Table	50–457 mm	50–457 mm	50–457 mm
Machine Weight	1200 kg	1600 kg	1700 kg

Standard Inclusions

American red Turcite on X and Y axes
Dovetail slideways on X axis; square slideways on Y and Z axes
Hardened and ground X, Y, Z axes and table
Variable speed drive head
X axis power longitudinal feed
1.5HP AC rapid vertical motor (optional on some models)
Y axis power feed (optional on some models)
Automatic central lubrication system
Coolant pump and iron coolant tray
Air-powered drawbar
Rubber covers for front and rear of saddle
24V LED work light

Optional Extras

Y axis power feed (optional on some models)
Inverter head (optional on some models)
3-axis digital readout (DRO) system
