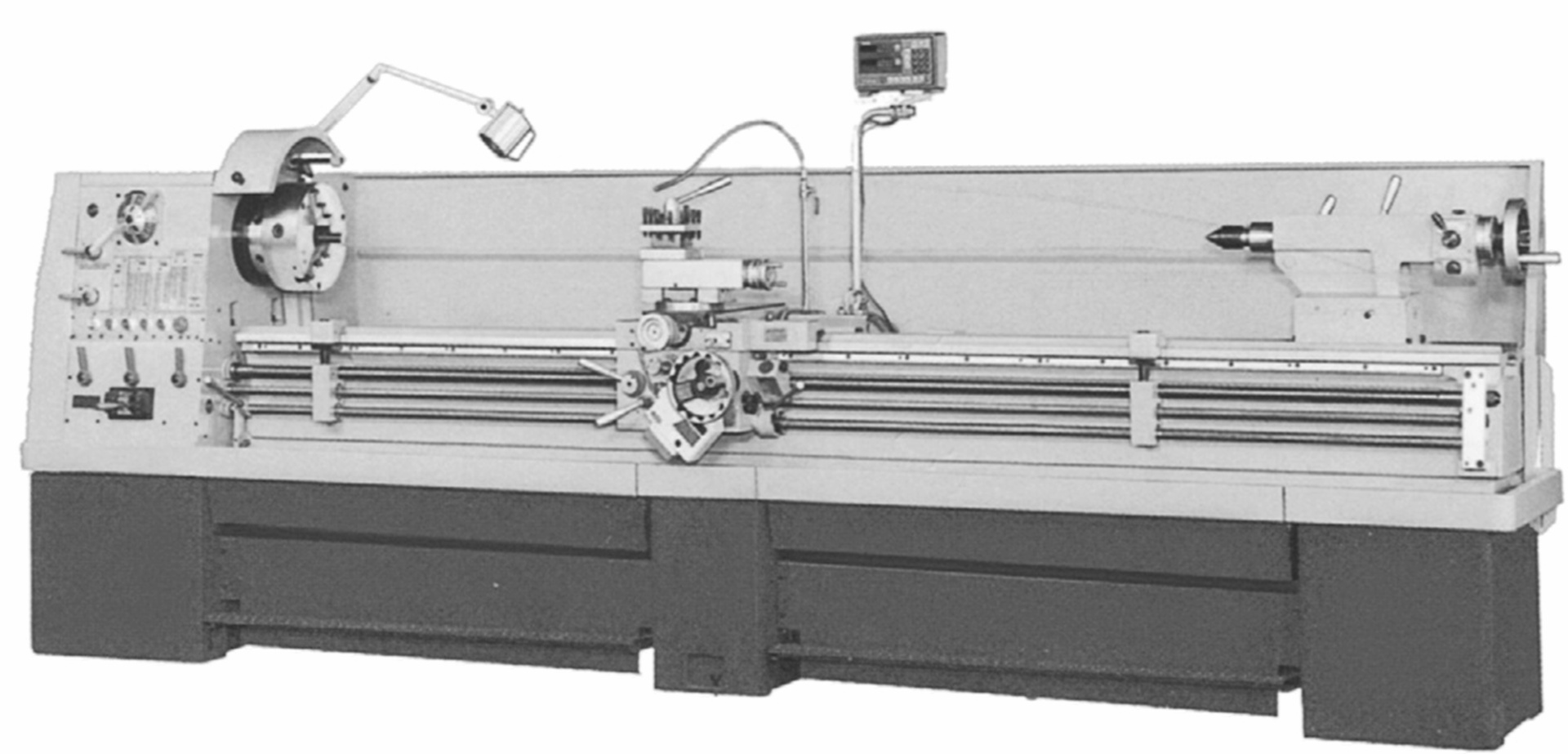

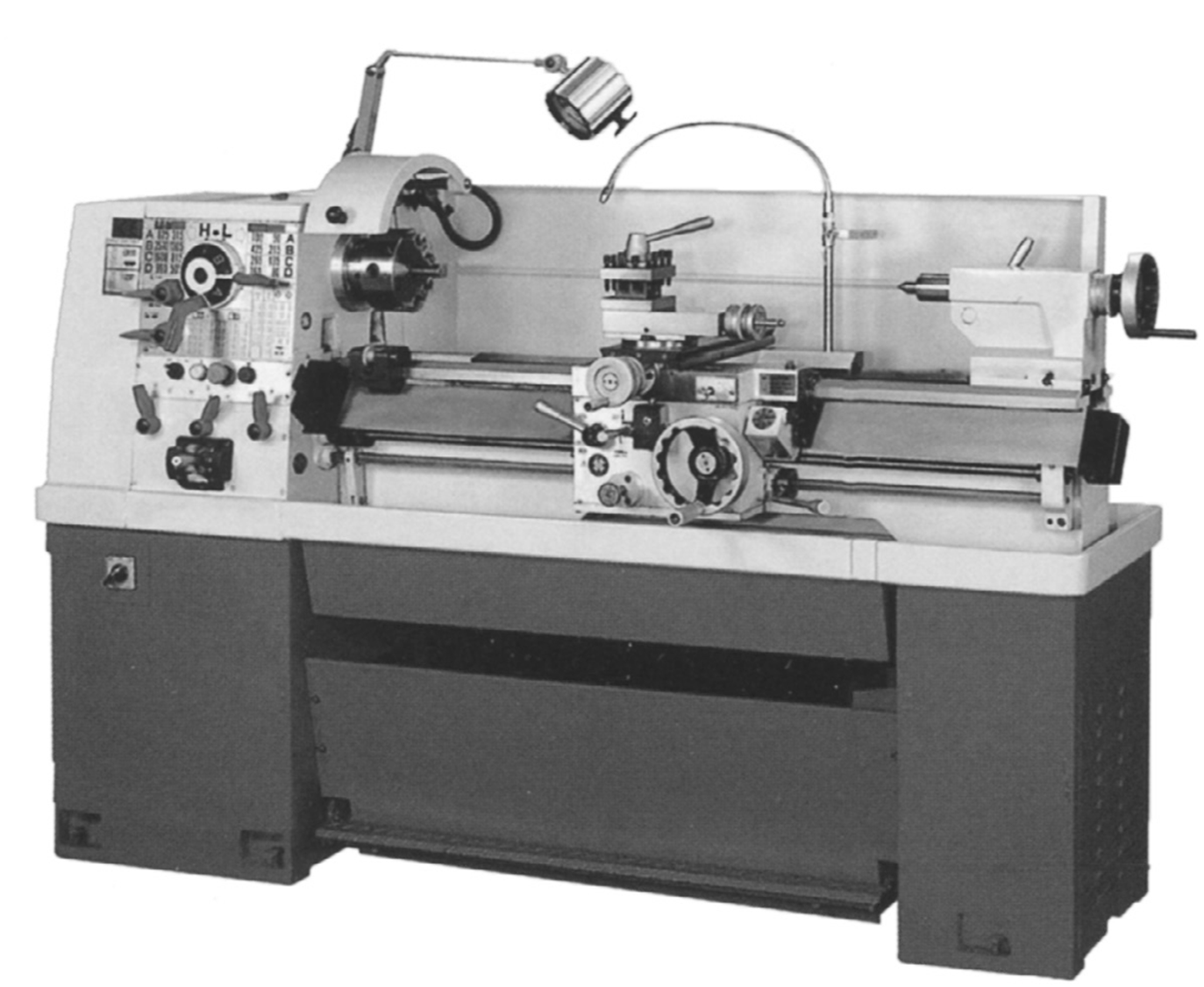

FCL Series

Category Manual Lathe

The Morton FCL Series lathes are precision-engineered, high-speed engine lathes designed for heavy-duty industrial use. With robust construction, wide threading capabilities, and advanced spindle design, they deliver reliable performance across a range of turning applications. EVS models offer infinitely variable speed control for enhanced flexibility.

Price Guide: $25k +

Highlights

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Heavy-Duty Spindle Design

Large spindle bore for efficient, durable operation

Precision Gearbox

Supports imperial, metric, module, and diametrical pitch threading

Rigid Bed Construction

Meehanite cast iron, stress-relieved and induction hardened for long-term accuracy

Advanced Feed System

Integrated longitudinal and cross feeds with overload protection

Feature Summary

The Morton FCL Series is built for demanding environments where precision and durability are paramount. The headstock features a dynamically balanced spindle supported by three precision bearings (two taper roller, one ball), housed in a stabilized, deflection-free casing. All gears and shafts are crafted from chromium molybdenum steel and precision ground for smooth operation.

The universal gearbox offers extensive threading capabilities, including metric threads and module pitches. The bed is a one-piece Meehanite casting with vibration stress relief, induction-hardened ways, and a removable gap bed for larger workpieces. Turcite B coating between the bed and carriage enhances wear resistance.

The apron includes automatic feed devices for both longitudinal and cross feeds, with forward/reverse control and overload safety. The carriage and slide system incorporates backlash eliminators, safety clutches, dual reading dials, and centralized lubrication.

EVS models feature an inverter-driven AC motor for infinitely variable speed control, allowing precise adjustments. This flexibility is ideal for varied materials and tooling setups.

Specifications

MODEL FCL-1330G FCL-1340G FCL-1330EVS FCL-1340EVS FCL-1550G FCL-1550EVS FCL-1840 FCL-1860 FCL-1880G FCL-18120G FCL-1840EVS FCL-1860EVS FCL-1880EVS FCL-18120EVS FCL-2140 FCL-2160 FCL-2180 FCL-21120G FCL-2140EVS FCL-2160EVS FCL-2180EVS FCL-21120EVS
Bed width 230 mm 280mm 345mm
Swing over bed 342mm 380mm 460mm 542mm
Swing over carriage 205mm 238mm 298mm 380mm
Swing over gap 512mm 610mm 710mm 790mm
Between centers 760mm 1000mm 760mm 1000mm 1250mm 1000mm 1500mm 2000mm 3000mm 1000mm 1500mm 2000mm 3000mm 1000mm 1500mm 2000mm 3000mm 1000mm 1500mm 2000mm 3000mm
Spindle speed steps 8 or 16 steps 2 steps – variable 16 steps 4 steps 16 steps 4 steps 16 steps 4 steps
Spindle speed 80~2000 or 50~1305 or 100~2570rpm 100~3000rpm 25~2000rpm 22~2500rpm 20~1600rpm 18~1800rpm 20~1600rpm 18~1800rpm
Spindle motor 3HP (Opt. 5HP) 3HP Inverter 7.5HP 7.5HP Inverter 10HP 10HP Inverter 12.5HP 12.5HP Inverter
Spindle bore 40 mm 56mm 80 mm
Spindlenose D1-4 D1-6 D1-8
Spindle taper MT #5 MT #8 MT #7
Slide travel-cross slide 180mm 235mm 272mm
Slide travel-top slide 95mm 120mm 135mm
Tailstock-quill diameter 50 mm diameter 59mm 76mm
Tailstock-quill travel 112 mm 127mm 165mm
Tailstock-quill taper MT#3 MT#4 MT#5
Length of bed 400mm 484mm 543mm
Width of carriage 384mm 450mm 542mm
Whitworth threads range 2~72 T.P.I
Metric threads range 0.2~14mm
D.P. threads range 8~44 D.P.
M.P. threads range 0.3~3.5M.P.
Longitudinal feeds 0.05~1.7 mm 0.04~1.0 mm
Cross feeds 0.025~0.85 mm 0.02~0.5mm
Machine net weight 900Kgs 1000Kgs 900Kgs 1000Kgs 1450kgs 2000kgs 2200kgs 2500kgs 3000kgs 2000kgs 2200kgs 2500kgs 3000kgs 2150kgs 2350kgs 2650kgs 3150kgs 2150kgs 2350kgs 2650kgs 3150kgs

Standard Inclusions

  • Safety Chuck guard with interlock.
  • 3 jaw chuck 200 mm
  • Steady rest
  • Follow rest
  • Metric Dials
  • Face plate
  • Full length Rear splash guard
  • Coolant Pump and equipment.
  • Toolbox and tools
  • Work light
  • Levelling screws and bolts
  • Emergency Stop Function
  • Foot brake
  • Instruction manual
  • Ground & hardened Headstock gears
  • Ground & hardened bed way
  • Low voltage controls for extra safety operation

Optional Extras

  • Variable speed motor (EVS)
  • 4-jaw scroll chuck (250 mm)
  • 4-jaw independent chuck (350 mm)
  • Tooling
  • Driving plate with dog
  • Carbide tipped and live centers (MT No.4/5)
  • Drill chucks (keyed/keyless) with arbor
  • Micro carriage stop
  • Turret-type carriage stopper
  • Quick change tool post
  • Taper turning attachment
  • Lead screw cover
  • Digital readout system
