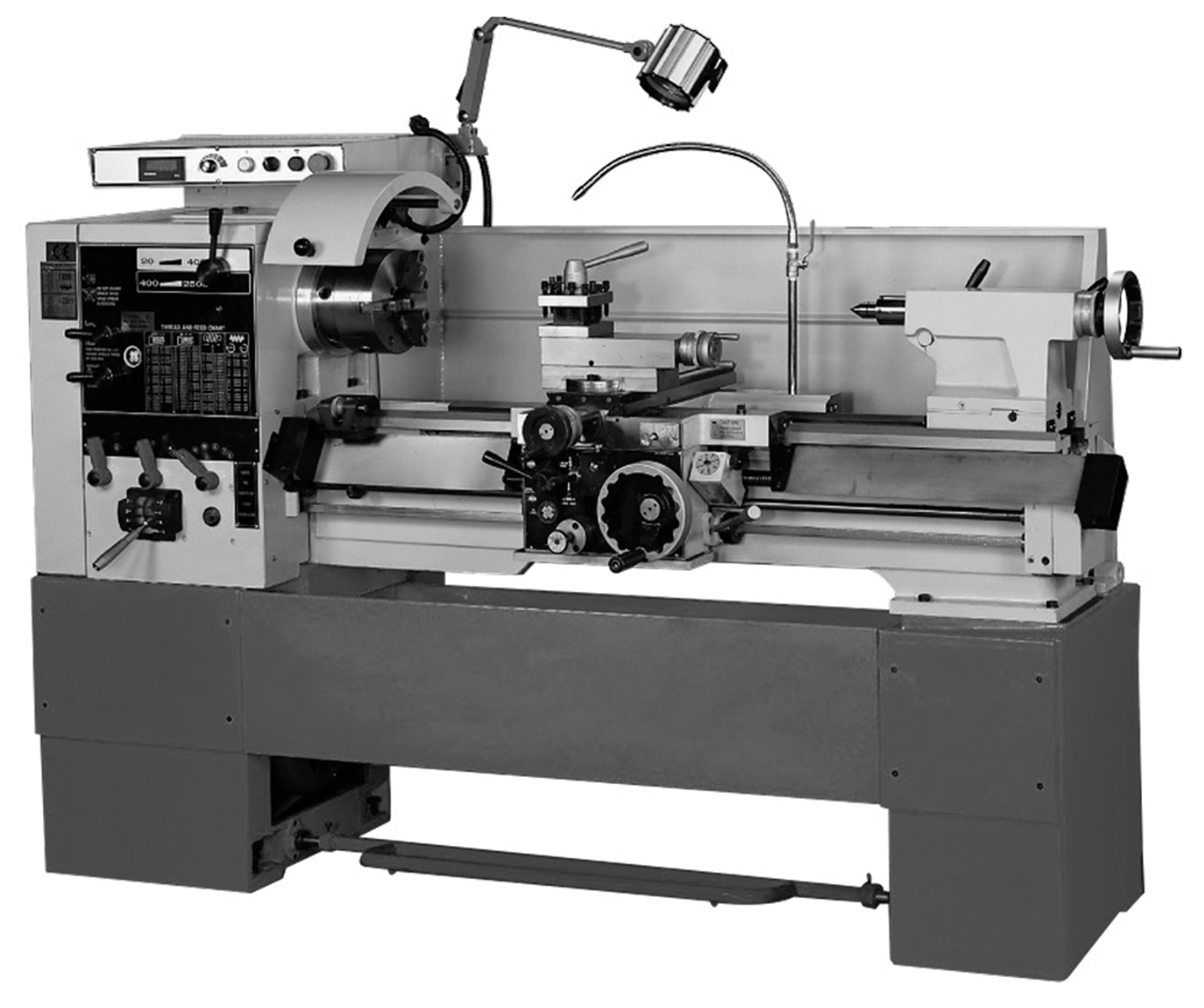

FEL Engine Lathe Series

Category Manual Lathe

The FEL Series Engine Lathe comprises high-performance precision engine lathes designed for industrial-grade turning operations. Available in both gear-head (HG) and electronic variable speed (EVS) configurations, these models offer robust construction, versatile threading capabilities, and smooth operation for consistent machining results.

Price Guide: $25k +

Highlights

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Precision Spindle Assembly

Forged alloy steel spindle with dynamic balancing ensures high accuracy and durability

Heavy-Duty Bed Construction

Meehanite cast iron bed with induction-hardened and ground ways for vibration resistance

Comprehensive Threading System

Supports metric, Whitworth, D.P., and M.P. threads with up to 45 kinds available

Integrated Safety and Convenience

LED RPM display, emergency stop, and sealed electrical cabinet enhance usability and safety

Feature Summary

The FEL Engine Lathe Series offers high-speed precision with several key features and benefits. All models come with an oil bathed lubrication system for the headstock, ensuring smooth operation and longevity. The series meets CE standards (on request) and features a 52.5mm spindle bore with ASA D1-6. The castings are stabilized and stress-relieved, while the bed ways are hardened and ground to a minimum HRC of 48-55.

The Turcite B coating between the bed and carriage reduces friction and wear. The machines operate at an extremely low noise level and include a foot brake pedal for safety. Built-in coolant pumps and fittings are provided, along with a wider bed way to absorb vibrations. The EVS model offers constant surface speed control (CSS) on request.

The FEL Engine Lathe Series is designed for durability, precision, and user safety, making it an excellent choice for high-speed machining.

Specifications

MODEL FEL-1440/1460HG FEL-1640/1660HG FEL-1440/1460EVS FEL-1640/1660EVS
Bed width 260 mm
Swing over bed/carriage/gap 360/212/533 mm 410/262/583 mm 360/212/533 mm 410/262/583 mm
Between centers 1000 / 1500 mm
Spindle speeds 8 steps, 70–1800 rpm (Opt: 16 steps, 40–2000 rpm) | EVS: Variable, 20–2500 rpm
Spindle motor 5 HP (Opt. 5 HP) 5 HP Inverter
Spindle bore 52.5 mm
Spindle nose D1-6
Spindle taper MT6
Cross slide travel 220 mm
Compound slide travel 125 mm
Tailstock quill diameter 52 mm
Tailstock quill travel 152 mm
Tailstock taper MT4
Length on bed 513 mm
Width of carriage 412 mm
Imperial thread range 2–72 T.P.I
Metric threads range 0.2–14 mm
D.P. thread range 8–44 D.P.
M.P. threads range 0.3–3.5 M.P.
Longitudinal feeds 0.05–1.7 mm
Cross feeds 0.025–0.85 mm
Machine net weight 1350 / 1450 kg 1400 / 1500 kg 1350 / 1450 kg 1400 / 1500 kg

Standard Inclusions

  • Safety Chuck guard
  • Chip and coolant tray
  • Back plate for chuck
  • 4-way tool post
  • Tools and toolbox
  • Leveling pads
  • Halogen work lamp
  • Emergency stop switch
  • Steady rest
  • Follow rest
  • Face plate (300 mm)
  • Operational manual and spare parts list
  • Full-length splash guard

Optional Extras

  • 3-jaw scroll chuck
  • 4-jaw scroll chuck
  • 4-jaw independent chuck
  • Tooling
  • Driving plate with dog
  • Micro carriage stop and turret stopper
  • Quick change tool post
  • Taper turning attachment
  • Digital readout system
  • Leadscrew cover
