FML Series

Category Manual Lathe

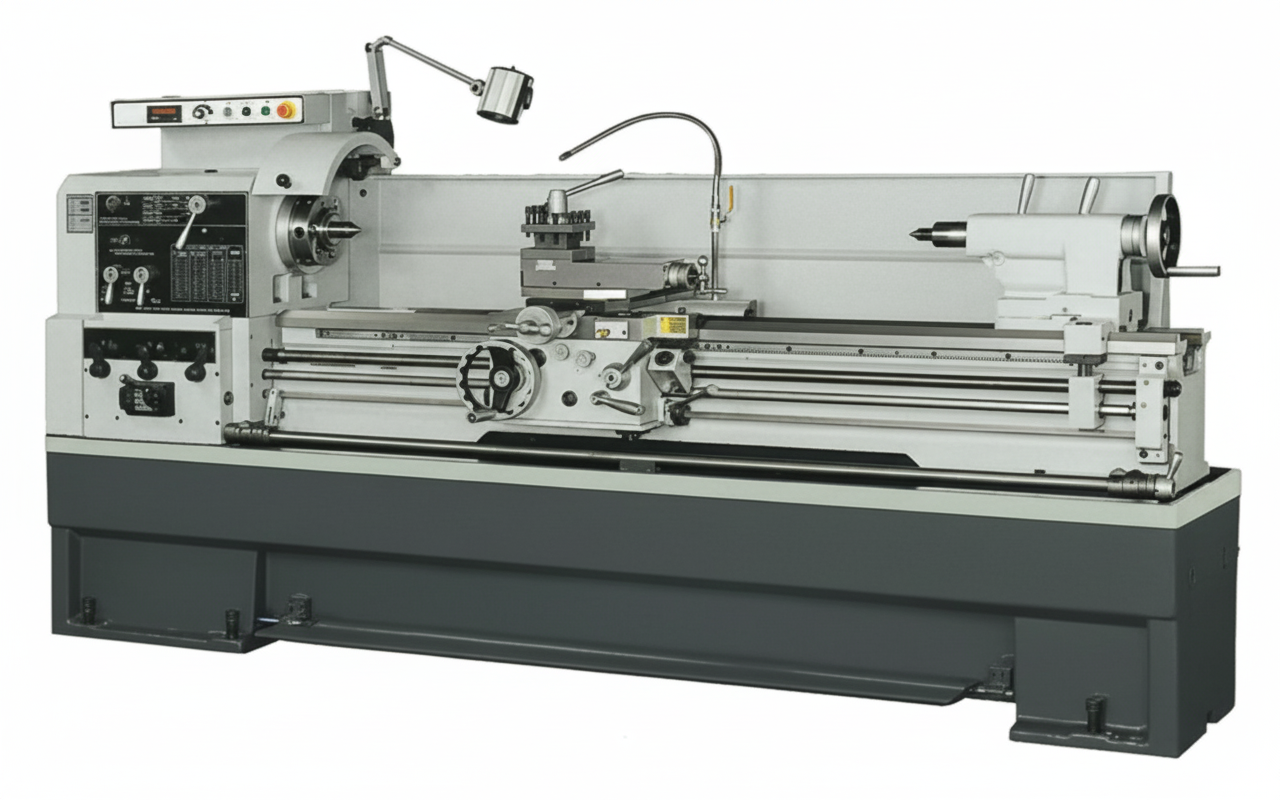

The FML Precision Lathe Series is a robust lineup of high-performance engine lathes designed for precision turning in industrial environments. Available in both standard and electronic variable speed (EVS) configurations, these models offer excellent rigidity, versatile threading, and smooth operation for consistent results across a range of workpiece sizes.

Price Guide: $30k +

Highlights

Made In Taiwan

Delivering the robustness and high precision we’ve all come to expect from Taiwanese-made machine tools

Heavy-Duty Spindle Assembly

Precision bearings ensure stable rotation and high machining accuracy

Universal Gearbox

Enables multiple threading options without manual gear changes

Robust Tailstock Design

Lockable quill enhances support and flexibility for tooling

Wide Bed Construction

Provides vibration resistance and long-term durability

Feature Summary

The FML Precision Lathe Series is engineered for reliability and precision in demanding machining environments. Each model features a heavy-duty spindle supported by high-grade bearings, delivering consistent performance under load. The universal gearbox allows for a wide range of threading options without the need for manual gear changes, simplifying setup and operation.

The bed is wide and solidly constructed to minimize vibration and maintain accuracy over time. The tailstock is designed for ease of use, with a quill that locks securely at any position, supporting a variety of tooling setups. The carriage and saddle are built for smooth movement and precise control, contributing to the overall machining quality.

EVS models incorporate an AC inverter-driven headstock, offering infinitely variable speed control and LED RPM display for optimal surface speed and tool life. These models are ideal for users seeking enhanced flexibility and control in their turning operations.

Standard and optional accessories further enhance the versatility of the FML series, making it suitable for a wide range of applications from general machining to specialized tasks.

Specifications

MODEL FML-1740/1760 FML-2040/2060 FML-1740/1760EVS FML-2040/2060EVS
CAPACITY
Height of centers 216mm 254mm 216mm 254mm
Swing over bed 435mm 508mm 435mm 508mm
Swing in gap 622mm 698mm 622mm 698mm
Swing over cross slide 227mm 353mm 227mm 353mm
Distance between centers 1000mm / 1500mm
Width of bed 305mm
Gap width in front of faceplate 195mm
HEADSTOCK & SPINDLE
Spindle nose D1-6
Internal taper 85mm
Spindle center sleeve MT5, 85mm Taper
Spindle bore 80mm
Spindle speed 12 steps, 36 – 1800rpm Variable, 30 – 2200rpm
CARRIAGE
Length on bed 440mm
Width of carriage 477mm
Cross slide travel 235mm 272mm 235mm 272mm
Top slide travel 160mm
THREADS & FEEDS
Whitworth threads 2 – 72 TPI
Metric threads 0.2 – 14mm
D.P. threads 8 – 44 D.P.
M.P. threads 0.3 – 3.5 M.P.
Longitudinal feeds 0.04 – 1.0mm
Cross feeds 0.02 – 0.5mm
TAILSTOCK
Quill diameter 59mm
Quill travel 127mm
Taper of center MT4
MOTOR
Main spindle 7.5HP 7.5HP Inverter
Forced lubrication for HD N/A 1/4HP
Coolant pump 1/8HP

Standard Inclusions

  • Coolant system
  • Chip and coolant tray
  • Back plate for chuck
  • 4-way tool post
  • Two centers and center sleeve
  • Tools and toolbox
  • Leveling pads
  • Halogen work lamp
  • Emergency stop switch
  • Steady rest with ball bearing
  • Follow rest with bronze tip
  • Face plate
  • Operational manual and spare parts list
  • Full-length splash guard
  • Chuck safety guard

Optional Extras

  • Digital readout system (DRO)
  • 3-jaw and 4-jaw scroll chucks
  • 4-jaw independent chuck
  • Tooling
  • Driving plate with dog
  • Micro carriage stop
  • Turret type carriage stopper
  • Quick change tool post
  • Taper turning attachment
  • Tool post grinder
