Colt LM

Category Turning Centre

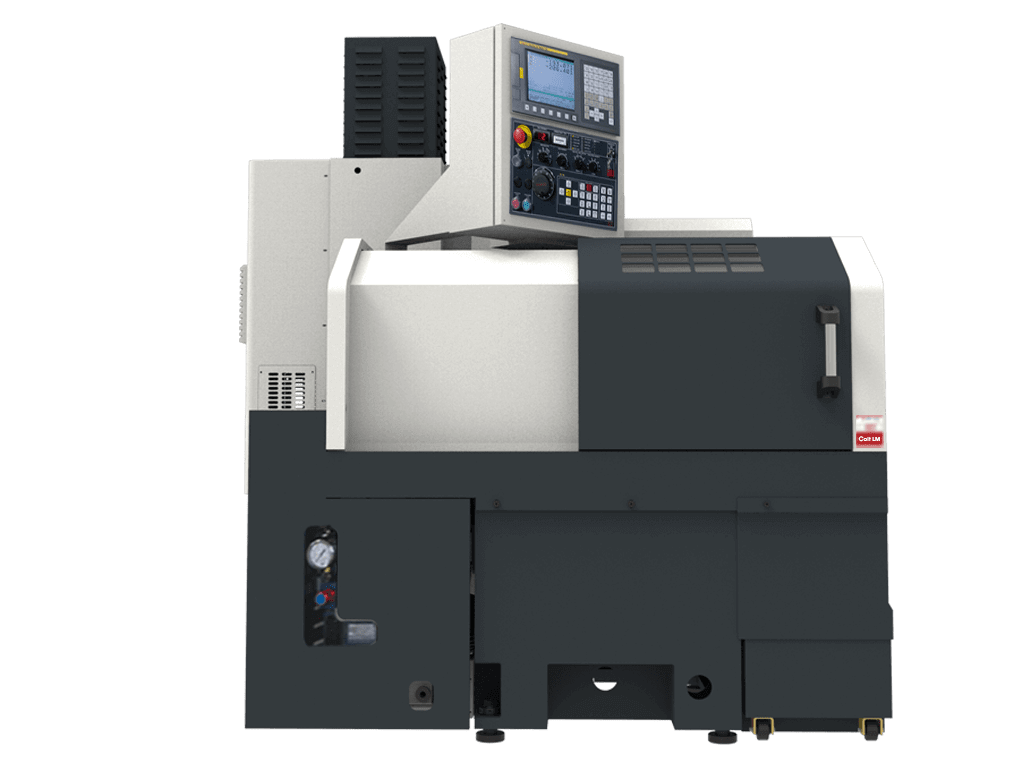

The Colt LM Horizontal Turning Center from Ace Micromatic offers a powerful AC spindle motor, high-speed 4000 rpm spindle, and thermally stabilized spindle for precision. It features a compact footprint, linear motion guideways, and easy maintenance with a separate coolant tank. Optional accessories include a voltage stabilizer and spindle speed up to 6000 rpm.

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Powerful AC Spindle Motor

Ensures high performance and reliability for demanding machining tasks

High-Speed 4000 RPM Spindle

Enhances productivity with faster machining speeds

Thermally Stabilised Spindle

Maintains precision and accuracy during extended operations

Compact Footprint

Saves valuable floor space in your workshop

Linear Motion Guideways

Provides smooth and precise movement for improved machining quality

Feature Summary

The Colt LM Horizontal Turning Center is designed to deliver high performance and precision in machining tasks. It features a powerful AC spindle motor and a high-speed 4000 rpm spindle, ensuring efficient and reliable operation. The thermally stabilized spindle maintains accuracy during extended use, while the compact footprint saves valuable floor space in your workshop. Linear motion guideways provide smooth and precise movement, enhancing machining quality. The machine is also equipped with a separate coolant tank for easy maintenance.

Standard accessories include AC spindle and axes drives, table-mounted gang tooling, and a hydraulic power-operated chuck. Optional accessories such as a voltage stabilizer, spindle speed up to 6000 rpm, and a chip conveyor further enhance the machine’s capabilities. The Colt LM is ideal for workshops looking to improve productivity and maintain high standards of precision in their machining operations.

Specifications

Specification Value
CAPACITY
Swing Over Bed 280 mm
Swing Over Table 170 mm
Optimum Turning Dia 60* mm
Optimum Turning Length 60* mm
SPINDLE
Spindle Size / Nose Flat Nose
Max. Bar Capacity Ø25 mm
Bore Through Spindle Ø36 mm
Max. Spindle Speed 4000 rpm
Spindle Motor Power – Fanuc (Continuous) 3.7 kW
Spindle Motor Power – Fanuc (15 min) 5.5 kW
Full Power Range – Fanuc 1000–3000 rpm
Spindle Motor Power – Siemens (Continuous) 3.7 kW
Spindle Motor Power – Siemens (S6-40% / S6-25%) 4.8 / 5.6 kW
Full Power Range – Siemens 1000–4000 rpm
Standard Chuck Size 135 mm
AXIS
X-Axis Stroke 200 mm
X-Axis Rapid 30 m/min
X-Axis Guideways Linear Motion
Z-Axis Stroke 200 mm
Z-Axis Rapid 30 m/min
Z-Axis Guideways Linear Motion
TOOLING
Tooling Type Linear
No. of Stations 4
Max. Boring Bar Dia 32 mm
OD Turning Tool Size 20 × 20 mm
COOLANT SYSTEM
Coolant Tank Capacity 60 L
HYDRAULIC SYSTEM
Hydraulic Pump Capacity 12 lpm
Hydraulic Power Pack Tank Capacity 20 L
Overall Machine Dimensions (L × W × H) 1475 × 1450 × 1720 mm
Overall Weight (Without Packing) 1700 kg

Standard Inclusions

  • AC spindle & axes drives
  • Linear Motion guide ways
  • Table mounted gang tooling
  • Hydraulic power operated chuck (Dia 135 mm)
  • Drain line oil cooler

Optional Extras

  • Voltage stabilizer
  • Spindle speed up to 6000 rpm
  • Chip conveyor rear
  • TPM – Trak Productivity Monitoring System
  • Fixed tailstock with external rotating center
