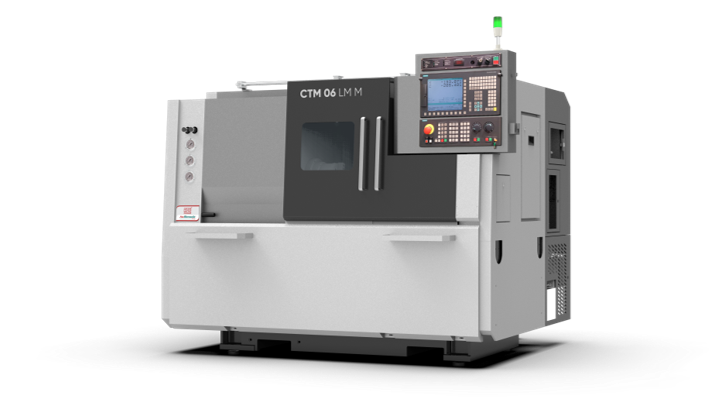

CTM 06 LM M

Category Turning Centre

Turn-Mill

The CTM 06 LM M series offers advanced machining solutions with high precision and efficiency. Key features include a robust design, user-friendly interface, and versatile functionality, making it ideal for various industrial applications. Benefits include increased productivity, reduced downtime, and enhanced operational performance.

Video

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Robust Design

Enhances durability and reliability, minimizing maintenance costs and downtime

User-Friendly Interface

Simplifies operation, increasing efficiency and reducing training time for operators

Versatile Functionality

Supports a wide range of applications, making it suitable for various industrial needs

Enhanced Operational Performance

Boosts productivity and efficiency, leading to faster project completion and cost savings

Feature Summary

The CTM 06 LM M series is designed to deliver high precision and efficiency in machining operations. Key features include a robust design that ensures durability and reliability, minimizing maintenance costs and downtime. The user-friendly interface simplifies operation, increasing efficiency and reducing training time for operators. Versatile functionality supports a wide range of applications, making it suitable for various industrial needs. Enhanced operational performance boosts productivity and efficiency, leading to faster project completion and cost savings. Overall, the CTM 06 LM M series offers advanced machining solutions that improve product quality, reduce errors, and enhance customer satisfaction.

Specifications

Specification Value
CAPACITY
Swing Over Bed (mm) 550
Swing Over Carriage (mm) 260
Between Centre Turning Dia. (mm) 360
Maximum Turning Dia² (mm) 300
Distance Between Centers¹ (mm) 420
Maximum Turning Length (from chuck face) (mm) 283
SPINDLE
Spindle Nose A2-5
Bore Through Spindle (mm) 52
Front Bearing Bore (mm) 90
Maximum Bar Capacity³ (mm) 42
Maximum Spindle Speed³ (rpm) 6,000
Integral Spindle Motor Power (Siemens) (kW) 13.4 / 16.5 / 18 (Continuous / S6-40% / S6-25%)
Full Power Range (rpm) 2,000–5,500
Standard Chuck Size (mm) Ø165
AXES
Type of Guideways Linear Motion
X-Axis Stroke (mm) 180
Z-Axis Stroke (mm) 400
X & Z Axes Rapid Rate (m/min) 30
X & Z Axes Motor Torque (Nm) 12
TOOLING
Turret Make Pragati (DT185-DMT80-12-45-290RN)
Tooling Type BMT-45
Maximum Number of Tools 12
Maximum Number of Live Tool Stations 12
Maximum Boring Bar Dia. (mm) 32
OD Turning Tool Size (mm) 20 × 20
Live Tool Motor Power (Siemens) (kW) 3.8
Live Tool Motor Torque (Nm) 13
Max. Live Tool Motor Speed (rpm) 6,000
TAILSTOCK
Tailstock Base Travel (mm) 235
Tailstock Quill Travel (mm) 100
Tailstock Quill Dia. (mm) 80
Quill Taper MT-4
HYDRAULIC SYSTEM
Hydraulic Pump Capacity (Lpm) 14
Hydraulic Power Pack Tank Capacity (L) 45
System Pressure (kg/cm²) 30
GENERAL
Control System Siemens
Smart Feature MachineConnect™
Overall Machine Dimensions LxWxH (mm) 2,410 × 1,820 × 2,070
Overall Weight (kg) 3,350

Standard Inclusions

  • AC Integral spindle motor & axes drives
  • Precision guideways on both axes
  • Tailstock with live center
  • Automatic centralized oil lubrication
  • Hydraulic power operated chuck (Ø165 mm)
  • AC unit for electricals
  • Programmable quill
  • 3 tier lamp
  • Rigid tapping
  • Drain line oil cooler
  • Basic hydraulic system
  • OD tool holder (2)
  • Boring bar holder (3)
  • Facing tool holder (2)
  • Set of sleeves

Optional Extras

  • Hydraulic power operated chuck (Ø200 mm)
  • Voltage stabilizer – 15 kVA
  • Chip conveyor rear/side mount
  • TPM – Trak Productivity Monitoring System
  • Tailstock with built-in revolving center
  • Auto door
  • High pressure coolant system
