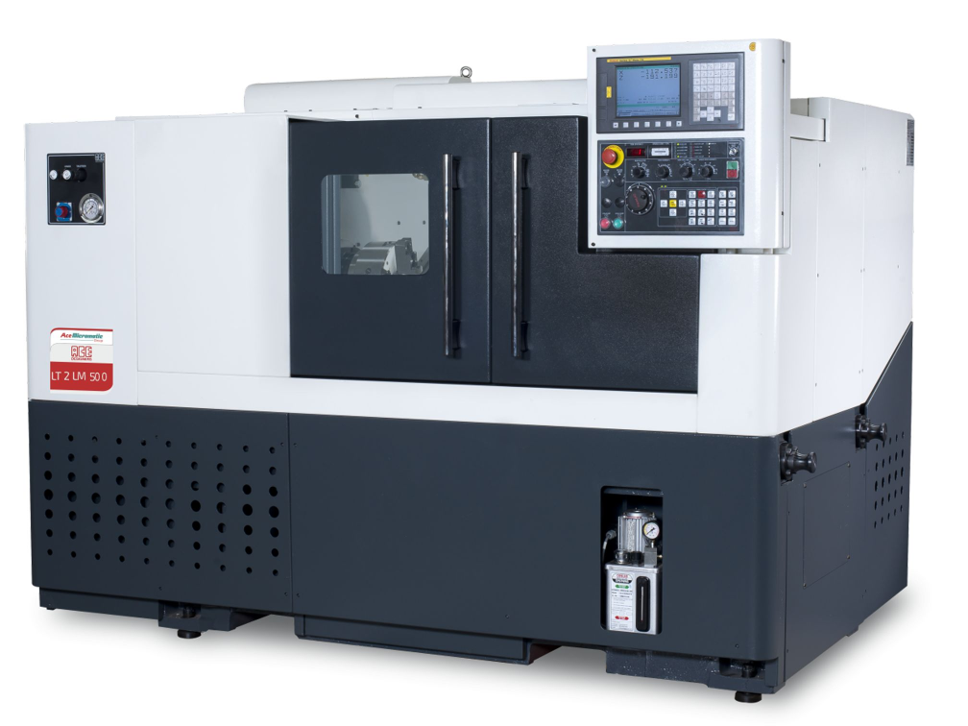

LT-2 LM 500

Category Turning Centre

The LT-2 LM 500 is a high-performance CNC turning centre from AceMicromatic designed for precision and efficiency. Key features include a powerful AC spindle motor, high-speed 4000 rpm spindle, linear motion guideways, and a rapid traverse rate of 20 m/min. Ideal for demanding machining tasks, it ensures reliability and superior performance.

Price Guide: $150k +

Video

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Thermally Stabilized Spindle

Maintains consistent performance, reducing thermal distortion and improving part quality

High-Speed 4000 RPM Spindle

Enables faster cutting speeds, reducing cycle times and increasing productivity

Linear Motion Guideways

Provides smooth and precise movement, enhancing machining accuracy

20 m/min Rapid Traverse Rate

Minimizes non-cutting time, boosting overall operational efficiency

Feature Summary

The LT-2 LM 500 is a high-performance CNC turning centre designed for precision and efficiency. It features a powerful AC spindle motor that delivers high torque, making it ideal for demanding machining tasks. The high-speed 4000 rpm spindle enables faster cutting speeds, reducing cycle times and increasing productivity. The machine is equipped with linear motion guideways, which provide smooth and precise movement, enhancing machining accuracy. Additionally, the LT-2 LM 500 boasts a rapid traverse rate of 20 m/min, minimizing non-cutting time and boosting overall operational efficiency. The thermally stabilized spindle ensures consistent performance, reducing thermal distortion and improving part quality. With its robust design and advanced features, the LT-2 LM 500 offers reliable and superior performance for various machining applications.

Specifications

Specification Value
Control System Fanuc Oi-Mate TD / Siemens 828D Basic T
CAPACITY
Swing Over Bed (mm) 500
Distance Between Centers (mm) 550
Maximum Turning Dia (mm) 320
Between Center Turning Dia (mm) 225
Maximum Turning Length (mm) 500
SPINDLE
Spindle Nose A2-6
Bore Through Spindle (mm) 63
Front Bearing Bore (mm) 100
Maximum Bar Capacity (mm) 51
Maximum Spindle Speed (rpm) 4000
Spindle Motor Power (15 min Rating) Fanuc: 11 kW / Siemens: 13.5 kW
Spindle Motor Power (Continuous Rating) Fanuc: 7.5 kW / Siemens: 9 kW
Full Power Range (rpm) Fanuc: 1166–2625 / Siemens: 875–2500
Standard Chuck Size (mm) 200*
AXES
Type of Guideways Linear Motion Guideways
X-Axis Stroke (mm) 165
Z-Axis Stroke (mm) 500
X & Z Axes Rapid Rate (m/min) 20
TOOLING
Maximum Number of Tools 8 (12)
Maximum Boring Bar Dia (mm) 40 (32)
OD Turning Tool Size (mm) 25 × 25 (20 × 20)
TAILSTOCK
Tailstock Base Travel (mm) 410
Tailstock Quill Travel (mm) 100
Tailstock Quill Dia (mm) 80
Quill Taper MT-4
HYDRAULIC SYSTEM
Hydraulic Pump Capacity (lpm) 14
Hydraulic Power Pack Tank Capacity (L) 45
System Pressure (kg/cm²) 30
Coolant Tank Capacity (L) 110
GENERAL
Overall Machine Dimensions (L × W × H) (mm) 2395 × 1799 × 1770
Overall Weight (kg) ~3750

Standard Inclusions

  • Fanuc or Siemens CNC system
  • AC spindle & axes drives
  • LM guideways
  • Heavy duty bi-directional turret
  • Tailstock with live center
  • Automatic centralized oil lubrication
  • Drain line oil cooler
  • Basic hydraulic system
  • OD tool holder clamping block (8)
  • Boring bar holder (4)
  • Facing tool holder (2)
  • Set of sleeves
  • Safety door interlock

Optional Extras

  • AC unit for electricals
  • Programmable quill
  • 3 tier lamp
  • Rigid tapping
  • Voltage stabilizer
  • Chip conveyor rear/side
  • TPM – Trak Productivity Monitoring System
  • LASER calibrated axes
  • Parts catcher
  • Bar feeder
  • Tool touch probe
