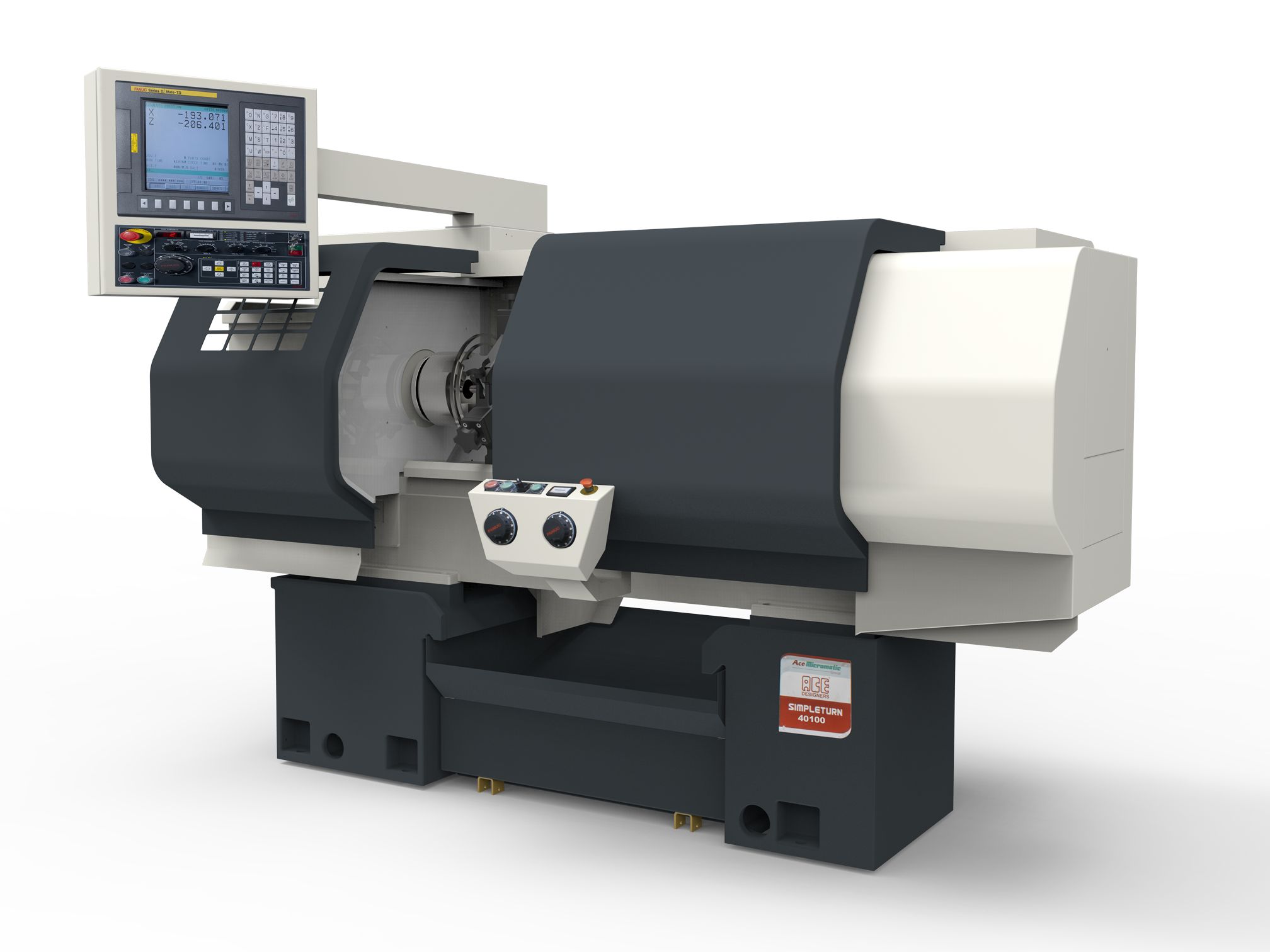

SimpleTurn 40100

Category Turning Centre

The SimpleTurn 40100 CNC Turning Center offers precision and efficiency with its user-friendly graphical programming interface, built-in tool life management, and dynamic load chart for spindle and axes. Ideal for various machining tasks, it ensures high torque and heavy cuts with optional gearbox.

Price Guide: $65k +

Video

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Teach-Type Lathe

Simplifies programming with intuitive graphical aids, eliminating the need for G-code knowledge

Built-In Tool Life Management

Enhances productivity by monitoring and managing tool wear automatically

Dynamic Load Chart for Spindle and Axes

Provides real-time load monitoring, ensuring optimal performance and preventing overload

High Torque and Heavy Cuts

Optional Gearbox delivers powerful machining capabilities for demanding tasks

Regional Language Display

Eases operation with support for multiple regional languages, improving accessibility

Feature Summary

The SimpleTurn 40100 CNC Turning Center is designed for precision and efficiency in various machining tasks. It features a user-friendly graphical programming interface that simplifies the programming process, eliminating the need for G-code knowledge. The built-in tool life management system enhances productivity by automatically monitoring and managing tool wear. The dynamic load chart for spindle and axes provides real-time load monitoring, ensuring optimal performance and preventing overload. Additionally, the machine offers high torque and heavy cuts with an optional gearbox, making it suitable for demanding tasks. The display in regional languages improves accessibility and ease of operation for users. With these features, the SimpleTurn 40100 CNC Turning Center ensures high-quality machining, increased productivity, and user-friendly operation.

Specifications

DESCRIPTION SIMPLETURN 40100
CAPACITY
Swing Over Bed 400 mm
Swing over cross slide 200 mm
Maximum Turning Length 870 mm
Distance between centres 1000 mm
SPINDLE
Spindle Nose A2-5
Max. Bar Capacity (w/o Gearbox) 25 mm
Max. Bar Capacity (w/ Gearbox*) 25 mm
Bore through Spindle (w/o Gearbox) 47 mm
Bore through Spindle (w/ Gearbox*) 40 mm
Max. Spindle Speed 2500 rpm
Spindle Motor Power (Continuous Rating) 5.5 kW
Full Power Range (w/o gearbox) 960 – 2500 rpm
Full Power Range (w/ gearbox) 300 – 870 & 870-2500 rpm
AXES
Type of Guideways V & Flat Guideways
X-Axis Stroke 200 mm
Z-Axis Stroke 940 mm
X & Z Axes Rapid Rate 8 m/min.
TOOLING
Turret Type 4 Station vertical Axes
Number of Tools Maximum 4
Boring Bar Dia Maximum 25 mm
OD Turning Tool Size 20 x 20 mm
TAILSTOCK
Tailstock Center Type Add on
Tailstock Quill Travel 140 mm
Tailstock Quill Dia. 63 mm
Quill Taper MT-4
COOLANT SYSTEM
Coolant Tank Capacity 110 litre
GENERAL
Overall Machine Dimensions (L x W x H) 2500 X 1650 X 1800 mm
Overall Weight (Without Packing) ~ 2750 kg

Standard Inclusions

  • Direct drive spindle
  • 4 station vertical axis turret
  • Coolant equipment
  • Machine lamp
  • MT-4 dead center
  • Electronic hand wheels at apron
  • Automatic slideway lubrication
  • Manual tailstock
  • Operator tools

Optional Extras

  • Spindle with gearbox
  • Drive plate accessories
  • Revolving centre for tailstock
  • Manual roller steady rest
  • Follow rest: roller / bush type
  • Manual chuck
  • Hydraulic chuck and cylinder
  • Hydraulic tailstock
  • Basic spares for two years running
