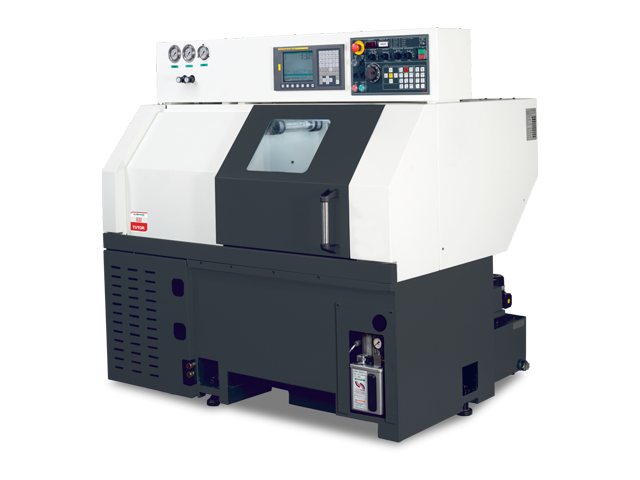

Tutor

Category Turning Centre

The Tutor CNC turning machine from AceMicromatic is designed for educational institutions, offering cost-effective training solutions. Key features include a rigid slant bed for efficient chip disposal, precision LM guideways, a high-speed spindle, an 8-station bi-directional tool turret, and a compact footprint.

Price Guide: $60k +

Video

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Cost-effective Training Solution

Provides an affordable option for educational institutions to train students on CNC machining

Rigid Slant Bed Design

Ensures efficient chip disposal and enhances machine stability during operations

Precision LM Guideways

Offers high accuracy and smooth movement on both axes, improving machining quality

High-speed Spindle

Enables faster machining processes, increasing productivity and reducing cycle times

Compact Footprint

Saves valuable floor space, making it ideal for educational environments with limited space

Feature Summary

The Tutor CNC turning machine is specifically designed for educational institutions, providing a cost-effective solution for training students in CNC machining. This model features a rigid slant bed design, which ensures efficient chip disposal and enhances machine stability during operations. The precision LM guideways on both axes offer high accuracy and smooth movement, improving the overall machining quality. The high-speed spindle enables faster machining processes, increasing productivity and reducing cycle times. Additionally, the Tutor model includes an 8-station bi-directional tool turret, allowing for versatile tooling options and efficient machining operations. Its compact footprint makes it ideal for educational environments with limited space. The machine is also maintenance-friendly, ensuring ease of use and longevity. Standard accessories include an automatic centralized oil lubrication system, a hydraulic power-operated chuck, and a basic hydraulic system, among others. Optional accessories such as a programmable quill and a chip conveyor are also available to enhance functionality.

Specifications

DESCRIPTION Units TUTOR
CAPACITY
Swing Over Bed mm 425
Distance Between Centers mm 250
Maximum Turning Dia mm 190
Between Centre Turning Dia mm 165
Maximum Turning Length mm 224
SPINDLE
Spindle Nose Flat 110
Bore Through Spindle mm 36
Front Bearing Bore mm 60
Maximum Spindle speed³ rpm 4000
Spindle Motor Power (F/S) 15 min / S6-40% Rating kw 5.5
Spindle Motor Power (Continuous Rating) kw 3.7
Full Power Range (F/S) rpm 1333-2333 / 1000-4000
Standard Chuck Size mm 135
AXES
Type of Guideways Linear motion Guideways
X-Axis Stroke mm 114
Z-Axis Stroke mm 224
X & Z Axes Rapid Rate m/min 15
X Axis Ball Screw Dia And Pitch mm 25 & 5
Z Axis Ball Screw Dia And Pitch mm 25 & 5
X & Z Axes Motor Torque Nm 2.6
TOOLING
Number of Tools Maximum 8
Boring Bar Dia Maximum mm 25
OD Turning Tool Size mm 16 X 16
TAILSTOCK
Tailstock Base Travel mm 80
Tailstock Quill Travel mm 120
Tailstock Quill Dia. mm 50
Quill Taper MT-4
Tailstock Rotating Centre Type Add-on
Tailstock Thrust (Max) (@ 15 Bar) kgf 150
Coolant Tank Capacity litre 60
HYDRAULIC SYSTEM
Hydraulic Pump Capacity lpm 12
Hydraulic Power Pack Tank Capacity litre 20
System Pressure Kg/cm² 30
GENERAL
Overall Machine Dimensions (LxWxH) mm 1720 X 1350 X 1700
Overall Weight (Without Packing) kg ~1850

Standard Inclusions

  • Fanuc CNC controller
  • Automatic centralized oil lubrication
  • Hydraulic power operated chuck
  • Basic hydraulic system
  • OD tool holder clamping block (8)
  • Boring bar holder (4)
  • Facing tool holder (2)
  • One set of sleeves

Optional Extras

  • Programmable quill
  • 3 tier lamp
  • Voltage stabilizer – 15 kVA
  • Chip conveyor rear
  • TPM – Trak Productivity Monitoring System
