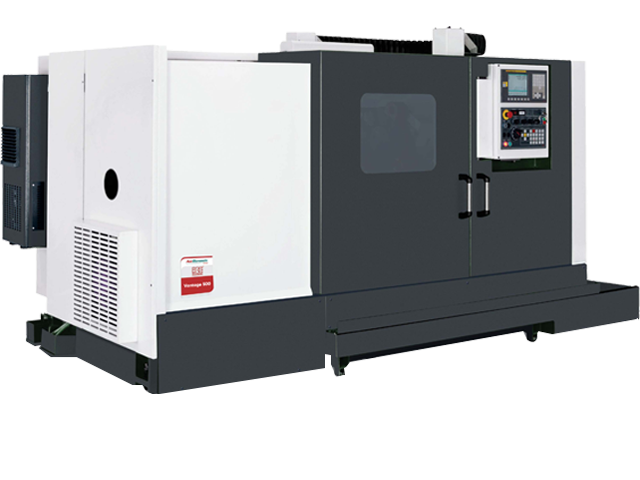

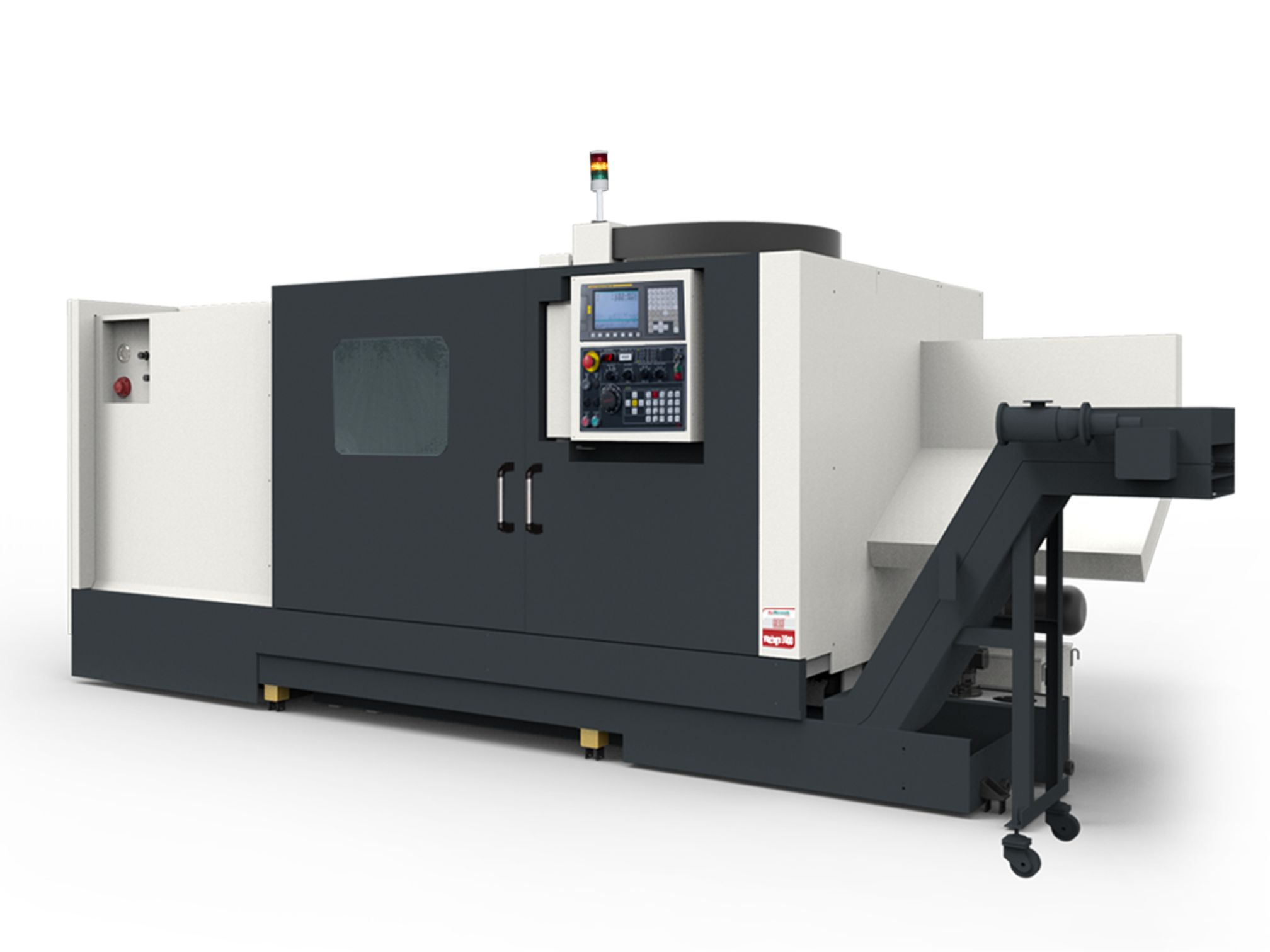

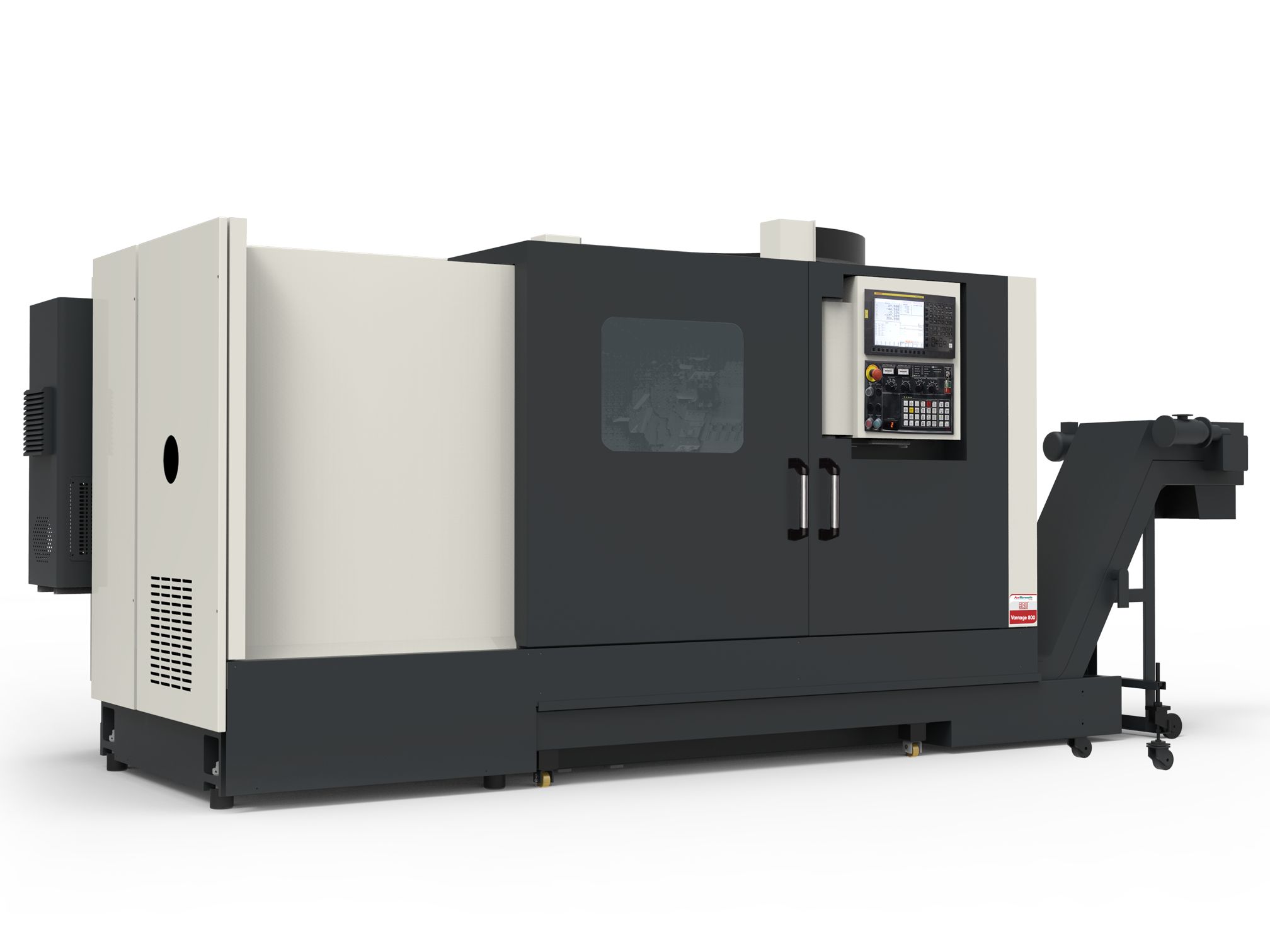

Vantage Series

Category Turning Centre

The Vantage Series Horizontal Turning Centers from AceMicromatic offer exceptional power, rigidity, and productivity. With high precision CNC capabilities, these machines handle milling, drilling, tapping, and turning in a single setup, enhancing efficiency and versatility. Key features include C and Y axes, robust spindle design, and advanced live tooling.

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

High Precision CNC Capabilities

Achieve exceptional accuracy in milling, drilling, tapping, and turning operations

C and Y Axes

Enhance versatility with bi-directional motion and additional linear axis for complex machining

Robust Spindle Design

Ensure heavy-duty cutting with high stiffness and precise circular orientation

Advanced Live Tooling

Increase productivity with effective live tool operations and powerful spindle brake

Integrated Milling and Turning

Perform multiple operations in a single setup, reducing setup time and increasing efficiency

Feature Summary

The Vantage Series Horizontal Turning Centers are designed to deliver exceptional power, rigidity, and productivity. These high precision CNC machines are equipped with C and Y axes, enabling a wide range of machining operations such as milling, drilling, tapping, and turning in a single setup. This integration significantly enhances machine capability and efficiency. The robust spindle design ensures heavy-duty cutting with precise circular orientation, while the advanced live tooling increases productivity by allowing effective live tool operations. The true slant bed design provides a rigid foundation for the headstock, turret, tailstock, and sub-spindle, ensuring mechanical rigidity and accuracy. Additionally, the Vantage Series features hardened and ground integral box guideways for maximum strength and durability, and a powerful spindle motor for heavy stock removal. These features make the Vantage Series an ideal choice for production shops looking to integrate multiple operations and achieve high precision and efficiency in their machining processes.

Specifications

MODEL UNITS 500 LM 800 800 LM 1000 LM/XL 800 M/800 LM M 800 MY 800 MSY
CAPACITY
Swing Over Bed mm 640 640 640 640 640 640 640
Swing over Carriage mm 390 400 390 390/400 400/390 400 400
Maximum Turning Dia mm 580 580 580 580 400 400 400
Maximum Turning Length mm 500 800 800 1000 800 800 800
Distance Between Centre mm 580 1025 1025 1180 1025 1025 NA
SPINDLE
Spindle Size/Nose A2-6 (A2-8) A2-6 (A2-8) A2-6 (A2-8) A2-6 (A2-8) A2-6 (A2-8) A2-8 A2-8
Max Bar Capacity mm 51(74) 51(74) 51(74) 51(74) 51(74) 74 74
Bore through Spindle mm 63(86) 63(86) 63(86) 63(86) 63(86) 86 86
Max Spindle Speed rpm 4000(3000) 4000(3000) 4000(3000) 4000(3000) 4000(3000) 3000 3000
Spindle Motor Power Fanuc (Continuos) kW 11 11 11 11 11 11 11
Spindle Motor Power Fanuc (30 min) kW 15 15 15 15 15 15 15
Spindle Motor Power Siemens (Continuos) kW 15 15 15 15 15 15 15
Spindle Motor Power Siemens (56-40 %) kW 15 15 15 15 15 15 15
Full Power Range-Fanuc rpm 500-4000 500-4000 500-4000 500-4000 500-4000 375-3000 375-3000
Full Power Range-Seimens rpm 592-3030 592-3030 592-3030 592-3030 592-3030 NA NA
SUB-SPINDLE
Sub-Spindle Size/Nose NA NA NA NA NA Flat Nose Flat Nose
Bore Through Spindle mm NA NA NA NA NA 47 47
Max Sub-Spindle Speed rpm NA NA NA NA NA 5000 5000
Spindle Motor Power (Continuos/30 min) kW NA NA NA NA NA 5.5/75 5.5/75
Full Power Range-Fanuc rpm NA NA NA NA NA 50-5000 50-5000
AXES
X-Axis Stroke mm 300 300 300 300 300 300 300
X-Axis Rapid m/min 20 20 20 20 20 20 20
X-Axis Guideways Linear motion Hardened and ground Linear motion/HCBT Box type Linear motion/HCBT Integral type Integral type
Z-Axis Stroke mm 500 800 800 1105 800 800 800
Z-Axis Rapid m/min 20 20 20 20 20 20 20
Z-Axis Guideways Linear motion Hardened and ground Linear motion Linear motion Hardened and ground Hardened and ground Hardened and ground
Y-Axis Stroke mm NA NA NA NA NA -0.733333333 -0.733333333
Y-Axis Rapid m/min NA NA NA NA NA 10 10
Y-Axis Guideways NA NA NA NA NA Integral type Integral type
TOOLING
Turret Type BTP-100 BTP-100 BTP-100 BTP-100 BTP-100 Rotary Tool Turret (R) Rotary Tool Turret (R)
Rotary Tool Motor Power kW NA NA NA NA NA 4.5 4.5
No of Stations 8 8 8 8 8 12 12
Max Boring Bar Dia mm 40 40 40 40 40 40 40
OD Turning Tool Size mm 25 x 25 25 x 25 25 x 25 25 x 25 25 x 25 25 x 25 25 x 25
TAILSTOCK
Tail Stock Base Travel mm 500 800 800 1000 800 800 NA
Tail Stock Quill Dia mm 80 80 80 100 80 80 NA
Tail Stock Quill Travel mm 120 120 120 120 120 120 NA
Tail Stock Quill Taper MT-4 MT-4 MT-4 MT-5 MT-4 MT-4 NA
COOLANT SYSTEM
Coolant Tank Capacity l(Litre) 155 155 155 190 155 155 155
HYDRAULIC SYSTEM
Hydraulic Pump Capacity lpm 14 14 14 14 14 14 14
Hydraulic Power Pack Tank Capacity l(Litre) 45 45 45 45 45 45 45
GENERAL
Over all Dimensions (LxWxH) mm 3400 x 1850 x 1860 3690 x 1850 x 1906 3690 x 1850 x 1906 4400 x 1900 x 1920 3690 x 1850 x 1906 3690 x 1900 x 2409 3690 x 1900 x 2410
Over all Weight (without packing) Kg -4500 -5500 -5500 -6000 -5500 -6000 -6500

Standard Inclusions

  • Cartridge type spindle
  • AC spindle & axes drives
  • Precision Guideways (excl. 500LM)
  • 8 or 12 station bi-directional turret (depending on model)
  • Tailstock with live center
  • Automatic centralized oil lubrication
  • Drain line oil cooler
  • Basic hydraulic system
  • Built-in lighting system
  • Overload trip clutch for axes
  • AC unit for electrical cabinets
  • Door interlock

Optional Extras

  • Fully tooled up solutions to meet customer needs
  • Chip conveyor
  • A wide variety of power operated work-holding
  • Auto door
  • Tool touch probe
  • Parts catcher
  • Bar feeder
  • Programmable tailstock (excl. 800 MSY)
  • Steady rest
  • 3 tier lamp
  • TPM – Trak Productivity Monitoring System
  • Built-in live center for tailstock
