Jobber Series

Category Turning Centre

The Ace Micromatic Jobber Series is a range of compact slant bed 2-axis CNC turning centres built for high-speed and precise chucking work. The Jobber series offers increased swing, longer turning lengths, a step-up Z-axis structure for higher rigidity, and a heavy-duty hydraulic turret.

Video

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Thermally Stabilised Spindle

Thermally stabilised spindle delivering up to 4,000 rpm, maintaining accuracy across extended production runs without warmup compensation

Step-Up Z-Axis Construction

The Jobber Evo range features a step-up Z-axis structural design that increases the rigidity of the machine during cutting, improving finish & accuracy

Linear Motion Guideways

Provides precision and smooth operation, enhancing the quality of the finished product

Heavy-Duty Hydraulic Turret

Fitted with a heavy-duty bi-directional hydraulic turret with 8 stations and 0.45-second station-to-station indexing time

Feature Summary

The Jobber Series covers four compact CNC turning centres designed for precision chucking and short-to-medium component turning. All four are slant bed machines from one of India’s most established CNC lathe manufacturers.

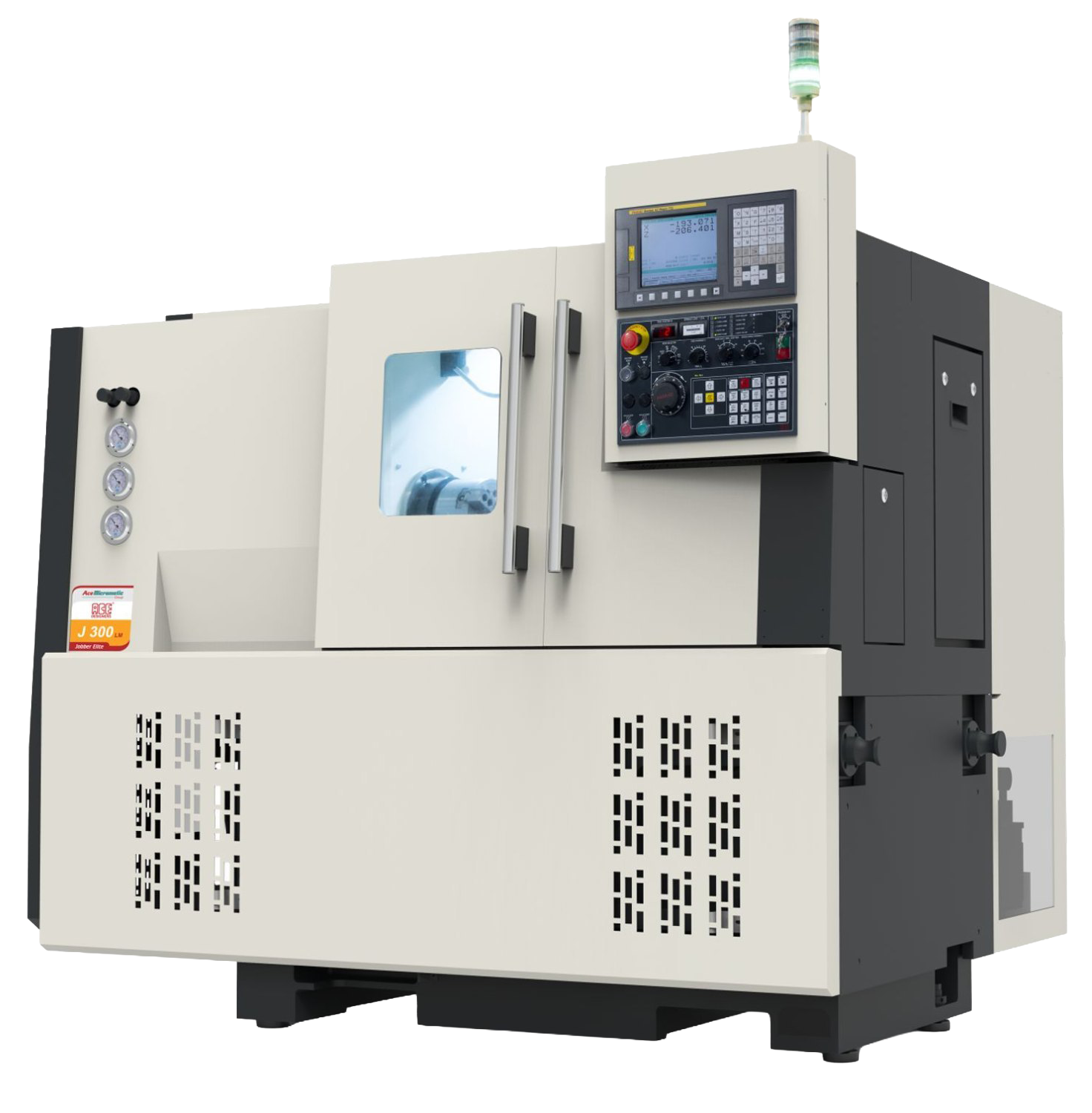

J-300: Compact High-Speed Production Turner
The J-300 is the smallest model in the range. With a 500mm swing over bed, 320mm maximum turning diameter, and 300mm turning length from the chuck face, it is purpose-built for the fast, accurate turning of small to medium chucked components. A 4,000 rpm A2-5 spindle with 5.5kW continuous / 7.5kW intermittent power delivers excellent surface speed across a wide range of materials. Linear Motion guideways on both axes and a 30 m/min rapid traverse on both X and Z keep cycle times short. The BTP-80 8-station bi-directional turret provides fast, repeatable tool positioning.

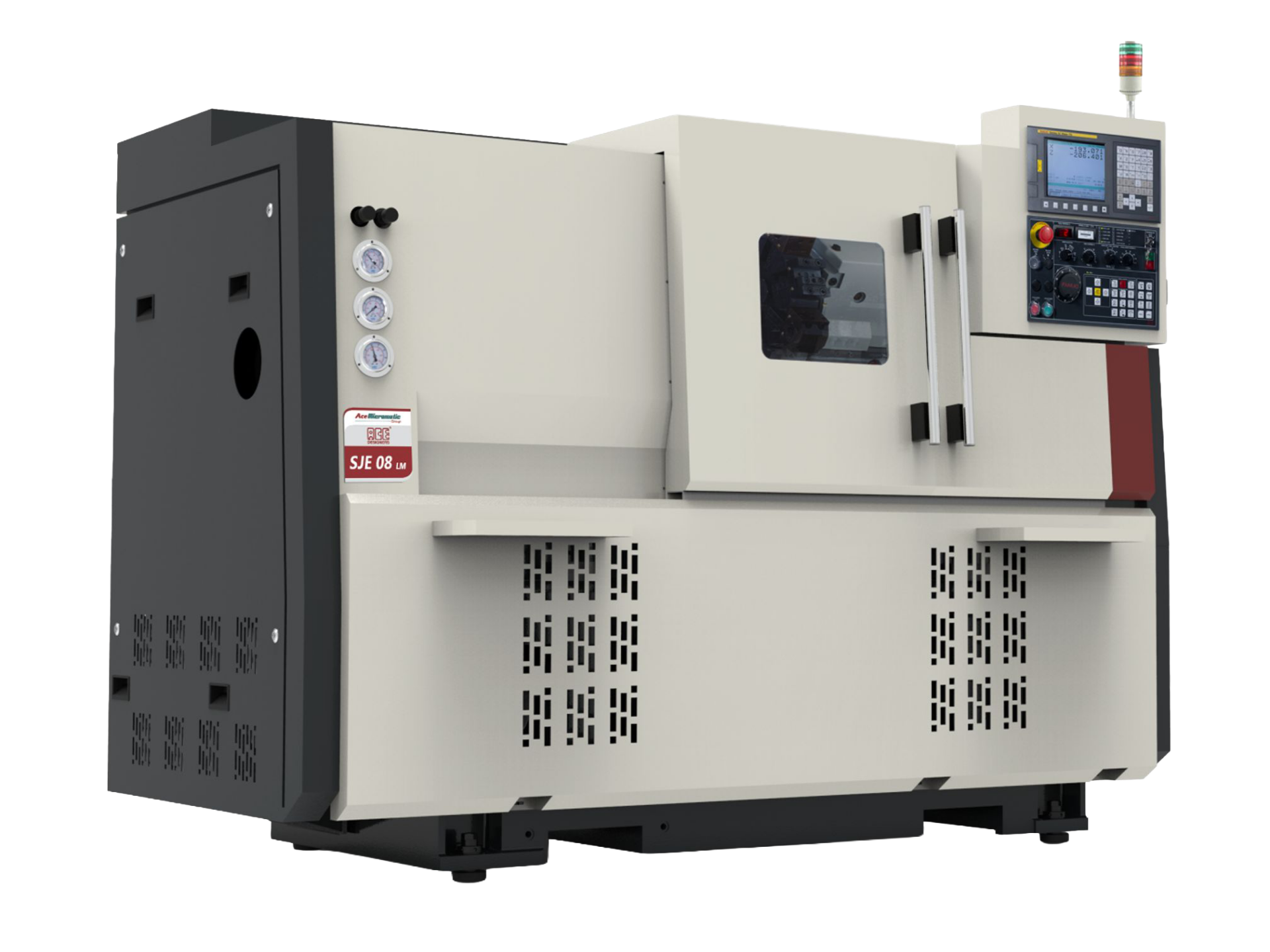

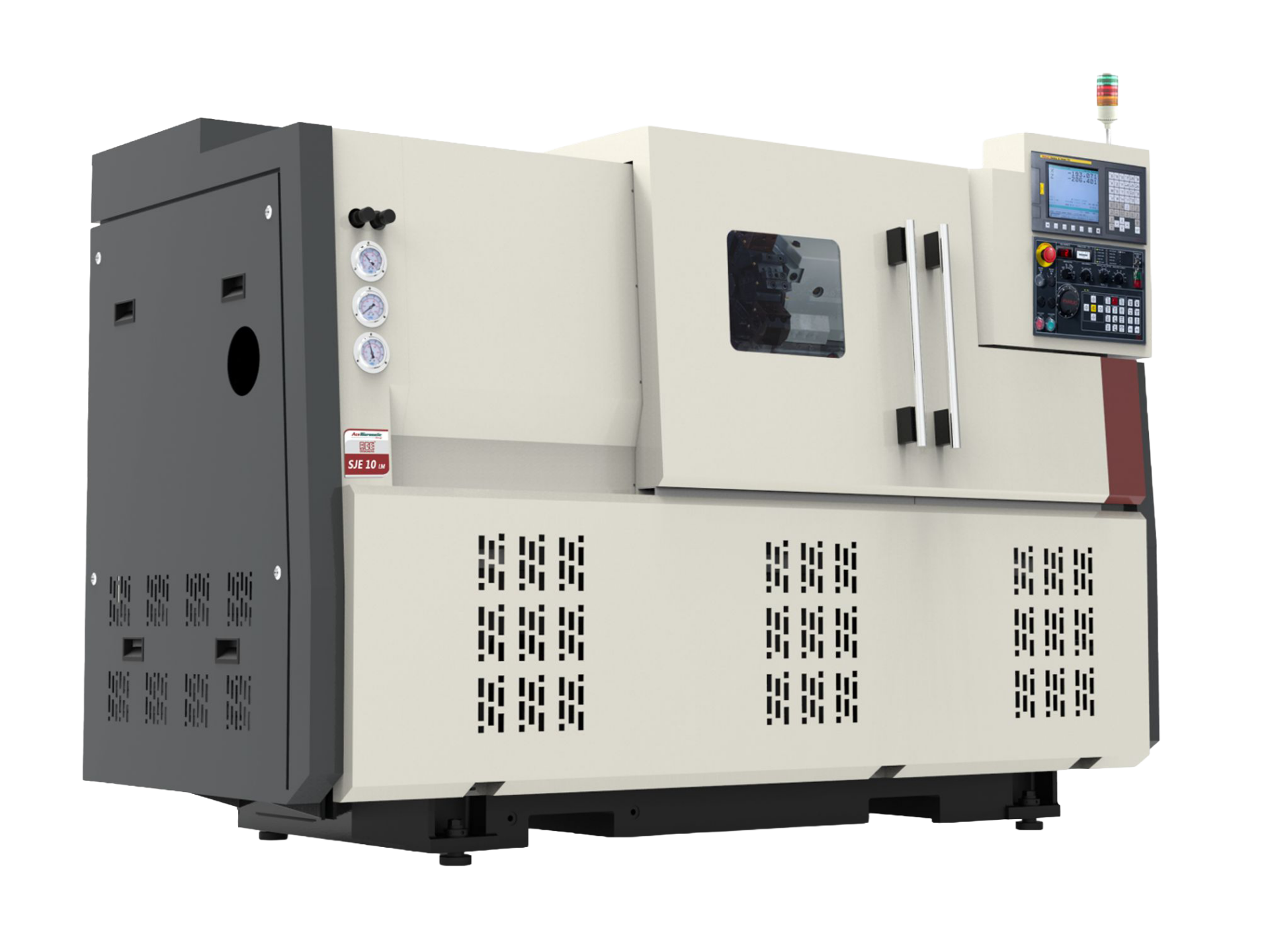

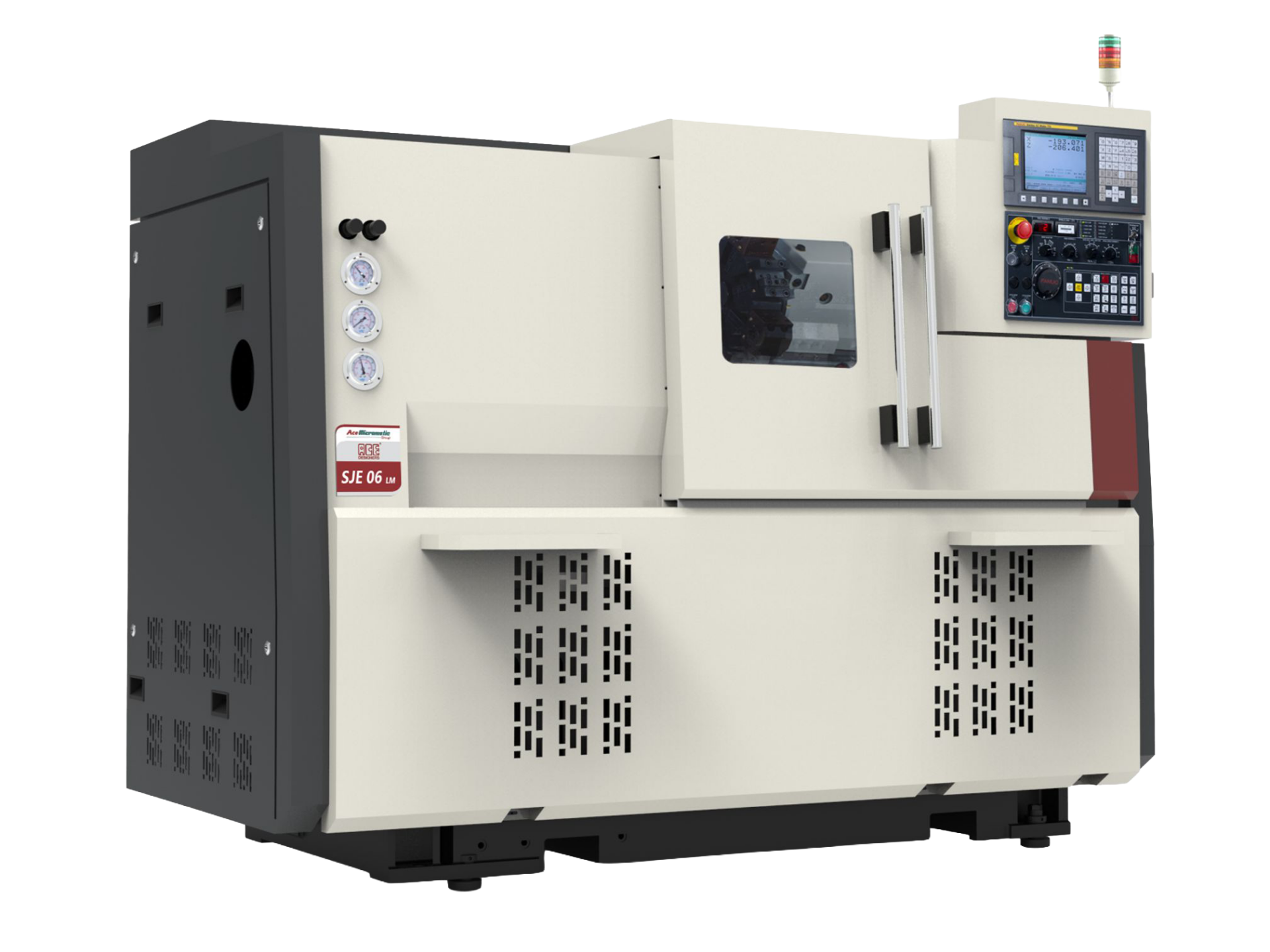

Jobber Evo: SJE-06, SJE-08, SJE-10
The three Evo models share a common 550mm swing bed with 350mm maximum turning diameter. They differ in turning length and Z-axis stroke, progressing from 300mm (SJE-06) to 400mm (SJE-08) to 525mm (SJE-10) measured from the chuck jaw face. All three use an A2-6 spindle with 63mm bore and 51mm bar capacity, running to 3,500 rpm. Spindle motor power is 7.5kW continuous / 11kW at 15 minutes on Fanuc, or 9kW continuous on Siemens.
The step-up Z-axis structure is a defining feature. It raises and reinforces the Z-axis carriage geometry, improving rigidity under load and reducing deflection during heavy cuts. The heavy-duty hydraulic turret with 8 stations and 0.45-second indexing keeps production throughput high. The choice of LM or XL (hardened box way) guideways allows the machine to be matched to the cutting conditions and material types common in each workshop.
All Evo models include automatic centralised oil lubrication, a hydraulic power chuck, rigid tapping, programmable tailstock quill, drain line oil cooler, and MachineConnect software for machine monitoring and connectivity.

Specifications

Specification Value
Control System Fanuc / Siemens
CAPACITY
Swing Over Bed (mm) 450
Swing Over Carriage (mm) 225
Maximum Turning Dia (mm) 320
Distance Between Centers (mm) 296
Maximum Turning Length (mm) 300*
SPINDLE
Spindle Nose A2-5
Bore Through Spindle (mm) 52.5
Front Bearing Bore (mm) 80
Maximum Bar Capacity (mm) 42
Maximum Spindle Speed³ (rpm) 4000
Spindle Motor Power – Fanuc (kW) 5.5 / 7.5 (Continuous / 15 min)
Spindle Motor Power – Siemens (kW) 5.5 / 7.2 / 8.3 (Continuous / S6-40% / S6-25%)
Full Power Range – Fanuc (rpm) 1333–3000
Full Power Range – Siemens (rpm) 667–3000
Standard Chuck Size (mm) 165
AXES
Type of Guideways Linear Motion
X-Axis Stroke (mm) 165
Z-Axis Stroke (mm) 310
X & Z Axes Rapid Rate (m/min) 30
TOOLING
Maximum Number of Tools —
Maximum Boring Bar Dia (mm) 40
OD Turning Tool Size (mm) 25 × 25
TAILSTOCK
Tailstock Base Travel (mm) 135
Tailstock Quill Travel (mm) 100
Tailstock Quill Dia (mm) 80
Quill Taper MT-4
HYDRAULIC SYSTEM
Hydraulic Pump Capacity (lpm) 14
Hydraulic Power Pack Tank Capacity (L) 45
System Pressure (kg/cm²) 30
Coolant Tank Capacity (L) 110
GENERAL
Overall Machine Dimensions (L × W × H) (mm) 2300 × 2010 × 1755
Overall Weight (kg) ~3500

Standard Inclusions

  • A2-6 cartridge spindle, 63mm bore
  • Precision guideways on both axes
  • 8-station heavy-duty bi-directional hydraulic turret
  • Power operated 200mm chuck
  • Tailstock with programmable quill
  • Automatic centralised oil lubrication
  • AC unit for electricals
  • Machine lamp
  • 100% ball bar tested
  • Laser calibrated axes
  • Separate coolant tank

Optional Extras

  • 12-station turret
  • Auto door
  • Chip conveyor
