SimpleTurn Series

Category Turning Centre

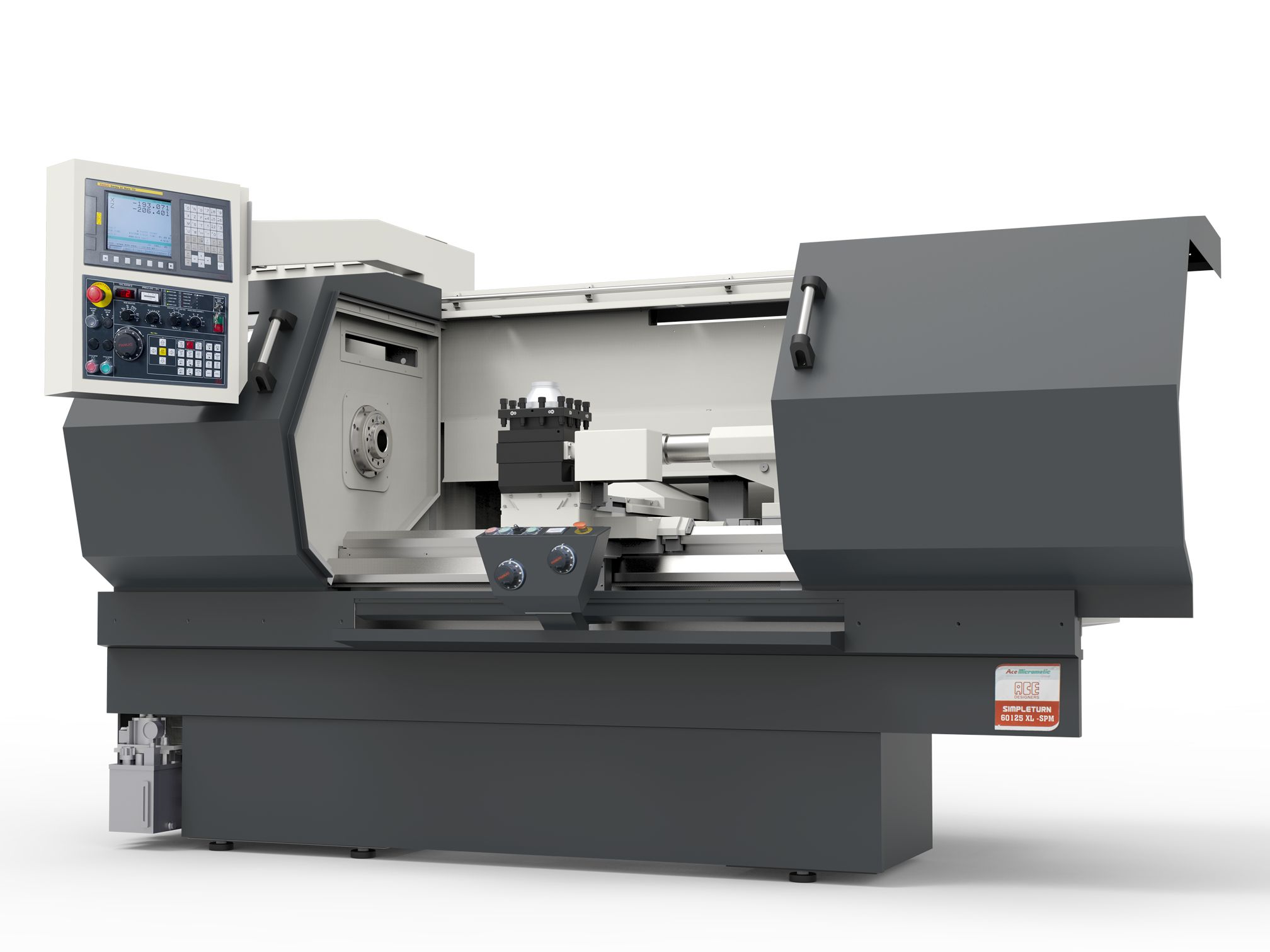

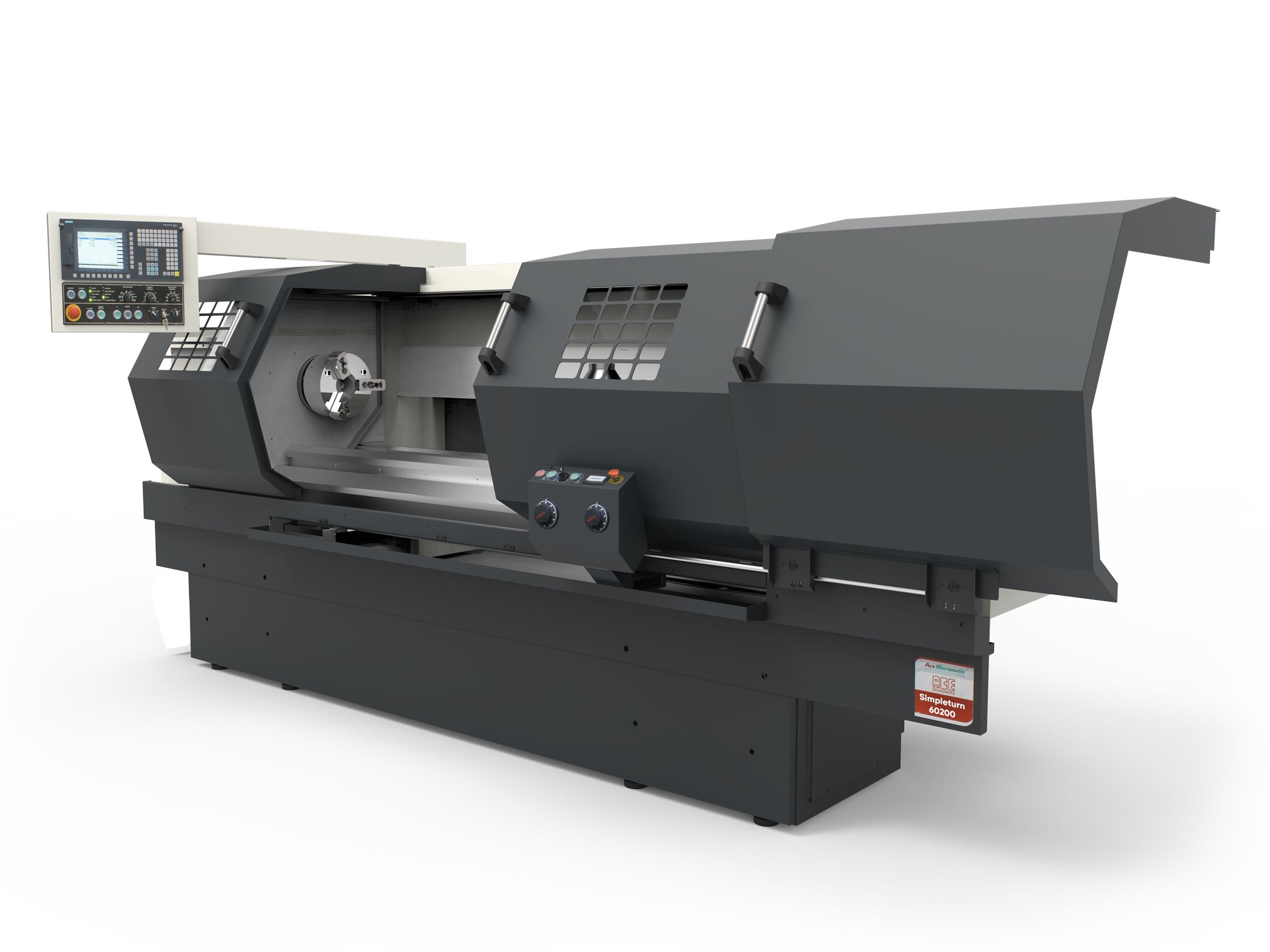

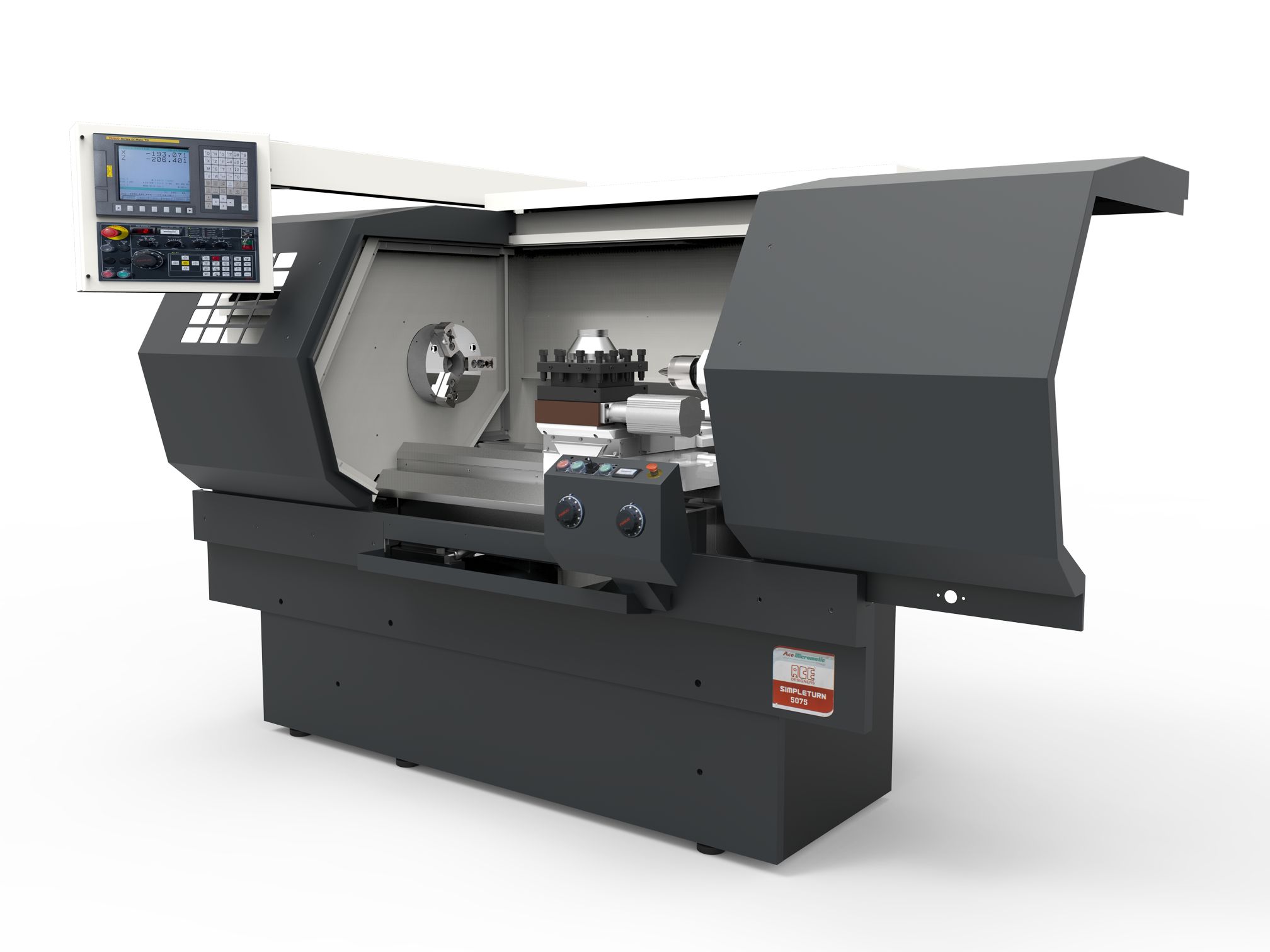

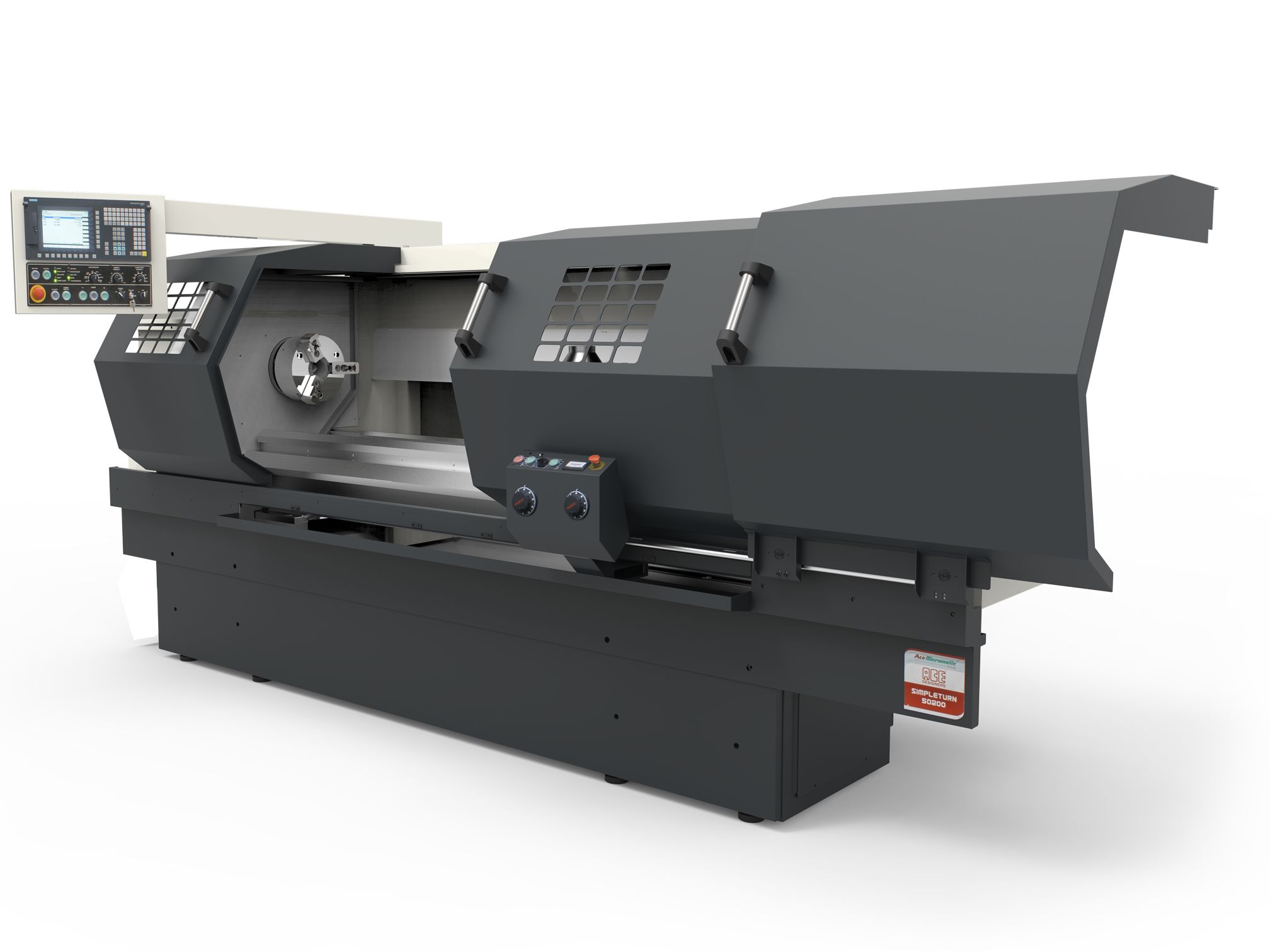

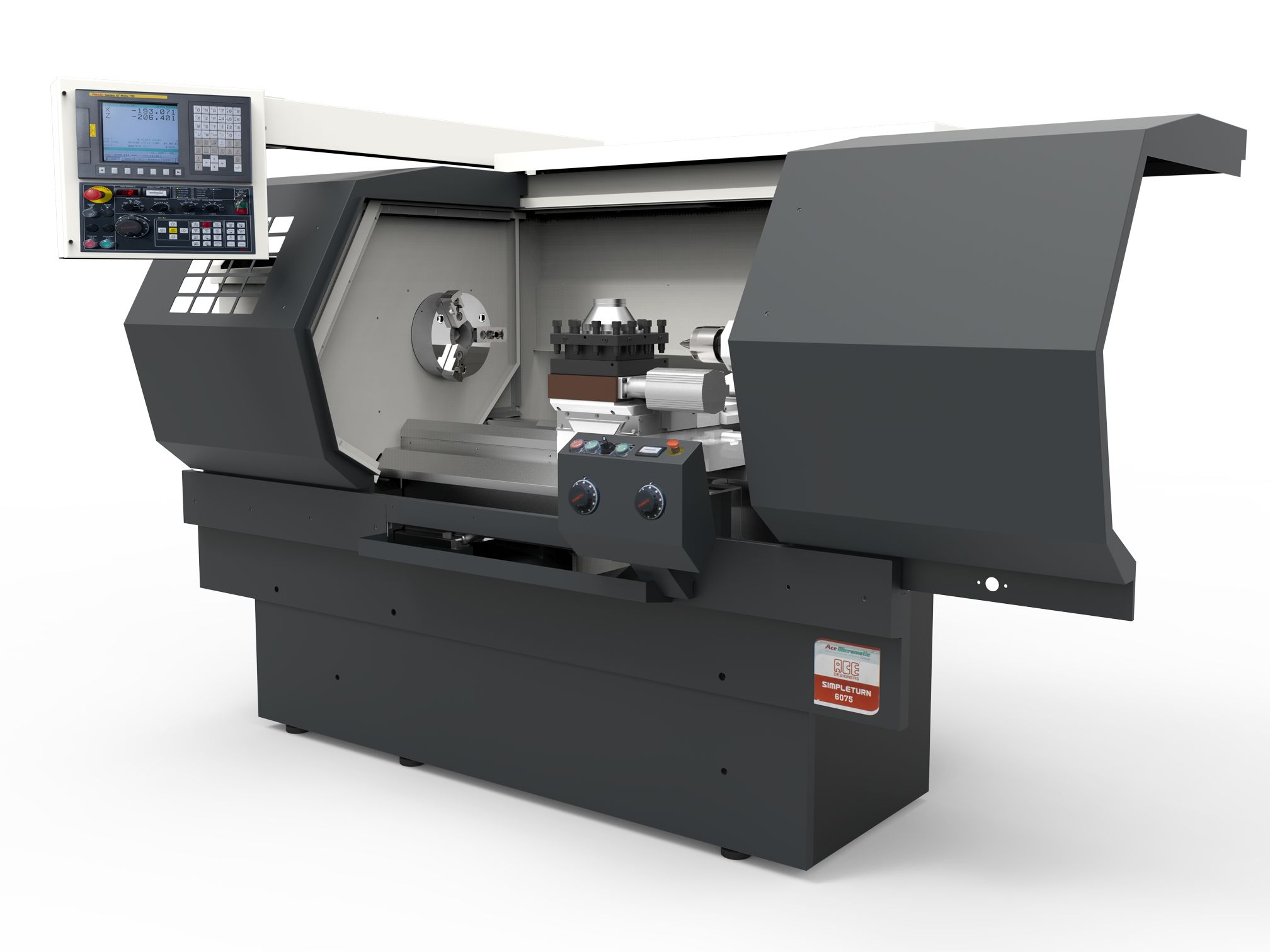

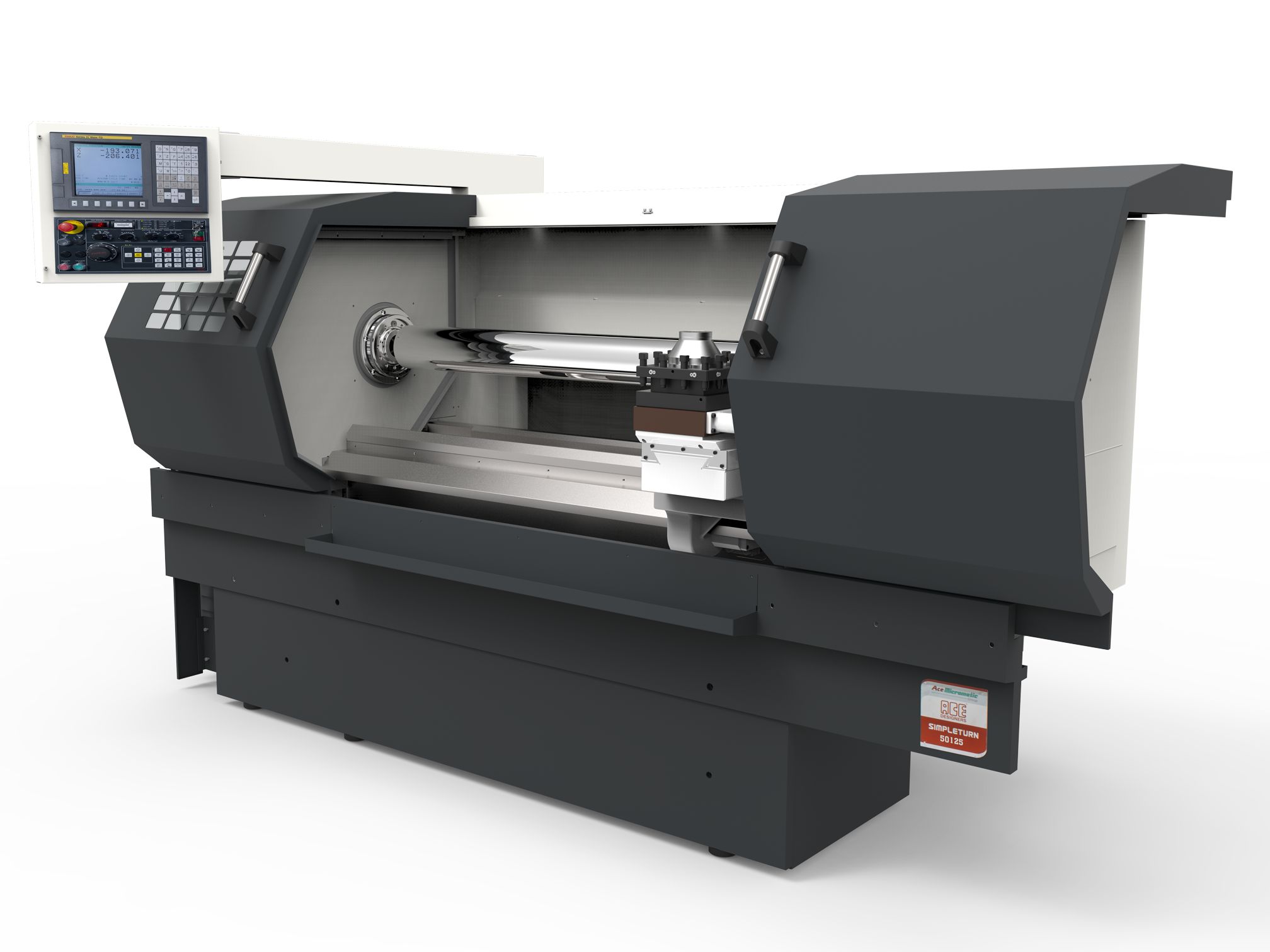

The Ace Micromatic SimpleTurn Series are flatbed 2-axis CNC horizontal turning centres designed to bridge the gap between manual and CNC lathes. Available across a wide range of swing diameters and turning lengths, these machines suit toolrooms, first-time CNC buyers, and general engineering production workshops. Three programming modes, including teach-in operation, make the transition from manual turning straightforward.

Price Guide: $65k +

Video

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Teach-Type Lathe

Simplifies programming with intuitive graphical aids, eliminating the need for G-code knowledge

Three Modes of Operation

Each SimpleTurn can be operated in cycle mode, teach-in mode, or ISO code programming mode

Robust

The bed is built with double-walled construction at the front and rear, well supported by closely placed cross roofings, delivering excellent rigidity throughout the cutting range

High Torque and Heavy Cuts

Optional Gearbox delivers powerful machining capabilities for demanding tasks

Regional Language Display

Eases operation with support for multiple regional languages, improving accessibility

Feature Summary

The SimpleTurn Series positions itself as the natural first step into CNC turning for workshops currently running manual lathes. Eight models cover swing diameters of 400mm, 500mm, and 600mm, with turning lengths ranging from 350mm chucking-only models up to 1,870mm long-bed variants. All share a common design philosophy: rigid flatbed construction, a reliable direct drive spindle, and intuitive operation.

Bed and Structure
The bed uses a robust double-walled construction at the front and rear, supported by closely placed cross roofings. This provides good rigidity, stability, and vibrationless dampening essential for consistent turning accuracy. XL models share the same double-walled construction but additionally accommodate hardened steel guide strips on the Z axis, providing longer guideway life and making these models suitable for cast iron machining in both wet and dry environments.

Spindle
The standard direct drive spindle assembly consists of double direction angular contact thrust bearings and a tapered bore cylindrical bearing. The spindle runs at infinitely variable speeds, with bearings that are grease lubricated for life. The 40100 uses an A2-5 spindle nose, while all other models use A2-6. Spindle speeds range from 2,000 rpm to 2,500 rpm.
An optional geared headstock is available across the range. The hardened and ground gear-driven spindle is supported by self-compensating, super-precision, oil-lubricated tapered roller bearings in a gearbox. It delivers two useful ranges of continuous and infinitely varying speeds, providing high torque for heavy cuts throughout the full power output range.

Turret
The standard 4-station vertical axis turret is fitted with a three-piece Hirth coupling that indexes electrically with high precision and repeatability. The bi-directional turret indexes in either direction for the shortest indexing time. A 6-station horizontal axis turret (BTP-80) is standard on 6T variants of the range and is available as an option across the series.

Tailstock
The tailstock assembly consists of a hardened quill sliding in a honed cast iron housing. The construction is robust and heavy. The tailstock housing is mounted on a cast iron base that moves on V and flat guideways. Note: the 5035 XL and 6035 XL are chucker-only models and do not include a tailstock.

Control
The SimpleTurn Series is available with Fanuc, Siemens, or Ace Digi control systems, giving operators the flexibility to choose the control environment that suits their existing skill base.

Applications
Well suited to shaft machining, spindle turning, pump shafts, pulleys, and bore well bits. The series is ideal for general engineering, tool and die rooms, batch production, and first-time CNC buyers migrating from manual turning.

Specifications

DESCRIPTION SIMPLETURN 40100
CAPACITY
Swing Over Bed 400 mm
Swing over cross slide 200 mm
Maximum Turning Length 870 mm
Distance between centres 1000 mm
SPINDLE
Spindle Nose A2-5
Max. Bar Capacity (w/o Gearbox) 25 mm
Max. Bar Capacity (w/ Gearbox*) 25 mm
Bore through Spindle (w/o Gearbox) 47 mm
Bore through Spindle (w/ Gearbox*) 40 mm
Max. Spindle Speed 2500 rpm
Spindle Motor Power (Continuous Rating) 5.5 kW
Full Power Range (w/o gearbox) 960 – 2500 rpm
Full Power Range (w/ gearbox) 300 – 870 & 870-2500 rpm
AXES
Type of Guideways V & Flat Guideways
X-Axis Stroke 200 mm
Z-Axis Stroke 940 mm
X & Z Axes Rapid Rate 8 m/min.
TOOLING
Turret Type 4 Station vertical Axes
Number of Tools Maximum 4
Boring Bar Dia Maximum 25 mm
OD Turning Tool Size 20 x 20 mm
TAILSTOCK
Tailstock Center Type Add on
Tailstock Quill Travel 140 mm
Tailstock Quill Dia. 63 mm
Quill Taper MT-4
COOLANT SYSTEM
Coolant Tank Capacity 110 litre
GENERAL
Overall Machine Dimensions (L x W x H) 2500 X 1650 X 1800 mm
Overall Weight (Without Packing) ~ 2750 kg

Standard Inclusions

  • Direct drive spindle
  • 4 or 6-station axis turret
  • Coolant equipment
  • Machine lamp
  • Electronic handwheels at apron
  • Automatic slideway lubrication
  • Manual tailstock (not applicable on chucker models)
  • Operator tools
  • Added-on hardened steel Z-axis guide strips (XL models)
  • Stainless steel cover for Z-axis protection
  • Stabilastic cover for ballscrew protection

Optional Extras

  • Geared headstock
  • BTP 80 6-station horizontal axis turret
  • Main spindle reduction sleeve, drive plate, and MT-4 dead centre
  • Revolving centre for tailstock
  • Steady rest: roller type
  • Follow rest: roller type
  • Follow rest: bush type
  • Manual chuck
  • Hydraulic chuck and cylinder
  • Hydraulic quill
  • 9.5kW spindle power (on models where 7.5kW is standard)
