LT Series

Category Turning Centre

Heavy Duty Turning Centre

The Ace Micromatic LT Series are heavy-duty slant bed turning centres known for their rigidity, which is essential for heavy-duty cutting of large workpieces. They meet a variety of production requirements including flywheels, hubs, alloy wheels, brake drums, and axle shafts. Available in two size classes, each with three machining lengths, and a turnmill variant across both.

Video

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Cartridge Type Spindle

The cartridge type spindle is assembled and tested in a controlled clean room environment, delivering very high stiffness in both axial and radial directions for consistent heavy-duty performance.

Cast Iron Bed

The bed is fine grain Grade 25 cast iron with heavily ribbed box construction and thermally seasoned providing the foundation for rigid, accurate heavy-duty turning

Programmable Tailstock

The programmable tailstock is a standard feature, offering flexibility and ease of use. This allows for efficient handling of various workpieces.

Hardened and Ground Box Ways

The hardened and ground box ways on both axes ensure durability and smooth operation. This minimizes wear and tear, extending the machine’s lifespan.

Wide Machining Areas

The LT series offers wide machining areas with minimal tool interference. This maximizes operational efficiency and accommodates larger workpieces.

Feature Summary

The Ace Micromatic Group has been designing and manufacturing machine tools and CNC machines for over four decades, with roots going back to 1979. By 1986, the company had entered the CNC arena with indigenous CNC lathes and received early recognition for design excellence. Today the Ace Micromatic Group is recognised as one of the world’s leading machine tool manufacturers, with tens of thousands of machines installed worldwide.

The LT Series reflects decades of this engineering discipline, applied specifically to the demands of heavy-component turning.
Bed and Structure
The bed is fine grain Grade 25 cast iron casting with box type construction. It is heavily ribbed to provide rigidity and is thermally seasoned. The bed is designed for easy chip flow and removal. The chip pan is independently located under the cutting area.
Spindle
The cartridge type spindle is assembled and tested in a controlled clean room environment. The bearing configuration gives very high stiffness to the spindle assembly in both axial and radial directions. The bearings are grease lubricated for life. A high torque spindle motor provides power for heavy stock removal.
Guideways and Axes
X and Z axes feature precision large diameter ballscrews supported at each end by precision class ballscrew support bearings. The guideways are widely spaced to ensure stability, fully protected, and are made of hardened and ground box way strips. The mating way is bonded with Turcite for its superior wear and friction characteristics and hand scraped to perfection. Automatic metered lubrication is provided to all guideways and ballscrews.
Turret
The bi-directional tool turret indexes in either direction for shortest indexing time. It is completely enclosed and robust in mechanism with oil bath lubrication. The three-piece Hirth coupling allows the tool disc to be indexed without lifting, ensuring repeatability, positioning accuracy, and rigidity.
Tailstock
The tailstock consists of a hydraulically operated quill which moves inside a housing. The quill and body are independently moveable. Widely spaced guideways and heavy-duty design of the tailstock ensure rigidity. Foot pedal or program activates the quill. Programmable tailstock is a standard feature.
Safety and Accuracy
Both axes are provided with overload tripping clutch to minimise damage in the event of an accident. Ball bar testing is used to check circular interpolation accuracy of each machine. Geometrical errors, servo-related errors, and cyclic errors are diagnosed instantaneously.
Turnmill Variant
Both LT-30 and LT-40 machines are also available in the turnmill version, adding live tooling and C-axis capability for complex parts requiring both turning and milling operations in a single setup.

Specifications

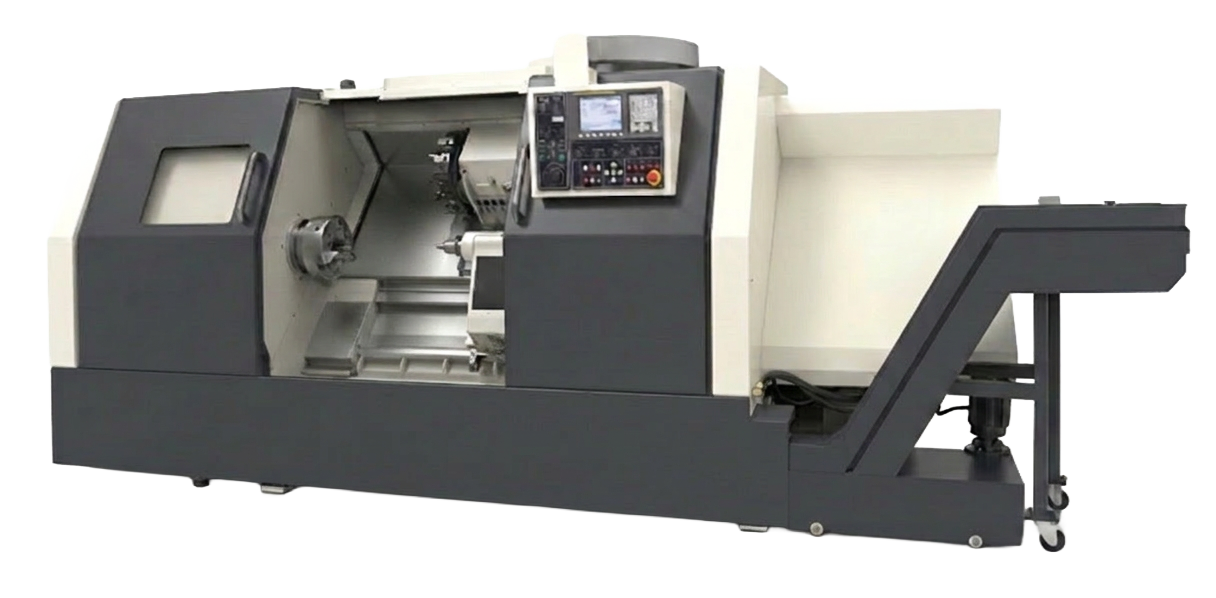

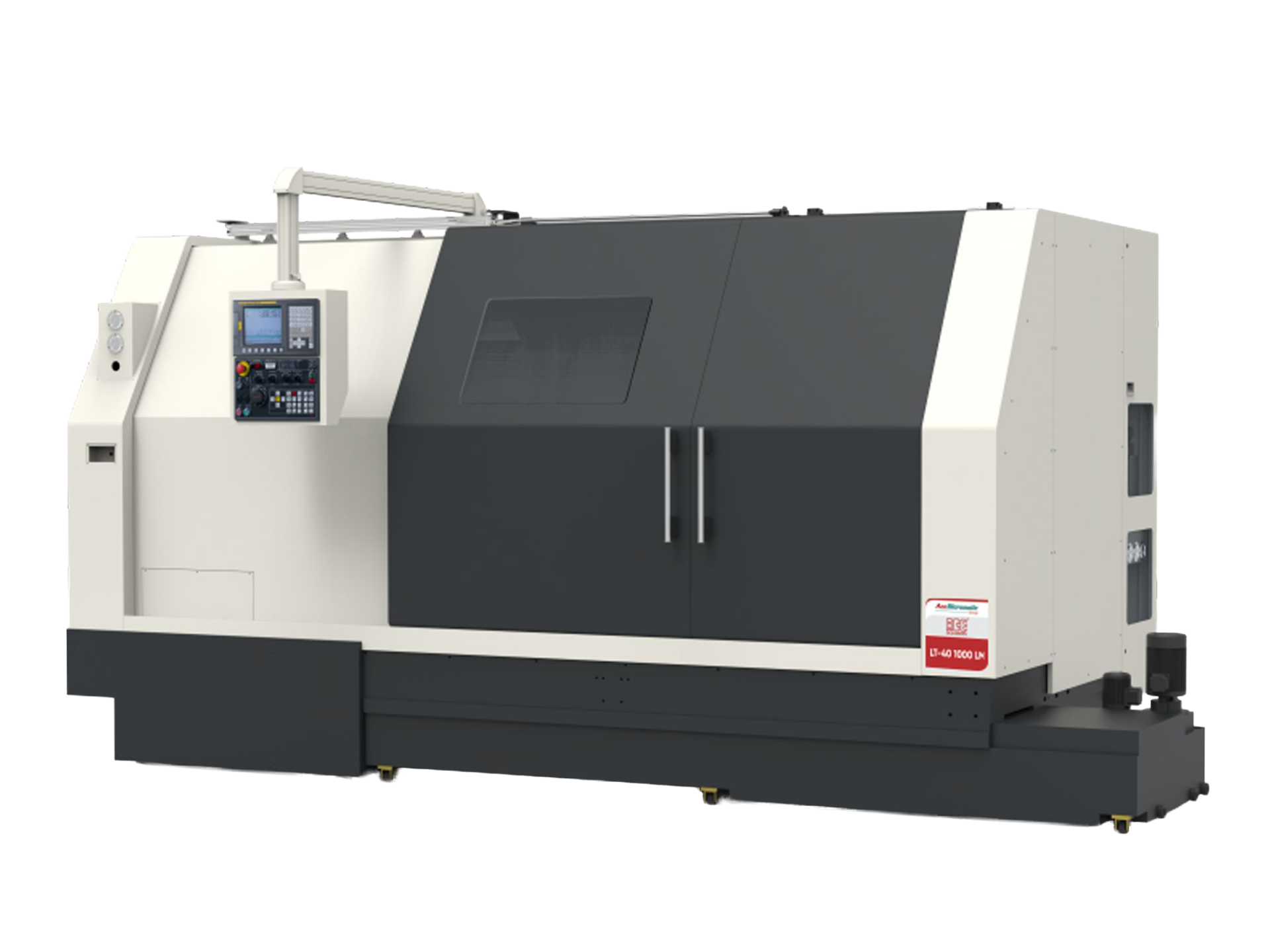

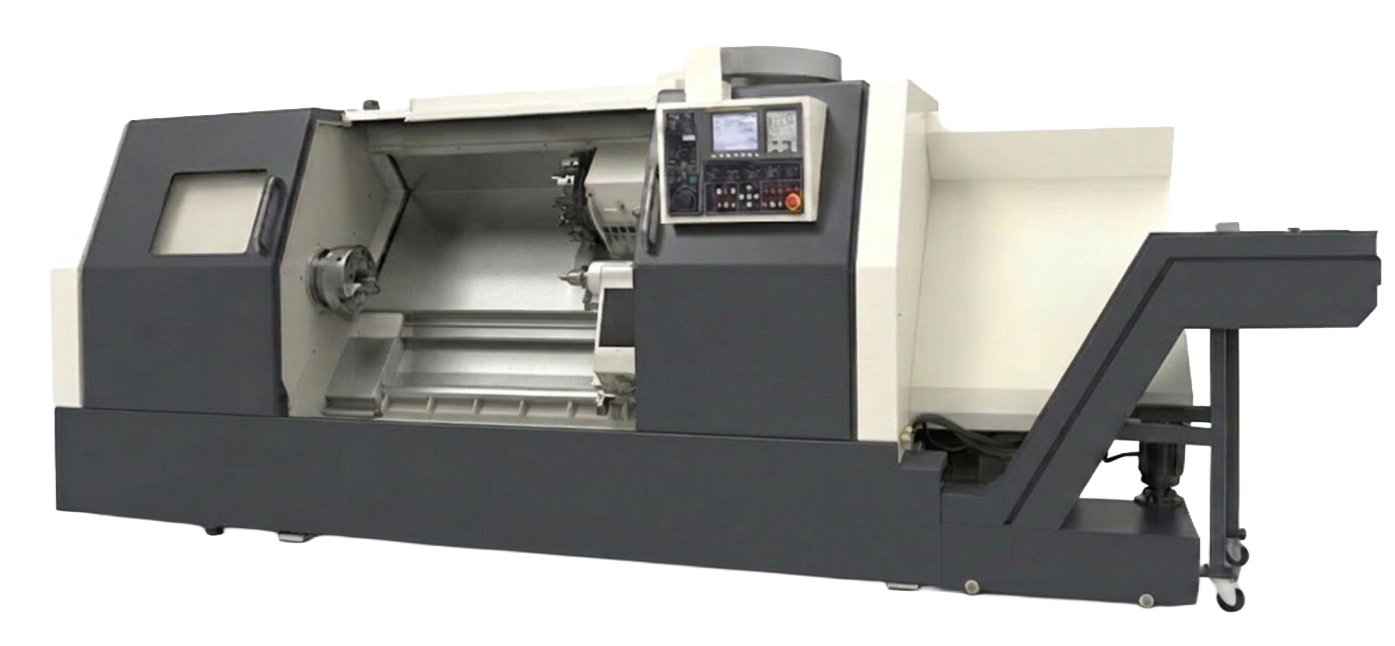

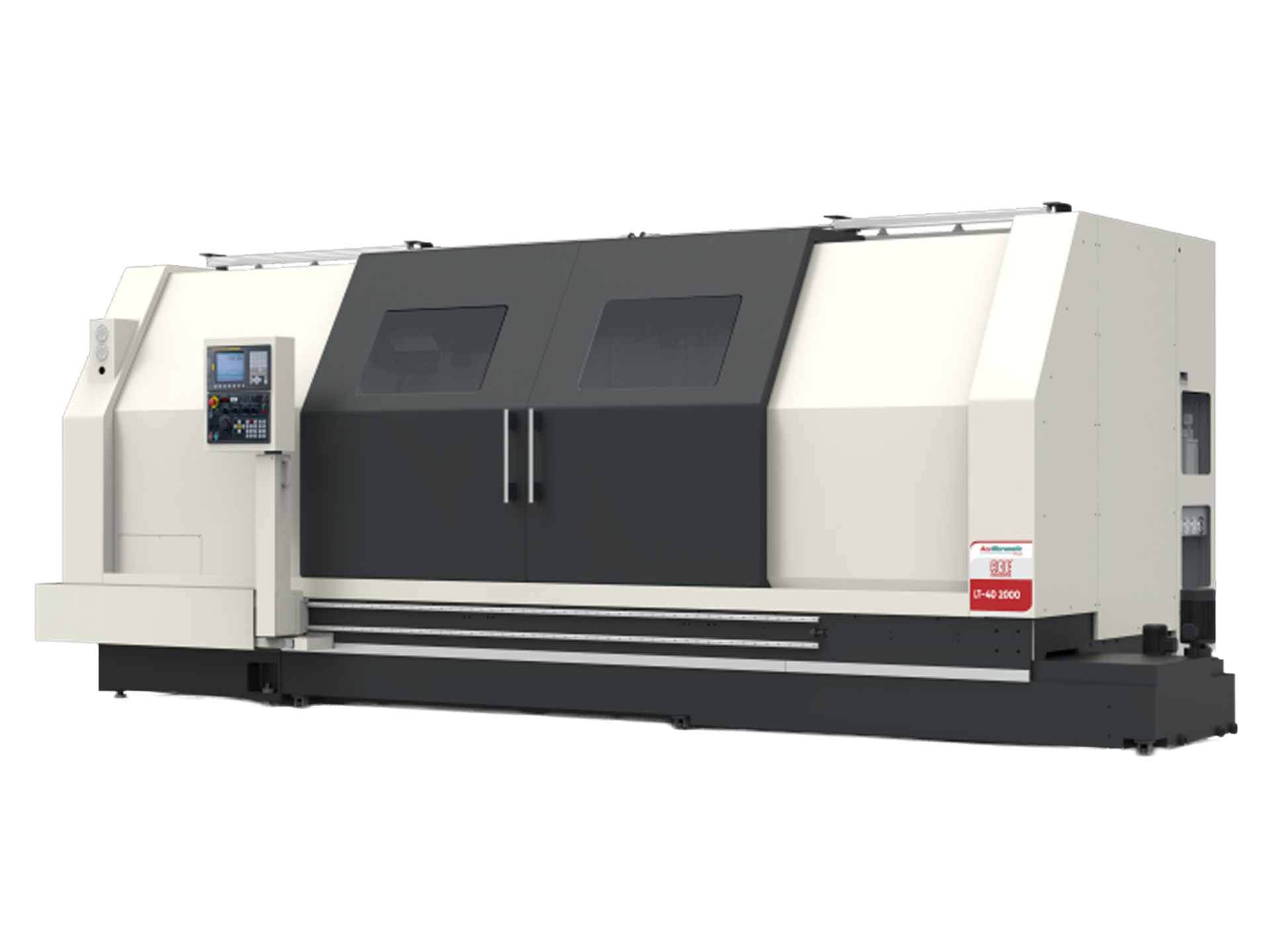

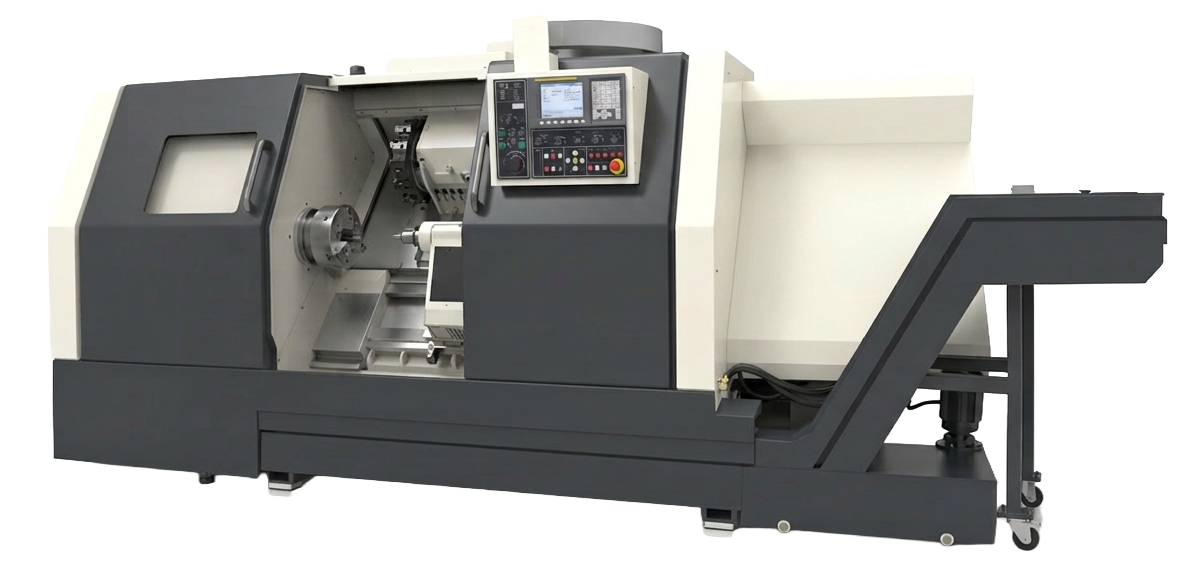

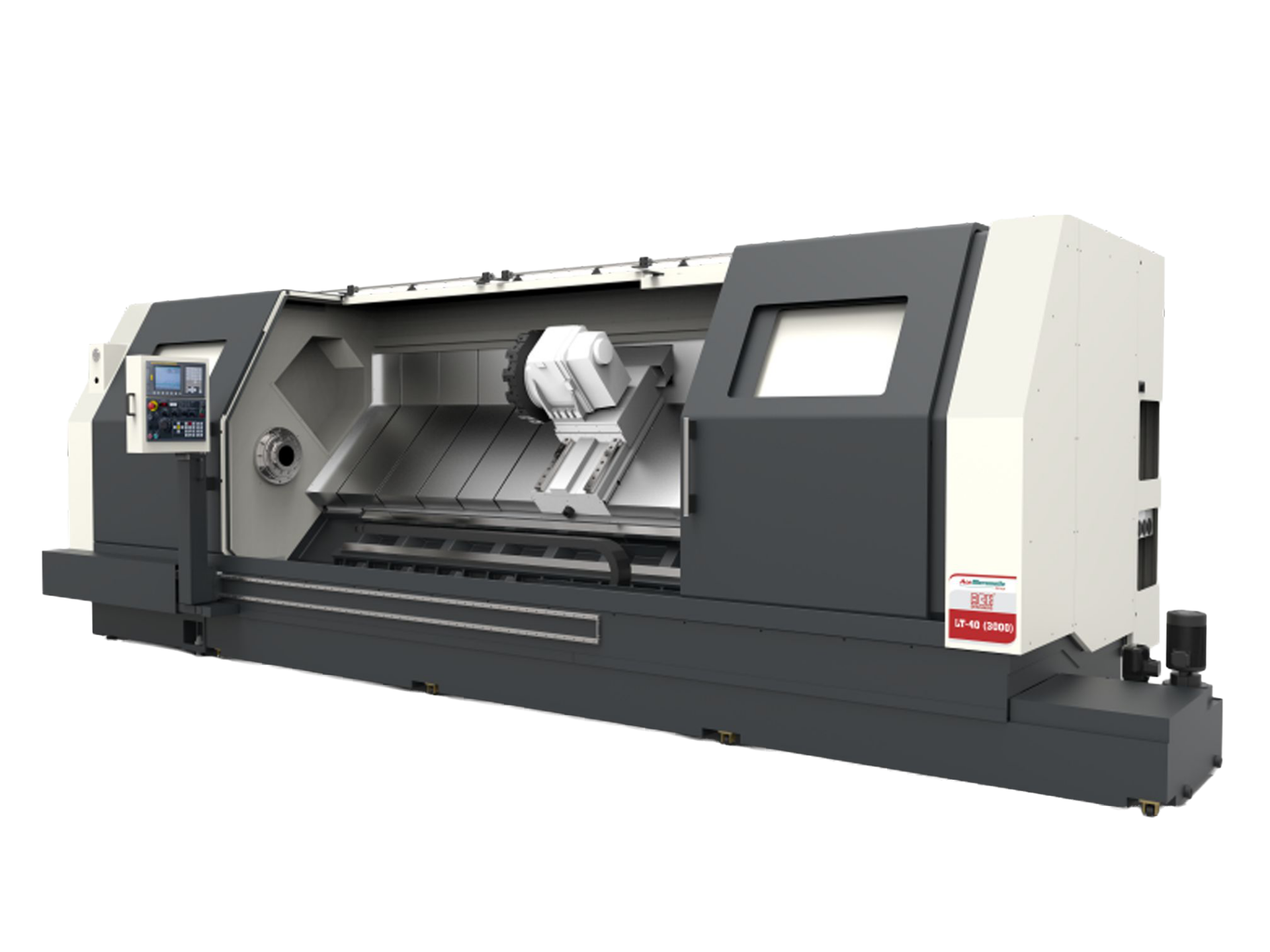

DESCRIPTION LT-40 / 1000 LT-40 / 2000 LT-40 / 3000
Control System
Control System Fanuc/Siemens Fanuc/Siemens Fanuc/Siemens
CAPACITY
Swing Over Bed 800 800 800
Distance Between Centers’ 1200 2200 3200
Maximum Turning Dia 700 700 700
Between Centre Turning Dia 575 575 575
Maximum Turning Length” 1000 2000 3000
SPINDLE
Spindle Nose A2-11 A2-11 A2-11
Bore through Spindle 132 132 132
Front Bearing Bore 180 180 180
Maximum Bar Capacity’ 117 117 117
Maximum Spindle Speed 2000 2000 2000
Spindle Motor Power (30 min. Rating) 30 30 30
Spindle Motor Power-Siemens (Continuous/S-6 40% Rating) 30 30 30
Spindle Motor Power – Fanuc (Continuous Rating) 22 22 22
Full Power Range – Fanuc 255-1333 255-1333 255-1333
Full Power Range Siemens 230-2000 230-2000 230-2000
Standard Chuck Size 400 400 400
AXES
Type of Guideways LM Guideways LM Guideways LM Guideways
X-Axis Stroke 380 380 380
Z-Axis Stroke 1200 2200 3200
X & Z Axes Rapid Rate 20 15 20
TOOLING
Number of Tools Maximum 8(12) 8(12) 8(12)
Boring Bar Dia Maximum 60 60 60
OD Turning Tool Size 32×32 32 x 32 32×32
TAILSTOCK
Tailstock Base Travel 800 1800 2800
Tailstock Quill Travel 200 200 200
Tailstock Quill Dia. 150 150 150
Quill Taper MT-6 MT-6 MT-6
Coolant Tank Capacity 200 300 400
HYDRAULIC SYSTEM
Hydraulic Pump Capacity 38 38 38
Hydraulic Power Pack Tank Capacity 70 70 70
System pressure 30 30 30
GENERAL
Overall Machine Dimensions (LxWxH) 5025x2350x2430 6500x2300x2350 7146x2400x2485
Overall Machine Weight (Without Packing) -9000 -12,000 -18,000

Standard Inclusions

  • Cartridge type spindle
  • AC spindle and axes drives
  • Precision guideways (hardened and ground)
  • 8 or 12-station bi-directional turret
  • Tailstock with live centre
  • Automatic centralised oil lubrication
  • Overload trip clutches on both axes
  • Failsafe brake for X axis
  • Drain line oil cooler
  • Hydraulic system
  • Built-in lighting system
  • AC unit for electrical cabinet
  • Door interlock
  • Programmable tailstock
  • 3-tier lamp
  • Torque enhancement by star-delta feature
  • TPM — Trak Productivity Monitoring System

Optional Extras

  • Chip conveyor
  • VDI disc
  • Tool touch probe
  • A2-11 spindle (LT-30) / A2-15 spindle (LT-40)
  • Steady rest (standard: Ø20-165mm range; optional: Ø35-390mm range)
  • Programmable steady rest
  • Auto door
  • Geared headstock
  • Manual Guide i
  • Heavy-duty chip conveyor with tilting bin for long chip application (side mounting)
  • Turnmill (M) variant with C-axis and live tooling
