DTC Series

Category Machining Centre

Drill Tap Machining Centre

The DTC Series are best-in-class drill tap machining centres from Ace Micromatic, designed specifically for high-speed drilling, tapping, and full milling applications. Built on FEM-optimised cast iron structures with a compact footprint, these machines deliver superior surface finish, tight positional accuracy, and the versatility to handle complex component geometries without compromising cycle time. Backed by one of the world’s leading machine tool manufacturers with over 40 years of CNC experience, the DTC Series is a proven solution for high-volume production environments.

Video

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Compact, High-Rigidity Build

FEM-optimised cast iron bed and A-shape column base deliver outstanding structural rigidity and torsional stiffness within a minimal shop floor footprint.

High-Speed Spindle Performance

Standard spindle speeds up to 10,000–12,000 rpm with direct drive options and optional speeds up to 24,000 rpm

Fast, Reliable Tool Changing

A disc armless ATC with a chip-to-chip time of just 2.7 seconds and rapid traverse rates of 48/48/40 m/min on X/Y/Z

Proven Positioning Accuracy

Positioning accuracy of 0.010 mm and repeatability of ±0.003 mm (as per ISO 230-2)

Smart Machining Ready

Standard smart features include real-time OEE monitoring, tool load monitoring, sister tool programming, and smart adaptive feed control

Feature Summary

The DTC Series is purpose-built for shops that need speed, precision, and reliability from a compact machine. Whether you’re running automotive brackets, medical components, EV parts, or aerospace fixtures, these machines are engineered to keep pace with demanding production schedules.

Rigid Structure, Engineered for Performance
The machine bed is manufactured from best-quality cast iron in an in-house facility and is stress relieved for better thermal stability. The bed is optimised using FEM methodology to ensure best structural rigidity and minimal footprint to save shop floor space. High rigidity of column is achieved through heavy ribbing of the casting and creating an A-shape column base of extra stiffness. The table is specially designed for superior cutting performance with minimum inertia and maximum rigidity, with internal ribbing that makes it suitable for large fixtures.

High-Speed Spindle Technology
The spindle is supported on precise angular contact ball bearings, grease-lubricated for life. Cartridge-type spindle design ensures high rigidity and accuracy and is easy to maintain. It is designed for drill and tap machining as well as for demanding metal removal by milling, taking both axial and radial forces. The BBT-30 interface provides simultaneous taper and face contact for enhanced rigidity.

Rapid Axis Movement

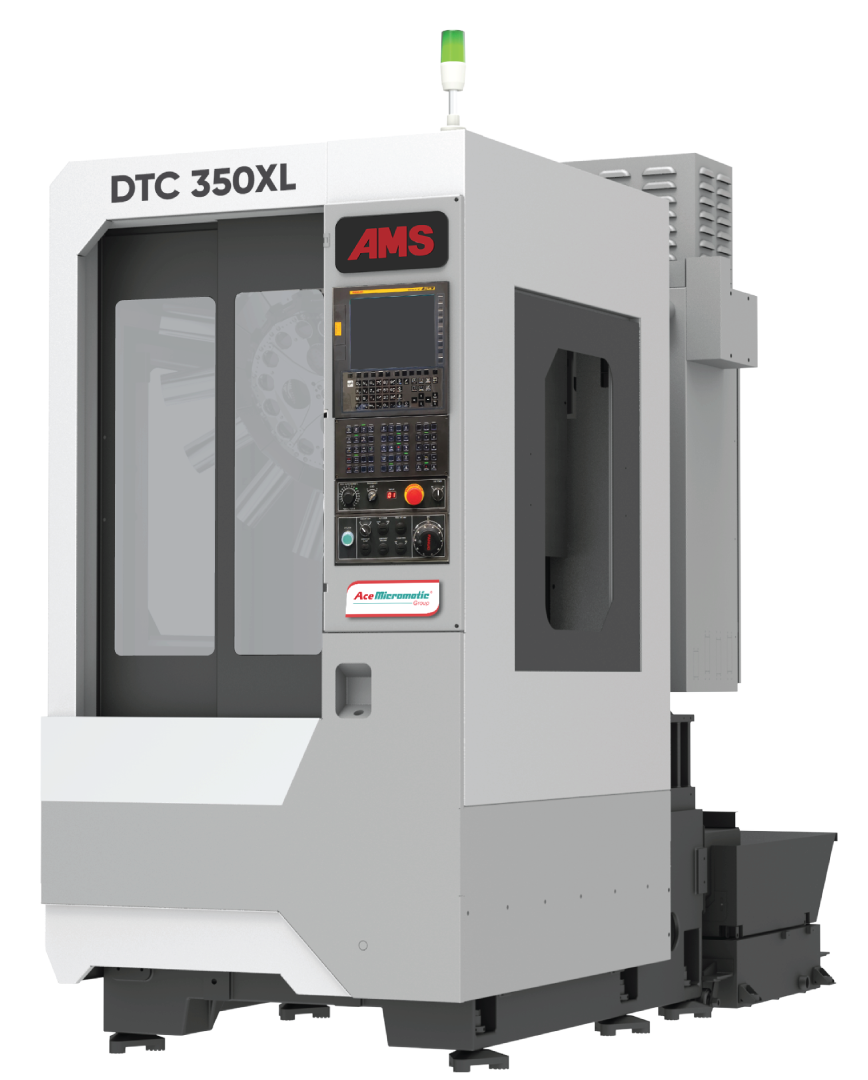

The DTC-350XL delivers rapid traverse rates of 60/60/48 m/min on X/Y/Z axes, while the GV40 gantry variant achieves 50/50/48 m/min with AI servo tuning, feed forward function, and smart spindle load control to ensure high productivity and machining accuracies.

Coolant System Options
Through-coolant increases tool life, allows higher cutting speeds, and clears chips during deep hole drilling. Two systems are available: CTS with Grundfos Pump at 21 bar pressure, and CTS with Wanner Pump at 50 bar pressure. A large capacity chip tray is reliable, trouble free, and easy to maintain.

Quality Assurance at Every Stage
Machine geometric accuracies are fully inspected to assure the highest accuracy standards. A high-precision laser unit is applied for inspecting positioning accuracy and repeatability, and a ball bar tester is used to inspect geometric error and ensure superior circular accuracy through parameter adjustment. Every AMS machine is subject to heavy cut and NAS testing before shipment, combined with proper parameter adjustments to guarantee the best possible cutting quality.

Industry Applications
The DTC Series suits a wide array of applications across automotive, aerospace, general engineering, medical, and electronics industries.

Specifications

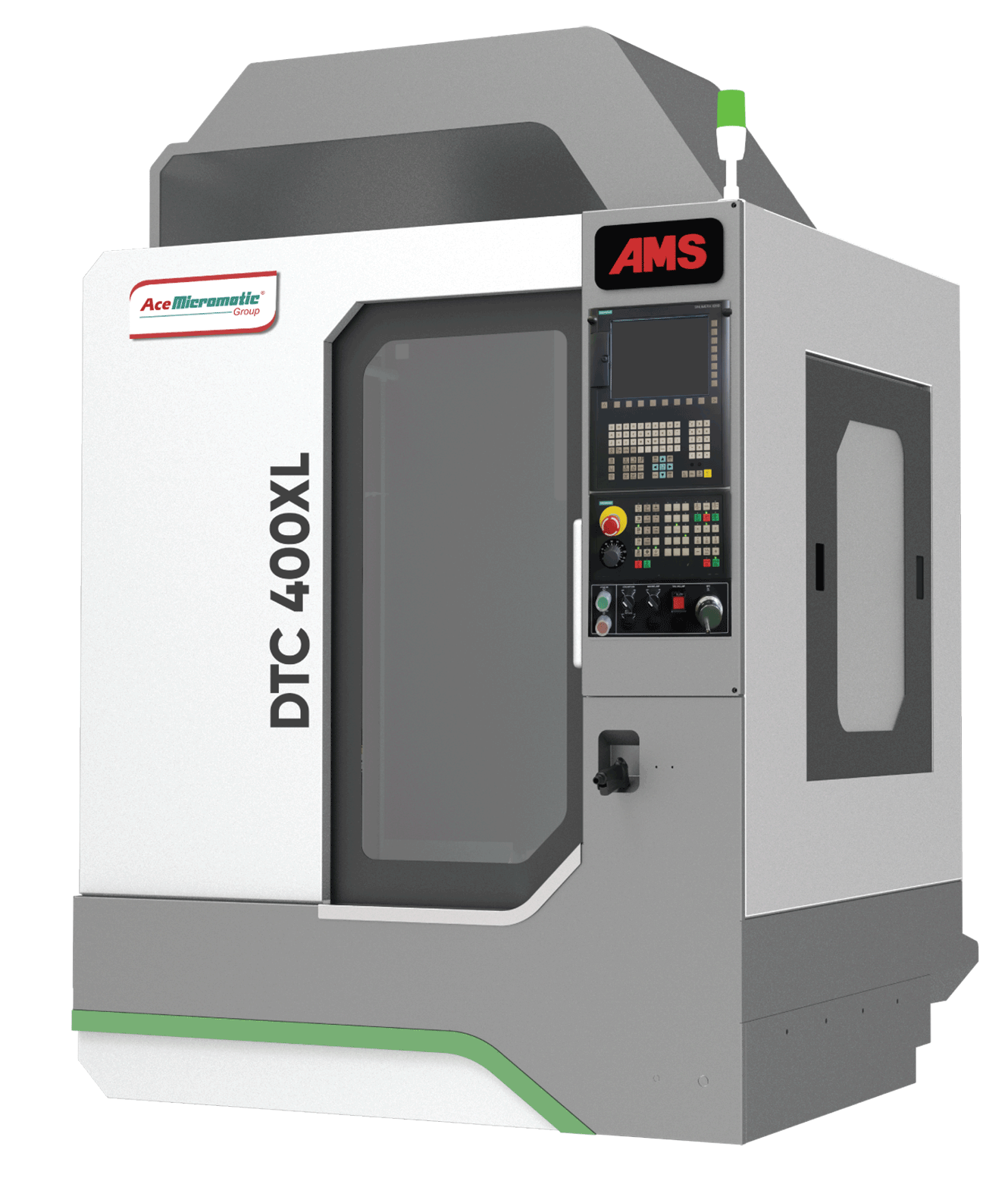

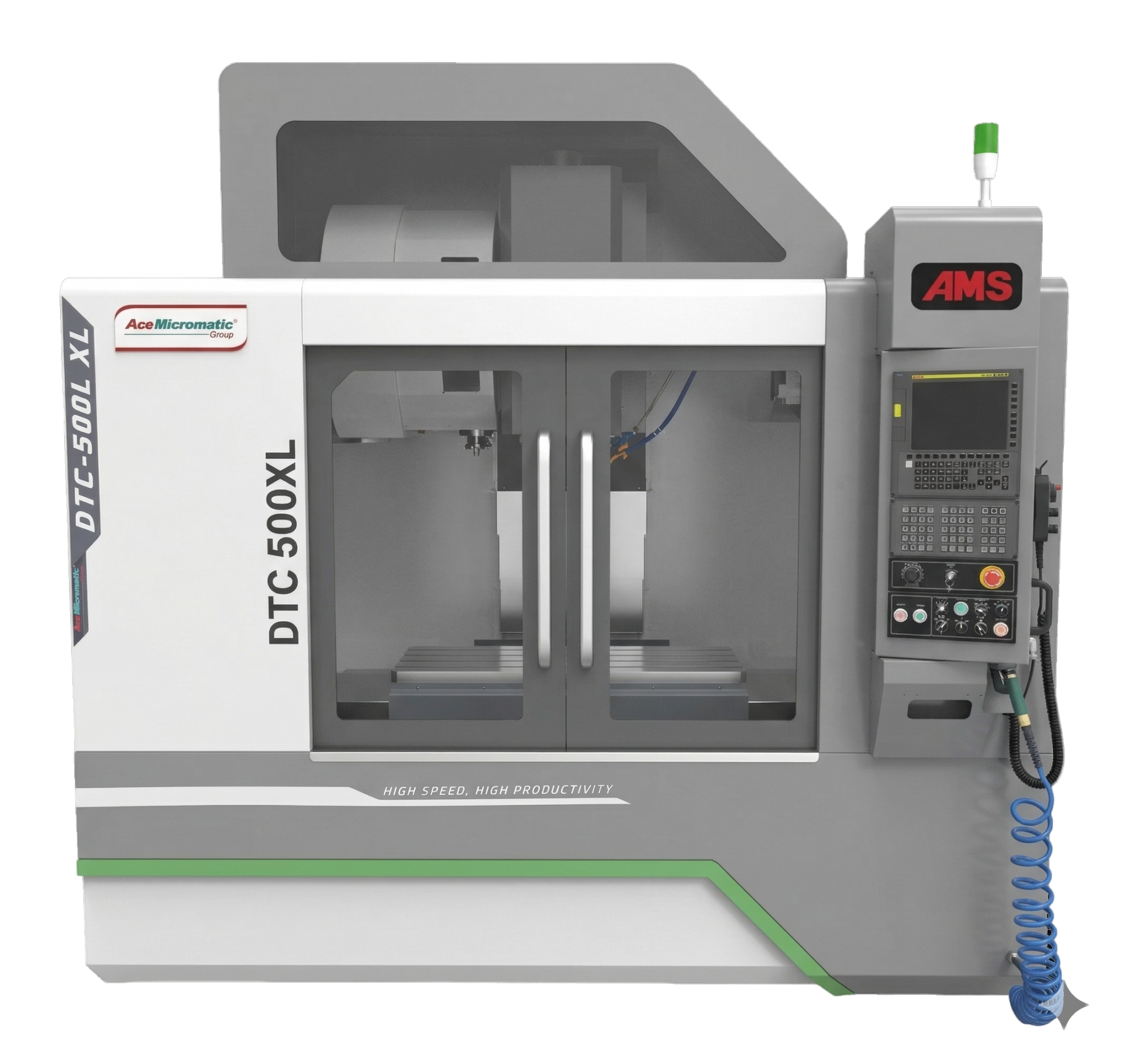

Specifications Units DTC 350XL DTC 400XL OTC 4001 XL DTC 5OOL XL
X axis mm 350 500 700 1000
Y axis mm 400 400 400 500
Z axis mm 320 320 320 320
Dist. from Spindle face to Table top mm 150 -470 120 -440 140-460 100 – 420
Table size mm 600 x 400 750 x 400 850 x 400 1200 x 500
Max. load on Table kg 250 300 300 300
Table Height from floor mm 885 885 850 970
T-slot dimension (n x w x p) mm 3x14x125 3x14x125 3x14x125 4X14x12.5
Tool shank type (Std. / opt.) BT-30 / BBT -30 BT-30/ BBT -30 BT-30/ BBT -30 BT- 30 / BBT -30
Spindle speed standard rpm 10000 10000 10000 10000
Spindle speed optional rpm 24000 24000 24000 24000
Spindle power (Std. / opt.) kW 9/7.5 9/7.5 9/7.5 9/7.3
Cutting feed mm/min 1 – 10000 1 -10000 1-10000 1 – 10000
Rapid traverse m/min 60 / 60 / 48 60 / 60/48 50 / 50 / 48 50150/48
NO. Of tools (Std. / opt.) 16/24 16 /24 16/24 16/24
Tool diameter mm 80 80 80 80
Tool weight Max. kg 2.5 2.5 2.5 2.5
Tool length Max. mm 200 200 250 200
Tool change system Pull stud type Disc & Twin Arm MAS. 403 Disc Armless MAS. 403 Disc Armless MAS. 403 Disc Armless MAS. 403
Positioning accuracy mm 0.01 0.01 0.01 0.01
Repeatability mm ±0.003 ±0.003 ±0.003 ±0.003
Machine weight – Net kgf 2700 3200 3600 3400
Machine wxdxh mm 1600 x 2400 x 2400 1600 x 2400 x 2400 2000 x 2800 x 2400 2100 x 2410 x 2600

Standard Inclusions

  • Fanuc 0iMF+ CNC controller
  • BT-30 / BBT-30 cartridge spindle with angular contact ball bearings, grease-lubricated for life
  • High precision LM guideways and ball screws
  • FEM-optimised cast iron bed and A-shape column, stress relieved for thermal stability
  • Disc armless ATC
  • Standard coolant system with large-capacity chip tray
  • Chip conveyor
  • Smart features:
    • real-time OEE monitoring
    • tool load monitoring system (TLMS)
    • sister tool programming
    • production tracking
  • Full geometric accuracy inspection, laser positioning check, and NAS cutting test prior to shipment

Optional Extras

  • Through-spindle coolant — 21 bar or 50 bar
  • Higher spindle speed — up to 24,000 rpm with HSK A50 direct drive spindle
  • Extended ATC capacity — up to 24 tools
  • 4th and 5th axis rotary tables
  • Work and tool offset touch probe, tool setter, and tool breakage detection
  • Smart machine camera interface, collision monitoring, and vibration health monitoring solutions
  • Coil or screw chip conveyor for cast iron and steel applications
  • Turn table interface (GV40 variant) — 760 x 400 mm dual pallet with 5-second change time
  • Automation and robotic integration packages
