MCV Series

Category Machining Centre

Vertical Machining Centre

The MCV Series are high-performance vertical machining centres built for demanding production environments across automotive, aerospace, die mould, defence, and general engineering. All machines are manufactured from cast iron structural components, machined and tested to retain precision under the most demanding conditions. From compact high-productivity models through to heavy-duty configurations, the MCV Series delivers consistent accuracy, reliable performance, and a strong return on investment across a wide range of applications.

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Cast Iron Construction Built to Last

All structural components are manufactured from cast iron, machined to provide and retain high built-in accuracies — designed and tested to perform under very demanding working conditions.

Precision LM Guideways and Ball Screws

Precision LM guideways and ball screws deliver higher rigidity and damping characteristics, maintaining precise workpiece geometry at high feed speeds and matching full motor power to cutting capacity.

High-Speed, High-Rigidity Spindle

A range of spindle options — BT-40, BT-50, and HSK A63 — supports a broad variety of applications, from high-volume production to precision die mould work, with speeds up to 12,000 rpm available as an option.

Fast, Reliable Tool Changing

Standard 24-tool twin arm ATC with options up to 40 tools, delivering efficient and dependable tool changes to keep cycle times low across high-volume runs.

Rigorous Quality Inspection Before Shipment

Every machine undergoes full geometric accuracy inspection using laser and ball bar testing, plus heavy cut and NAS cutting tests combined with parameter adjustment

Feature Summary

The MCV Series is Ace Micromatic’s core range of vertical machining centres, covering everything from compact, high-cycle-rate models up to large-format, heavy-duty configurations. It is the workhorse of the AMS product line — built for shops that need reliable, high-accuracy machining day in, day out.

Rigid Structure, Designed for Real Conditions
All MCV machines have structural components made from cast iron, machined to provide and retain high built-in accuracies. The machines are designed, manufactured, assembled, and tested to perform under very demanding working conditions. In addition to functional performance, ergonomics are given equal priority — optimum job loading height, easy access to the spindle, ease of chip removal, and maintenance-friendliness are all built in from the start.
Spindle Technology
MCV 450 models are equipped with a high-rigidity, high-speed spindle designed for a wide range of applications. AMS follows a stringent spindle assembly procedure, and all spindles are checked for run-out and vibrations before the machining test. Both BT-40 and HSK A63 tooling interfaces are available. The HSK A63 system offers advantages in accuracy, repeatability, weight, and fast tool change cycles — particularly suited to high-speed machining applications.
LM Guideways and Ball Screws
Precision LM guideways and ball screws offer higher rigidity and damping characteristics. They are essential for matching cutting capacity to the maximum power output of the motor, while also maintaining precise workpiece geometry at high feed speeds throughout the full range of models.
Coolant System
Through-spindle coolant increases tool life, allows higher cutting speeds, and clears chips during deep hole drilling. Two systems are available: a Grundfos Pump system at 21 bar and a Wanner Pump system at 50 bar. A large-capacity chip tray is standard — reliable, trouble free, and easy to maintain.
Automatic Tool Changer
The 24-tool ATC is standard on the MCV-450, with a 30 to 40-tool option available. A 20-tool configuration is standard on BT-50 variants. The twin arm system is designed for quick, reliable tool changes to support continuous production.
Automatic Pallet Changer Option
The automatic pallet changer system reduces unproductive time during machining. Machining can be carried out on one pallet while the other is used for preparation — seating and clamping of workpieces. Two configurations are available: linear pallet changer and rotary pallet changer.
Quality and Inspection
Machine geometric accuracies are fully inspected to assure the highest accuracy standards. A high-precision laser unit is applied for inspecting positioning accuracy and repeatability, and a ball bar tester inspects geometric error and ensures superior circular accuracy through parameter adjustment. Every AMS machine is subject to heavy cut and NAS testing before shipment, combined with proper parameter adjustments to guarantee the best possible cutting quality.
Automation Ready
AMS machines are built for automation interface of different types. With deep experience in machining solutions, AMS is capable of augmenting the manufacturing process with semi-automated and fully automated solutions. Options range from auto-unloading through to unmanned operations — providing enhanced productivity, output consistency, and reduced dependency on labour.
Industry Applications
The MCV Series suits automotive, aerospace, railways, energy generation, die mould, defence, and general engineering applications.

Specifications

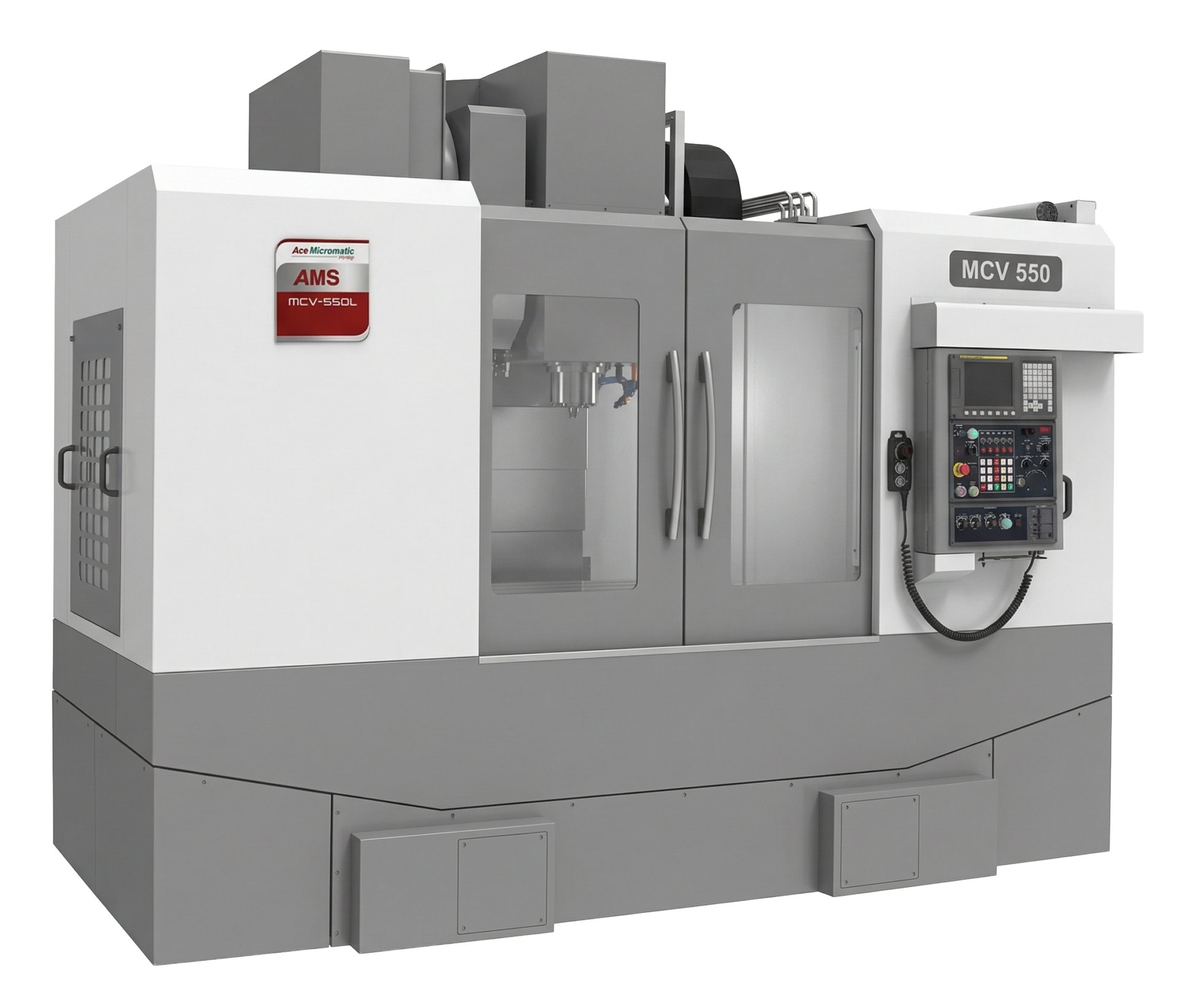

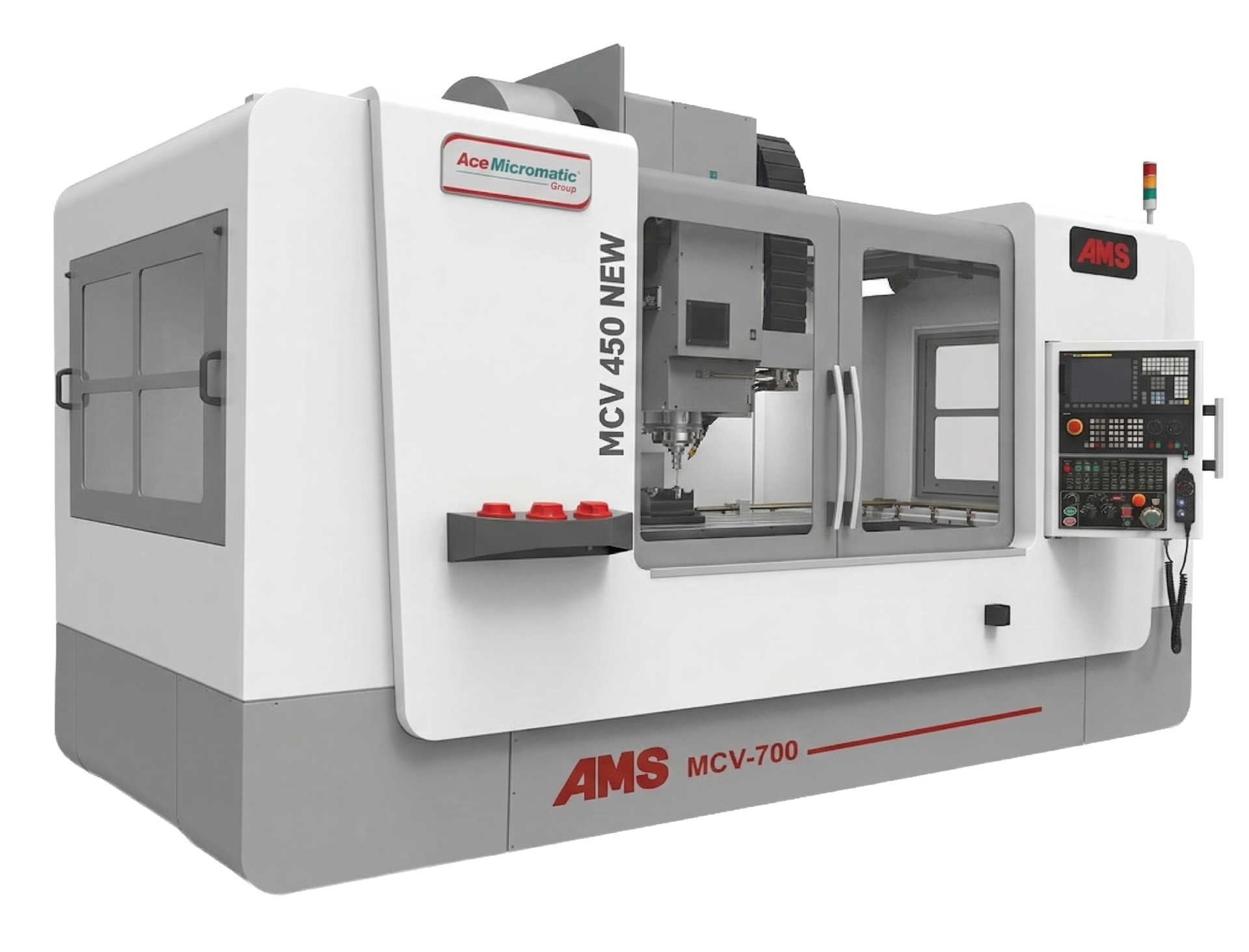

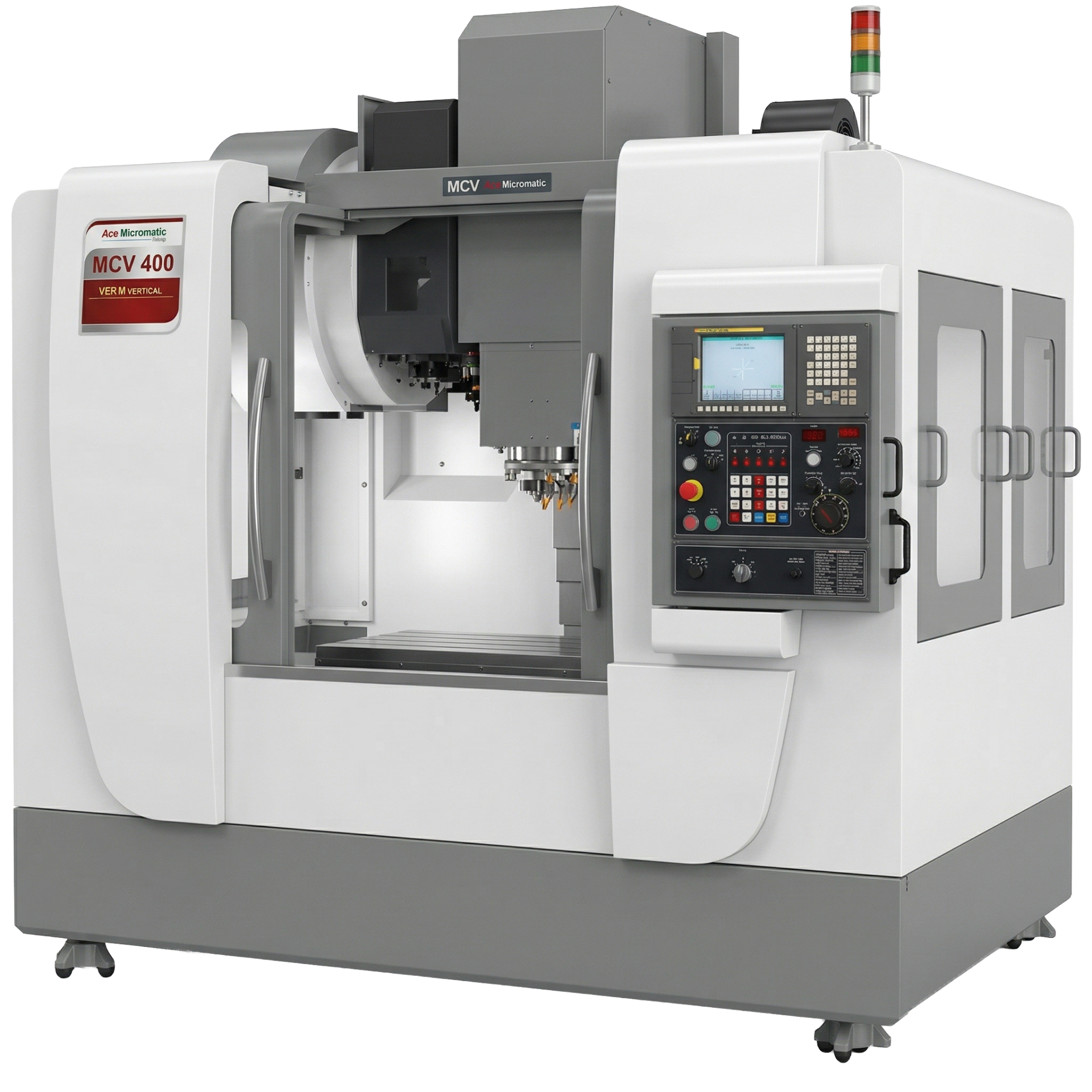

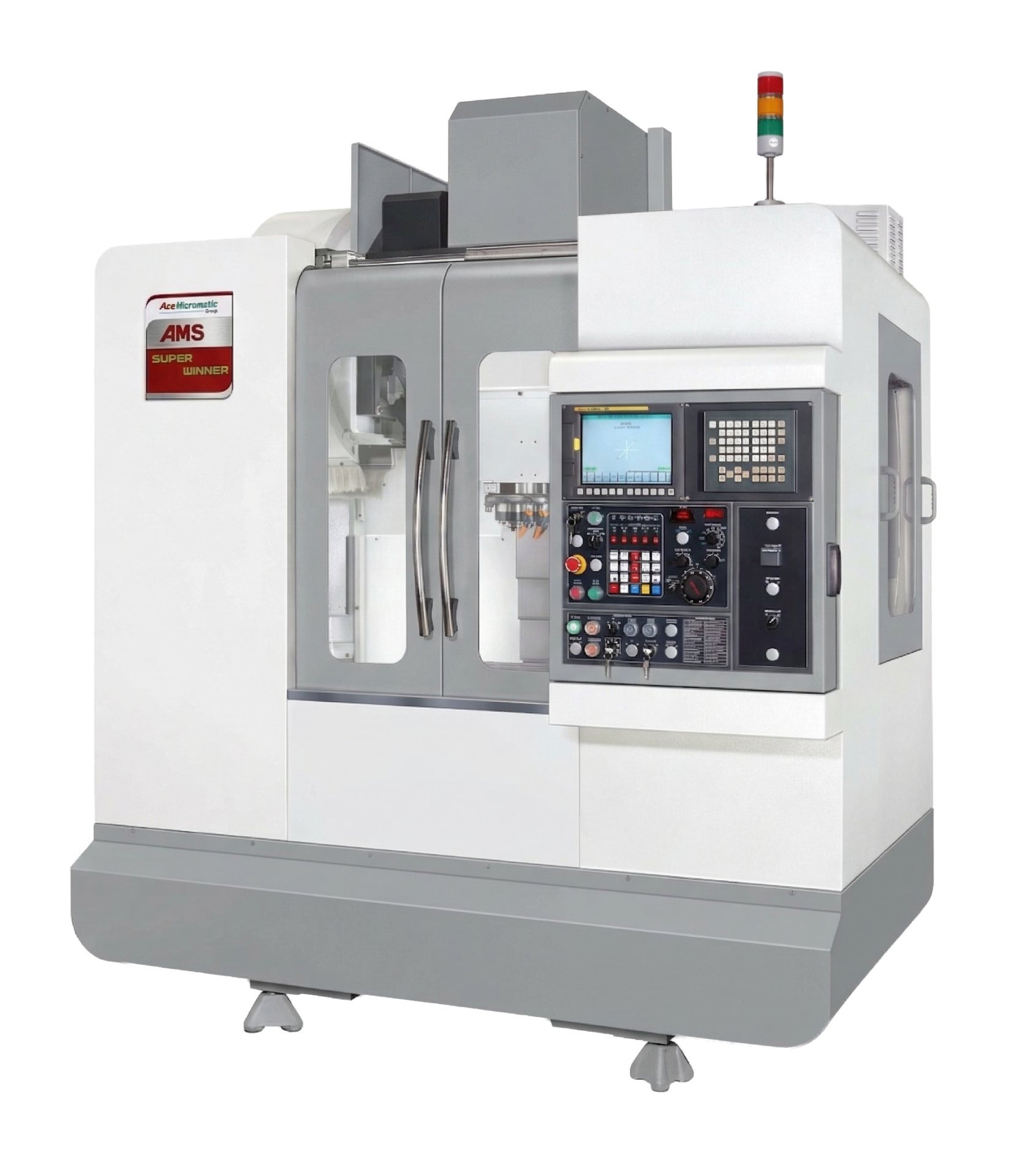

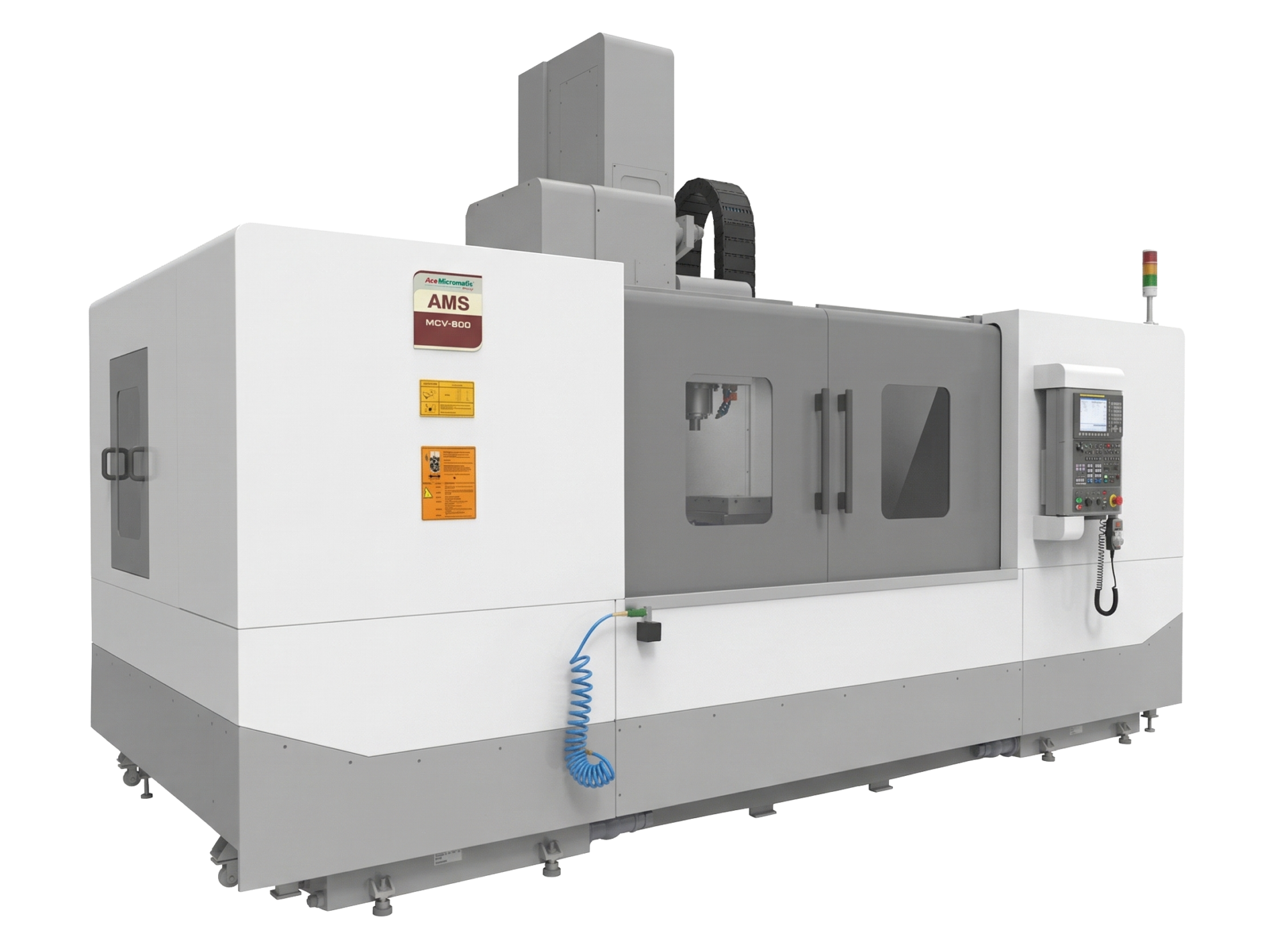

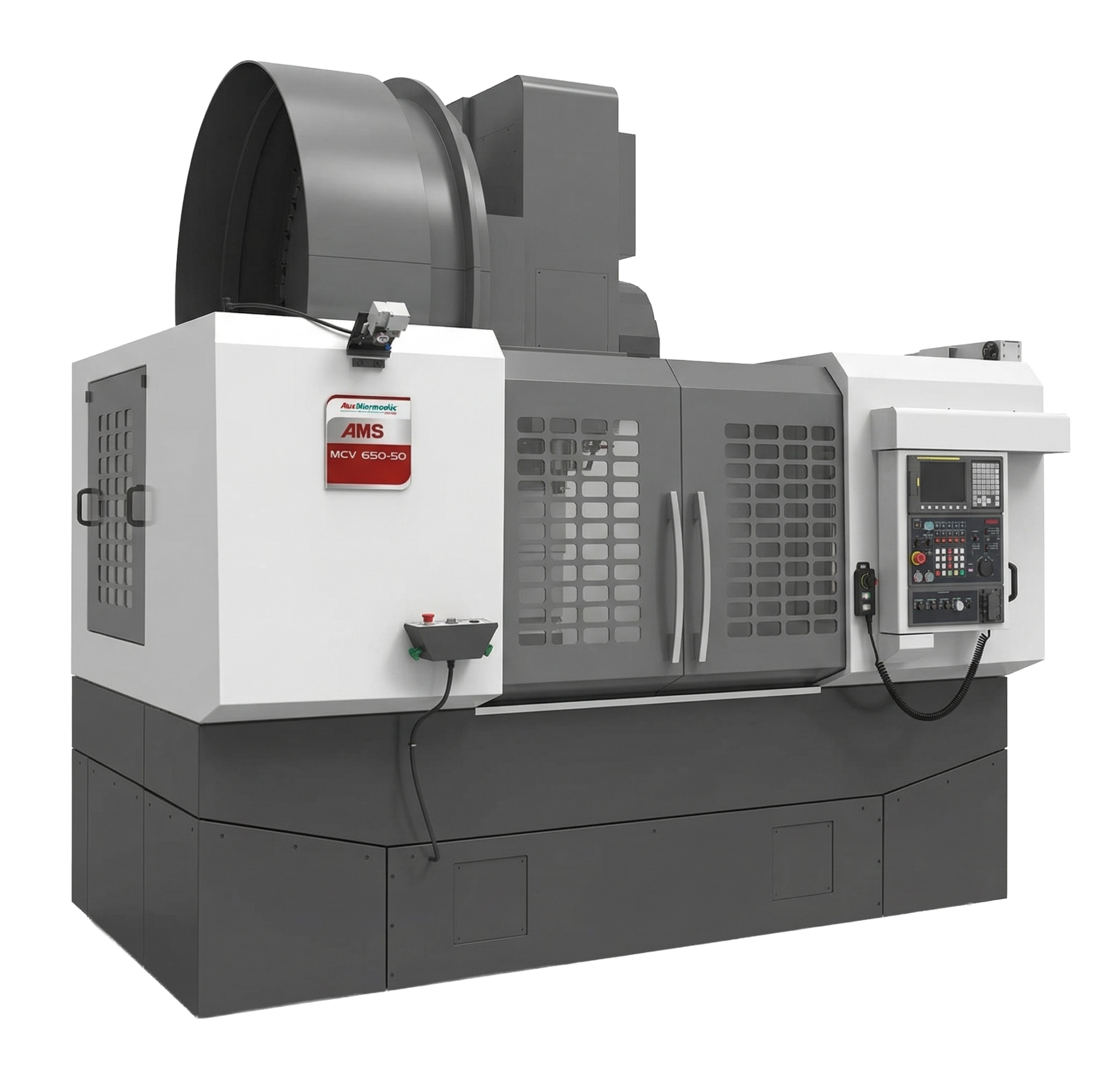

Specifications Unit SUPER WINNER MCV-400 MCV-450 MCV-450XL MCV-550L MCV-650 MCV-700N+ MCV-800
Travels
X axis mm 500 600 800 800 1000 1300 2000
Y axis mm 400 450 450 450 550 700 810
Z axis mm 500 500 500 500 550 700 810
Dist. from Spindle face to Table top mm 195 – 695 175 – 675 175 – 675 170 – 670 125 – 675 120 – 820 175 – 985
Table
Table size mm 800 x 400 900 x 450 1000 x 450 1000 x 450 1200 x 550 1200 x 650 1450 x 700 2400 x 810
Max. load on Table kg 400 400 400 500 800 800 1500 2000
Table Height from floor mm 960 925 925 925 1005 980 1030 1050
T-slot dimension (n x w x p) mm 4 x 14 x 100 4 x 18 x 100 4 x 18 x 100 5 x 18 x 100 5 x 18 x 100 6 x 18 x 100 6 x 18 x 100 6 x 18 x 125
Spindle
Bearing diameter Std. / Opt. mm 70 70 70 70 70 / 80 70 / 80 70 / 80 80
Tool shank type BT – 40 BT – 40 BT – 40 BT – 40 BT – 40 BT – 40 BT – 40 BT – 40
Spindle speed Std. rpm 6000 6000 6000 8000 6000 6000 6000 5000
Spindle speed Opt. rpm Upto 12000 Upto 12000 Upto 15000 Upto 15000 Upto 15000 Upto 15000 Upto 10000 Upto 6000
Spindle power Std. / Opt. kW 7.5/5.5 | 11/7.5 7.5/5.5 | 11/7.5 11 / 7.5 | 15/11 15/11 11/7.5 11/7.5 | 15/11 15 / 11 | 18.5/15 18.5/15
Feed
Cutting feed mm/min 1 – 10000 1 – 10000 1 – 10000 1 – 10000 1 – 10000 1 – 10000 1 – 10000 1 – 10000
Rapid traverse m/min 40 / 40 / 40 36 / 36 / 36 36 / 36 / 36 40 / 40 / 30 32 / 32 / 24 32 / 32 / 24 20 / 20 / 20 18 / 18 / 18
Automatic Tool Changer
No. of tools Std./Opt. 24 / 30 24 / 30 24 / 30 / 40 24 / 30 24 / 30 / 40 24 / 30 / 40 24 / 30 24 / 30
Tool diameter 80 / 75 80 / 75 80 / 75 80 / 75 80 / 75 80 / 75 80 / 75 80 / 75
Tool weight Max. kg 8 8 8 8 8 8 8 8
Tool length Max. mm 250 250 250 250 250 250 250 250
Tool change system mm Twin Arm Twin Arm Twin Arm Twin Arm Twin Arm Twin Arm Twin Arm Twin Arm
Pull stud type MAS – 403 MAS – 403 MAS – 403 MAS – 403 MAS – 403 MAS – 403 MAS – 403 MAS – 403
Accuracy (As per ISO 230-2)
Positioning accuracy mm 0.010 0.010 0.010 0.010 0.010 0.010 0.010
Repeatability mm ±0.003 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003
CNC System Fanuc / Siemens / Mitsubishi Fanuc / Siemens / Mitsubishi
Installation Data
Machine weight – Net kgf 4700 5100 5300 5400 7500 8200 11000 17000
Machine wxdxh mm 1900 x 3000 x 2550 1900 x 3100 x 2550 2200 x 3100 x 2550 2200 x 3300 x 3250 3110 x 4000 x 2800 3110 x 4000 x 2800 3500 x 4100 x 2850 5000 x 4000 x 3400

Standard Inclusions

  • Fanuc 0iMF+ CNC controller
  • BT-40 spindle taper with indirect drive
  • Precision LM guideways and ball screws
  • 24-tool twin arm ATC (MCV-450 and ACER); 20-tool standard on BT-50 models
  • Chip flush and flood coolant system with coolant gun
  • Panel cooler for electrical cabinet
  • Rigid tapping
  • Three-tier indication lamp
  • Hand-held MPG
  • Full guarding
  • Coolant tank and chip tray
  • Laser calibration and ball bar test before dispatch
  • Heavy cut and NAS cutting test before shipment

Optional Extras

  • HSK A63 spindle interface
  • Direct drive spindle
  • Higher spindle speed and power options (up to 12,000 rpm)
  • BT-50 spindle taper (select models — ACER-50, MCV-700-50, MCV-800-50)
  • Through-spindle coolant — 21 bar (Grundfos pump) or 50 bar (Wanner pump)
  • Extended ATC — 30 or 40-tool capacity
  • Chip conveyor (coil or screw type for cast iron and steel applications)
  • 4th and 5th axis rotary tables / CNC index tables
  • Linear pallet changer
  • Rotary pallet changer
  • Work and tool offset touch probe
  • Tool setter
  • Tool breakage detection
  • IoT and machine monitoring solutions
  • Automation integration (semi-automated or fully automated)
  • Tooled-up solutions (fixture design, tooling selection, and component prove-out)
  • TPM (Total Productive Maintenance) features
