V Series

Category Machining Centre

Die Mould Machining Centre

The Ace Micromatic V Series are high-precision vertical machining centres purpose-built for die mould applications. Covering a broad range from compact models through to heavy-duty configurations, every machine in the series delivers superior surface finish, the ability to machine hardened steel dies, and the accuracy demanded by toolrooms, job shops, and precision mould makers. Built from FEA-optimised cast iron with rigid structure and compact footprint, the V Series is the benchmark for die mould machining in its class.

Video

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Cast Iron Construction Built to Last

All structural components are manufactured from cast iron, machined to provide and retain high built-in accuracies — designed and tested to perform under very demanding working conditions.

Precision LM Guideways and Ball Screws

Precision LM guideways and ball screws deliver higher rigidity and damping characteristics, maintaining precise workpiece geometry at high feed speeds and matching full motor power to cutting capacity.

High-Speed, High-Rigidity Spindle

A range of spindle options — BT-40, BT-50, and HSK A63 — supports a broad variety of applications, from high-volume production to precision die mould work, with speeds up to 12,000 rpm available as an option.

Fast, Reliable Tool Changing

Standard 24-tool twin arm ATC with options up to 40 tools, delivering efficient and dependable tool changes to keep cycle times low across high-volume runs.

Rigorous Quality Inspection Before Shipment

Every machine undergoes full geometric accuracy inspection using laser and ball bar testing, plus heavy cut and NAS cutting tests combined with parameter adjustment

Feature Summary

The V Series is Ace Micromatic’s specialist die mould range. Where a general-purpose VMC handles a broad variety of work, the V Series is engineered from the ground up for the precision, surface finish, and geometry demands of mould and die machining. It suits every tier of the die mould industry — from small toolrooms cutting rubber and plastic dies through to large operations producing automotive body panels and aerospace structural components.

Rigid Structure, Built for Die Mould Demands
The machine bed is made from best-quality cast iron and is stress relieved for better stability over time. The machine bed is optimised using FEA methodology to ensure best structural rigidity and minimal footprint to save shop floor space. This provides the stable cutting platform essential for achieving consistent surface finish and profile accuracy across long production runs.
LM Guideways and Ball Screws
Precision LM guideways and ball screws offer higher rigidity and damping characteristics. This is needed to match cutting capacity to the maximum power output of the motor, as well as to maintain precise workpiece geometry at high feed speeds — critical when profiling complex mould surfaces.
Direct Drive Spindle
Available as an option on all models, the direct drive spindle system couples the motor directly to the spindle rather than using belts. This results in less vibration, less heat, and less noise, while providing better surface finishes, extreme thermal stability, and quiet operation. For precision mould work, this translates directly to reduced polishing time and better component quality off the machine.
Die Mould Specific Features
Every V Series machine is configured with features specifically for die mould work:
  • Z-axis Retraction Function — prevents tool contact with the workpiece during tool change or retraction
  • Program Restart Function — safely restarts interrupted machining from the correct position
  • Drop Prevention — protects the spindle and tooling during power interruption events
  • Air Nozzle for Dry Cutting — clears chips from complex cavity geometries during cutting
Quality Assurance
All machines are laser calibrated and ball bar tested to assure the highest accuracy standards. Beyond geometric inspection, every V Series machine is put through the Die Mould Test — a 20-degree tapered machining test combined with parameter adjustment — to guarantee the best possible surface finish and axis changeover accuracy before dispatch.
Target Applications
The V Series suits a wide range of die mould applications:
  • Blow moulds — bottles, auto spoilers, auto AC pipes
  • Injection moulds — car bumpers, dashboards
  • Forging dies — crankshaft die, connecting rod die
  • Rubber moulds — shoe, washers, hoses
  • Pressure die casting — cylinder heads, crankcase covers
  • Pattern machining — pumps, engine blocks
  • Medical equipment dies — testing equipment components
  • Sheet metal dies — oil tanks, vehicle doors, bonnets
Automation Ready
AMS machines are built for automation interface. With deep experience in die mould solutions, AMS is capable of augmenting the manufacturing process with semi-automated and fully automated solutions, providing enhanced productivity and output consistency.

Specifications

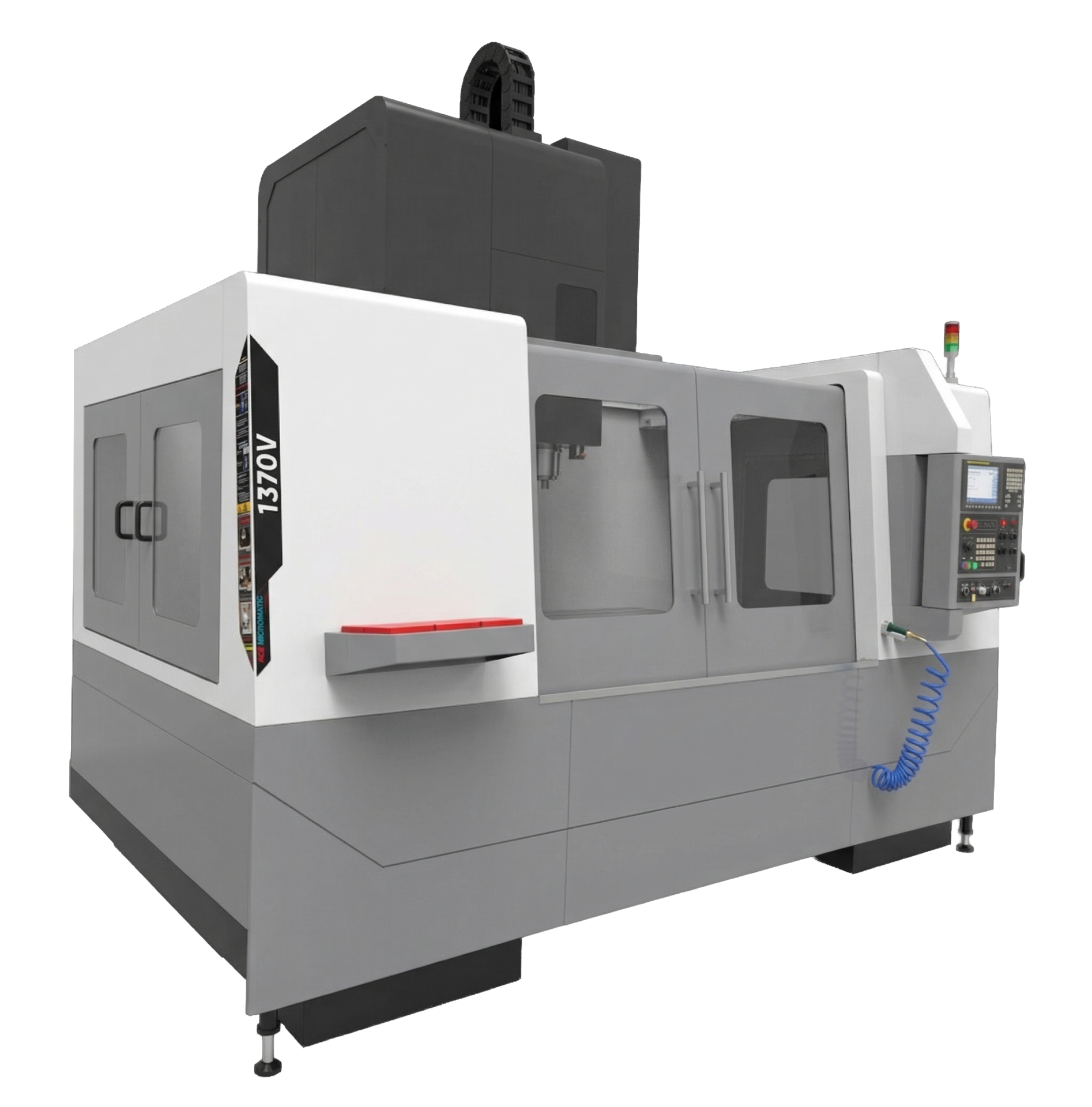

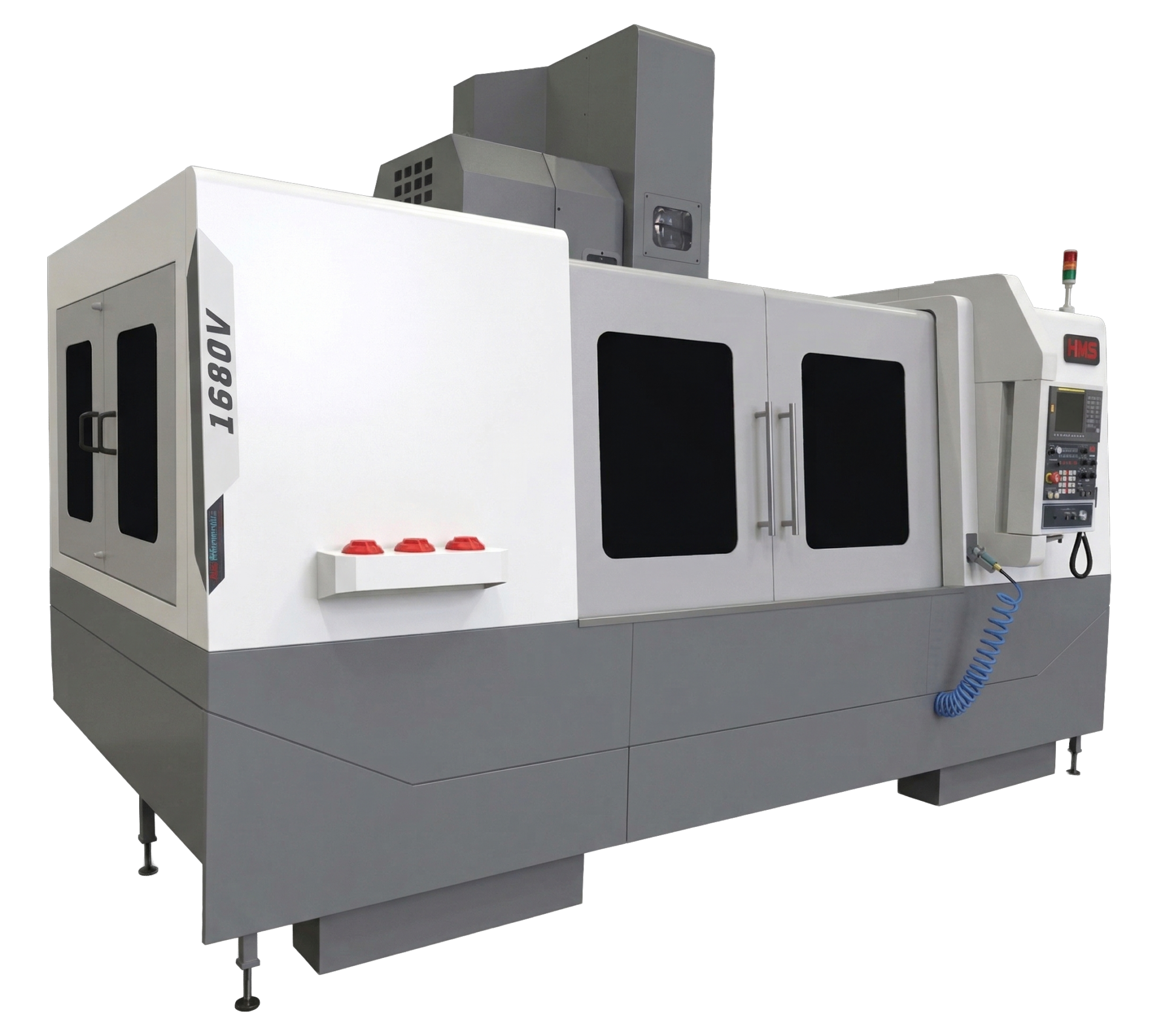

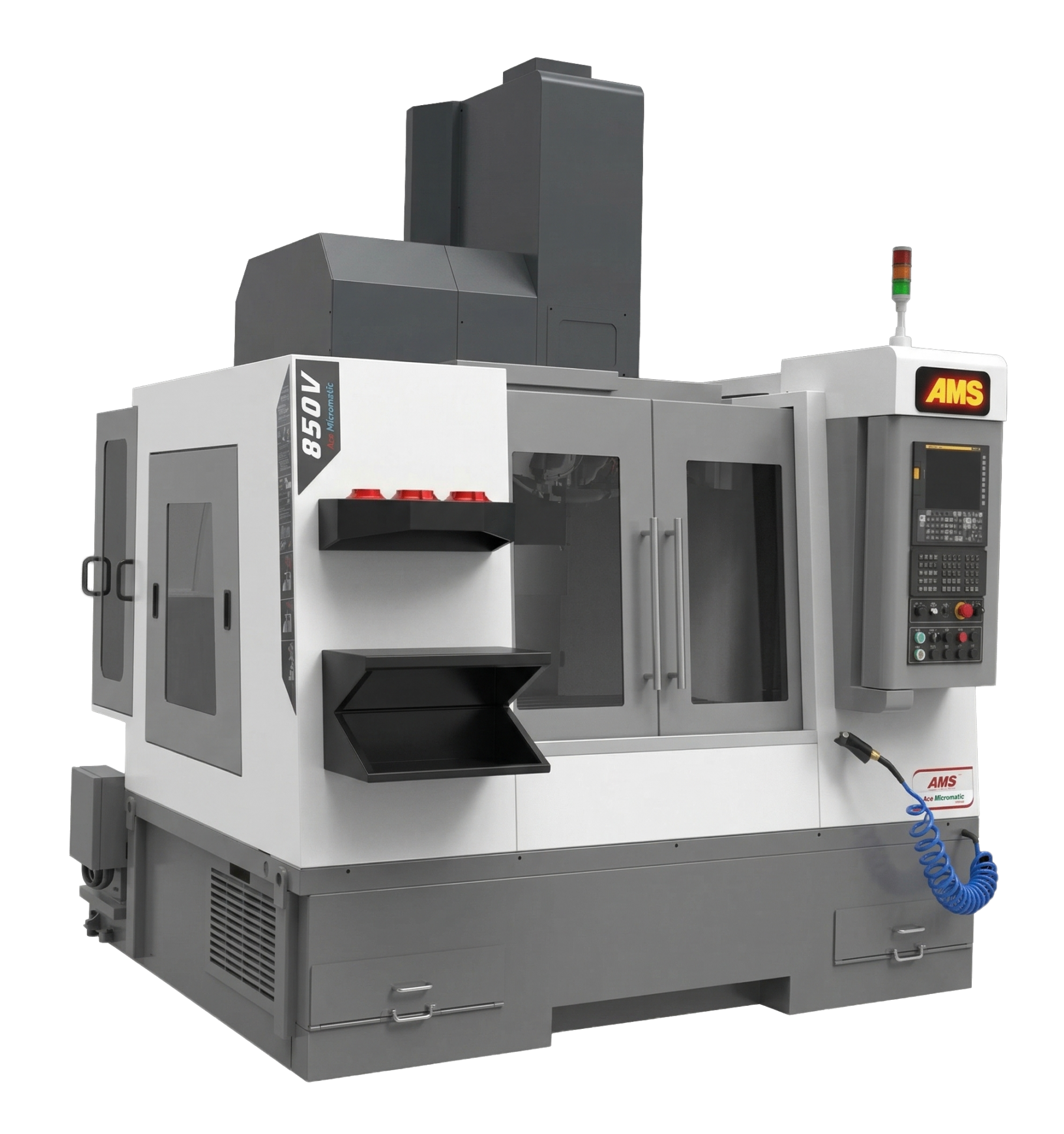

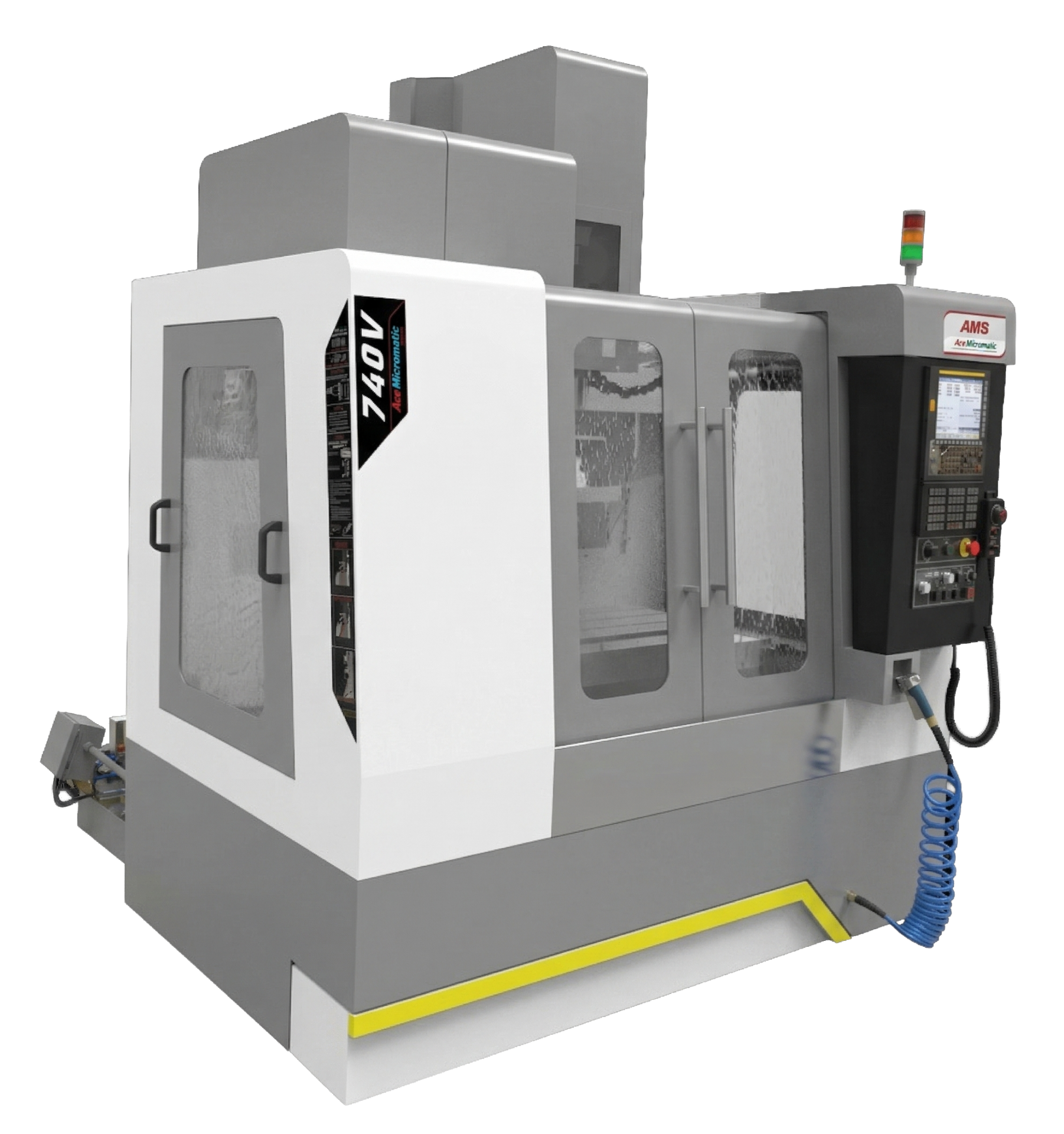

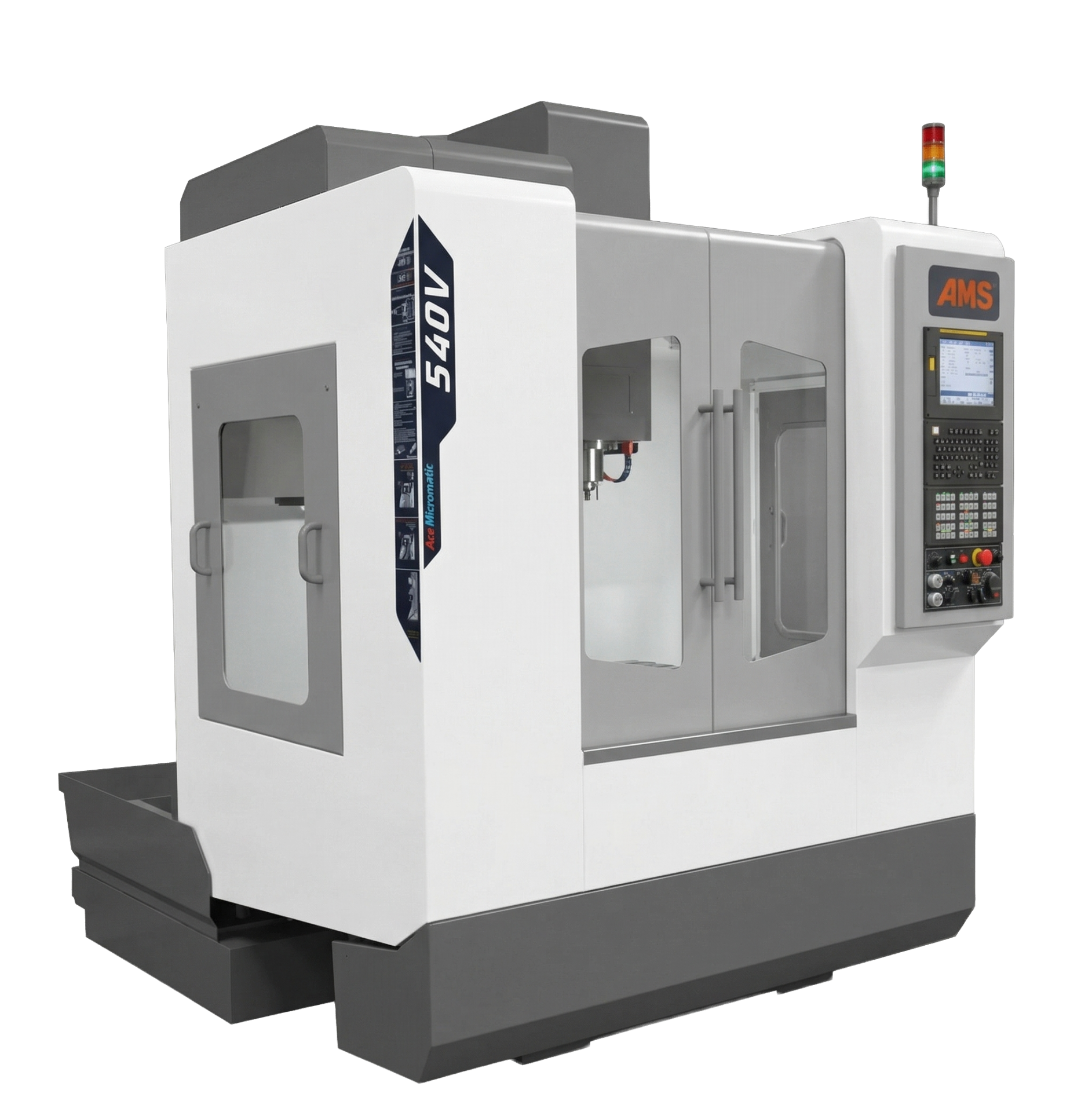

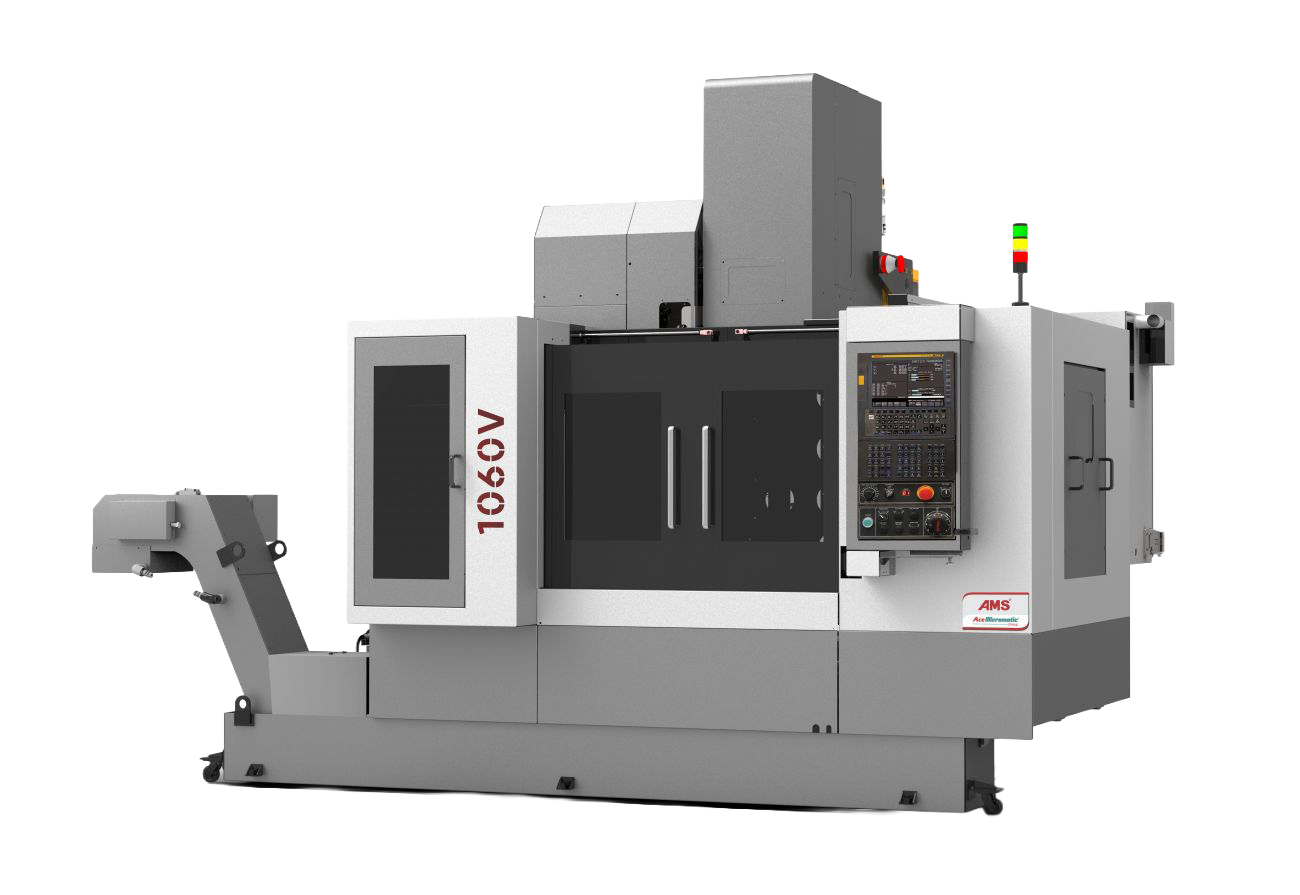

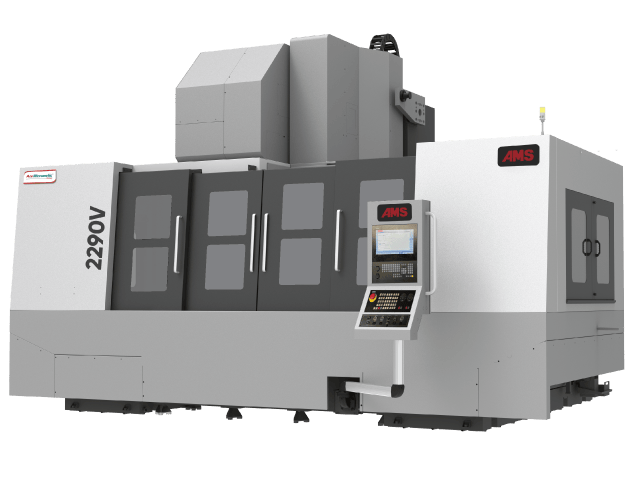

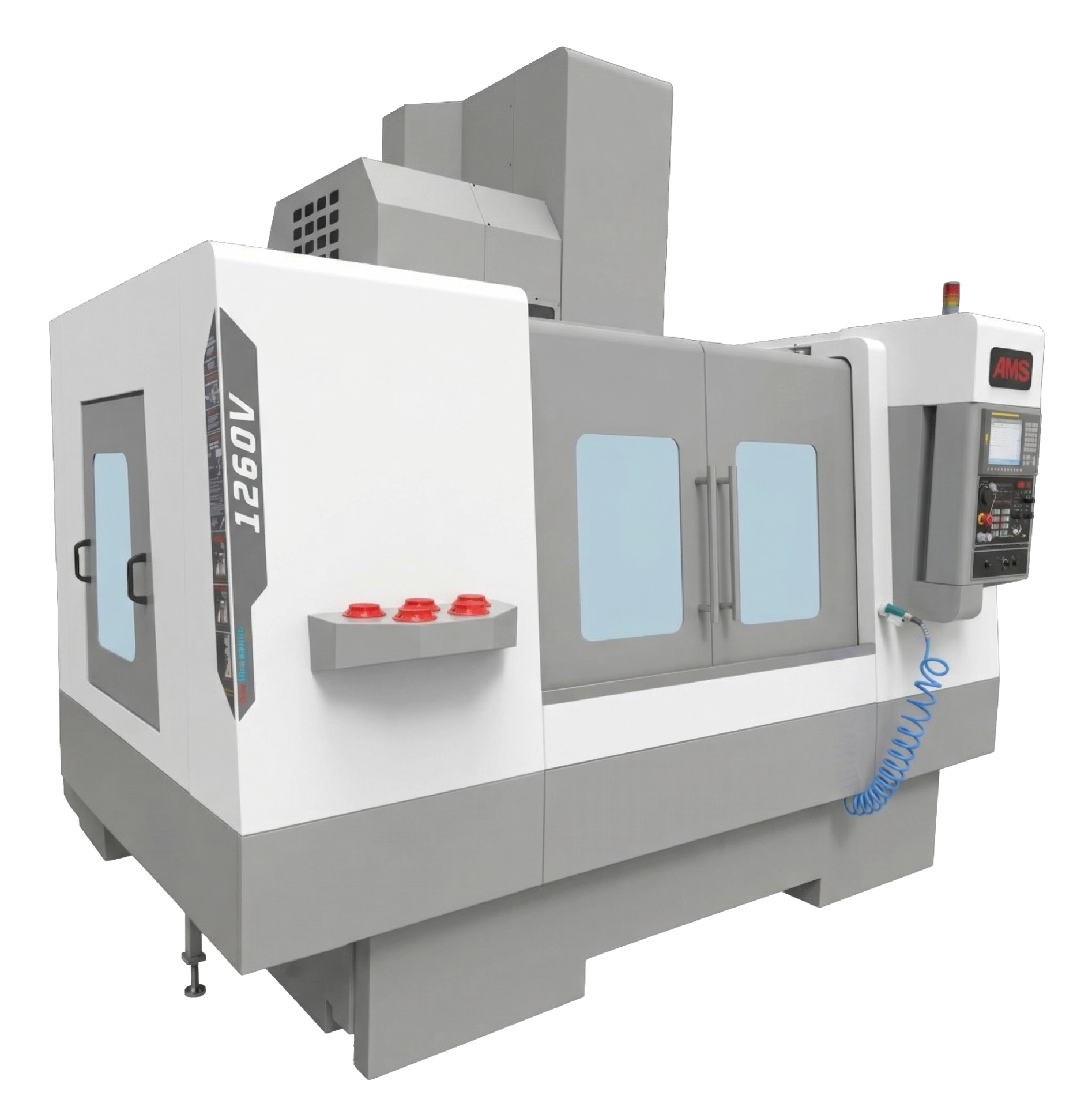

Specifications Units 540V 740V 850V 1060V 1260V 1370V 1680V 1690V 2290V
Travels
X axis mm 500 760 800 1050 1250 1300 1600 1630 2200
Y axis mm 400 425 510 625 600 700 800 910 910
Z axis mm 450 470 500 600 600 700 700 810 810
Dist. from Spindle face to Table top mm 110 – 560 120 – 590 100 – 600 140 – 740 100 – 700 130 – 830 110 – 810 150 – 960 150 – 960
Table
Table size mm 750 x 400 900 x 400 1000 x 510 1200 x 630 1400 x 630 1450 x 700 1700 x 700 1800 x 800 2400 x 810
Max. load on Table kg 400 800 400 800 1250 1500 2000 2000 2500
Table Height from floor mm 855 905 920 997 1050 1030 1050 1050 1000
T-slot dimension (n x w x p) mm 3 x 14 x 125 3 x 14 x 125 5 x 18 x 100 5 x 18 x 100 5 x 18 x 100 6 x 18 x 100 6 x 18 x 100 6 x 18 x 125 6 x 18 x 125
Spindle
Tool shank type BT – 40 BT – 40 BT – 40 BT – 40 BT – 40 BT – 40 BT – 40 BT – 40 BT – 40
Spindle speed Std. rpm 6000 10000 6000 6000 6000 6000 6000 6000 5000
Spindle speed Opt. rpm Upto 12000 Upto 12000 Upto 15000 Upto 15000 Upto 15000 Upto 15000 Upto 10000 Upto 10000 Upto 10000
Spindle power Std. kW 7.5 / 5.5 9 / 7.5 11 / 7.5 11 / 7.5 11 / 7.5 15 / 11 15 / 11 15 / 11 18.5 / 15
Feed
Cutting feed mm/min 1 – 10000 1 – 10000 1 – 10000 1 – 10000 1 – 10000 1 – 10000 1 – 10000 1 – 10000 1 – 10000
Rapid traverse m/min 40 / 40 / 40 24 / 24 / 24 36 / 36 / 36 32 / 32 / 24 24 / 24 / 24 20 / 20 / 20 20 / 20 / 20 20 / 20 / 20 15 / 15 / 15
Automatic Tool Changer
No. of tools Std./Opt. 24 24 / 30 24 / 30 24 / 30 / 40 24 / 30 / 40 24 / 30 / 40 24 / 30 / 40 24 / 30 / 40 24 / 30 / 40
Tool diameter 80 / 155 80 / 155 80 / 155 80 / 155 80 / 155 80 / 155 80 / 155 80 / 155 80 / 155
Tool weight Max. mm 8 8 8 8 8 8 8 8 8
Tool length Max. kg 250 250 250 250 250 250 250 250 250
Tool change system mm Twin Arm Twin Arm Twin Arm Twin Arm Twin Arm Twin Arm Twin Arm Twin Arm Twin Arm
Pull stud type MAS – 403 MAS – 403 MAS – 403 MAS – 403 MAS – 403 MAS – 403 MAS – 403 MAS – 403 MAS – 403
Accuracy (As per ISO 230-2)
Positioning accuracy mm 0.010 0.010 0.010 0.010 0.010 0.010 0.010 0.010 0.010
Repeatability mm ±0.003 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003 ±0.003
CNC System Fanuc / Siemens / Mitsubishi Fanuc / Siemens / Mitsubishi
Installation Data
Machine weight – Net kgf 3200 3600 5500 7500 8500 10000 12000 13000 16000
Machine Width mm 1700 2100 2200 3110 3300 3700 4100 4150 5350
Depth mm 2800 2410 2450 2800 2800 3000 3125 3700 4200
Height mm 2500 2600 2800 2800 2800 3500 3000 4000 3900

Standard Inclusions

  • BT-40 spindle taper with indirect drive
  • Precision LM guideways for all 3 axes
  • Twin arm ATC — 24 tools standard (model dependent)
  • Rigid tapping
  • Chip flushing system and flood coolant
  • Panel cooler for electrical cabinet
  • Coolant gun
  • Air blast
  • Handheld MPG
  • Three-tier indication lamp
  • Tool rack stand
  • Swivelling pendant
  • Z-axis retraction function
  • Program restart function
  • Drop prevention
  • Air nozzle for dry cutting
  • Laser calibration and ball bar test
  • Die mould machining test before dispatch

Optional Extras

  • BBT-40 spindle taper (face and taper contact for enhanced rigidity)
  • Direct drive spindle
  • Higher spindle speed options (up to 15,000 rpm depending on model)
  • BT-50 spindle taper (1060V and above)
  • Coolant through spindle
  • Spindle chiller unit
  • Chip conveyor
  • Extended ATC — 30 or 40-tool capacity
  • Higher spindle power
  • Increased table load capacity
  • 4th axis rotary table and interface
  • 5th axis rotary table
