Gemini Series

Category Machining Centre

Twin Spindle Vertical Machining Centre

The Ace Micromatic Gemini Series are twin spindle vertical machining centres purpose-built for high-volume automotive and component production. With two spindles machining two identical parts simultaneously, the Gemini Series delivers nearly double the productivity of a comparable single spindle machine — on a footprint only marginally larger, and operable by a single operator or single robot. Spanning from the compact BT-30 Mini models through to the heavy-duty BT-50 Gemini Max, this series is proven in high-volume automotive production environments worldwide.

Video

Highlights

Made In India

Made with exceptional attention-to-detail by one of the most innovative machine-tool manufacturers in the world

Double Productivity, Same Footprint

Two spindles machine two identical parts at the same time, delivering approximately 42% reduction in cycle time and 35% reduction in cost per component

High-Rigidity Twin Spindle System

All spindles feature quadruplex back-to-back angular contact bearings, optimally preloaded and grease lubricated

Precision Across Both Spindles

Positioning accuracy of 0.010 mm and repeatability of ±0.003 mm (ISO 230-2) is maintained across both spindles simultaneously

Single Operator or Robot Ready

The twin spindle configuration is designed to be run by a single operator or integrated with a single robot for fully unmanned operation

Feature Summary

The Gemini Series solves one of the most common challenges in high-volume component manufacturing: how to double output without doubling floor space, labour, or machine investment. By housing two precisely assembled spindles within a single rigid structure, the Gemini machines machine two identical parts per cycle — cutting cost per component and cycle time significantly.

The Case for Twin Spindle
Rising infrastructure and labour costs have pushed machine tool users to extract maximum value from every square metre of floor space. The Gemini machines were developed in direct response to this challenge. Their productivity is nearly double that of a single spindle machine with equivalent specifications, they occupy less floor space than two equivalent standalone machines side by side, and they can be operated by a single operator or a single robot. The Gemini Series has gained strong traction in the auto-component manufacturing industry due to its suitability for high-volume production and structural rigidity.
High-Rigidity Twin Spindle Technology
AMS Gemini machines are equipped with high-rigidity, high-speed spindles using quadruplex back-to-back angular contact bearings, optimally preloaded and grease lubricated for life. All spindles are dynamically balanced to perform better under sustained high-speed operation. Spindle interfaces include BT-30, BT-40, and BT-50 as standard, with HSK A63 and HSK A100 tapered spindle options available.
BBT-30 Dual Contact Interface

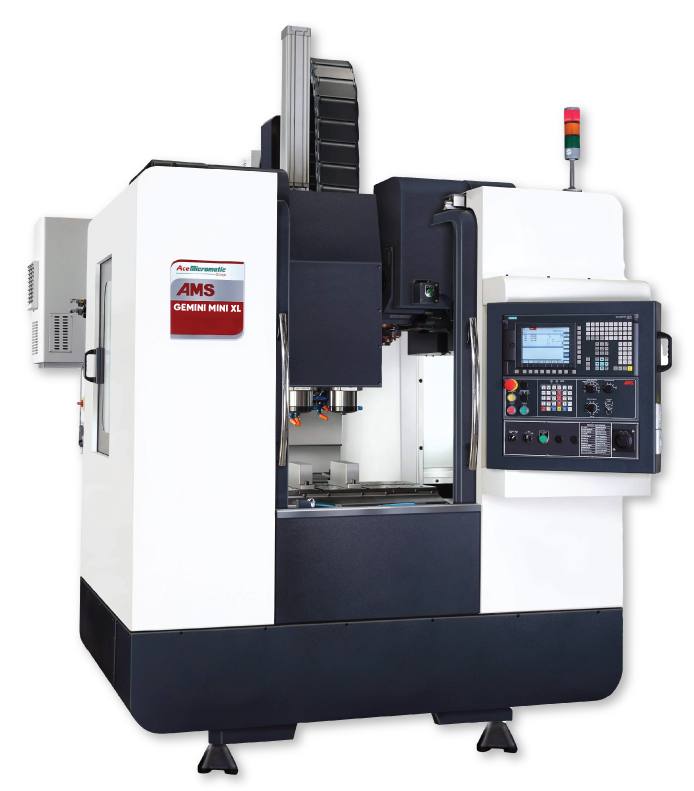

The Gemini Mini series is available with the BBT-30 spindle system. BBT provides dual contact between the spindle face and the flange face of the toolholder — maximising rigidity and clamping pressure. This reduces run-out, extends tool life, and delivers meaningful improvements in accuracy and cutting capability compared to standard BT toolholders.
Automatic Tool Changer
All Gemini models are fitted with 20-tool (per spindle) side-mounted twin arm ATCs as standard — providing 40 tools in total for both spindles. Fast chip-to-chip times of 3.9 seconds on Mini models through to 6 seconds on the Gemini Max keep cycle times tight across demanding production schedules.
Automatic Pallet Changer Option
A rotary pallet changer is available on select Gemini models. This allows machining to continue on one pallet while an operator loads and clamps workpieces on the other, dramatically reducing non-productive time and further improving machine utilisation.
Coolant System
Through-spindle coolant increases tool life, allows higher cutting speeds, and clears chips during deep hole drilling. Two coolant systems are available: a Grundfos Pump system at 21 bar and a Wanner Pump system at 50 bar. All models include a large-capacity chip tray for reliable, low-maintenance chip management.
Quality Inspection
All Gemini machines are laser calibrated and ball bar tested to the highest accuracy standards. Every machine is subject to heavy cut and NAS testing before shipment, combined with parameter adjustment to guarantee the best possible cutting quality in service.
Industry Applications
The Gemini Series is especially suited to the automotive industry for high-volume component production, including engine covers, valve bodies, brackets, housings, and transmission components. It is also applicable to general engineering and energy generation applications that require consistent, repeatable, high-throughput machining.

Specifications

Specifications Units GEMINI MINI S GEMINI MINI XL GEMINI Jr.|Jr.XL GEMINI XL GEMINI MAX
Travels
X axis mm 400 600 500 600 750
Y axis mm 400 450 450 450 500
Z axis mm 500 600 600 600 600
Dist. from Spindle face to Table top mm 190 – 690 190 – 690 125 – 725 145 – 745 285 – 885
Table
Table size mm 800 x 400 1200 x 480 900 x 450 1200 x 480 1400 x 520
Max. load on Table mm 350 400/500 500 500 1000
Table Height from floor mm 960 960 975 985 985
T-slot dimension (n x w x p) mm 4 x 18 x 100 4 x 18 x 100 5 x 18 x 100 5 x 18 x 100 5 x 18 x 100
Spindle
Tool shank type BT-30|BBT-30 BT-30|BBT-30 BT-40|HSK A63 BT-40|HSK A63 BT-50|HSK A100
Spindle speed rpm 8000 8000 10000 8000 4000
rpm Upto 10000 Upto 10000 Upto 12000 Upto 12000 Upto 5000
Spindle power kW 5.5 (2) 7.5 / 5.5 (2) 7.5/5.2(2)|11/7.5(2) 11 / 7.5 (2) 26 / 22 (2)
Distance b/w 2 spindles mm 250 500 250 400 / 460 400 / 550
Feed
Cutting feed mm/min 1 – 10000 1 – 10000 1 – 10000 1 – 10000 1 – 10000
Rapid traverse m/min 48 / 48 / 40 50 / 40 / 40 24/24/24|50/50/50 50 / 50 / 40 40 / 40 / 40
Automatic Tool Changer
No. of tools 20 (2) 20 (2) 24 (2) 20 (2) 20 (2)
Tool diameter max. mm 63 / 80 80 / 155 80 / 155 80 / 155 125 / 250
Tool weight Max. kg 3 8 8 8 15
Tool length Max. mm 200 250 250 250 350
Tool change system Twin Arm Twin Arm Twin Arm Twin Arm Twin Arm
Pull Stud Type MAS – 403 MAS – 403 MAS – 403 MAS – 403 MAS – 403
Accuracy (As per ISO 230-2)
Positioning accuracy mm 0.010 0.010 0.010 0.010 0.010
Repeatability mm ±0.003 ±0.003 ±0.003 ±0.003 ±0.003
Control System Fanuc
Installation Data
Machine weight – Net kgf 5200 9000 6000 7500 10500
Machine Width mm 2000 3000 2000 2300 3000
Depth mm 2950 3500 3100 3600 4200
Height mm 3100 2700 3450 3450 3800

Standard Inclusions

  • Twin spindle configuration
  • BT-30 spindle taper (Mini Series); BT-40 (Jr., Jr. XL, XL, 460); BT-50 (Max)
  • 20-tool twin arm ATC per spindle (40 tools total)
  • Rigid tapping
  • Three-tier indication lamp
  • Work light
  • Full guarding
  • Flood coolant and chip flushing system
  • Coolant tank and chip tray
  • Panel cooler for electrical cabinet
  • Laser calibration and ball bar test
  • NAS cutting test before shipment
  • Fanuc OiMF+ controller
  • Fanuc OiMATE MD controller (Mini)
  • Operation manual

Optional Extras

  • BBT-30 dual-contact spindle interface (Mini Series)
  • HSK A63 spindle interface (Jr. XL, XL, 460)
  • HSK A100 spindle interface (Gemini Max)
  • Higher spindle speed
  • Higher spindle power
  • Through-spindle coolant system (21 bar or 50 bar)
  • Increased daylight area
  • Chip conveyor
  • CNC rotary table
  • Rotary automatic pallet changer
  • Power backup system
  • TPM friendly features
  • Tooled-up solutions (fixture design, tooling selection, component prove-out)
  • Automation integration (semi-automated or fully automated)
